UR003G
UR003G

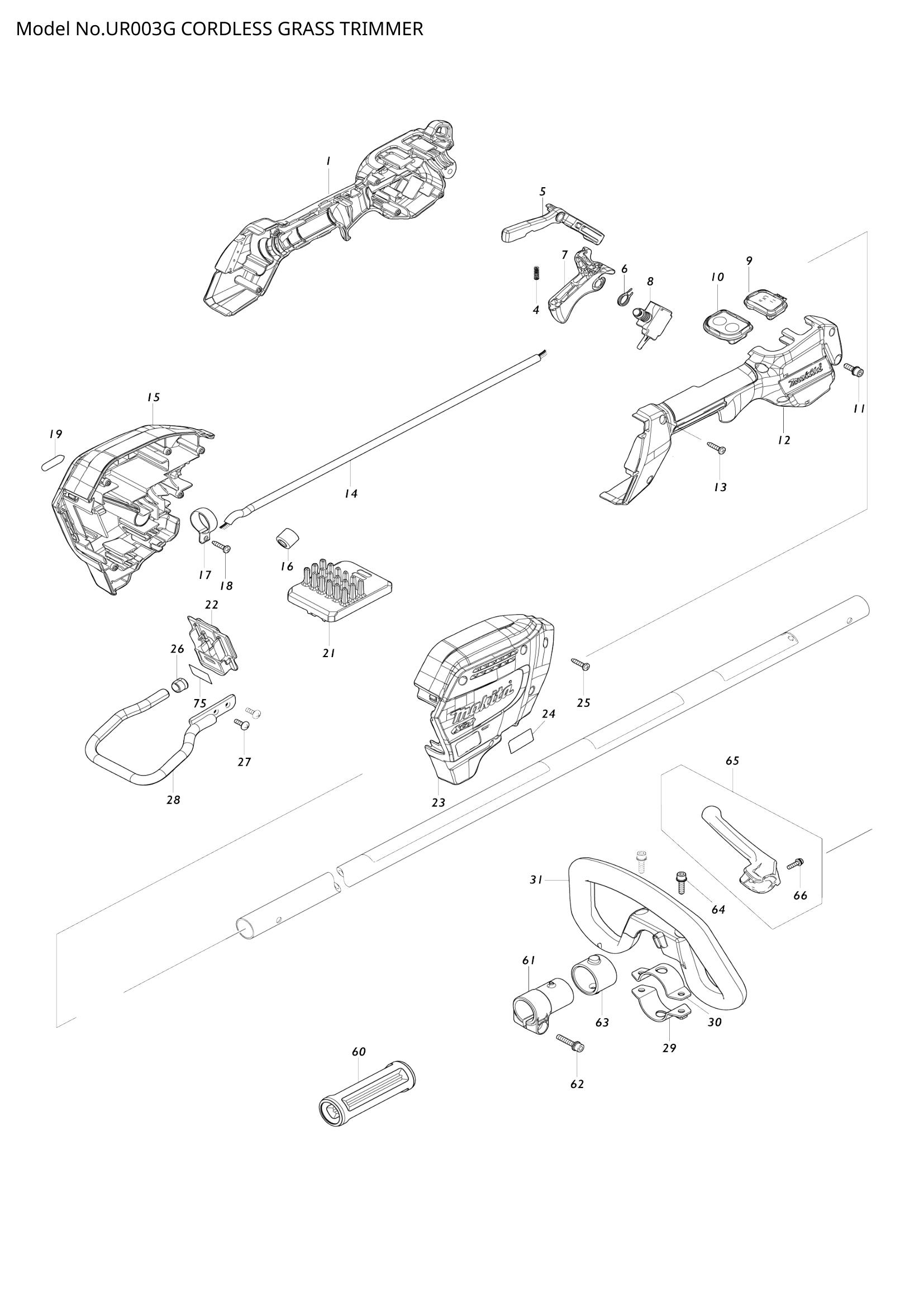

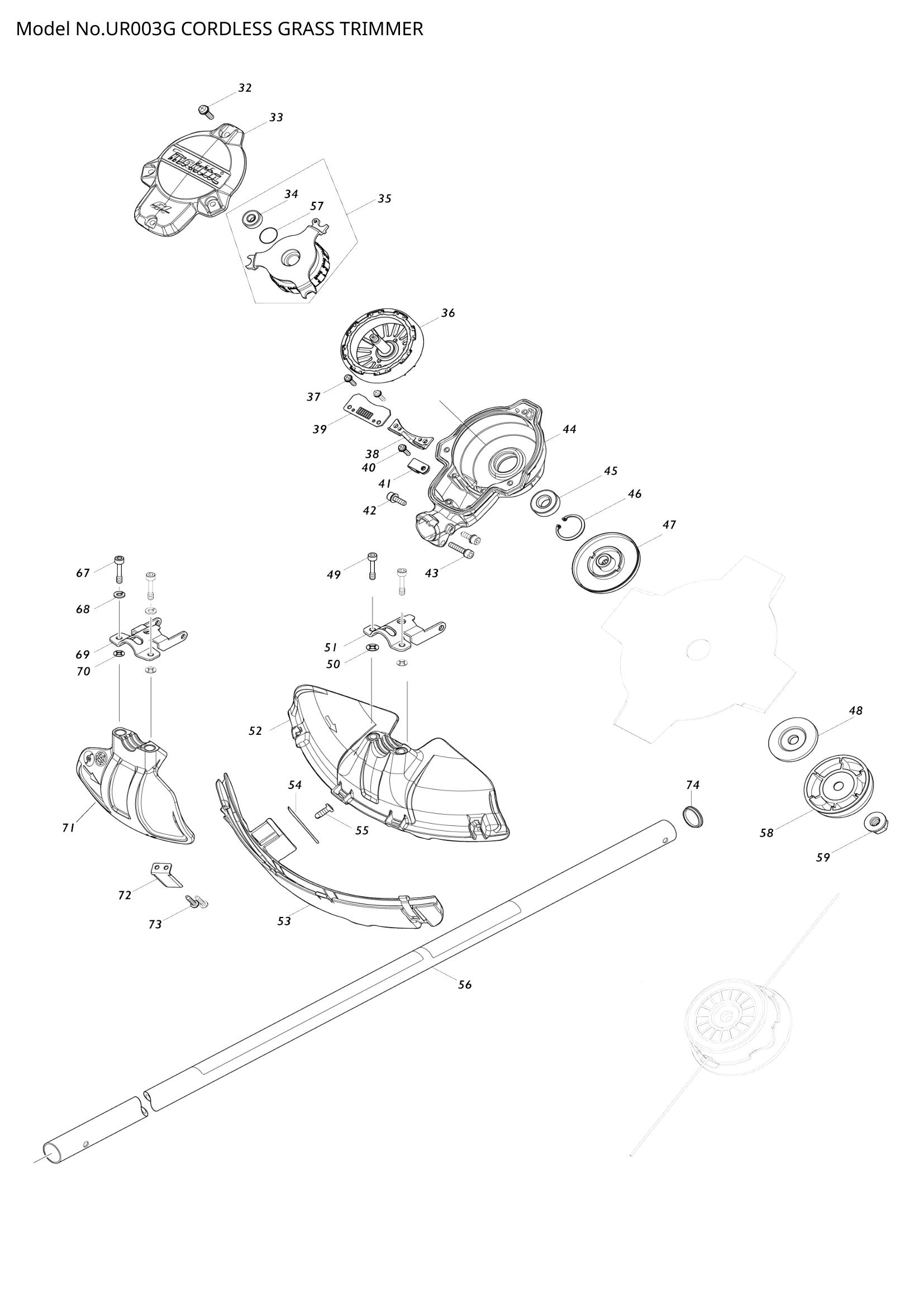

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | GRIP SET | 1 | Not available in store | |||
| GRIP SET | 1 | Not available in store | ||||
| 004 | 233101-1 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233101-1 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 005 | LOCK OFF LEVER | 1 | Not available in store | |||
| LOCK OFF LEVER | 1 | Not available in store | ||||
| 006 | TORSION SPRING 12 | 1 | Not available in store | |||
| TORSION SPRING 12 | 1 | Not available in store | ||||
| 007 | SWITCH LEVER | 1 | Not available in store | |||
| SWITCH LEVER | 1 | Not available in store | ||||
| 008 | SWITCH C3JR-1A-PAXD3 | 1 | Not available in store | |||
| SWITCH C3JR-1A-PAXD3 | 1 | Not available in store | ||||
| 009 | INDICATION CIRCUIT COMPLETE | 1 | Not available in store | |||
| INDICATION CIRCUIT COMPLETE | 1 | Not available in store | ||||
| 010 | SWITCH CIRCUIT COMPLETE G | 1 | Not available in store | |||
| SWITCH CIRCUIT COMPLETE G | 1 | Not available in store | ||||
| 011 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 012 | GRIP SET | 1 | Not available in store | |||
| GRIP SET | 1 | Not available in store | ||||
| 013 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 015 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 016 | 688163-8 | LINE FILTER | 1 | €0.83 | 1-4 weeks to ship | |
| 688163-8 | LINE FILTER | 1 | €0.83 | 1-4 weeks to ship | ||
| 017 | 346248-3 | CLAMP 24 | 1 | €0.83 | 1-4 weeks to ship | |
| 346248-3 | CLAMP 24 | 1 | €0.83 | 1-4 weeks to ship | ||
| 018 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | XGT LOGO LABEL | 1 | Not available in store | |||
| XGT LOGO LABEL | 1 | Not available in store | ||||
| 022 | 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | |
| 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | ||
| 023 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 024 | UR003G NAME PLATE | 1 | Not available in store | |||
| UR003G NAME PLATE | 1 | Not available in store | ||||
| 025 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | ||
| 026 | CAP | 1 | Not available in store | |||
| CAP | 1 | Not available in store | ||||
| 027 | 266420-0 | TAPPING SCREW 5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 266420-0 | TAPPING SCREW 5X20 | 2 | €0.56 | 1-4 weeks to ship | ||
| 028 | BATTERY GUARD | 1 | Not available in store | |||
| BATTERY GUARD | 1 | Not available in store | ||||
| 029 | 347114-7 | LOWER CLAMP 35 | 1 | €1.35 | 1-4 weeks to ship | |
| 347114-7 | LOWER CLAMP 35 | 1 | €1.35 | 1-4 weeks to ship | ||
| 030 | 347113-9 | UPPER CLAMP 35 | 1 | €0.81 | 1-4 weeks to ship | |
| 347113-9 | UPPER CLAMP 35 | 1 | €0.81 | 1-4 weeks to ship | ||
| 031 | LOOP HANDLE | 1 | Not available in store | |||
| LOOP HANDLE | 1 | Not available in store | ||||
| 032 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | ||
| 033 | TOP COVER | 1 | Not available in store | |||
| TOP COVER | 1 | Not available in store | ||||
| 034 | 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | ||
| 036 | 619462-7 | ROTOR | 1 | €82.10 | 1-4 weeks to ship | |
| 619462-7 | ROTOR | 1 | €82.10 | 1-4 weeks to ship | ||
| 037 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 038 | 455628-3 | INNER COVER | 1 | €1.25 | 1-4 weeks to ship | |
| 455628-3 | INNER COVER | 1 | €1.25 | 1-4 weeks to ship | ||
| 455628-3 | INNER COVER | 1 | €1.25 | 1-4 weeks to ship | ||
| 455628-3 | INNER COVER | 1 | €1.25 | 1-4 weeks to ship | ||
| 040 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | 687042-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687042-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | 922223-9 | H.S.H.BOLT M5X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 922223-9 | H.S.H.BOLT M5X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 043 | 922241-7 | HEX. SOCKET HEAD BOLT M5X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 922241-7 | HEX. SOCKET HEAD BOLT M5X25 | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | MOTOR HOUSING COMPLETE | 1 | Not available in store | |||
| MOTOR HOUSING COMPLETE | 1 | Not available in store | ||||
| 045 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | ||
| 046 | 962106-1 | RETAINING RING R-28 | 1 | €0.56 | 1-4 weeks to ship | |
| 962106-1 | RETAINING RING R-28 | 1 | €0.56 | 1-4 weeks to ship | ||
| 047 | RECEIVE WASHER COMPLETE G | 1 | Not available in store | |||
| RECEIVE WASHER COMPLETE G | 1 | Not available in store | ||||
| 048 | 346084-7 | CLAMP WASHER | 1 | €1.39 | 1-4 weeks to ship | |
| 346084-7 | CLAMP WASHER | 1 | €1.39 | 1-4 weeks to ship | ||
| 049 | 266896-1 | HEX. SOCKET HEAD BOLT M5X20 | 2 | €7.10 | 1-4 weeks to ship | |
| 266896-1 | HEX. SOCKET HEAD BOLT M5X20 | 2 | €7.10 | 1-4 weeks to ship | ||
| 050 | 261156-6 | POLYPROPYLENE WASHER 4 | 2 | €0.97 | 1-4 weeks to ship | |
| 261156-6 | POLYPROPYLENE WASHER 4 | 2 | €0.97 | 1-4 weeks to ship | ||
| 051 | 346785-7 | PROTECTOR CLAMP | 1 | €2.78 | 1-4 weeks to ship | |
| 346785-7 | PROTECTOR CLAMP | 1 | €2.78 | 1-4 weeks to ship | ||
| 052 | PROTECTOR | 1 | Not available in store | |||
| PROTECTOR | 1 | Not available in store | ||||
| 053 | PROTECTOR U EXT. 350 COMPLE | 1 | Not available in store | |||
| PROTECTOR U EXT. 350 COMPLE | 1 | Not available in store | ||||
| 054 | 347115-5 | CUTTER | 1 | €1.81 | 1-4 weeks to ship | |
| 347115-5 | CUTTER | 1 | €1.81 | 1-4 weeks to ship | ||
| 055 | 266388-0 | TAPPING SCREW 5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 266388-0 | TAPPING SCREW 5X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 056 | PIPE COMPLETE O | 1 | Not available in store | |||
| PIPE COMPLETE O | 1 | Not available in store | ||||
| 057 | 213325-5 | O RING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 213325-5 | O RING 19 | 1 | €0.56 | 1-4 weeks to ship | ||
| 058 | 168526-9 | CUP | 1 | €4.17 | 1-4 weeks to ship | |
| 168526-9 | CUP | 1 | €4.17 | 1-4 weeks to ship | ||
| 059 | 264025-0 | HEX. NUT M10-17 | 1 | €2.78 | 1-4 weeks to ship | |
| 264025-0 | HEX. NUT M10-17 | 1 | €2.78 | 1-4 weeks to ship | ||
| 060 | 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | |
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 061 | 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | |
| 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | ||
| 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | ||
| 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | ||
| 062 | 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | €1.39 | 1-4 weeks to ship | |
| 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | €1.39 | 1-4 weeks to ship | ||
| 063 | 424942-8 | DAMPER | 1 | €1.31 | 1-4 weeks to ship | |
| 424942-8 | DAMPER | 1 | €1.31 | 1-4 weeks to ship | ||
| 064 | H.S.H.BOLT M5X20 WITH WG | 2 | Not available in store | |||
| H.S.H.BOLT M5X20 WITH WG | 2 | Not available in store | ||||
| 065 | 144315-6 | BARRIER COMPLETE | 1 | €3.92 | 1-4 weeks to ship | |
| 144315-6 | BARRIER COMPLETE | 1 | €3.92 | 1-4 weeks to ship | ||
| 066 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 074 | RUBBER CAP 24 | 1 | Not available in store | |||
| RUBBER CAP 24 | 1 | Not available in store | ||||
| 075 | UR003G SERIAL NO. LABEL | 1 | Not available in store | |||
| UR003G SERIAL NO. LABEL | 1 | Not available in store | ||||
