UP100D
UP100D

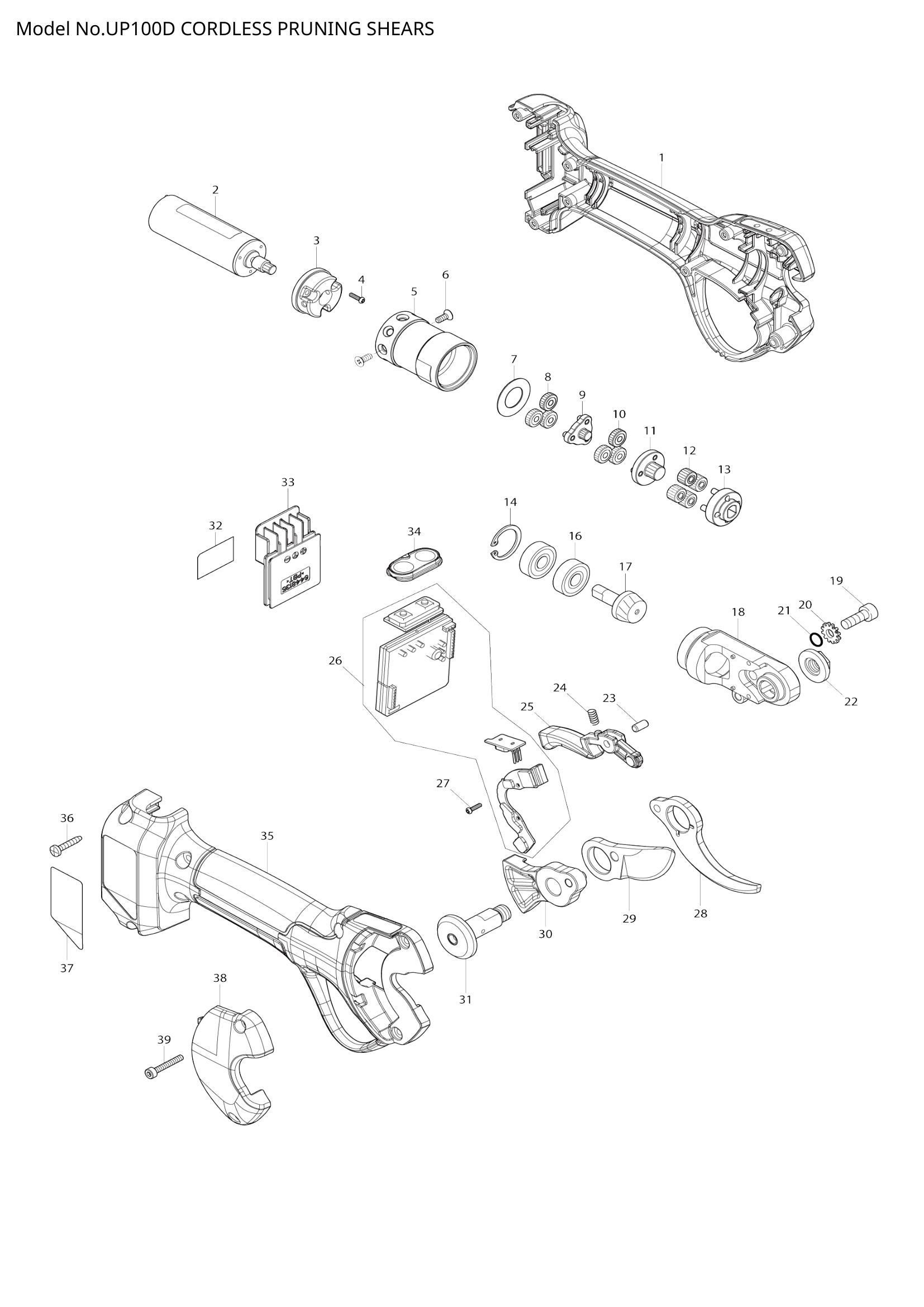

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HOUSING SET | 1 | Not available in store | |||
| 002 | DC MOTOR | 1 | Not available in store | |||
| 003 | MOTOR HOLDER | 1 | Not available in store | |||
| 004 | PAN HEAD SCREW M2X8 | 3 | Not available in store | |||
| 005 | INTERNAL GEAR 43 | 1 | Not available in store | |||
| 006 | C.H.SCREW M3X8 | 2 | Not available in store | |||
| 007 | 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | SPUR GEAR 17 | 3 | Not available in store | |||
| 009 | SPUR GEAR 8 B COMPLETE | 1 | Not available in store | |||
| 010 | SPUR GEAR 17 | 3 | Not available in store | |||
| 011 | SPUR GEAR 13 COMPLETE | 1 | Not available in store | |||
| 012 | SPUR GEAR 14 | 4 | Not available in store | |||
| 013 | SUPPORTER COMPLETE | 1 | Not available in store | |||
| 014 | RETAINING RING (INT) R-19 | 1 | Not available in store | |||
| 016 | 210017-7 | BALL BEARING 607DDW | 2 | €2.78 | 1-4 weeks to ship | |
| 017 | ZEROL BEVEL GEAR 9 | 1 | Not available in store | |||
| 018 | GEAR HOUSING | 1 | Not available in store | |||
| 019 | 922217-4 | HEX. SOCKET HEAD BOLT M5X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | LOCK PLATE | 1 | Not available in store | |||
| 021 | 213021-5 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | HEX. NUT M8 | 1 | Not available in store | |||
| 023 | 256251-5 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 233033-2 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | TRIGGER COMPLETE | 1 | Not available in store | |||
| 027 | PAN HEAD SCREW M2X8 | 2 | Not available in store | |||
| 028 | SHEAR BLADE L SET | 1 | Not available in store | |||
| 029 | SHEAR BLADE U SET | 1 | Not available in store | |||
| 030 | BLADE HOLDER COMPLETE | 1 | Not available in store | |||
| 031 | SHOULDER SCREW M8 COMPLET | 1 | Not available in store | |||
| 032 | UP100D SERIAL NO. LABEL | 1 | Not available in store | |||
| 033 | 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | |
| 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | ||
| 034 | SWITCH PLATE COMPLETE | 1 | Not available in store | |||
| 035 | HOUSING SET | 1 | Not available in store | |||
| 036 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 6 | €0.56 | 1-4 weeks to ship | |
| 037 | UP100D NAME PLATE | 1 | Not available in store | |||
| 039 | HEX SOCKET HEAD BOLT M3X20 | 2 | Not available in store | |||
