UN001G
UN001G

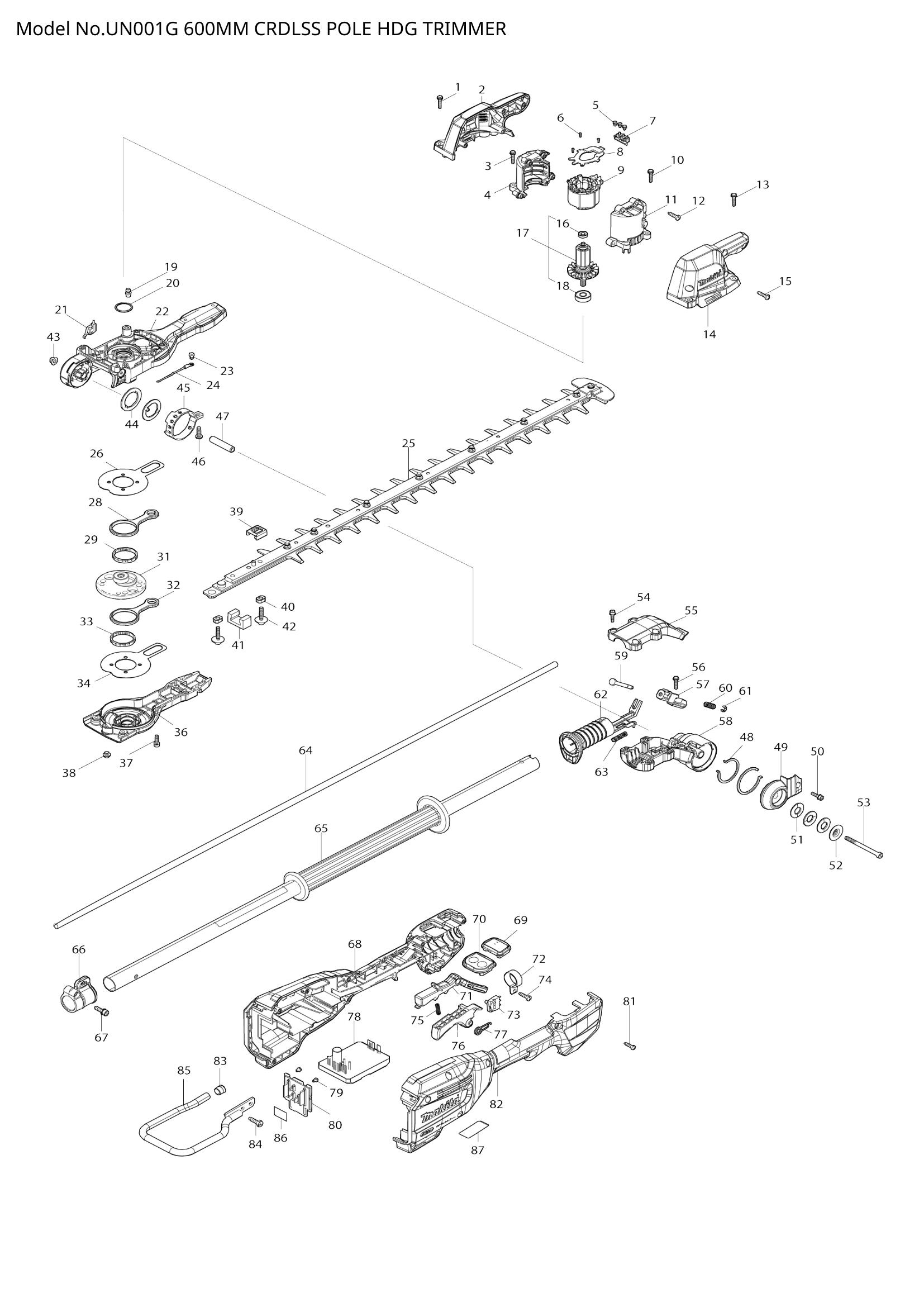

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 002 | HOUSING SET | 1 | Not available in store | |||
| 003 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 004 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 005 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 006 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 007 | LEAD UNIT | 1 | Not available in store | |||
| 008 | CONTROLLER B | 1 | Not available in store | |||
| 009 | STATOR | 1 | Not available in store | |||
| 010 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 011 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 012 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 013 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 014 | HOUSING SET | 1 | Not available in store | |||
| 015 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 016 | BALL BEARING 695ZZ | 1 | Not available in store | |||
| 017 | ROTOR ASSEMBLY | 1 | Not available in store | |||
| 018 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 019 | 243107-1 | GREASE NIPPLE | 1 | €1.53 | 1-4 weeks to ship | |
| 020 | 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | SWITCH UNIT | 1 | Not available in store | |||
| 022 | GEAR HOUSING ASS'Y | 1 | Not available in store | |||
| 023 | 652014-1 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | LEAD UNIT | 1 | Not available in store | |||
| 025 | SHEAR BLADE 600R SET | 1 | Not available in store | |||
| 026 | 347361-0 | FRICTION PLATE | 1 | €0.70 | 1-4 weeks to ship | |
| 028 | CONNECTING ROD | 1 | Not available in store | |||
| 029 | NEEDLE CAGE 315 | 1 | Not available in store | |||
| 031 | HELICAL GEAR ASS'Y | 1 | Not available in store | |||
| 032 | CONNECTING ROD | 1 | Not available in store | |||
| 033 | NEEDLE CAGE 315 | 1 | Not available in store | |||
| 034 | 347361-0 | FRICTION PLATE | 1 | €0.70 | 1-4 weeks to ship | |
| 036 | GEAR HOUSING COVER ASS'Y | 1 | Not available in store | |||
| 037 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 6 | €0.56 | 1-4 weeks to ship | |
| 038 | H.S.BUTTON HEAD BOLT M6X4 | 1 | Not available in store | |||
| 039 | DUST SEAL | 1 | Not available in store | |||
| 040 | SLEEVE 5 | 2 | Not available in store | |||
| 041 | 443159-4 | SEAL | 1 | €5.57 | 1-4 weeks to ship | |
| 042 | H.S.H.BOLT M5X25 WITH WR | 2 | Not available in store | |||
| 043 | COLLARED HEX.LOCK NUT M5-8 | 1 | Not available in store | |||
| 044 | LOCK WASHER 27 | 2 | Not available in store | |||
| 045 | ANGULAR HOLDER | 1 | Not available in store | |||
| 046 | 265487-5 | H.S. BUTTON HEAD BOLT M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | SLEEVE 6 | 1 | Not available in store | |||
| 048 | LOCK WASHER 39 | 2 | Not available in store | |||
| 049 | SIDE COVER | 1 | Not available in store | |||
| 050 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | CONED DISK SPRING 12 | 3 | Not available in store | |||
| 052 | DISK WASHER 5 | 1 | Not available in store | |||
| 053 | HEX. SOCKET HEAD BOLT M5X65 | 1 | Not available in store | |||
| 054 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 5 | €0.56 | 1-4 weeks to ship | |
| 055 | PIPE HOLDER COVER 24 | 1 | Not available in store | |||
| 056 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | STOPPER PIN HOLDER | 1 | Not available in store | |||
| 058 | PIPE HOLDER 24 | 1 | Not available in store | |||
| 059 | STOPPER PIN | 1 | Not available in store | |||
| 060 | 231294-8 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | SLIDE GRIP 24 | 1 | Not available in store | |||
| 063 | 232299-1 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | LEAD UNIT | 1 | Not available in store | |||
| 065 | PIPE 24 COMPLETE | 1 | Not available in store | |||
| 066 | 168478-4 | HANGER | 1 | €4.17 | 1-4 weeks to ship | |
| 067 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | GRIP HOUSING SET | 1 | Not available in store | |||
| 069 | INDICATION CIRCUIT COMPLETE | 1 | Not available in store | |||
| 070 | SWITCH CIRCUIT COMPLETE | 1 | Not available in store | |||
| 071 | LOCK OFF LEVER COMPLETE | 1 | Not available in store | |||
| 072 | 346248-3 | CLAMP 24 | 1 | €0.83 | 1-4 weeks to ship | |
| 073 | SWITCH UNIT | 1 | Not available in store | |||
| 074 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 233101-1 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 076 | SWITCH LEVER | 1 | Not available in store | |||
| 077 | 233612-6 | TORSION SPRING 10 | 1 | €1.39 | 1-4 weeks to ship | |
| 078 | CONTROLLER | 1 | Not available in store | |||
| 079 | PAN HEAD SCREW M3X6 | 2 | Not available in store | |||
| 080 | TERMINAL UNIT | 1 | Not available in store | |||
| 081 | 266326-2 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 082 | GRIP HOUSING SET | 1 | Not available in store | |||
| 083 | CAP | 1 | Not available in store | |||
| 084 | 266420-0 | TAPPING SCREW 5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 085 | BATTERY GUARD | 1 | Not available in store | |||
| 086 | UN001G SERIAL NO. LABEL | 1 | Not available in store | |||
| 087 | UN001G NAME PLATE | 1 | Not available in store | |||
