UH6580
UH6580

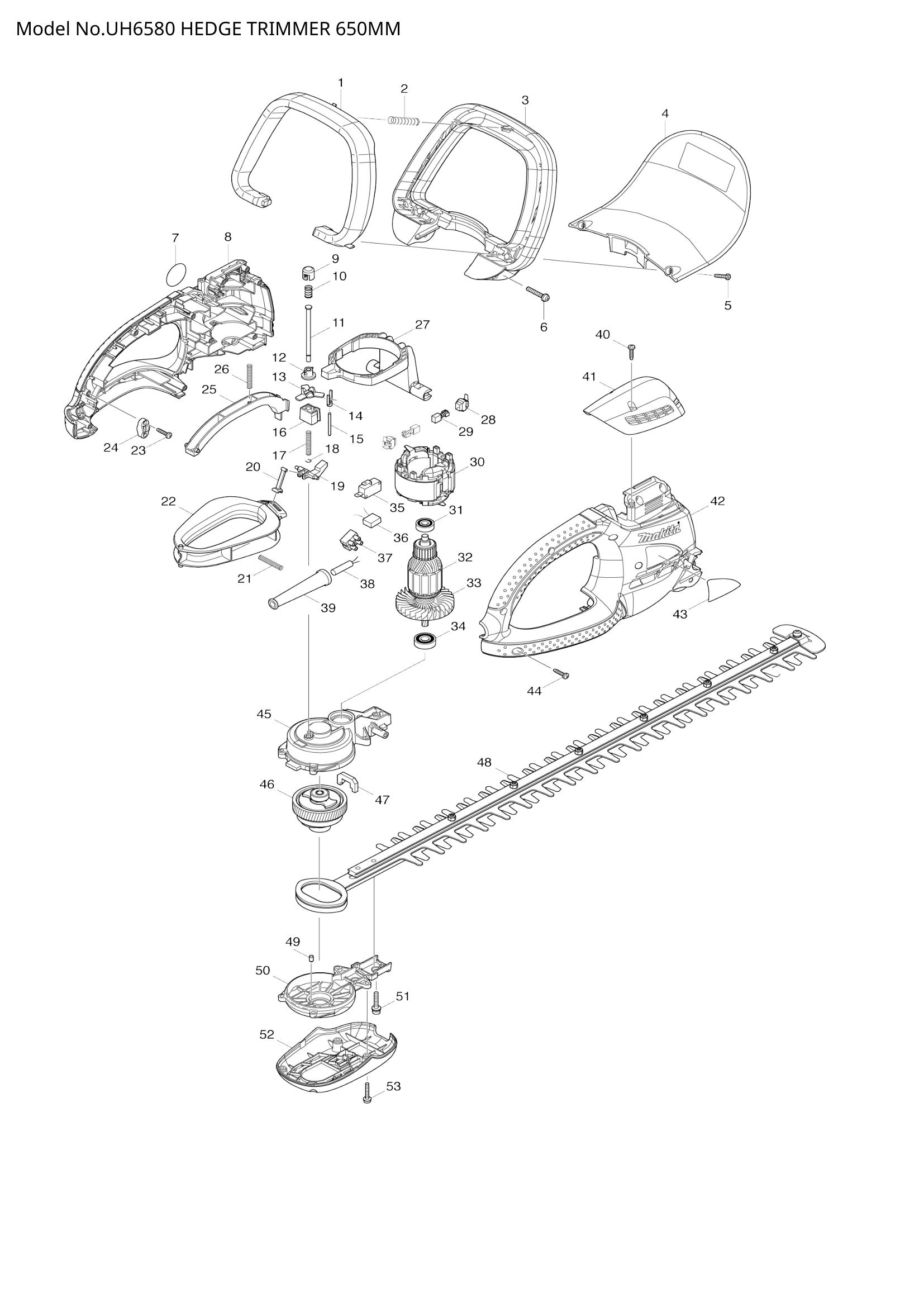

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 450444-8 | SWITCH LEVER B | 1 | €11.13 | 1-4 weeks to ship | |
| 002 | 233157-4 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 450442-2 | FRONT GRIP | 1 | €16.70 | 1-4 weeks to ship | |
| 005 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 006 | 911253-5 | PAN HEAD SCREW M5X30 | 2 | €0.56 | 1-4 weeks to ship | |
| 008 | 188569-5 | HOUSING SET | 1 | €44.53 | 1-4 weeks to ship | |
| 009 | 417740-7 | INSULATION CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 233288-9 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 268077-3 | PIN 5 | 1 | €8.35 | 1-4 weeks to ship | |
| 012 | 417727-9 | CAP HOLDER | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 417736-8 | LIFTER | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 417735-0 | PUSHER CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 268078-1 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 417781-3 | PIN HOLDER | 1 | €0.83 | 1-4 weeks to ship | |
| 017 | 233156-6 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 257934-0 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 417737-6 | LINK | 1 | €0.83 | 1-4 weeks to ship | |
| 020 | 417739-2 | ROD | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 233156-6 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 417731-8 | SWITCH LEVER C | 1 | €4.17 | 1-4 weeks to ship | |
| 023 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 024 | 687063-9 | CORD CLAMP | 1 | €1.11 | 1-4 weeks to ship | |
| 025 | 450443-0 | SWITCH LEVER A | 1 | €2.78 | 1-4 weeks to ship | |
| 026 | 233156-6 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 417738-4 | LEVER | 1 | €4.17 | 1-4 weeks to ship | |
| 028 | 643936-6 | BRUSH HOLDER | 2 | €2.78 | 1-4 weeks to ship | |
| 031 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 032 | 516499-4 | ARMATURE ASS'Y 220-240V | 1 | €44.53 | 1-4 weeks to ship | |
| 033 | 241858-0 | FAN 70 | 1 | €5.57 | 1-4 weeks to ship | |
| 034 | 211062-5 | BALL BEARING 6000ZZ | 1 | €2.78 | 1-4 weeks to ship | |
| 037 | 654531-7 | TERMINAL BLOCK 2P | 1 | €2.78 | 1-4 weeks to ship | |
| 038 | 666246-4 | POWER SUPPLY CORD 1.5-2-0.3 | 1 | €4.17 | 1-4 weeks to ship | |
| 666246-4 | POWER SUPPLY CORD 1.5-2-0.3 | 1 | €4.17 | 1-4 weeks to ship | ||
| 039 | 682503-2 | CORD GUARD 8-90 | 1 | €1.11 | 1-4 weeks to ship | |
| 040 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 041 | 450445-6 | TOP COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 042 | 188569-5 | HOUSING SET | 1 | €44.53 | 1-4 weeks to ship | |
| 043 | UH6580 NAME PLATE | 1 | Not available in store | |||
| 044 | 265995-6 | TAPPING SCREW 4X18 | 10 | €0.56 | 1-4 weeks to ship | |
| 045 | 318257-2 | GEAR HOUSING | 1 | €19.48 | 1-4 weeks to ship | |
| 046 | 135217-7 | GEAR ASS'Y | 1 | €139.15 | 1-4 weeks to ship | |
| 047 | 443142-1 | DUST GUARD | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 194673-0 | SHEAR BLADE ASS'Y SET | 1 | €125.24 | 1-4 weeks to ship | |
| 049 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 318265-3 | GEAR HOUSING COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 051 | 265182-7 | + PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 052 | 450440-6 | UNDER COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 053 | 911148-2 | PAN HEAD SCREW M4X25 | 4 | €0.56 | 1-4 weeks to ship | |
