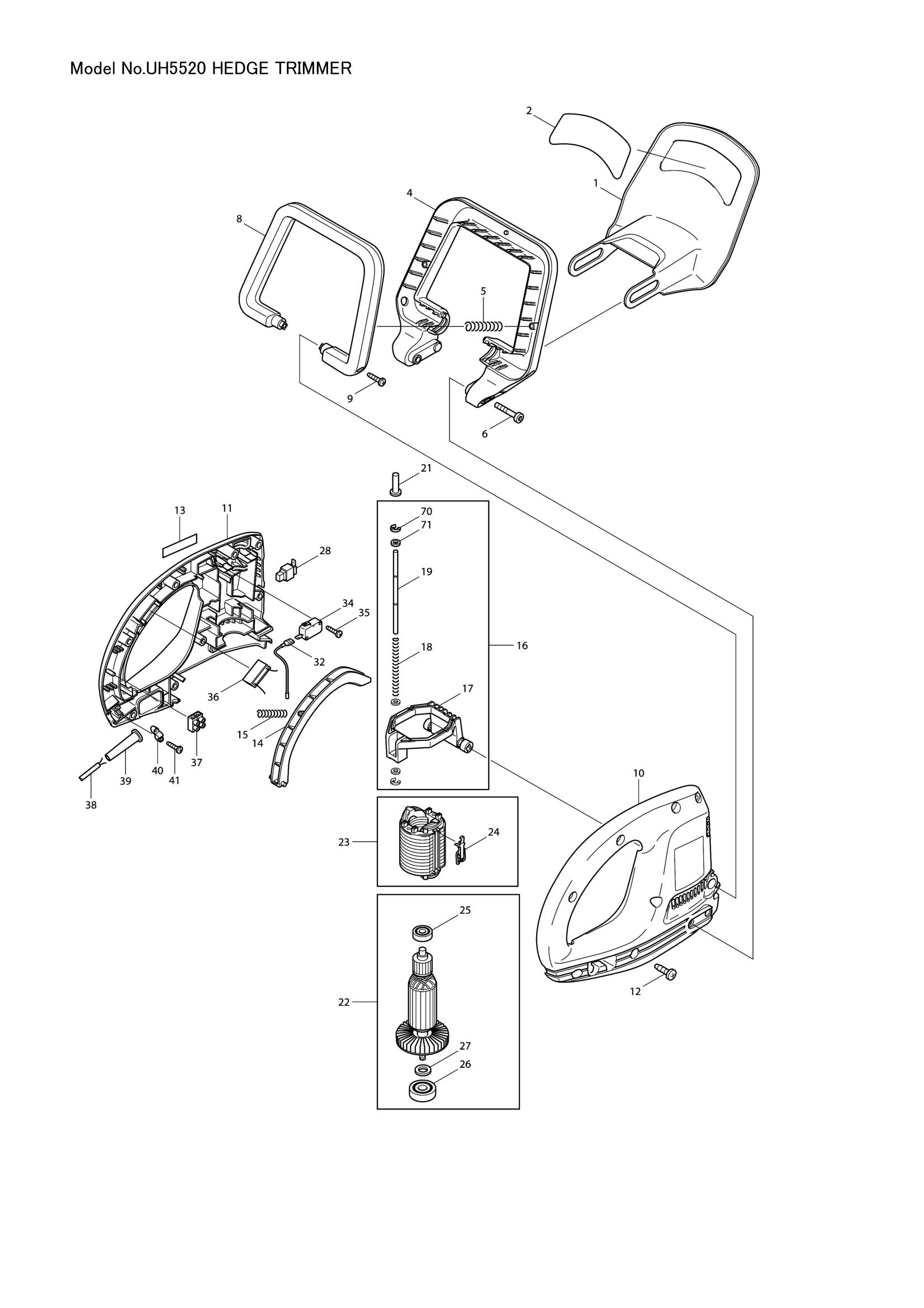

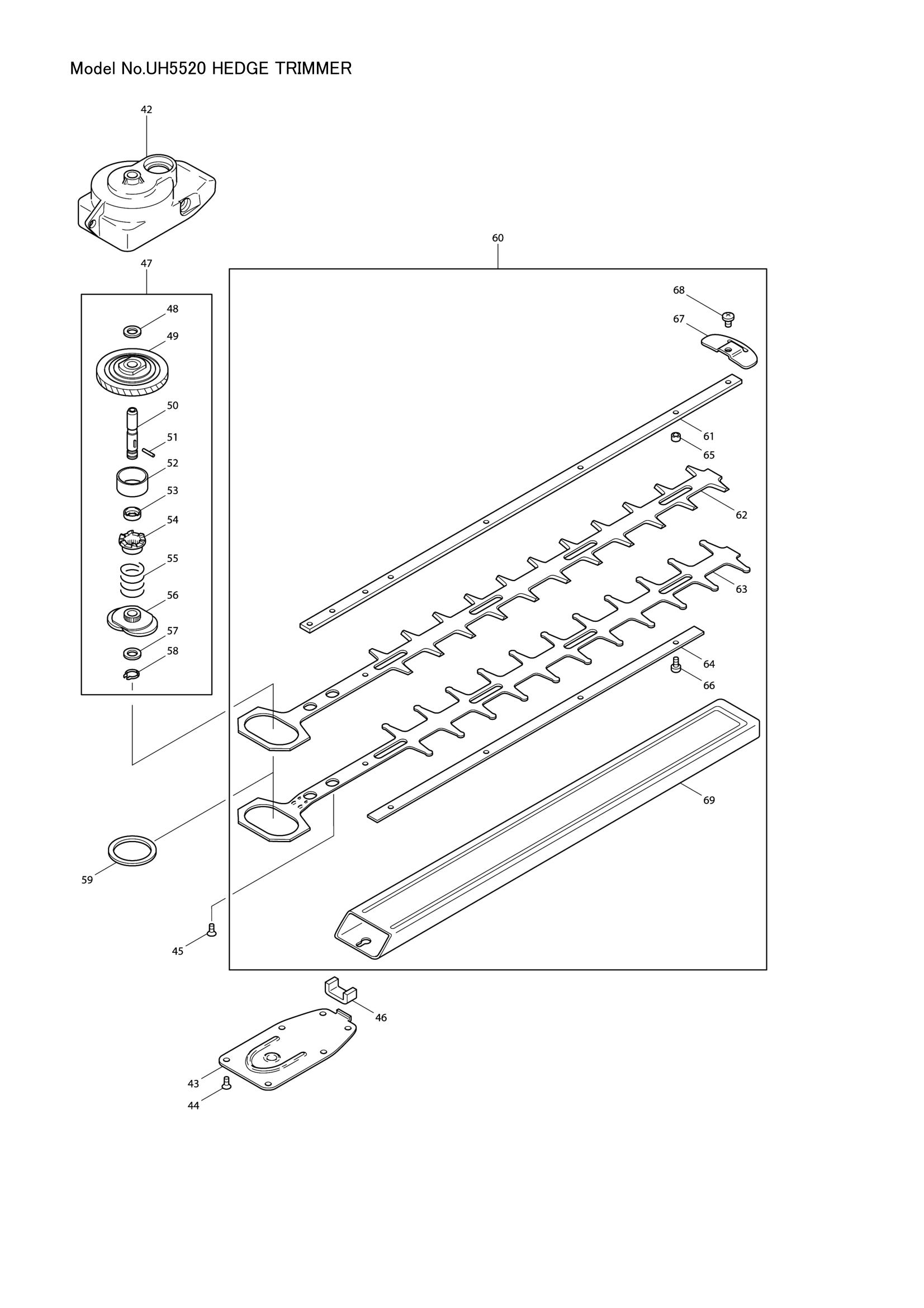

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 220213110 | HAND GUARD | 1 | €25.60 | 1-4 weeks to ship | |
| 220213110 | HAND GUARD | 1 | €25.60 | 1-4 weeks to ship | ||
| 002 | 980114292 | CAUTION LABEL | 1 | €4.45 | 1-4 weeks to ship | |
| 980114292 | CAUTION LABEL | 1 | €4.45 | 1-4 weeks to ship | ||
| 004 | 220310110 | TUBULAR HANDLE | 1 | €23.93 | 1-4 weeks to ship | |
| 220310110 | TUBULAR HANDLE | 1 | €23.93 | 1-4 weeks to ship | ||
| 005 | 220145110 | PRESSURE SPRING | 2 | €2.92 | 1-4 weeks to ship | |
| 220145110 | PRESSURE SPRING | 2 | €2.92 | 1-4 weeks to ship | ||
| 008 | 220144110 | FRONT GRIP SWITCH | 1 | €12.52 | 1-4 weeks to ship | |
| 220144110 | FRONT GRIP SWITCH | 1 | €12.52 | 1-4 weeks to ship | ||
| 010 | 220110611 | CASE CPL. | 1 | €65.12 | 1-4 weeks to ship | |
| 220110611 | CASE CPL. | 1 | €65.12 | 1-4 weeks to ship | ||
| 011 | 220110611 | CASE CPL. | 1 | €65.12 | 1-4 weeks to ship | |
| 220110611 | CASE CPL. | 1 | €65.12 | 1-4 weeks to ship | ||
| 014 | 220144120 | REAR GRIP SWITCH | 1 | €3.62 | 1-4 weeks to ship | |
| 220144120 | REAR GRIP SWITCH | 1 | €3.62 | 1-4 weeks to ship | ||
| 015 | 220145120 | PRESSURE SPRING | 1 | €4.45 | 1-4 weeks to ship | |
| 220145120 | PRESSURE SPRING | 1 | €4.45 | 1-4 weeks to ship | ||
| 016 | 220144300 | REPAIR KIT SWITCH FORK | 1 | €17.39 | 1-4 weeks to ship | |
| 220144300 | REPAIR KIT SWITCH FORK | 1 | €17.39 | 1-4 weeks to ship | ||
| 017 | 220144130 | SWITCH FORK | 1 | €18.09 | 1-4 weeks to ship | |
| 220144130 | SWITCH FORK | 1 | €18.09 | 1-4 weeks to ship | ||
| 018 | 220145130 | PRESSURE SPRING | 1 | €4.45 | 1-4 weeks to ship | |
| 220145130 | PRESSURE SPRING | 1 | €4.45 | 1-4 weeks to ship | ||
| 019 | 220144140 | SWITCH ROD | 1 | €1.25 | 1-4 weeks to ship | |
| 220144140 | SWITCH ROD | 1 | €1.25 | 1-4 weeks to ship | ||
| 021 | 220144150 | CUP | 1 | €0.42 | 1-4 weeks to ship | |
| 220144150 | CUP | 1 | €0.42 | 1-4 weeks to ship | ||
| 022 | 970800730 | ROTOR ASSY. 230V | 1 | €141.38 | 1-4 weeks to ship | |
| 970800730 | ROTOR ASSY. 230V | 1 | €141.38 | 1-4 weeks to ship | ||
| 023 | 970800830 | STATOR ASSY. 230V | 1 | €66.79 | 1-4 weeks to ship | |
| 970800830 | STATOR ASSY. 230V | 1 | €66.79 | 1-4 weeks to ship | ||
| 024 | 970800610 | CLAMP | 2 | €2.78 | 1-4 weeks to ship | |
| 970800610 | CLAMP | 2 | €2.78 | 1-4 weeks to ship | ||
| 026 | 960102104 | BALL BEARING | 1 | €38.68 | 1-4 weeks to ship | |
| 960102104 | BALL BEARING | 1 | €38.68 | 1-4 weeks to ship | ||
| 027 | WASHER 10/15.8X0.5 | 1 | Not available in store | |||
| WASHER 10/15.8X0.5 | 1 | Not available in store | ||||
| 028 | 957800410 | CARBON BRUSH CPL. | 2 | €11.13 | 1-4 weeks to ship | |
| 957800410 | CARBON BRUSH CPL. | 2 | €11.13 | 1-4 weeks to ship | ||
| 034 | 970001190 | SWITCH | 1 | €10.71 | 1-4 weeks to ship | |
| 970001190 | SWITCH | 1 | €10.71 | 1-4 weeks to ship | ||
| 035 | 914529194 | SCREW | 1 | €0.14 | 1-4 weeks to ship | |
| 914529194 | SCREW | 1 | €0.14 | 1-4 weeks to ship | ||
| 036 | 970109890 | CAPACITOR | 1 | €2.50 | 1-4 weeks to ship | |
| 970109890 | CAPACITOR | 1 | €2.50 | 1-4 weeks to ship | ||
| 038 | 970102110 | CABLE WITH PLUG | 1 | €19.48 | 1-4 weeks to ship | |
| 970102110 | CABLE WITH PLUG | 1 | €19.48 | 1-4 weeks to ship | ||
| 039 | 204152010 | CORD GUARD | 1 | €1.39 | 1-4 weeks to ship | |
| 204152010 | CORD GUARD | 1 | €1.39 | 1-4 weeks to ship | ||
| 040 | 203152050 | TRACTION RELIEF | 1 | €0.42 | 1-4 weeks to ship | |
| 203152050 | TRACTION RELIEF | 1 | €0.42 | 1-4 weeks to ship | ||
| 042 | 220211011 | GEAR HOUSING | 1 | €103.67 | 1-4 weeks to ship | |
| 220211011 | GEAR HOUSING | 1 | €103.67 | 1-4 weeks to ship | ||
| 043 | 220212110 | GEAR COVER | 1 | €6.96 | 1-4 weeks to ship | |
| 220212110 | GEAR COVER | 1 | €6.96 | 1-4 weeks to ship | ||
| 046 | 965404860 | GASKET | 1 | €0.28 | 1-4 weeks to ship | |
| 965404860 | GASKET | 1 | €0.28 | 1-4 weeks to ship | ||
| 047 | 220220011 | GEAR CPL. | 1 | €212.34 | 1-4 weeks to ship | |
| 220220011 | GEAR CPL. | 1 | €212.34 | 1-4 weeks to ship | ||
| 048 | 220229220 | WASHER 10.2/15.8X0.3 | 1 | €1.67 | 1-4 weeks to ship | |
| 220229220 | WASHER 10.2/15.8X0.3 | 1 | €1.67 | 1-4 weeks to ship | ||
| 049 | 220229011 | SLIP CLUTCH CPL. | 1 | €132.05 | 1-4 weeks to ship | |
| 220229011 | SLIP CLUTCH CPL. | 1 | €132.05 | 1-4 weeks to ship | ||
| 050 | 220229211 | BUSH | 1 | €16.28 | 1-4 weeks to ship | |
| 220229211 | BUSH | 1 | €16.28 | 1-4 weeks to ship | ||
| 051 | 220229230 | ACTIVATION PIN | 1 | €1.67 | 1-4 weeks to ship | |
| 220229230 | ACTIVATION PIN | 1 | €1.67 | 1-4 weeks to ship | ||
| 052 | 220229240 | DISTANGE PIECE | 1 | €1.67 | 1-4 weeks to ship | |
| 220229240 | DISTANGE PIECE | 1 | €1.67 | 1-4 weeks to ship | ||
| 053 | 220229250 | SPRING GUIDING HEAD | 1 | €1.67 | 1-4 weeks to ship | |
| 220229250 | SPRING GUIDING HEAD | 1 | €1.67 | 1-4 weeks to ship | ||
| 054 | CLAWCOUPLING | 1 | Not available in store | |||
| CLAWCOUPLING | 1 | Not available in store | ||||
| 055 | 220229150 | PRESSURE SPRING | 1 | €1.67 | 1-4 weeks to ship | |
| 220229150 | PRESSURE SPRING | 1 | €1.67 | 1-4 weeks to ship | ||
| 056 | 220229021 | ECCENTRIC CPL. | 1 | €59.42 | 1-4 weeks to ship | |
| 220229021 | ECCENTRIC CPL. | 1 | €59.42 | 1-4 weeks to ship | ||
| 057 | 220229220 | WASHER 10.2/15.8X0.3 | 1 | €1.67 | 1-4 weeks to ship | |
| 220229220 | WASHER 10.2/15.8X0.3 | 1 | €1.67 | 1-4 weeks to ship | ||
| 058 | 929110100 | SNAP RING | 1 | €0.14 | 1-4 weeks to ship | |
| 929110100 | SNAP RING | 1 | €0.14 | 1-4 weeks to ship | ||
| 059 | WASHER 40/54X1.4 | 1 | Not available in store | |||
| WASHER 40/54X1.4 | 1 | Not available in store | ||||
| 060 | 220230656 | SHEAR BLADE 55CM | 1 | €136.09 | 1-4 weeks to ship | |
| 220230656 | SHEAR BLADE 55CM | 1 | €136.09 | 1-4 weeks to ship | ||
| 061 | 220233121 | MOUNTING BAR 55CM | 1 | €35.62 | 1-4 weeks to ship | |
| 220233121 | MOUNTING BAR 55CM | 1 | €35.62 | 1-4 weeks to ship | ||
| 062 | 220233220 | SHEAR PLATE A 55CM | 1 | €131.50 | 1-4 weeks to ship | |
| 220233220 | SHEAR PLATE A 55CM | 1 | €131.50 | 1-4 weeks to ship | ||
| 063 | 220233320 | SHEAR PLATE B 55CM | 1 | €38.68 | 1-4 weeks to ship | |
| 220233320 | SHEAR PLATE B 55CM | 1 | €38.68 | 1-4 weeks to ship | ||
| 064 | BAR 55CM | 1 | Not available in store | |||
| BAR 55CM | 1 | Not available in store | ||||
| 065 | 220233150 | DISTANCE PIECE | 5 | €2.92 | 1-4 weeks to ship | |
| 220233150 | DISTANCE PIECE | 5 | €2.92 | 1-4 weeks to ship | ||
| 066 | 220233160 | SCREW M5X10 | 5 | €1.11 | 1-4 weeks to ship | |
| 220233160 | SCREW M5X10 | 5 | €1.11 | 1-4 weeks to ship | ||
| 067 | 220233170 | GUARD | 1 | €4.45 | 1-4 weeks to ship | |
| 220233170 | GUARD | 1 | €4.45 | 1-4 weeks to ship | ||
| 068 | 220233090 | SCREW M6X6 | 1 | €2.78 | 1-4 weeks to ship | |
| 220233090 | SCREW M6X6 | 1 | €2.78 | 1-4 weeks to ship | ||
| 070 | 927303200 | SAFETY WASHER | 2 | €1.11 | 1-4 weeks to ship | |
| 927303200 | SAFETY WASHER | 2 | €1.11 | 1-4 weeks to ship | ||
| 071 | WASHER | 3 | Not available in store | |||
| WASHER | 3 | Not available in store | ||||
