6903VD
6903VD

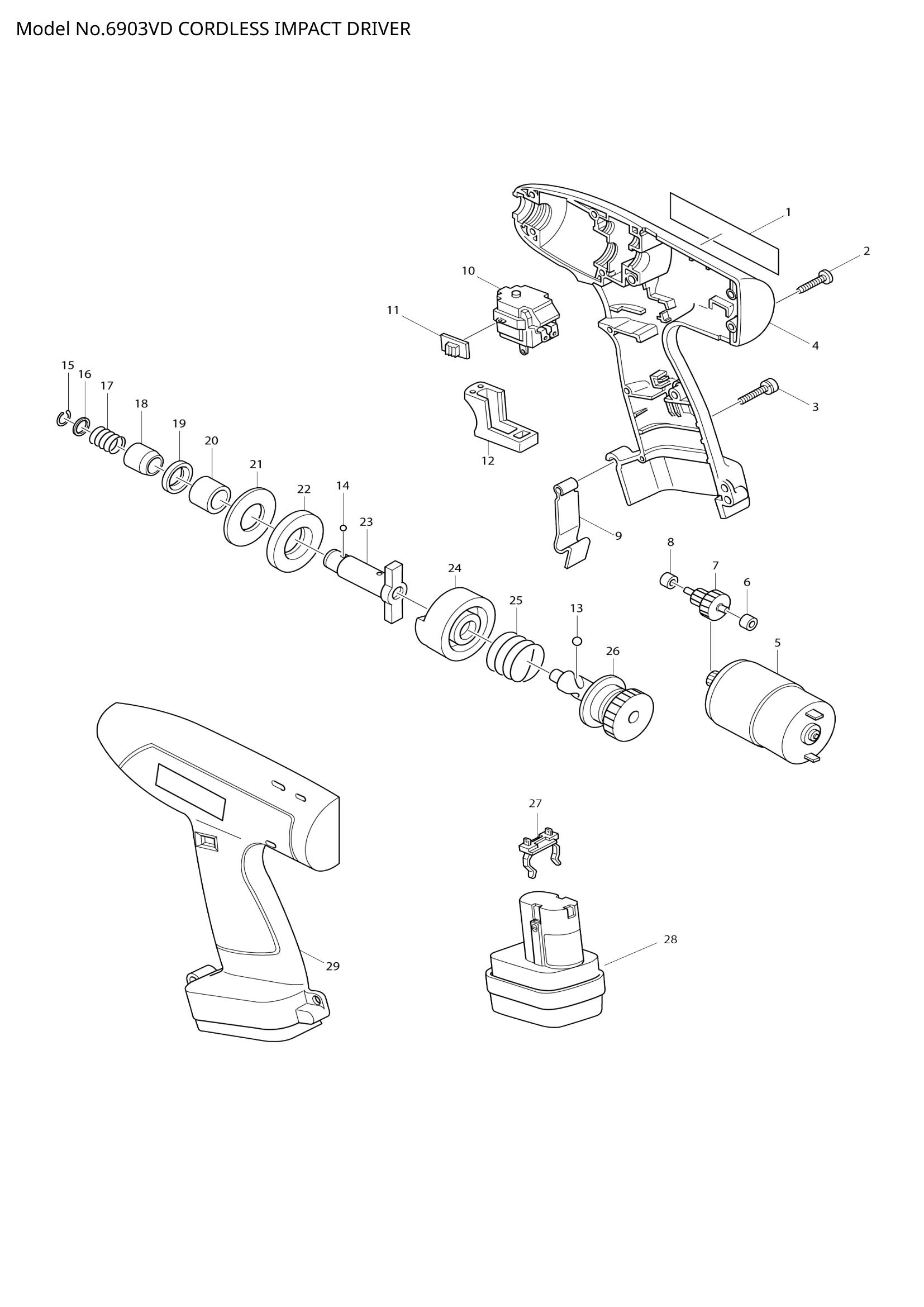

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | NAME PLATE 6903VD | 1 | Not available in store | |||
| 005 | 629577-2 | DC MOTOR 9.6V | 1 | €44.53 | 1-4 weeks to ship | |
| 006 | 214027-6 | PLANE BEARING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | GEAR COMPLETE 11-37 | 1 | Not available in store | |||
| 008 | 214027-6 | PLANE BEARING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | SET PLATE | 1 | Not available in store | |||
| 011 | 414740-8 | LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 013 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 014 | 216001-0 | STEEL BALL 3.5 | 2 | €0.56 | 1-4 weeks to ship | |
| 015 | 231951-8 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 267085-1 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 213151-2 | OIL SEAL 14 | 1 | €2.78 | 1-4 weeks to ship | |
| 020 | SLEEVE 14 | 1 | Not available in store | |||
| 021 | 261075-6 | RUBBER WASHER 20 | 1 | €2.09 | 1-4 weeks to ship | |
| 024 | 322259-2 | HAMMER | 1 | €31.73 | 1-4 weeks to ship | |
| 025 | 231463-1 | COMPRESSION SPRING 24 | 1 | €2.92 | 1-4 weeks to ship | |
| 026 | SPINDLE COMPLETE | 1 | Not available in store | |||
| 028 | BATTERY 9100 SET | 1 | Not available in store | |||
