6902D
6902D

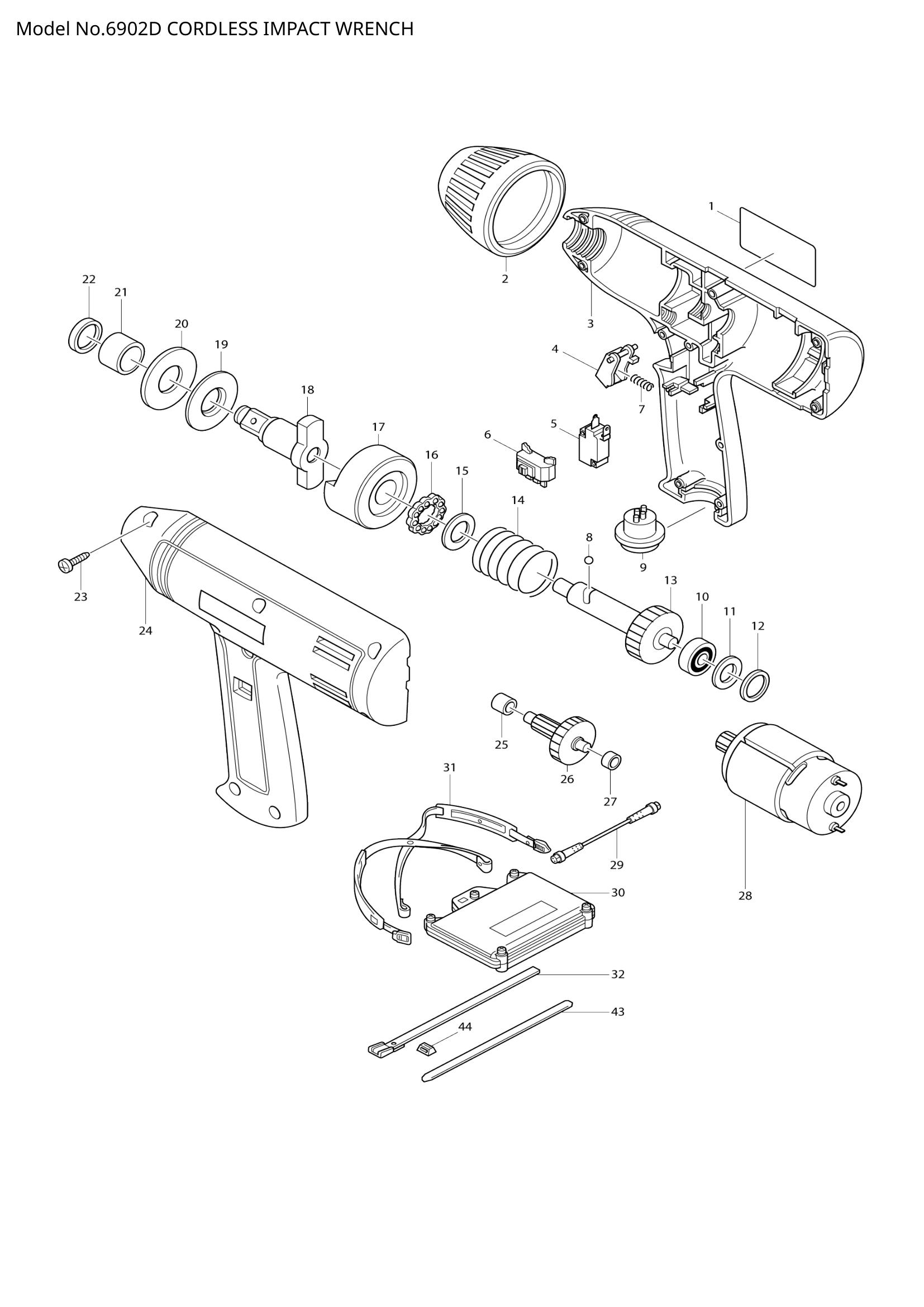

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | NAME PLATE 6902D | 1 | Not available in store | |||
| NAME PLATE 6902D | 1 | Not available in store | ||||
| 002 | 421355-4 | BUMPER | 1 | €3.48 | 1-4 weeks to ship | |
| 421355-4 | BUMPER | 1 | €3.48 | 1-4 weeks to ship | ||
| 003 | 182219-4 | HOUSING SET | 1 | €38.68 | 1-4 weeks to ship | |
| 182219-4 | HOUSING SET | 1 | €38.68 | 1-4 weeks to ship | ||
| 004 | 414357-7 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 414357-7 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 005 | 651891-8 | SWITCH V-15-3A6 | 1 | €5.57 | 1-4 weeks to ship | |
| 651891-8 | SWITCH V-15-3A6 | 1 | €5.57 | 1-4 weeks to ship | ||
| 006 | SWITCH C3BC-SH | 1 | Not available in store | |||
| SWITCH C3BC-SH | 1 | Not available in store | ||||
| 007 | 231476-2 | COMPRESSION SPRING 3 | 1 | €2.09 | 1-4 weeks to ship | |
| 231476-2 | COMPRESSION SPRING 3 | 1 | €2.09 | 1-4 weeks to ship | ||
| 008 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 009 | INLET | 1 | Not available in store | |||
| INLET | 1 | Not available in store | ||||
| 010 | 210007-0 | BALL BEARING 608VV | 1 | €5.57 | 1-4 weeks to ship | |
| 210007-0 | BALL BEARING 608VV | 1 | €5.57 | 1-4 weeks to ship | ||
| 011 | 253707-9 | FLAT WASHER 16 | 1 | €2.09 | 1-4 weeks to ship | |
| 253707-9 | FLAT WASHER 16 | 1 | €2.09 | 1-4 weeks to ship | ||
| 012 | 213261-5 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 213261-5 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | 153185-2 | SPINDLE COMPLETE | 1 | €68.88 | 1-4 weeks to ship | |
| 153185-2 | SPINDLE COMPLETE | 1 | €68.88 | 1-4 weeks to ship | ||
| 014 | 231472-0 | COMPRESSION SPRING 20 | 1 | €4.45 | 1-4 weeks to ship | |
| 231472-0 | COMPRESSION SPRING 20 | 1 | €4.45 | 1-4 weeks to ship | ||
| 015 | WASHER 1528 | 1 | Not available in store | |||
| WASHER 1528 | 1 | Not available in store | ||||
| 016 | 211229-5 | THRUST BALL BEARING 1528 | 1 | €4.45 | 1-4 weeks to ship | |
| 211229-5 | THRUST BALL BEARING 1528 | 1 | €4.45 | 1-4 weeks to ship | ||
| 017 | 322253-4 | HAMMER | 1 | €59.42 | 1-4 weeks to ship | |
| 322253-4 | HAMMER | 1 | €59.42 | 1-4 weeks to ship | ||
| 019 | 267054-2 | FLAT WASHER 18 | 1 | €3.34 | 1-4 weeks to ship | |
| 267054-2 | FLAT WASHER 18 | 1 | €3.34 | 1-4 weeks to ship | ||
| 020 | RUBBER WASHER 18 | 1 | Not available in store | |||
| RUBBER WASHER 18 | 1 | Not available in store | ||||
| 021 | 257623-7 | SLEEVE 18 | 1 | €8.21 | 1-4 weeks to ship | |
| 257623-7 | SLEEVE 18 | 1 | €8.21 | 1-4 weeks to ship | ||
| 022 | 213257-6 | OIL SEAL 18 | 1 | €4.17 | 1-4 weeks to ship | |
| 213257-6 | OIL SEAL 18 | 1 | €4.17 | 1-4 weeks to ship | ||
| 023 | TAPPING SCREW BT4X20 | 8 | Not available in store | |||
| TAPPING SCREW BT4X20 | 8 | Not available in store | ||||
| 024 | 182219-4 | HOUSING SET | 1 | €38.68 | 1-4 weeks to ship | |
| 182219-4 | HOUSING SET | 1 | €38.68 | 1-4 weeks to ship | ||
| 025 | 214012-9 | PLANE BEARING 6 | 1 | €2.09 | 1-4 weeks to ship | |
| 214012-9 | PLANE BEARING 6 | 1 | €2.09 | 1-4 weeks to ship | ||
| 026 | 226089-2 | GEAR COMPLETE 13-38 | 1 | €33.26 | 1-4 weeks to ship | |
| 226089-2 | GEAR COMPLETE 13-38 | 1 | €33.26 | 1-4 weeks to ship | ||
| 027 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 028 | DC MOTOR 14.4V | 1 | Not available in store | |||
| DC MOTOR 14.4V | 1 | Not available in store | ||||
| 043 | 444015-1 | ADJUST BELT | 1 | €8.91 | 1-4 weeks to ship | |
| 444015-1 | ADJUST BELT | 1 | €8.91 | 1-4 weeks to ship | ||
| 044 | 414755-5 | SQUARE RING | 1 | €4.45 | 1-4 weeks to ship | |
| 414755-5 | SQUARE RING | 1 | €4.45 | 1-4 weeks to ship | ||
