UH021G
UH021G

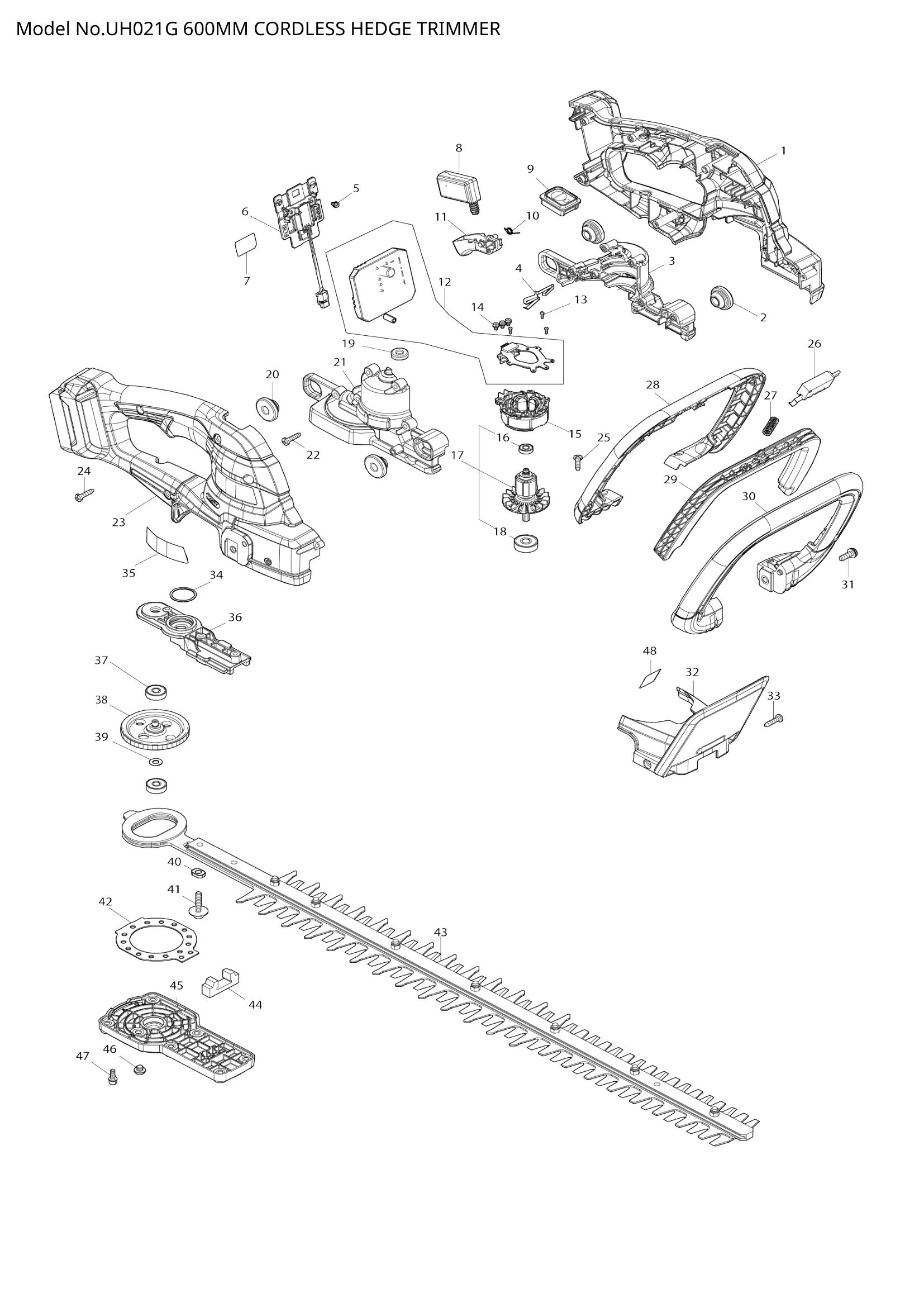

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HANDLE SET | 1 | Not available in store | |||
| 002 | 424394-3 | RUBBER RING 8 | 2 | €0.70 | 1-4 weeks to ship | |
| 003 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 004 | EARTH PLATE | 1 | Not available in store | |||
| 005 | PAN HEAD SCREW M3X6 | 2 | Not available in store | |||
| 006 | TERMINAL UNIT | 1 | Not available in store | |||
| 007 | UH021G SERIAL NO. LABEL | 1 | Not available in store | |||
| 008 | SWITCH UNIT | 1 | Not available in store | |||
| 009 | SWITCH CIRCUIT COMPLETE E | 1 | Not available in store | |||
| 010 | TORSION SPRING 6 | 1 | Not available in store | |||
| 011 | SWITCH LEVER RE | 1 | Not available in store | |||
| 012 | CONTROLLER | 1 | Not available in store | |||
| 013 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 014 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 015 | STATOR | 1 | Not available in store | |||
| 016 | 211157-4 | BALL BEARING 695ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 017 | ROTOR ASSY | 1 | Not available in store | |||
| 018 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 019 | 424195-9 | RUBBER RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 424394-3 | RUBBER RING 8 | 2 | €0.70 | 1-4 weeks to ship | |
| 021 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 022 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 023 | HANDLE SET | 1 | Not available in store | |||
| 024 | 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 025 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 026 | SWITCH UNIT | 1 | Not available in store | |||
| 027 | 231325-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | FRONT HANDLE COVER E | 1 | Not available in store | |||
| 029 | SWITCH LEVER FE | 1 | Not available in store | |||
| 030 | FRONT HANDLE E | 1 | Not available in store | |||
| 031 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 032 | PROTECTOR COMPLETE | 1 | Not available in store | |||
| 033 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 034 | 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | UH021G NAME PLATE | 1 | Not available in store | |||
| 036 | BEARING HOUSING ASS'Y | 1 | Not available in store | |||
| 037 | 211016-2 | BALL BEARING 626LLB | 2 | €4.17 | 1-4 weeks to ship | |
| 038 | GEAR COMPLETE | 1 | Not available in store | |||
| 039 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | SPACER | 2 | Not available in store | |||
| 041 | H.S.H.BOLT M5X25 WITH WR | 2 | Not available in store | |||
| 042 | PLATE | 1 | Not available in store | |||
| 043 | SHEAR BLADE 600E SET | 1 | Not available in store | |||
| 044 | DUST GUARD | 1 | Not available in store | |||
| 045 | UNDER COVER | 1 | Not available in store | |||
| 046 | H.S.BUTTON HEAD BOLT M6X4 | 1 | Not available in store | |||
| 047 | 922118-6 | HEX. SOCKET HEAD BOLT M4X12 | 6 | €0.56 | 1-4 weeks to ship | |
| 048 | SOUND 92DB LABEL | 1 | Not available in store | |||
