UH013G
UH013G

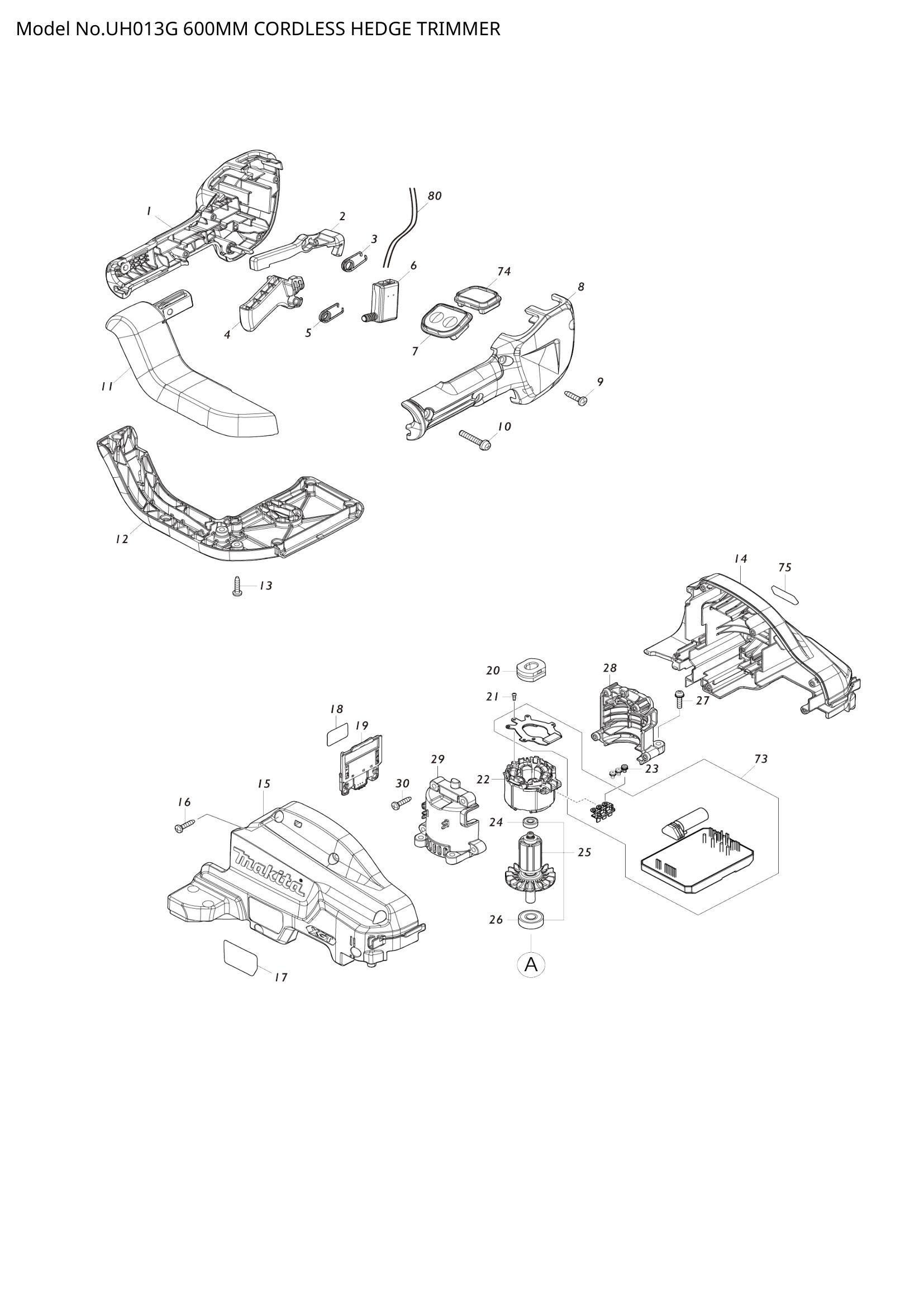

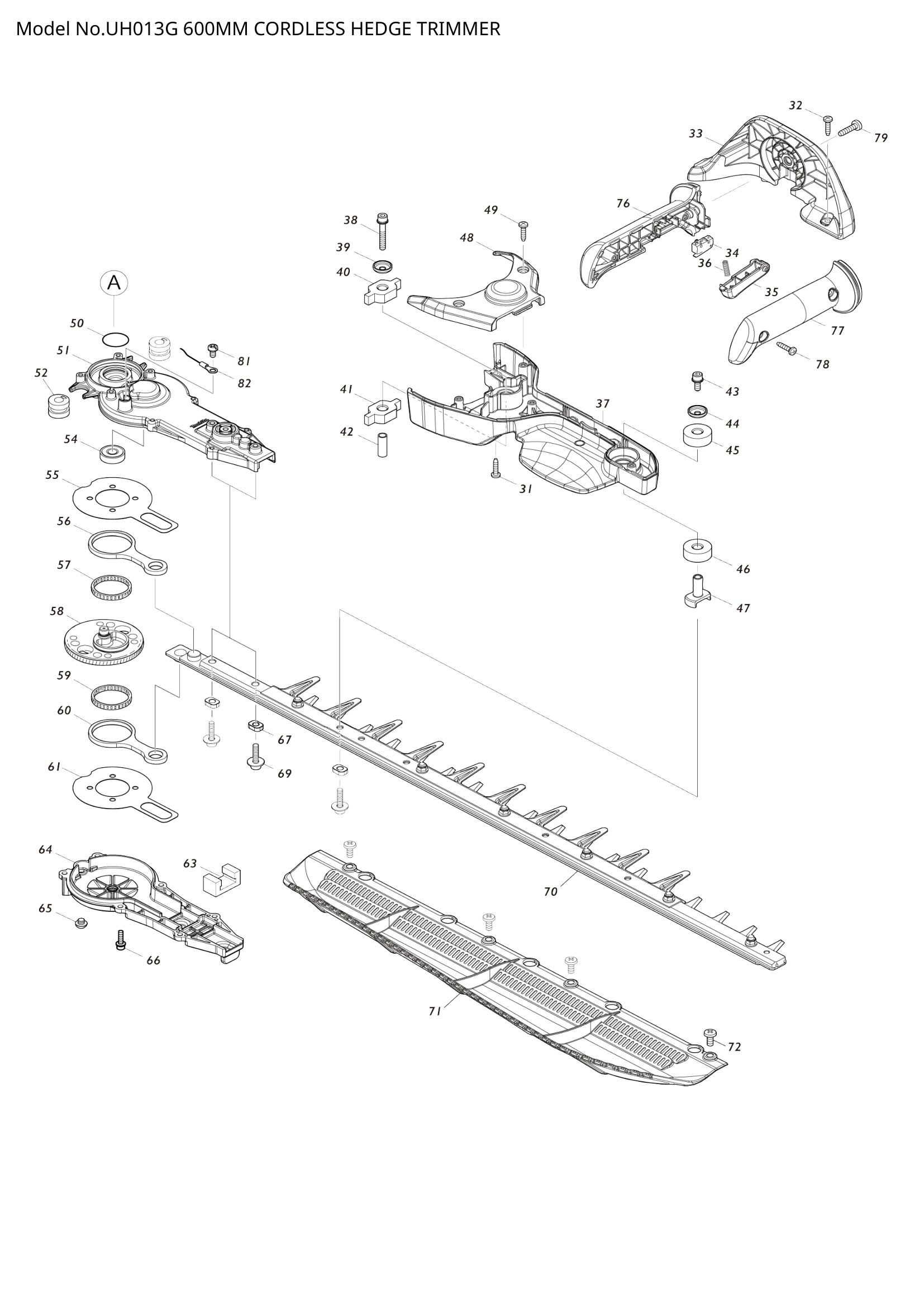

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | 233621-5 | TORSION SPRING 9 | 1 | €0.14 | 1-4 weeks to ship | |
| 233621-5 | TORSION SPRING 9 | 1 | €0.14 | 1-4 weeks to ship | ||
| 004 | SWITCH LEVER R | 1 | Not available in store | |||
| SWITCH LEVER R | 1 | Not available in store | ||||
| 005 | 233621-5 | TORSION SPRING 9 | 1 | €0.14 | 1-4 weeks to ship | |
| 233621-5 | TORSION SPRING 9 | 1 | €0.14 | 1-4 weeks to ship | ||
| 006 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 007 | SWITCH CIRCUIT COMPLETE E | 1 | Not available in store | |||
| SWITCH CIRCUIT COMPLETE E | 1 | Not available in store | ||||
| 009 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 010 | 911253-5 | PAN HEAD SCREW M5X30 | 1 | €0.56 | 1-4 weeks to ship | |
| 911253-5 | PAN HEAD SCREW M5X30 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | GRIP JOINT E | 1 | Not available in store | |||
| GRIP JOINT E | 1 | Not available in store | ||||
| 012 | GRIP JOINT COVER E | 1 | Not available in store | |||
| GRIP JOINT COVER E | 1 | Not available in store | ||||
| 013 | 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | ||
| 014 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 015 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 016 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | ||
| 017 | UH013G NAME PLATE | 1 | Not available in store | |||
| UH013G NAME PLATE | 1 | Not available in store | ||||
| 018 | UH013G SERIAL NO. LABEL | 1 | Not available in store | |||
| UH013G SERIAL NO. LABEL | 1 | Not available in store | ||||
| 019 | TERMINAL UNIT | 1 | Not available in store | |||
| TERMINAL UNIT | 1 | Not available in store | ||||
| 020 | 422261-6 | RUBBER SLEEVE | 1 | €1.95 | 1-4 weeks to ship | |
| 422261-6 | RUBBER SLEEVE | 1 | €1.95 | 1-4 weeks to ship | ||
| 021 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 022 | STATOR | 1 | Not available in store | |||
| STATOR | 1 | Not available in store | ||||
| 023 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 024 | 211157-4 | BALL BEARING 695ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 211157-4 | BALL BEARING 695ZZ | 1 | €1.39 | 1-4 weeks to ship | ||
| 025 | ROTOR ASSY | 1 | Not available in store | |||
| ROTOR ASSY | 1 | Not available in store | ||||
| 026 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 027 | 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 028 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 029 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 030 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 031 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 032 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 033 | FRONT GRIP RETAINER A | 1 | Not available in store | |||
| FRONT GRIP RETAINER A | 1 | Not available in store | ||||
| 034 | SWITCH UNIT | 1 | Not available in store | |||
| SWITCH UNIT | 1 | Not available in store | ||||
| 035 | SWITCH LEVER F | 1 | Not available in store | |||
| SWITCH LEVER F | 1 | Not available in store | ||||
| 036 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| COMPRESSION SPRING 4 | 1 | Not available in store | ||||
| 039 | CUP WASHER 5 | 1 | Not available in store | |||
| CUP WASHER 5 | 1 | Not available in store | ||||
| 040 | 422260-8 | RUBBER SLEEVE 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 422260-8 | RUBBER SLEEVE 8 | 1 | €2.09 | 1-4 weeks to ship | ||
| 041 | 422260-8 | RUBBER SLEEVE 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 422260-8 | RUBBER SLEEVE 8 | 1 | €2.09 | 1-4 weeks to ship | ||
| 042 | 257678-2 | SLEEVE 6 | 1 | €1.53 | 1-4 weeks to ship | |
| 257678-2 | SLEEVE 6 | 1 | €1.53 | 1-4 weeks to ship | ||
| 043 | 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | CUP WASHER 5 | 1 | Not available in store | |||
| CUP WASHER 5 | 1 | Not available in store | ||||
| 045 | RUBBER SLEEVE 8 | 1 | Not available in store | |||
| RUBBER SLEEVE 8 | 1 | Not available in store | ||||
| 046 | RUBBER SLEEVE 8 | 1 | Not available in store | |||
| RUBBER SLEEVE 8 | 1 | Not available in store | ||||
| 047 | CONNECTOR | 1 | Not available in store | |||
| CONNECTOR | 1 | Not available in store | ||||
| 048 | FRONT GRIP COVER | 1 | Not available in store | |||
| FRONT GRIP COVER | 1 | Not available in store | ||||
| 049 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 050 | 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| GEAR HOUSING COMPLETE | 1 | Not available in store | ||||
| 052 | RUBBER SLEEVE 8 | 2 | Not available in store | |||
| RUBBER SLEEVE 8 | 2 | Not available in store | ||||
| 054 | 210223-4 | BALL BEARING 608ZZ | 1 | €2.09 | 1-4 weeks to ship | |
| 210223-4 | BALL BEARING 608ZZ | 1 | €2.09 | 1-4 weeks to ship | ||
| 055 | 347361-0 | FRICTION PLATE | 1 | €0.70 | 1-4 weeks to ship | |
| 347361-0 | FRICTION PLATE | 1 | €0.70 | 1-4 weeks to ship | ||
| 056 | CONNECTING ROD | 1 | Not available in store | |||
| CONNECTING ROD | 1 | Not available in store | ||||
| 057 | NEEDLE CAGE 315 | 1 | Not available in store | |||
| NEEDLE CAGE 315 | 1 | Not available in store | ||||
| 058 | GEAR COMPLETE | 1 | Not available in store | |||
| GEAR COMPLETE | 1 | Not available in store | ||||
| 059 | NEEDLE CAGE 315 | 1 | Not available in store | |||
| NEEDLE CAGE 315 | 1 | Not available in store | ||||
| 060 | CONNECTING ROD | 1 | Not available in store | |||
| CONNECTING ROD | 1 | Not available in store | ||||
| 061 | 347361-0 | FRICTION PLATE | 1 | €0.70 | 1-4 weeks to ship | |
| 347361-0 | FRICTION PLATE | 1 | €0.70 | 1-4 weeks to ship | ||
| 063 | 443159-4 | SEAL | 1 | €5.57 | 1-4 weeks to ship | |
| 443159-4 | SEAL | 1 | €5.57 | 1-4 weeks to ship | ||
| 064 | GEAR HOUSING COVER COMPLE | 1 | Not available in store | |||
| GEAR HOUSING COVER COMPLE | 1 | Not available in store | ||||
| 065 | H.S.BUTTON HEAD BOLT M6X4 | 1 | Not available in store | |||
| H.S.BUTTON HEAD BOLT M6X4 | 1 | Not available in store | ||||
| 066 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 6 | €0.56 | 1-4 weeks to ship | |
| 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 6 | €0.56 | 1-4 weeks to ship | ||
| 067 | SLEEVE 5 | 3 | Not available in store | |||
| SLEEVE 5 | 3 | Not available in store | ||||
| 069 | H.S.H.BOLT M5X25 WITH WR | 3 | Not available in store | |||
| H.S.H.BOLT M5X25 WITH WR | 3 | Not available in store | ||||
| 070 | SHEAR BLADE 600E SET | 1 | Not available in store | |||
| SHEAR BLADE 600E SET | 1 | Not available in store | ||||
| 071 | CHIP RECEIVER 600E SET | 1 | Not available in store | |||
| CHIP RECEIVER 600E SET | 1 | Not available in store | ||||
| 072 | BINDING HEAD SCREW M5X12 | 4 | Not available in store | |||
| BINDING HEAD SCREW M5X12 | 4 | Not available in store | ||||
| 074 | INDICATION CIRCUIT COMPLETE | 1 | Not available in store | |||
| INDICATION CIRCUIT COMPLETE | 1 | Not available in store | ||||
| 075 | XGT LOGO LABEL | 1 | Not available in store | |||
| XGT LOGO LABEL | 1 | Not available in store | ||||
| 076 | FRONT GRIP SET | 1 | Not available in store | |||
| FRONT GRIP SET | 1 | Not available in store | ||||
| 077 | FRONT GRIP SET | 1 | Not available in store | |||
| FRONT GRIP SET | 1 | Not available in store | ||||
| 078 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 079 | 266420-0 | TAPPING SCREW 5X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 266420-0 | TAPPING SCREW 5X20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 080 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| 081 | 652014-1 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 652014-1 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 082 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
