UH004G
UH004G

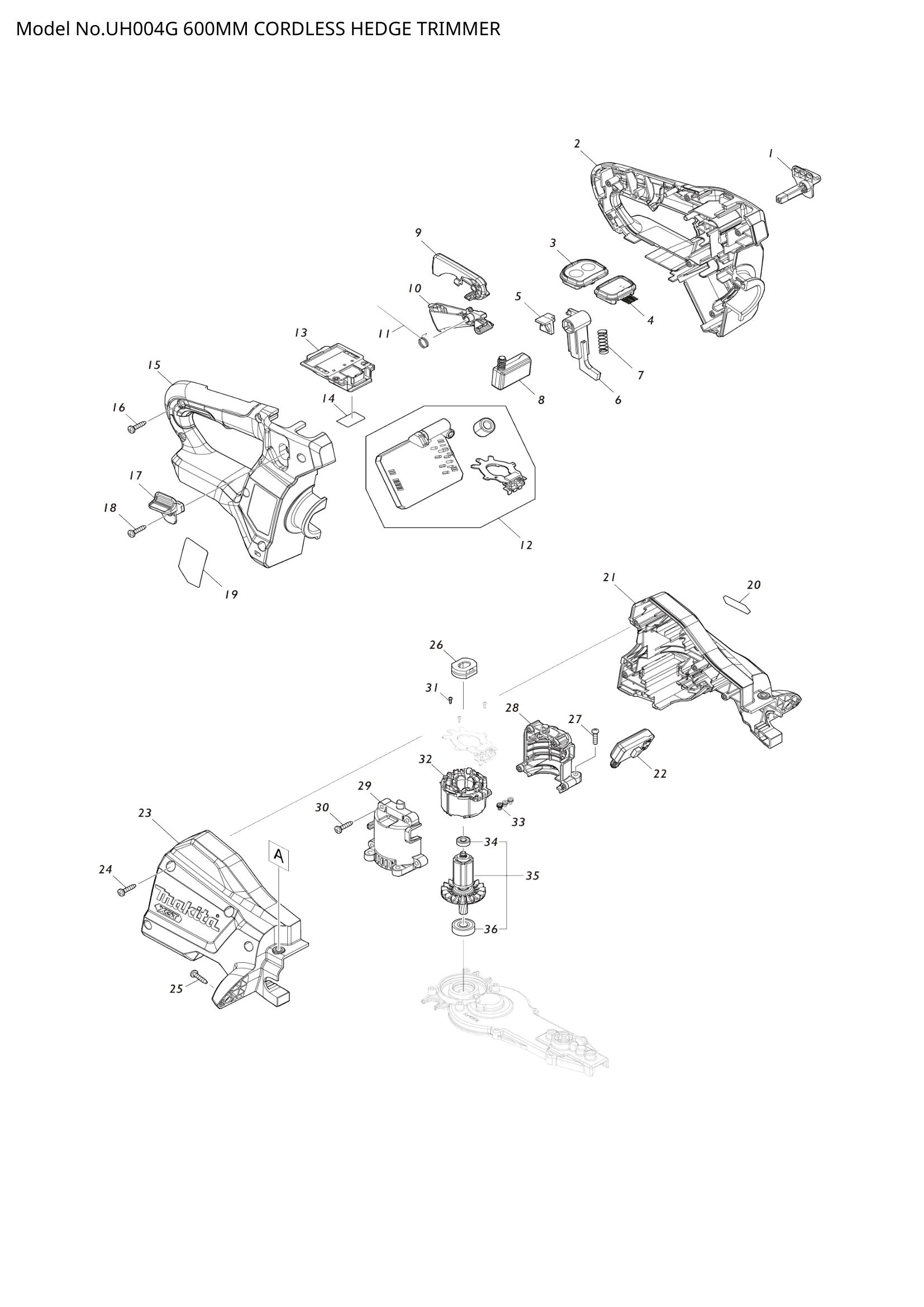

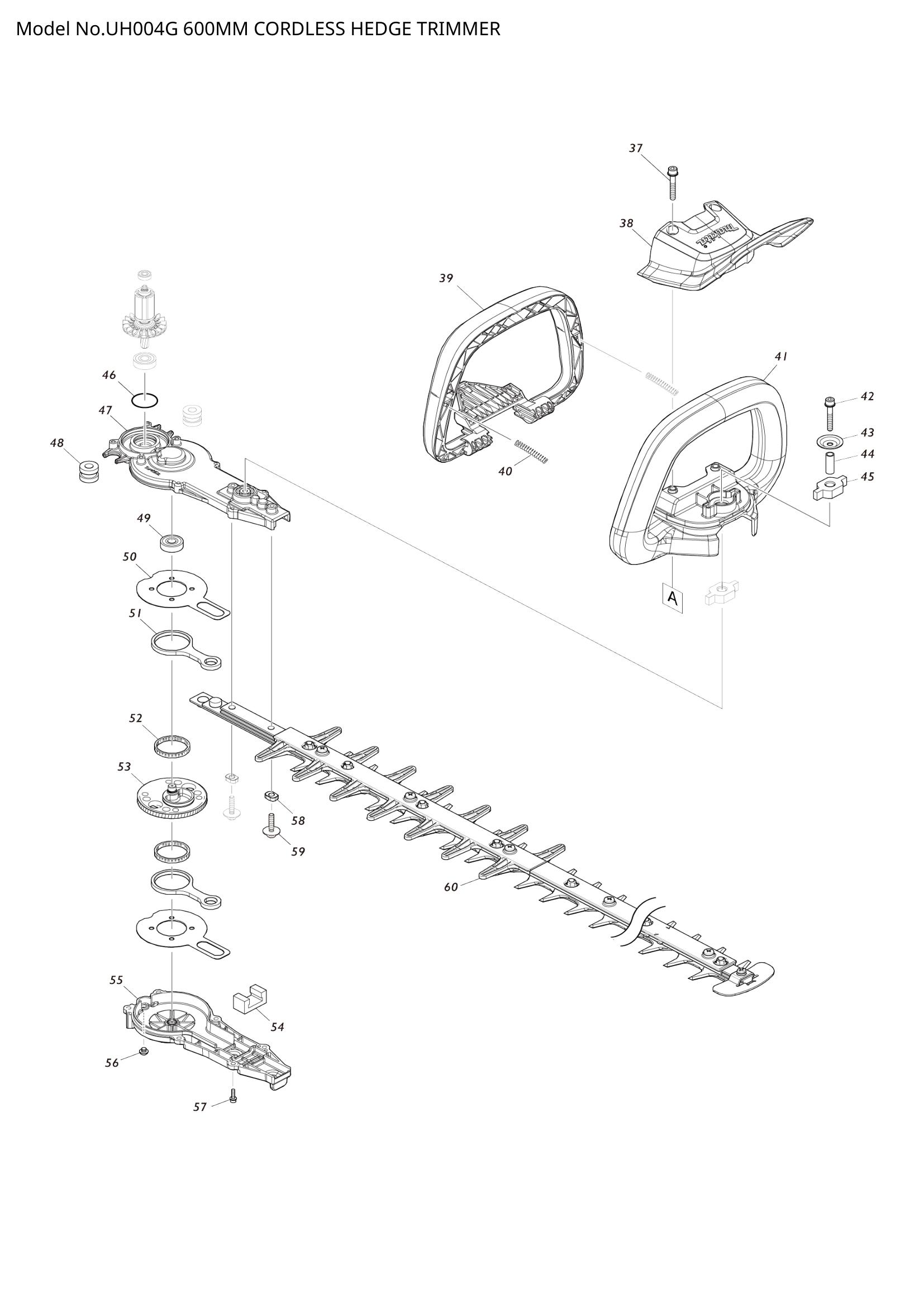

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 458406-0 | LOCK LEVER L | 1 | €0.70 | 1-4 weeks to ship | |
| 458406-0 | LOCK LEVER L | 1 | €0.70 | 1-4 weeks to ship | ||
| 458406-0 | LOCK LEVER L | 1 | €0.70 | 1-4 weeks to ship | ||
| 458406-0 | LOCK LEVER L | 1 | €0.70 | 1-4 weeks to ship | ||
| 003 | SWITCH CIRCUIT COMPLETE E | 1 | Not available in store | |||
| SWITCH CIRCUIT COMPLETE E | 1 | Not available in store | ||||
| 004 | INDICATION CIRCUIT COMPLETE | 1 | Not available in store | |||
| INDICATION CIRCUIT COMPLETE | 1 | Not available in store | ||||
| 005 | 458570-7 | SLIDER | 1 | €1.25 | 1-4 weeks to ship | |
| 458570-7 | SLIDER | 1 | €1.25 | 1-4 weeks to ship | ||
| 006 | 458405-2 | LOCK ARM | 1 | €1.39 | 1-4 weeks to ship | |
| 458405-2 | LOCK ARM | 1 | €1.39 | 1-4 weeks to ship | ||
| 458405-2 | LOCK ARM | 1 | €1.39 | 1-4 weeks to ship | ||
| 458405-2 | LOCK ARM | 1 | €1.39 | 1-4 weeks to ship | ||
| 007 | 234204-4 | COMPRESSION SPRING 8 | 1 | €1.25 | 1-4 weeks to ship | |
| 234204-4 | COMPRESSION SPRING 8 | 1 | €1.25 | 1-4 weeks to ship | ||
| 008 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 009 | 458403-6 | LOCK OFF LEVER | 1 | €1.39 | 1-4 weeks to ship | |
| 458403-6 | LOCK OFF LEVER | 1 | €1.39 | 1-4 weeks to ship | ||
| 458403-6 | LOCK OFF LEVER | 1 | €1.39 | 1-4 weeks to ship | ||
| 458403-6 | LOCK OFF LEVER | 1 | €1.39 | 1-4 weeks to ship | ||
| 010 | SWITCH LEVER R | 1 | Not available in store | |||
| SWITCH LEVER R | 1 | Not available in store | ||||
| 011 | 232454-5 | TORSION SPRING 10 | 1 | €0.42 | 1-4 weeks to ship | |
| 232454-5 | TORSION SPRING 10 | 1 | €0.42 | 1-4 weeks to ship | ||
| 013 | TERMINAL UNIT | 1 | Not available in store | |||
| TERMINAL UNIT | 1 | Not available in store | ||||
| 014 | UH004G SERIAL NO. LABEL | 1 | Not available in store | |||
| UH004G SERIAL NO. LABEL | 1 | Not available in store | ||||
| 016 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 017 | 458407-8 | LOCK LEVER R | 1 | €0.70 | 1-4 weeks to ship | |
| 458407-8 | LOCK LEVER R | 1 | €0.70 | 1-4 weeks to ship | ||
| 458407-8 | LOCK LEVER R | 1 | €0.70 | 1-4 weeks to ship | ||
| 458407-8 | LOCK LEVER R | 1 | €0.70 | 1-4 weeks to ship | ||
| 018 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | UH004G NAME PLATE | 1 | Not available in store | |||
| UH004G NAME PLATE | 1 | Not available in store | ||||
| 020 | XGT LOGO LABEL | 1 | Not available in store | |||
| XGT LOGO LABEL | 1 | Not available in store | ||||
| 021 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 022 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 023 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 024 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 025 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 026 | 422261-6 | RUBBER SLEEVE | 1 | €1.95 | 1-4 weeks to ship | |
| 422261-6 | RUBBER SLEEVE | 1 | €1.95 | 1-4 weeks to ship | ||
| 027 | 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 028 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 029 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 030 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 031 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 032 | STATOR | 1 | Not available in store | |||
| STATOR | 1 | Not available in store | ||||
| 033 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 034 | 211157-4 | BALL BEARING 695ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 211157-4 | BALL BEARING 695ZZ | 1 | €1.39 | 1-4 weeks to ship | ||
| 035 | ROTOR ASSY | 1 | Not available in store | |||
| ROTOR ASSY | 1 | Not available in store | ||||
| 036 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 037 | 265182-7 | + PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 265182-7 | + PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 038 | 458399-1 | PROTECTOR | 1 | €4.17 | 1-4 weeks to ship | |
| 458399-1 | PROTECTOR | 1 | €4.17 | 1-4 weeks to ship | ||
| 039 | 458402-8 | SWITCH LEVER F | 1 | €6.26 | 1-4 weeks to ship | |
| 458402-8 | SWITCH LEVER F | 1 | €6.26 | 1-4 weeks to ship | ||
| 458402-8 | SWITCH LEVER F | 1 | €6.26 | 1-4 weeks to ship | ||
| 458402-8 | SWITCH LEVER F | 1 | €6.26 | 1-4 weeks to ship | ||
| 040 | 233222-9 | COMPRESSION SPRING 5 | 2 | €1.81 | 1-4 weeks to ship | |
| 233222-9 | COMPRESSION SPRING 5 | 2 | €1.81 | 1-4 weeks to ship | ||
| 041 | FRONT GRIP E | 1 | Not available in store | |||
| FRONT GRIP E | 1 | Not available in store | ||||
| 043 | 253416-0 | DISH WASHER 5 | 1 | €0.97 | 1-4 weeks to ship | |
| 253416-0 | DISH WASHER 5 | 1 | €0.97 | 1-4 weeks to ship | ||
| 044 | 257678-2 | SLEEVE 6 | 1 | €1.53 | 1-4 weeks to ship | |
| 257678-2 | SLEEVE 6 | 1 | €1.53 | 1-4 weeks to ship | ||
| 045 | 422260-8 | RUBBER SLEEVE 8 | 2 | €2.09 | 1-4 weeks to ship | |
| 422260-8 | RUBBER SLEEVE 8 | 2 | €2.09 | 1-4 weeks to ship | ||
| 046 | 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | RUBBER SLEEVE 8 | 2 | Not available in store | |||
| RUBBER SLEEVE 8 | 2 | Not available in store | ||||
| 049 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | ||
| 050 | 347361-0 | FRICTION PLATE | 2 | €0.70 | 1-4 weeks to ship | |
| 347361-0 | FRICTION PLATE | 2 | €0.70 | 1-4 weeks to ship | ||
| 051 | CONNECTING ROD | 2 | Not available in store | |||
| CONNECTING ROD | 2 | Not available in store | ||||
| 052 | NEEDLE CAGE 315 | 2 | Not available in store | |||
| NEEDLE CAGE 315 | 2 | Not available in store | ||||
| 053 | GEAR COMPLETE | 1 | Not available in store | |||
| GEAR COMPLETE | 1 | Not available in store | ||||
| 054 | 443159-4 | SEAL | 1 | €5.57 | 1-4 weeks to ship | |
| 443159-4 | SEAL | 1 | €5.57 | 1-4 weeks to ship | ||
| 056 | H.S.BUTTON HEAD BOLT M6X4 | 1 | Not available in store | |||
| H.S.BUTTON HEAD BOLT M6X4 | 1 | Not available in store | ||||
| 057 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 6 | €0.56 | 1-4 weeks to ship | |
| 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 6 | €0.56 | 1-4 weeks to ship | ||
| 058 | SLEEVE 5 | 2 | Not available in store | |||
| SLEEVE 5 | 2 | Not available in store | ||||
| 059 | H.S.H.BOLT M5X25 WITH WR | 2 | Not available in store | |||
| H.S.H.BOLT M5X25 WITH WR | 2 | Not available in store | ||||
