UE001G
UE001G

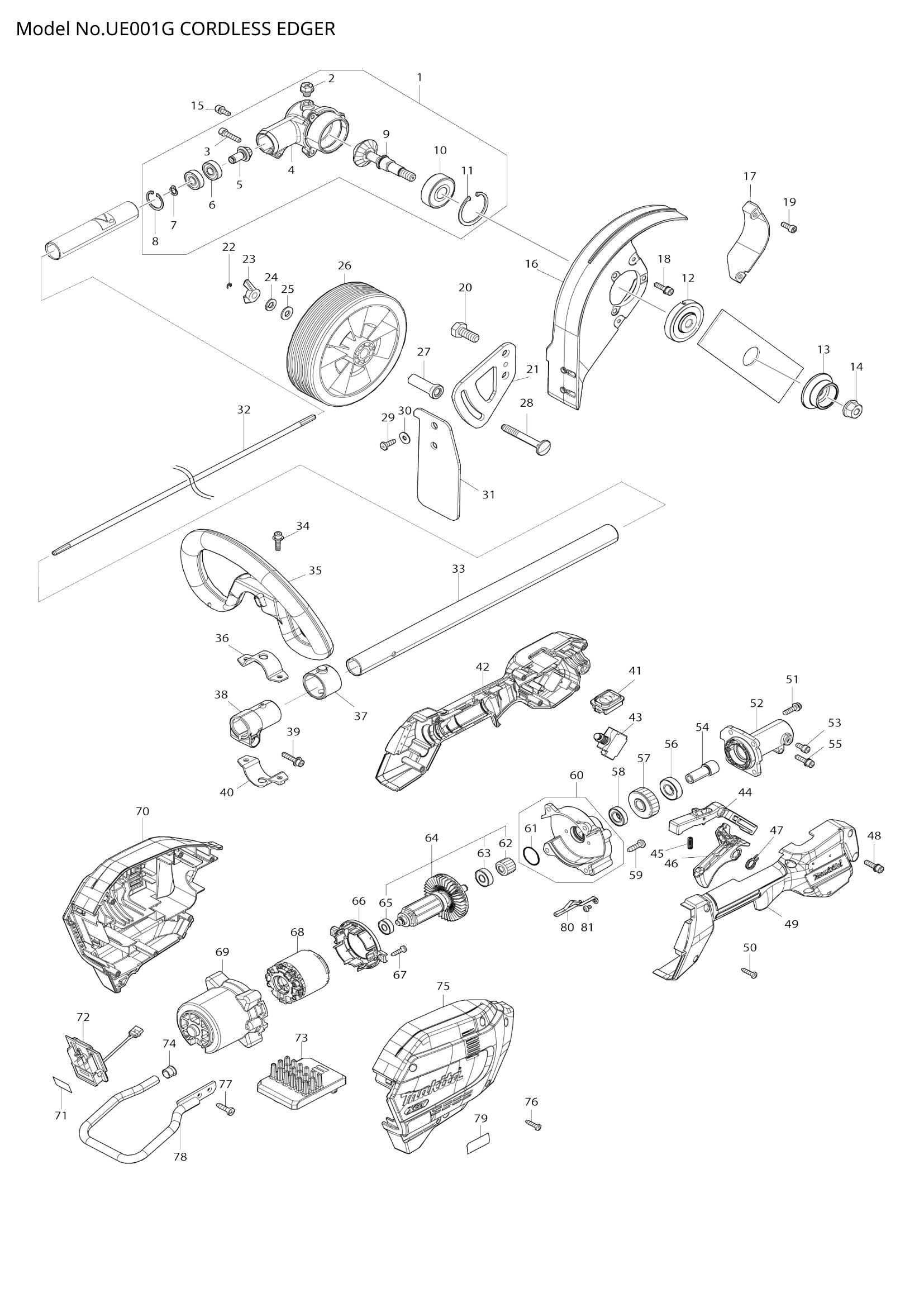

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 126414-6 | GEAR CASE ASS'Y | 1 | €71.94 | 1-4 weeks to ship | |
| 126414-6 | GEAR CASE ASS'Y | 1 | €71.94 | 1-4 weeks to ship | ||
| 002 | 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | €0.56 | 1-4 weeks to ship | |
| 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | €0.56 | 1-4 weeks to ship | ||
| 003 | 922241-7 | HEX. SOCKET HEAD BOLT M5X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 922241-7 | HEX. SOCKET HEAD BOLT M5X25 | 1 | €0.56 | 1-4 weeks to ship | ||
| 004 | 319102-4 | GEAR CASE | 1 | €27.69 | 1-4 weeks to ship | |
| 319102-4 | GEAR CASE | 1 | €27.69 | 1-4 weeks to ship | ||
| 005 | 227629-9 | SPIRAL BEVEL GEAR 14 | 1 | €10.30 | 1-4 weeks to ship | |
| 227629-9 | SPIRAL BEVEL GEAR 14 | 1 | €10.30 | 1-4 weeks to ship | ||
| 006 | 210049-4 | BALL BEARING 609ZZ | 2 | €4.17 | 1-4 weeks to ship | |
| 210049-4 | BALL BEARING 609ZZ | 2 | €4.17 | 1-4 weeks to ship | ||
| 007 | 961005-4 | RETAINING RING S-9 | 1 | €0.56 | 1-4 weeks to ship | |
| 961005-4 | RETAINING RING S-9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 962103-7 | RETAINING RING R-24 | 1 | €0.56 | 1-4 weeks to ship | |
| 962103-7 | RETAINING RING R-24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 962103-7 | RETAINING RING R-24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 962103-7 | RETAINING RING R-24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 009 | 126415-4 | CUTTER SHAFT ASS'Y | 1 | €19.34 | 1-4 weeks to ship | |
| 126415-4 | CUTTER SHAFT ASS'Y | 1 | €19.34 | 1-4 weeks to ship | ||
| 010 | 211231-8 | BALL BEARING 6302DDW | 1 | €9.32 | 1-4 weeks to ship | |
| 211231-8 | BALL BEARING 6302DDW | 1 | €9.32 | 1-4 weeks to ship | ||
| 011 | 962201-7 | RETAINING RING (INT) R-42 | 1 | €0.83 | 1-4 weeks to ship | |
| 962201-7 | RETAINING RING (INT) R-42 | 1 | €0.83 | 1-4 weeks to ship | ||
| 012 | 326734-0 | RECEIVE WASHER | 1 | €10.85 | 1-4 weeks to ship | |
| 326734-0 | RECEIVE WASHER | 1 | €10.85 | 1-4 weeks to ship | ||
| 013 | 326381-7 | CLAMP | 1 | €4.45 | 1-4 weeks to ship | |
| 326381-7 | CLAMP | 1 | €4.45 | 1-4 weeks to ship | ||
| 014 | 264025-0 | HEX. NUT M10-17 | 1 | €2.78 | 1-4 weeks to ship | |
| 264025-0 | HEX. NUT M10-17 | 1 | €2.78 | 1-4 weeks to ship | ||
| 015 | 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | BLADE CASE | 1 | Not available in store | |||
| BLADE CASE | 1 | Not available in store | ||||
| 017 | 346759-8 | GUARD PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 346759-8 | GUARD PLATE | 1 | €4.45 | 1-4 weeks to ship | ||
| 018 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 3 | €0.56 | 1-4 weeks to ship | |
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 3 | €0.56 | 1-4 weeks to ship | ||
| 019 | 266874-1 | H.S.H.BOLT M5X14 | 2 | €0.28 | 1-4 weeks to ship | |
| 266874-1 | H.S.H.BOLT M5X14 | 2 | €0.28 | 1-4 weeks to ship | ||
| 020 | 921542-0 | HEX. BOLT M10X25 | 2 | €1.39 | 1-4 weeks to ship | |
| 921542-0 | HEX. BOLT M10X25 | 2 | €1.39 | 1-4 weeks to ship | ||
| 021 | 346758-0 | PLATE | 1 | €3.90 | 1-4 weeks to ship | |
| 346758-0 | PLATE | 1 | €3.90 | 1-4 weeks to ship | ||
| 022 | 234355-3 | RING SPRING 5 | 1 | €0.14 | 1-4 weeks to ship | |
| 234355-3 | RING SPRING 5 | 1 | €0.14 | 1-4 weeks to ship | ||
| 023 | 934401-9 | WING NUT M8 | 1 | €2.09 | 1-4 weeks to ship | |
| 934401-9 | WING NUT M8 | 1 | €2.09 | 1-4 weeks to ship | ||
| 024 | 942201-3 | SPRING WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 942201-3 | SPRING WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 025 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 026 | 454843-6 | WHEEL | 1 | €4.45 | 1-4 weeks to ship | |
| 454843-6 | WHEEL | 1 | €4.45 | 1-4 weeks to ship | ||
| 454843-6 | WHEEL | 1 | €4.45 | 1-4 weeks to ship | ||
| 454843-6 | WHEEL | 1 | €4.45 | 1-4 weeks to ship | ||
| 027 | 257821-3 | SLEEVE 8 | 1 | €2.23 | 1-4 weeks to ship | |
| 257821-3 | SLEEVE 8 | 1 | €2.23 | 1-4 weeks to ship | ||
| 028 | 266937-3 | C.HEAD SQUARE NECK BOLT M8 | 1 | €1.25 | 1-4 weeks to ship | |
| 266937-3 | C.HEAD SQUARE NECK BOLT M8 | 1 | €1.25 | 1-4 weeks to ship | ||
| 029 | 266027-2 | TAPPING SCREW CT5X16 | 2 | €0.83 | 1-4 weeks to ship | |
| 266027-2 | TAPPING SCREW CT5X16 | 2 | €0.83 | 1-4 weeks to ship | ||
| 030 | 253804-1 | FLAT WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 253804-1 | FLAT WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 031 | 424615-3 | DEFLECTOR | 1 | €2.78 | 1-4 weeks to ship | |
| 424615-3 | DEFLECTOR | 1 | €2.78 | 1-4 weeks to ship | ||
| 032 | 327056-1 | SHAFT | 1 | €5.57 | 1-4 weeks to ship | |
| 327056-1 | SHAFT | 1 | €5.57 | 1-4 weeks to ship | ||
| 033 | SHAFT PIPE COMPLETE | 1 | Not available in store | |||
| SHAFT PIPE COMPLETE | 1 | Not available in store | ||||
| 034 | H.S.H.BOLT M5X20 WITH WG | 2 | Not available in store | |||
| H.S.H.BOLT M5X20 WITH WG | 2 | Not available in store | ||||
| 035 | LOOP HANDLE | 1 | Not available in store | |||
| LOOP HANDLE | 1 | Not available in store | ||||
| 036 | 347113-9 | UPPER CLAMP 35 | 1 | €0.81 | 1-4 weeks to ship | |
| 347113-9 | UPPER CLAMP 35 | 1 | €0.81 | 1-4 weeks to ship | ||
| 037 | 424942-8 | DAMPER | 1 | €1.31 | 1-4 weeks to ship | |
| 424942-8 | DAMPER | 1 | €1.31 | 1-4 weeks to ship | ||
| 038 | 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | |
| 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | ||
| 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | ||
| 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | ||
| 039 | 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | €1.39 | 1-4 weeks to ship | |
| 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | €1.39 | 1-4 weeks to ship | ||
| 040 | 347114-7 | LOWER CLAMP 35 | 1 | €1.35 | 1-4 weeks to ship | |
| 347114-7 | LOWER CLAMP 35 | 1 | €1.35 | 1-4 weeks to ship | ||
| 041 | SWITCH CIRCUIT COMPLETE | 1 | Not available in store | |||
| SWITCH CIRCUIT COMPLETE | 1 | Not available in store | ||||
| 042 | GRIP SET | 1 | Not available in store | |||
| GRIP SET | 1 | Not available in store | ||||
| 043 | SWITCH C3JR-1A-PAXD3 | 1 | Not available in store | |||
| SWITCH C3JR-1A-PAXD3 | 1 | Not available in store | ||||
| 044 | LOCK OFF LEVER COMPLETE | 1 | Not available in store | |||
| LOCK OFF LEVER COMPLETE | 1 | Not available in store | ||||
| 045 | 233101-1 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233101-1 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 046 | SWITCH LEVER | 1 | Not available in store | |||
| SWITCH LEVER | 1 | Not available in store | ||||
| 047 | TORSION SPRING 12 | 1 | Not available in store | |||
| TORSION SPRING 12 | 1 | Not available in store | ||||
| 048 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 049 | GRIP SET | 1 | Not available in store | |||
| GRIP SET | 1 | Not available in store | ||||
| 050 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 051 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | ||
| 052 | PIPE BRACKET COMPLETE | 1 | Not available in store | |||
| PIPE BRACKET COMPLETE | 1 | Not available in store | ||||
| 053 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | €0.56 | 1-4 weeks to ship | |
| 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | €0.56 | 1-4 weeks to ship | ||
| 054 | 325811-5 | SPINDLE HUB | 1 | €16.70 | 1-4 weeks to ship | |
| 325811-5 | SPINDLE HUB | 1 | €16.70 | 1-4 weeks to ship | ||
| 055 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 056 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | ||
| 057 | HELICAL GEAR 33 | 1 | Not available in store | |||
| HELICAL GEAR 33 | 1 | Not available in store | ||||
| 058 | 211150-8 | BALL BEARING 6901ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 211150-8 | BALL BEARING 6901ZZ | 1 | €5.57 | 1-4 weeks to ship | ||
| 059 | 266420-0 | TAPPING SCREW 5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 266420-0 | TAPPING SCREW 5X20 | 4 | €0.56 | 1-4 weeks to ship | ||
| 060 | GEAR BOX ASSY | 1 | Not available in store | |||
| GEAR BOX ASSY | 1 | Not available in store | ||||
| 061 | 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | ||
| 062 | HELICAL GEAR 16 | 1 | Not available in store | |||
| HELICAL GEAR 16 | 1 | Not available in store | ||||
| 063 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 064 | ROTOR ASS'Y | 1 | Not available in store | |||
| ROTOR ASS'Y | 1 | Not available in store | ||||
| 065 | 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | ||
| 066 | BAFFLE PLATE | 1 | Not available in store | |||
| BAFFLE PLATE | 1 | Not available in store | ||||
| 067 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 068 | STATOR | 1 | Not available in store | |||
| STATOR | 1 | Not available in store | ||||
| 069 | MOTOR HOUSING | 1 | Not available in store | |||
| MOTOR HOUSING | 1 | Not available in store | ||||
| 070 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 071 | UE001G SERIAL NO. LABEL | 1 | Not available in store | |||
| UE001G SERIAL NO. LABEL | 1 | Not available in store | ||||
| 072 | 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | |
| 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | ||
| 073 | CONTROLLER | 1 | Not available in store | |||
| CONTROLLER | 1 | Not available in store | ||||
| 074 | CAP | 1 | Not available in store | |||
| CAP | 1 | Not available in store | ||||
| 075 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 076 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 077 | 266420-0 | TAPPING SCREW 5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 266420-0 | TAPPING SCREW 5X20 | 2 | €0.56 | 1-4 weeks to ship | ||
| 078 | BATTERY GUARD | 1 | Not available in store | |||
| BATTERY GUARD | 1 | Not available in store | ||||
| 079 | UE001G NAME PLATE | 1 | Not available in store | |||
| UE001G NAME PLATE | 1 | Not available in store | ||||
