UC4000A
UC4000A

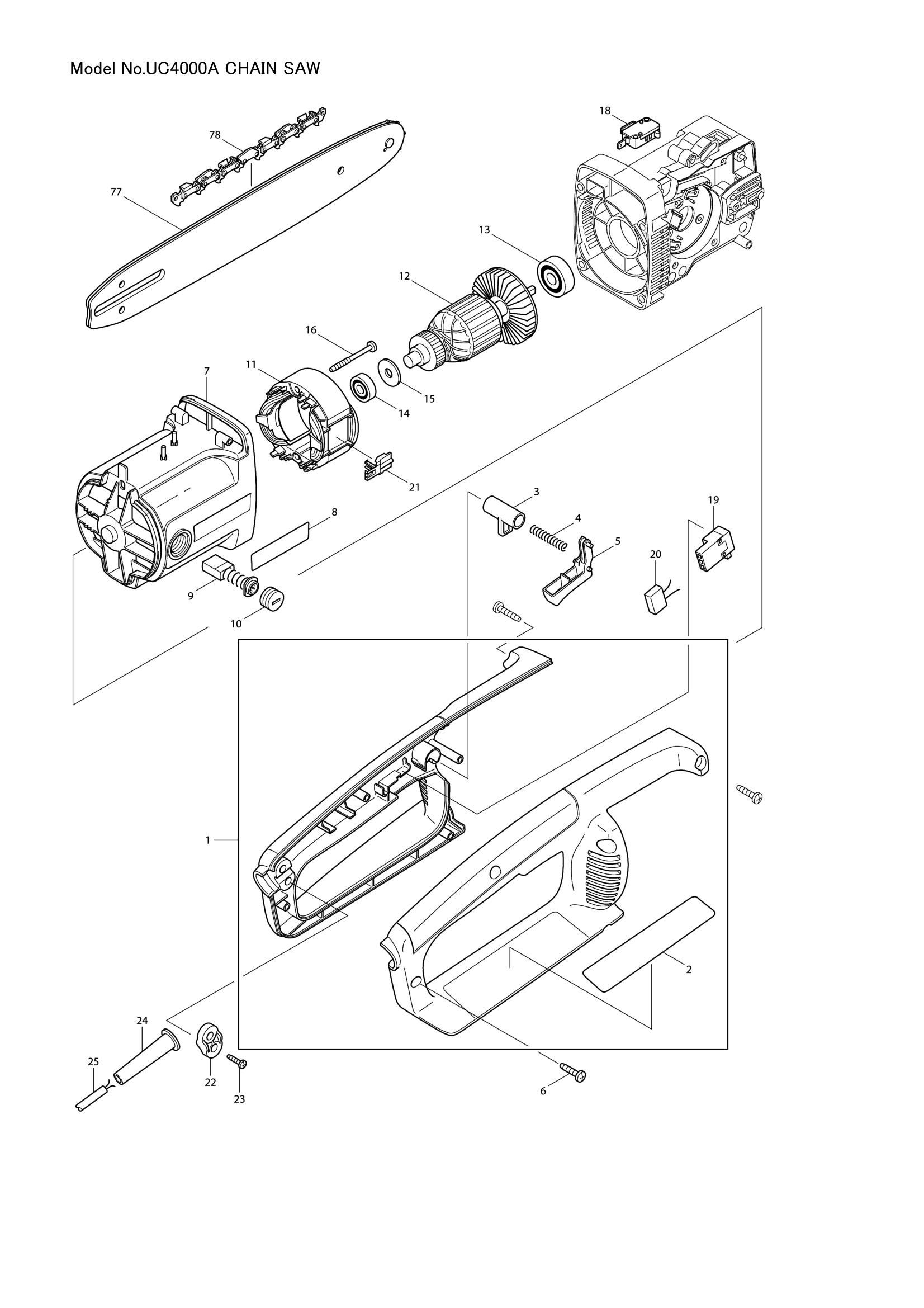

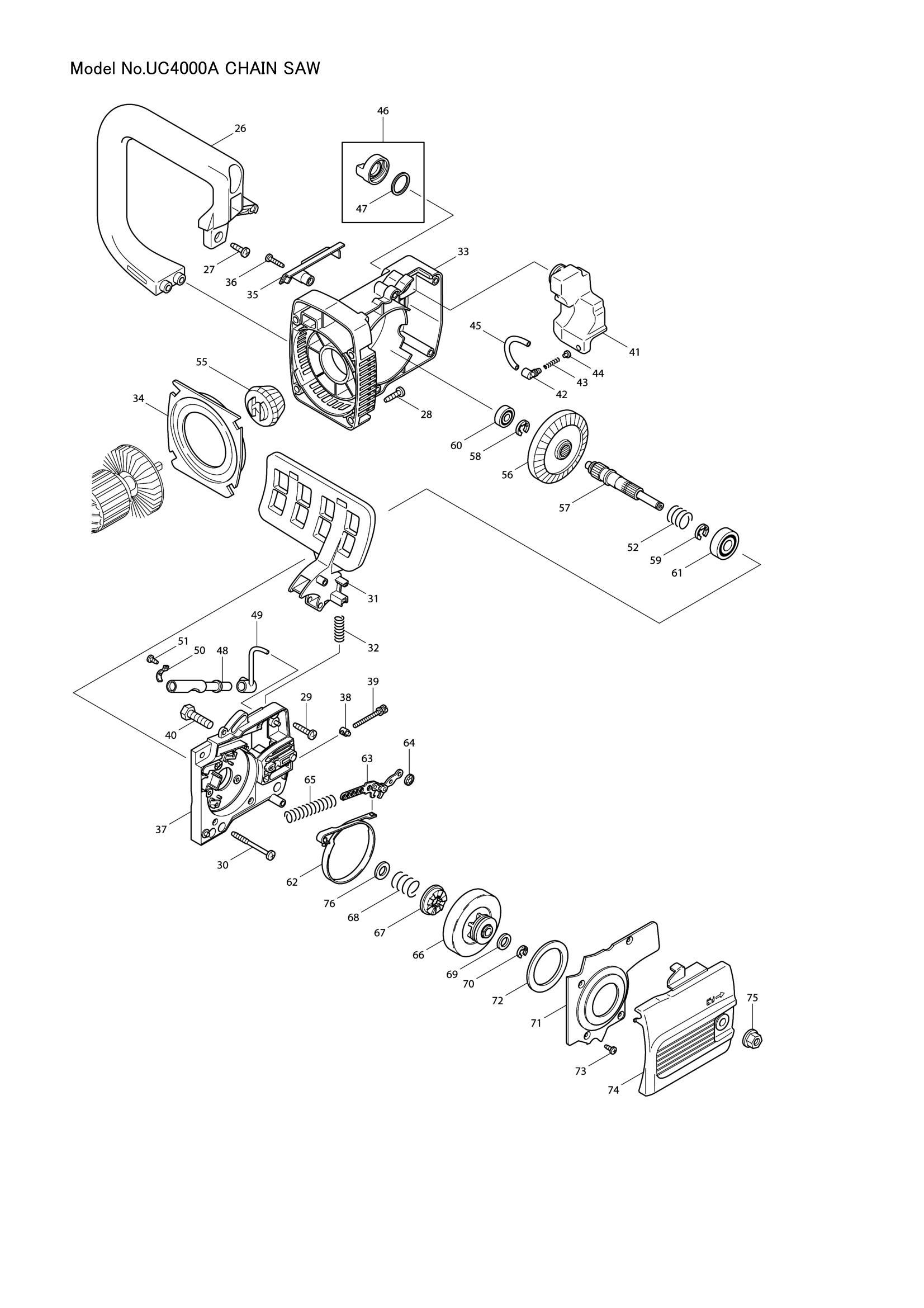

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 225310660 | HANDLE CPL. | 1 | €30.61 | 1-4 weeks to ship | |
| 225310660 | HANDLE CPL. | 1 | €30.61 | 1-4 weeks to ship | ||
| 002 | 980114181 | LABEL | 1 | €1.25 | 1-4 weeks to ship | |
| 980114181 | LABEL | 1 | €1.25 | 1-4 weeks to ship | ||
| 004 | 225145010 | SPRING | 1 | €0.97 | 1-4 weeks to ship | |
| 225145010 | SPRING | 1 | €0.97 | 1-4 weeks to ship | ||
| 005 | 225271010 | POWER SWITCH | 1 | €5.57 | 1-4 weeks to ship | |
| 225271010 | POWER SWITCH | 1 | €5.57 | 1-4 weeks to ship | ||
| 006 | 913540185 | SCREW 4X18 | 6 | €0.14 | 1-4 weeks to ship | |
| 913540185 | SCREW 4X18 | 6 | €0.14 | 1-4 weeks to ship | ||
| 007 | 225111660 | MOTOR CASE | 1 | €27.83 | 1-4 weeks to ship | |
| 225111660 | MOTOR CASE | 1 | €27.83 | 1-4 weeks to ship | ||
| 008 | 980114348 | LABEL | 1 | €0.83 | 1-4 weeks to ship | |
| 980114348 | LABEL | 1 | €0.83 | 1-4 weeks to ship | ||
| 009 | 957802410 | CARBON BRUSH(2PCS.) | 2 | €6.12 | 1-4 weeks to ship | |
| 957802410 | CARBON BRUSH(2PCS.) | 2 | €6.12 | 1-4 weeks to ship | ||
| 010 | 970802420 | COVERF.CARBON BRUSH | 2 | €1.39 | 1-4 weeks to ship | |
| 970802420 | COVERF.CARBON BRUSH | 2 | €1.39 | 1-4 weeks to ship | ||
| 011 | 970802270 | STATOR ASSY. 220-240V | 1 | €45.92 | 1-4 weeks to ship | |
| 970802270 | STATOR ASSY. 220-240V | 1 | €45.92 | 1-4 weeks to ship | ||
| 012 | 970802350 | ROTOR ASSY 220-240V | 1 | €159.47 | 1-4 weeks to ship | |
| 970802350 | ROTOR ASSY 220-240V | 1 | €159.47 | 1-4 weeks to ship | ||
| 015 | 970802610 | DISTANCE PIECE | 1 | €0.42 | 1-4 weeks to ship | |
| 970802610 | DISTANCE PIECE | 1 | €0.42 | 1-4 weeks to ship | ||
| 016 | 913550555 | SCREW M5X55 | 2 | €0.42 | 1-4 weeks to ship | |
| 913550555 | SCREW M5X55 | 2 | €0.42 | 1-4 weeks to ship | ||
| 018 | 970001200 | SWITCH | 1 | €2.92 | 1-4 weeks to ship | |
| 970001200 | SWITCH | 1 | €2.92 | 1-4 weeks to ship | ||
| 020 | 970109810 | CAPACITOR | 1 | €1.39 | 1-4 weeks to ship | |
| 970109810 | CAPACITOR | 1 | €1.39 | 1-4 weeks to ship | ||
| 021 | 970801860 | CLAMP | 1 | €0.83 | 1-4 weeks to ship | |
| 970801860 | CLAMP | 1 | €0.83 | 1-4 weeks to ship | ||
| 022 | 225152050 | TRACTIN RELIEF,YELLOW | 1 | €0.56 | 1-4 weeks to ship | |
| 225152050 | TRACTIN RELIEF,YELLOW | 1 | €0.56 | 1-4 weeks to ship | ||
| 023 | 913540185 | SCREW 4X18 | 2 | €0.14 | 1-4 weeks to ship | |
| 913540185 | SCREW 4X18 | 2 | €0.14 | 1-4 weeks to ship | ||
| 025 | 970102110 | CABLE WITH PLUG | 1 | €19.48 | 1-4 weeks to ship | |
| 970102110 | CABLE WITH PLUG | 1 | €19.48 | 1-4 weeks to ship | ||
| 026 | 225310020 | TUBULAR HANDLE | 1 | €13.92 | 1-4 weeks to ship | |
| 225310020 | TUBULAR HANDLE | 1 | €13.92 | 1-4 weeks to ship | ||
| 027 | 913550255 | SCREW 5X25 | 2 | €0.83 | 1-4 weeks to ship | |
| 913550255 | SCREW 5X25 | 2 | €0.83 | 1-4 weeks to ship | ||
| 028 | 913550255 | SCREW 5X25 | 4 | €0.83 | 1-4 weeks to ship | |
| 913550255 | SCREW 5X25 | 4 | €0.83 | 1-4 weeks to ship | ||
| 029 | 913550255 | SCREW 5X25 | 2 | €0.83 | 1-4 weeks to ship | |
| 913550255 | SCREW 5X25 | 2 | €0.83 | 1-4 weeks to ship | ||
| 030 | 913550555 | SCREW M5X55 | 2 | €0.42 | 1-4 weeks to ship | |
| 913550555 | SCREW M5X55 | 2 | €0.42 | 1-4 weeks to ship | ||
| 034 | 225118010 | AIR GUIDE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 225118010 | AIR GUIDE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 035 | 225212010 | COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 225212010 | COVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 036 | 913540185 | SCREW 4X18 | 1 | €0.14 | 1-4 weeks to ship | |
| 913540185 | SCREW 4X18 | 1 | €0.14 | 1-4 weeks to ship | ||
| 037 | GEAR HOUSING RIGHT | 1 | Not available in store | |||
| GEAR HOUSING RIGHT | 1 | Not available in store | ||||
| 038 | 001213042 | TENSION SLIDE | 1 | €0.70 | 1-4 weeks to ship | |
| 001213042 | TENSION SLIDE | 1 | €0.70 | 1-4 weeks to ship | ||
| 039 | 901505354 | SCREW M5X35 | 1 | €0.42 | 1-4 weeks to ship | |
| 901505354 | SCREW M5X35 | 1 | €0.42 | 1-4 weeks to ship | ||
| 040 | 900208304 | HEXAGONAL SCREW M8X30 | 1 | €0.28 | 1-4 weeks to ship | |
| 900208304 | HEXAGONAL SCREW M8X30 | 1 | €0.28 | 1-4 weeks to ship | ||
| 042 | CONNECTION FOR TANK | 1 | Not available in store | |||
| CONNECTION FOR TANK | 1 | Not available in store | ||||
| 044 | 021245100 | PLUG | 1 | €0.14 | 1-4 weeks to ship | |
| 021245100 | PLUG | 1 | €0.14 | 1-4 weeks to ship | ||
| 045 | 965452387 | TUBE | 1 | €1.67 | 1-4 weeks to ship | |
| 965452387 | TUBE | 1 | €1.67 | 1-4 weeks to ship | ||
| 047 | 963100080 | GASKET | 1 | €0.56 | 1-4 weeks to ship | |
| 963100080 | GASKET | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 021245003 | OIL PUMP CPL. | 1 | €33.40 | 1-4 weeks to ship | |
| 021245003 | OIL PUMP CPL. | 1 | €33.40 | 1-4 weeks to ship | ||
| 049 | 225242010 | TUBE | 1 | €4.31 | 1-4 weeks to ship | |
| 225242010 | TUBE | 1 | €4.31 | 1-4 weeks to ship | ||
| 057 | SHAFT | 1 | Not available in store | |||
| SHAFT | 1 | Not available in store | ||||
| 060 | 960101084 | BALL BEARING 608ZZ | 1 | €5.43 | 1-4 weeks to ship | |
| 960101084 | BALL BEARING 608ZZ | 1 | €5.43 | 1-4 weeks to ship | ||
| 062 | 225213050 | BRAKE SPRING | 1 | €4.17 | 1-4 weeks to ship | |
| 225213050 | BRAKE SPRING | 1 | €4.17 | 1-4 weeks to ship | ||
| 067 | 225229010 | CRAWCOUPLING | 1 | €3.62 | 1-4 weeks to ship | |
| 225229010 | CRAWCOUPLING | 1 | €3.62 | 1-4 weeks to ship | ||
| 068 | 225184010 | PRESSURE SPRING | 1 | €2.09 | 1-4 weeks to ship | |
| 225184010 | PRESSURE SPRING | 1 | €2.09 | 1-4 weeks to ship | ||
| 069 | 221229220 | WASHER | 1 | €2.78 | 1-4 weeks to ship | |
| 221229220 | WASHER | 1 | €2.78 | 1-4 weeks to ship | ||
| 070 | 930106070 | SAFETY WASHER | 1 | €0.97 | 1-4 weeks to ship | |
| 930106070 | SAFETY WASHER | 1 | €0.97 | 1-4 weeks to ship | ||
| 071 | 225282011 | COVER PLATE | 1 | €5.57 | 1-4 weeks to ship | |
| 225282011 | COVER PLATE | 1 | €5.57 | 1-4 weeks to ship | ||
| 072 | 965527070 | GASKET | 1 | €1.39 | 1-4 weeks to ship | |
| 965527070 | GASKET | 1 | €1.39 | 1-4 weeks to ship | ||
| 074 | SPROCKET GUARD | 1 | Not available in store | |||
| SPROCKET GUARD | 1 | Not available in store | ||||
| 076 | 225189010 | WASHER | 1 | €0.70 | 1-4 weeks to ship | |
| 225189010 | WASHER | 1 | €0.70 | 1-4 weeks to ship | ||
| 078 | SAW CHAIN 16" | 1 | Not available in store | |||
| SAW CHAIN 16" | 1 | Not available in store | ||||
