UC3530A
UC3530A

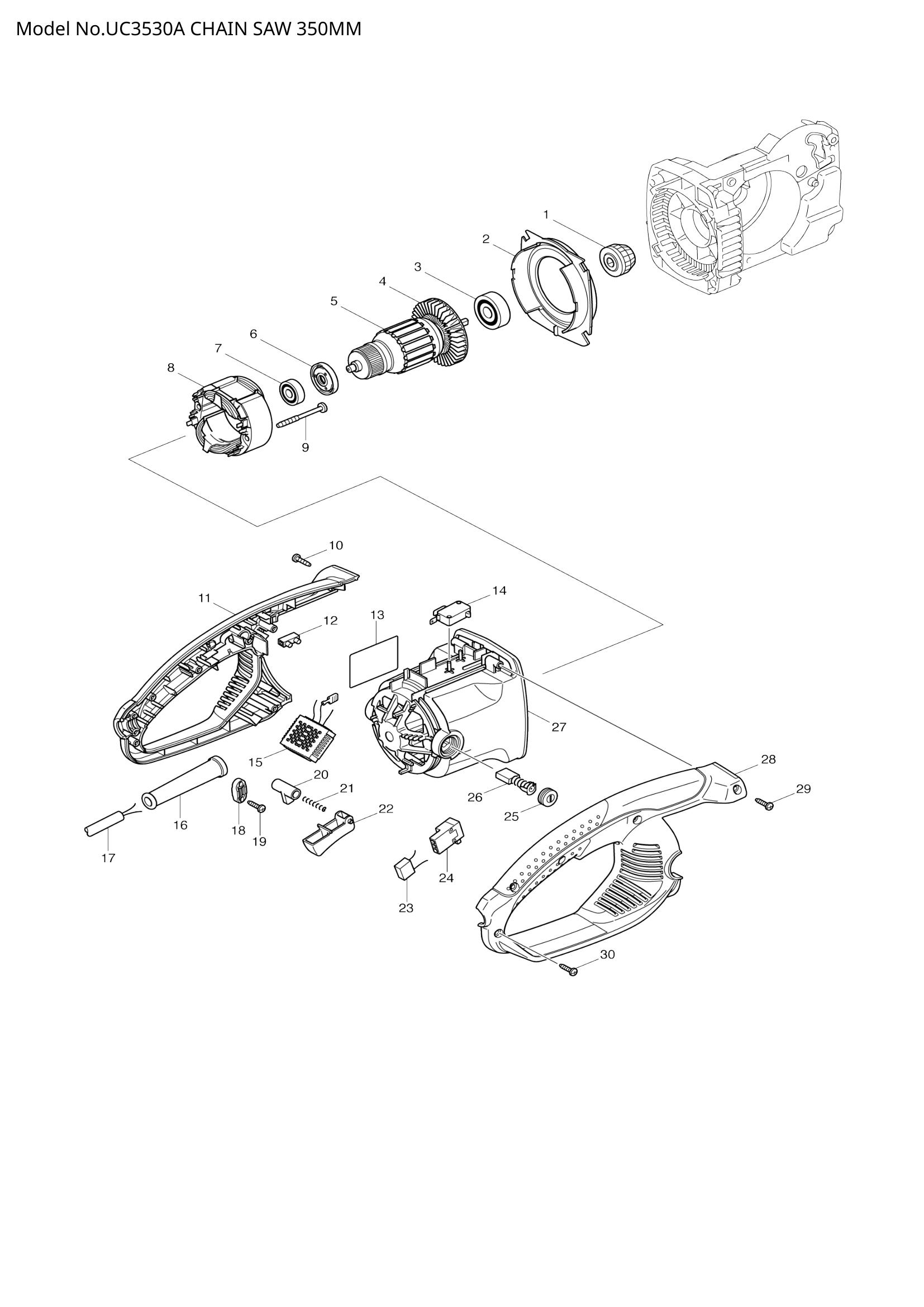

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 226743-8 | STRAIGHT BEVEL GEAR 14 | 1 | €4.17 | 1-4 weeks to ship | |
| 226743-8 | STRAIGHT BEVEL GEAR 14 | 1 | €4.17 | 1-4 weeks to ship | ||
| 002 | 419410-4 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 419410-4 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 003 | 211111-8 | BALL BEARING 6301LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 211111-8 | BALL BEARING 6301LLB | 1 | €5.57 | 1-4 weeks to ship | ||
| 004 | 240001-8 | FAN 80 | 1 | €2.78 | 1-4 weeks to ship | |
| 240001-8 | FAN 80 | 1 | €2.78 | 1-4 weeks to ship | ||
| 005 | 616969-4 | ARMATURE 240V | 1 | €52.88 | 1-4 weeks to ship | |
| 616969-4 | ARMATURE 240V | 1 | €52.88 | 1-4 weeks to ship | ||
| 007 | 211057-8 | BALL BEARING 629ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 211057-8 | BALL BEARING 629ZZ | 1 | €4.17 | 1-4 weeks to ship | ||
| 008 | 639530-0 | FIELD 240V | 1 | €44.53 | 1-4 weeks to ship | |
| 639530-0 | FIELD 240V | 1 | €44.53 | 1-4 weeks to ship | ||
| 009 | 266095-5 | TAPPING SCREW 5X55 | 2 | €0.83 | 1-4 weeks to ship | |
| 266095-5 | TAPPING SCREW 5X55 | 2 | €0.83 | 1-4 weeks to ship | ||
| 010 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 188818-0 | HANDLE SET | 1 | €19.48 | 1-4 weeks to ship | |
| 188818-0 | HANDLE SET | 1 | €19.48 | 1-4 weeks to ship | ||
| 013 | UC3530A NAME PLATE | 1 | Not available in store | |||
| UC3530A NAME PLATE | 1 | Not available in store | ||||
| 014 | 650577-1 | SWITCH SD-006-BB2AA-AA | 1 | €2.78 | 1-4 weeks to ship | |
| 650577-1 | SWITCH SD-006-BB2AA-AA | 1 | €2.78 | 1-4 weeks to ship | ||
| 016 | 682574-9 | CORD GUARD 10-90 | 1 | €0.56 | 1-4 weeks to ship | |
| 682574-9 | CORD GUARD 10-90 | 1 | €0.56 | 1-4 weeks to ship | ||
| 682574-9 | CORD GUARD 10-90 | 1 | €0.56 | 1-4 weeks to ship | ||
| 682574-9 | CORD GUARD 10-90 | 1 | €0.56 | 1-4 weeks to ship | ||
| 017 | 665883-1 | POWER SUPPLY CORD 1.0-2-5.0 | 1 | €30.61 | 1-4 weeks to ship | |
| 665883-1 | POWER SUPPLY CORD 1.0-2-5.0 | 1 | €30.61 | 1-4 weeks to ship | ||
| 018 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 020 | 416178-3 | LOCK-OFF BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 416178-3 | LOCK-OFF BUTTON | 1 | €0.56 | 1-4 weeks to ship | ||
| 021 | 233173-6 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233173-6 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 419411-2 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 419411-2 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | ||
| 023 | 645239-4 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | |
| 645239-4 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | 651923-1 | SWITCH TG70B | 1 | €16.70 | 1-4 weeks to ship | |
| 651923-1 | SWITCH TG70B | 1 | €16.70 | 1-4 weeks to ship | ||
| 027 | 154867-9 | MOTOR HOUSING COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 154867-9 | MOTOR HOUSING COMPLETE | 1 | €19.48 | 1-4 weeks to ship | ||
| 028 | 188818-0 | HANDLE SET | 1 | €19.48 | 1-4 weeks to ship | |
| 188818-0 | HANDLE SET | 1 | €19.48 | 1-4 weeks to ship | ||
| 029 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 030 | 265995-6 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | ||
| 032 | 154870-0 | TANK CAP COMPLETE | 1 | €1.67 | 1-4 weeks to ship | |
| 154870-0 | TANK CAP COMPLETE | 1 | €1.67 | 1-4 weeks to ship | ||
| 033 | 419412-0 | GEAR HOUSING COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 419412-0 | GEAR HOUSING COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 035 | 213039-6 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 213039-6 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | 421959-2 | SPONGE SEAL | 1 | €0.56 | 1-4 weeks to ship | |
| 421959-2 | SPONGE SEAL | 1 | €0.56 | 1-4 weeks to ship | ||
| 037 | 419407-3 | OIL TANK | 1 | €5.57 | 1-4 weeks to ship | |
| 419407-3 | OIL TANK | 1 | €5.57 | 1-4 weeks to ship | ||
| 038 | 416274-7 | CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 416274-7 | CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 040 | 421958-4 | OIL TUBE | 1 | €0.83 | 1-4 weeks to ship | |
| 421958-4 | OIL TUBE | 1 | €0.83 | 1-4 weeks to ship | ||
| 041 | 419408-1 | GEAR HOUSING | 1 | €11.13 | 1-4 weeks to ship | |
| 419408-1 | GEAR HOUSING | 1 | €11.13 | 1-4 weeks to ship | ||
| 042 | 419413-8 | ROD | 1 | €0.56 | 1-4 weeks to ship | |
| 419413-8 | ROD | 1 | €0.56 | 1-4 weeks to ship | ||
| 043 | 233174-4 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 233174-4 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | 451130-4 | FRONT HAND GUARD | 1 | €5.57 | 1-4 weeks to ship | |
| 451130-4 | FRONT HAND GUARD | 1 | €5.57 | 1-4 weeks to ship | ||
| 045 | 158044-5 | LINK PLATE COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 158044-5 | LINK PLATE COMPLETE | 1 | €11.13 | 1-4 weeks to ship | ||
| 046 | 234005-0 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 234005-0 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 047 | 213039-6 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 213039-6 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | ||
| 049 | 450230-7 | CRANK | 1 | €0.56 | 1-4 weeks to ship | |
| 450230-7 | CRANK | 1 | €0.56 | 1-4 weeks to ship | ||
| 050 | 417405-1 | CAM | 1 | €0.56 | 1-4 weeks to ship | |
| 417405-1 | CAM | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | 259034-2 | RETAINING RING E TYPE 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 259034-2 | RETAINING RING E TYPE 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 053 | 266173-1 | TAPPING SCREW 5X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 266173-1 | TAPPING SCREW 5X30 | 4 | €0.56 | 1-4 weeks to ship | ||
| 054 | 226741-2 | STRAIGHT BEVEL GEAR 43 | 1 | €4.17 | 1-4 weeks to ship | |
| 226741-2 | STRAIGHT BEVEL GEAR 43 | 1 | €4.17 | 1-4 weeks to ship | ||
| 055 | 324662-3 | SPINDLE | 1 | €13.92 | 1-4 weeks to ship | |
| 324662-3 | SPINDLE | 1 | €13.92 | 1-4 weeks to ship | ||
| 056 | 211107-9 | BALL BEARING 6201ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 211107-9 | BALL BEARING 6201ZZ | 1 | €5.57 | 1-4 weeks to ship | ||
| 058 | 266173-1 | TAPPING SCREW 5X30 | 2 | €0.56 | 1-4 weeks to ship | |
| 266173-1 | TAPPING SCREW 5X30 | 2 | €0.56 | 1-4 weeks to ship | ||
| 059 | 921452-1 | HEX. BOLT M8X30 | 1 | €0.56 | 1-4 weeks to ship | |
| 921452-1 | HEX. BOLT M8X30 | 1 | €0.56 | 1-4 weeks to ship | ||
| 060 | 318013-0 | BEARING HOUSING | 1 | €11.13 | 1-4 weeks to ship | |
| 318013-0 | BEARING HOUSING | 1 | €11.13 | 1-4 weeks to ship | ||
| 063 | 345651-5 | SPIKE BUMPER | 1 | €0.83 | 1-4 weeks to ship | |
| 345651-5 | SPIKE BUMPER | 1 | €0.83 | 1-4 weeks to ship | ||
| 064 | 266173-1 | TAPPING SCREW 5X30 | 2 | €0.56 | 1-4 weeks to ship | |
| 266173-1 | TAPPING SCREW 5X30 | 2 | €0.56 | 1-4 weeks to ship | ||
| 065 | 168426-3 | BRAKE BAND | 1 | €4.17 | 1-4 weeks to ship | |
| 168426-3 | BRAKE BAND | 1 | €4.17 | 1-4 weeks to ship | ||
| 066 | 267195-4 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| SPROCKET 7 SET | 1 | Not available in store | ||||
| 267195-4 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| SPROCKET 7 SET | 1 | Not available in store | ||||
| 067 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 069 | 253215-0 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 253215-0 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | ||
| 070 | 259033-4 | RETAINING RING E TYPE 6 | 1 | €0.05 | 1-4 weeks to ship | |
| 259033-4 | RETAINING RING E TYPE 6 | 1 | €0.05 | 1-4 weeks to ship | ||
| 071 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 072 | 419241-1 | COVER | 1 | €0.56 | 1-4 weeks to ship | |
| 419241-1 | COVER | 1 | €0.56 | 1-4 weeks to ship | ||
| 073 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | ||
| 074 | 227495-4 | STRAIGHT BEVEL GEAR 14 | 1 | €1.39 | 1-4 weeks to ship | |
| 227495-4 | STRAIGHT BEVEL GEAR 14 | 1 | €1.39 | 1-4 weeks to ship | ||
| 075 | 154869-5 | SPROCKET COVER COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 154869-5 | SPROCKET COVER COMPLETE | 1 | €5.57 | 1-4 weeks to ship | ||
| 076 | 419233-0 | DIAL 40 | 1 | €0.56 | 1-4 weeks to ship | |
| 419233-0 | DIAL 40 | 1 | €0.56 | 1-4 weeks to ship | ||
| 077 | 253874-0 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 253874-0 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 078 | 915106-0 | BINDING HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 915106-0 | BINDING HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 079 | 233033-2 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233033-2 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 080 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 081 | 154763-1 | LEVER COMPLETE | 1 | €1.39 | 1-4 weeks to ship | |
| 154763-1 | LEVER COMPLETE | 1 | €1.39 | 1-4 weeks to ship | ||
| 082 | 951122-8 | SPRING PIN 4-28 | 1 | €0.56 | 1-4 weeks to ship | |
| 951122-8 | SPRING PIN 4-28 | 1 | €0.56 | 1-4 weeks to ship | ||
| 084 | 317977-5 | LEVER HOLDER | 1 | €1.11 | 1-4 weeks to ship | |
| 317977-5 | LEVER HOLDER | 1 | €1.11 | 1-4 weeks to ship | ||
| 085 | 231025-5 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 231025-5 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 086 | 252168-0 | HEX. NUT M8-13 | 1 | €0.56 | 1-4 weeks to ship | |
| 252168-0 | HEX. NUT M8-13 | 1 | €0.56 | 1-4 weeks to ship | ||
| 087 | 324621-7 | ADJUST PIN | 1 | €0.56 | 1-4 weeks to ship | |
| 324621-7 | ADJUST PIN | 1 | €0.56 | 1-4 weeks to ship | ||
| 088 | 324620-9 | ADJUST SCREW | 1 | €0.56 | 1-4 weeks to ship | |
| 324620-9 | ADJUST SCREW | 1 | €0.56 | 1-4 weeks to ship | ||
