UC022G
UC022G

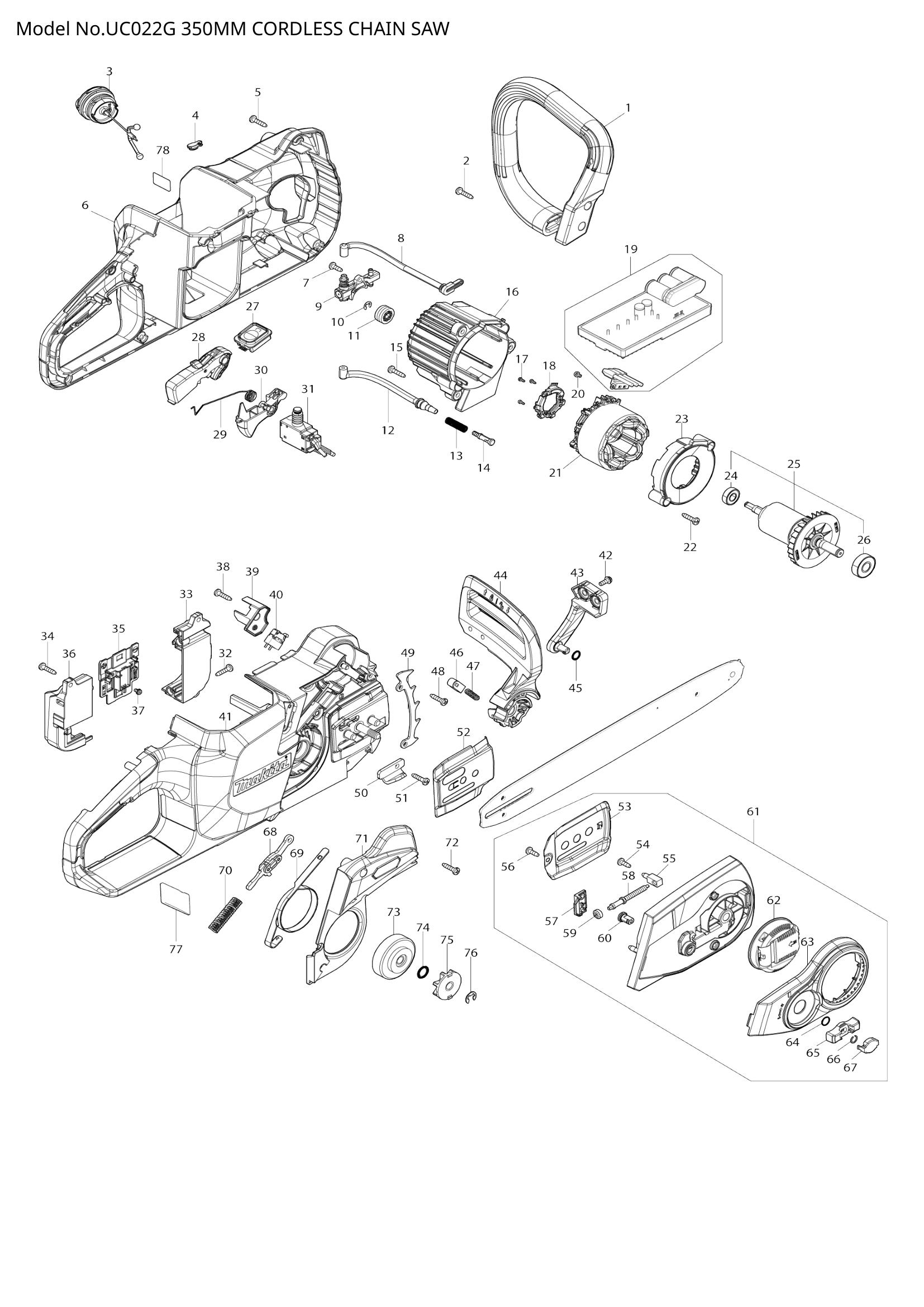

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | FRONT HANDLE | 1 | Not available in store | |||
| 002 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 003 | 122A77-2 | TANK CAP ASSEMBLY | 1 | €10.89 | 1-4 weeks to ship | |
| 004 | CAP | 1 | Not available in store | |||
| 005 | 266326-2 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 006 | HOUSING SET | 1 | Not available in store | |||
| 007 | 266427-6 | TAPPING SCREW 4X12 | 1 | €0.14 | 1-4 weeks to ship | |
| 008 | OIL TUBE 3-134 | 1 | Not available in store | |||
| 009 | OIL PUMP COMPLETE | 1 | Not available in store | |||
| 010 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 226884-0 | WORM GEAR | 1 | €0.70 | 1-4 weeks to ship | |
| 012 | OIL TUBE 3-114 | 1 | Not available in store | |||
| 013 | 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 452666-6 | NIPPLE | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 016 | MOTOR HOUSING | 1 | Not available in store | |||
| 017 | PAN HEAD SCREW M2X6 | 3 | Not available in store | |||
| 018 | SENSOR UNIT | 1 | Not available in store | |||
| 019 | CONTROLLER | 1 | Not available in store | |||
| 020 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 021 | STATOR | 1 | Not available in store | |||
| 022 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 023 | BAFFLE PLATE | 1 | Not available in store | |||
| 024 | 210016-9 | BALL BEARING 698ZZ | 1 | €11.13 | 1-4 weeks to ship | |
| 025 | ROTOR ASSEMBLY | 1 | Not available in store | |||
| 026 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 027 | SWITCH CIRCUIT COMPLETE | 1 | Not available in store | |||
| 028 | LOCK OFF LEVER COMPLETE | 1 | Not available in store | |||
| 029 | TORSION SPRING 10 | 1 | Not available in store | |||
| 030 | SWITCH LEVER | 1 | Not available in store | |||
| 031 | SWITCH C3JR-4B-PAND6-1 | 1 | Not available in store | |||
| 032 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 033 | TERMINAL BOX SET | 1 | Not available in store | |||
| 034 | 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 035 | TERMINAL UNIT | 1 | Not available in store | |||
| 036 | TERMINAL BOX SET | 1 | Not available in store | |||
| 037 | PAN HEAD SCREW M3X6 | 2 | Not available in store | |||
| 038 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | MICRO SWITCH GUARD | 1 | Not available in store | |||
| 040 | SWITCH D2SW-P01L30-3M-C2(S) | 1 | Not available in store | |||
| 041 | HOUSING SET | 1 | Not available in store | |||
| 042 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 043 | FRONT HAND GUARD RETAINER | 1 | Not available in store | |||
| 044 | FRONT HAND GUARD | 1 | Not available in store | |||
| 045 | 213594-8 | O RING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | HAND GUARD GUIDE | 1 | Not available in store | |||
| 047 | 234210-9 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 049 | SPIKE BUMPER | 1 | Not available in store | |||
| 050 | CHAIN CATCHER | 1 | Not available in store | |||
| 051 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | GUIDE PLATE | 1 | Not available in store | |||
| 053 | GUIDE PLATE R | 1 | Not available in store | |||
| 054 | 266427-6 | TAPPING SCREW 4X12 | 2 | €0.14 | 1-4 weeks to ship | |
| 055 | ADJUST PIN | 1 | Not available in store | |||
| 056 | 266427-6 | TAPPING SCREW 4X12 | 1 | €0.14 | 1-4 weeks to ship | |
| 057 | COVER | 1 | Not available in store | |||
| 058 | ADJUST SCREW | 1 | Not available in store | |||
| 059 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 060 | STRAIGHT BEVEL GEAR 14 | 1 | Not available in store | |||
| 061 | SPROCKET COVER ASS'Y | 1 | Not available in store | |||
| 062 | NUT COMPLETE | 1 | Not available in store | |||
| 063 | NUT COVER | 1 | Not available in store | |||
| 064 | 213011-8 | O RING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | DIAL 40 | 1 | Not available in store | |||
| 066 | RING SPRING 7 | 1 | Not available in store | |||
| 067 | CAP | 1 | Not available in store | |||
| 068 | 141E60-4 | LINK PLATE COMPLETE | 1 | €4.43 | 1-4 weeks to ship | |
| 069 | BRAKE BAND COMPLETE | 1 | Not available in store | |||
| 070 | COMPRESSION SPRING 7 | 1 | Not available in store | |||
| 071 | BRAKE COVER ASSEMBLY | 1 | Not available in store | |||
| 072 | 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 073 | 162979-4 | BRAKE DRUM | 1 | €7.38 | 1-4 weeks to ship | |
| 074 | 213060-5 | O RING 10 | 1 | €0.14 | 1-4 weeks to ship | |
| 075 | SPROCKET 7 | 1 | Not available in store | |||
| 076 | 961013-5 | STOP RING E-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | UC022G NAME PLATE | 1 | Not available in store | |||
| 078 | UC022G SERIAL NO.LABEL | 1 | Not available in store | |||
