UC012G
UC012G

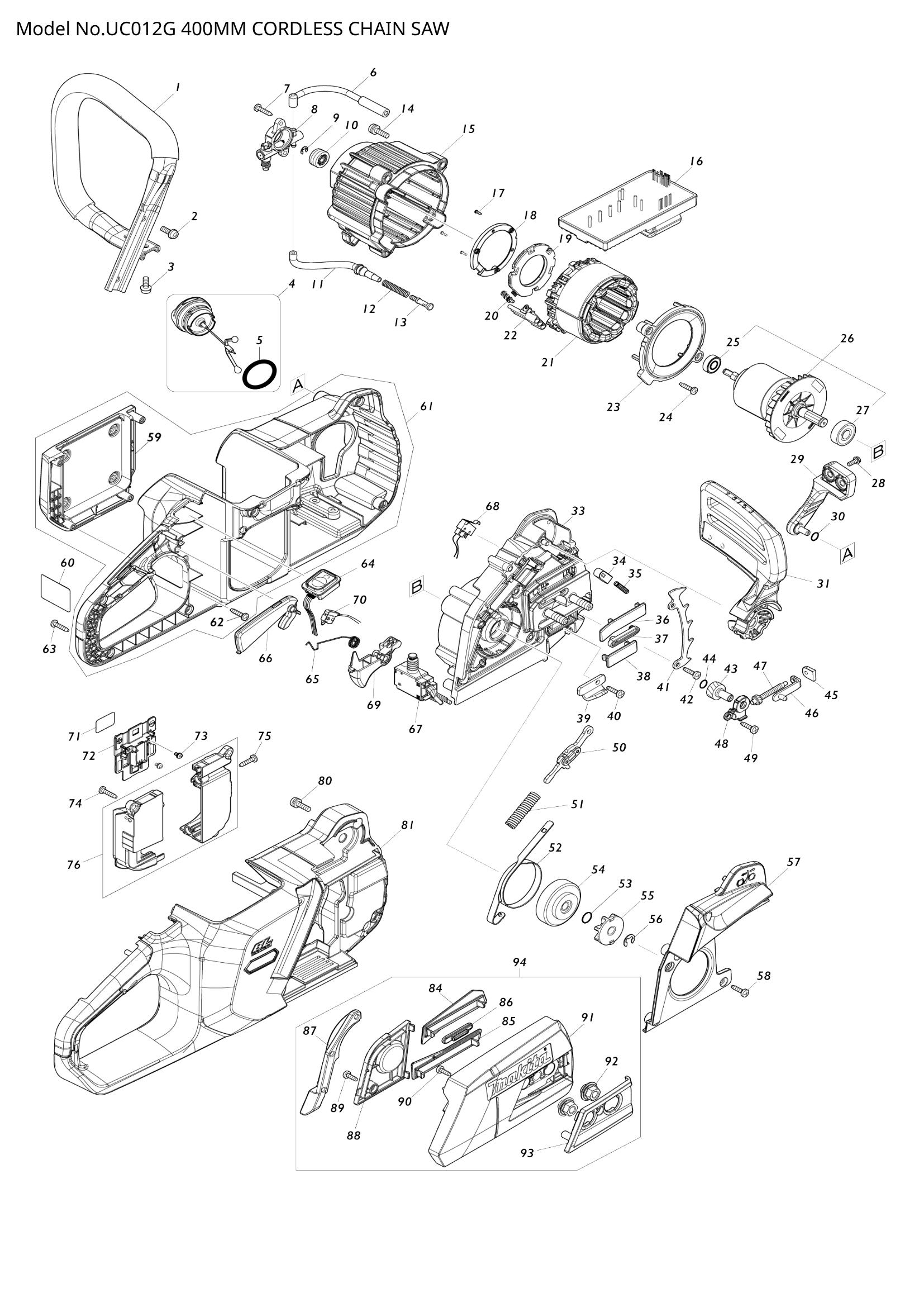

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | FRONT HANDLE | 1 | Not available in store | |||
| 002 | 911218-7 | PAN HEAD SCREW M5X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 003 | 911218-7 | PAN HEAD SCREW M5X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 004 | 122A77-2 | TANK CAP ASSEMBLY | 1 | €10.89 | 1-4 weeks to ship | |
| 005 | 213080-9 | O RING 29.5 | 1 | €0.83 | 1-4 weeks to ship | |
| 006 | OIL TUBE 3-117 | 1 | Not available in store | |||
| 007 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 008 | 142857-4 | OIL PUMP COMPLETE | 1 | €17.67 | 1-4 weeks to ship | |
| 009 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 226884-0 | WORM GEAR | 1 | €0.70 | 1-4 weeks to ship | |
| 011 | OIL TUBE 3-108 | 1 | Not available in store | |||
| 012 | 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 452666-6 | NIPPLE | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 911228-4 | PAN HEAD SCREW M5X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 015 | MOTOR HOUSING | 1 | Not available in store | |||
| 017 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 018 | STOPPER | 1 | Not available in store | |||
| 019 | CONTROLLER B | 1 | Not available in store | |||
| 020 | PAN HEAD SCREW M3X6 | 3 | Not available in store | |||
| 021 | STATOR | 1 | Not available in store | |||
| 022 | LEAD UNIT | 1 | Not available in store | |||
| 023 | BAFFLE PLATE | 1 | Not available in store | |||
| 024 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | 210016-9 | BALL BEARING 698ZZ | 1 | €11.13 | 1-4 weeks to ship | |
| 027 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 028 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | FRONT HAND GUARD RETAINER | 1 | Not available in store | |||
| 030 | 213594-8 | O RING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | FRONT HAND GUARD COMPLETE | 1 | Not available in store | |||
| 033 | HOUSING BASE ASSEMBLY | 1 | Not available in store | |||
| 034 | HAND GUARD GUIDE | 1 | Not available in store | |||
| 035 | 234210-9 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | GUARD A | 1 | Not available in store | |||
| 037 | GROMMET A | 1 | Not available in store | |||
| 038 | GUARD B | 1 | Not available in store | |||
| 039 | CHAIN CATCHER | 1 | Not available in store | |||
| 040 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | SPIKE BUMPER | 1 | Not available in store | |||
| 042 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 227744-9 | HELICAL GEAR 18 | 1 | €5.57 | 1-4 weeks to ship | |
| 044 | 213594-8 | O RING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 452668-2 | CLAMP SCREW BEDDING | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | TENSION SLIDE | 1 | Not available in store | |||
| 047 | 227743-1 | HELICAL GEAR 11 | 1 | €5.57 | 1-4 weeks to ship | |
| 049 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 141E60-4 | LINK PLATE COMPLETE | 1 | €4.43 | 1-4 weeks to ship | |
| 051 | COMPRESSION SPRING 7 | 1 | Not available in store | |||
| 052 | BRAKE BAND COMPLETE | 1 | Not available in store | |||
| 053 | 213060-5 | O RING 10 | 1 | €0.14 | 1-4 weeks to ship | |
| 054 | 162979-4 | BRAKE DRUM | 1 | €7.38 | 1-4 weeks to ship | |
| 055 | SPROCKET 7 SET | 1 | Not available in store | |||
| 056 | 961013-5 | STOP RING E-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | BRAKE COVER | 1 | Not available in store | |||
| 058 | 266034-5 | TAPPING SCREW CT 4X16 | 6 | €0.56 | 1-4 weeks to ship | |
| 059 | BATTERY COVER | 1 | Not available in store | |||
| 060 | UC012G NAME PLATE | 1 | Not available in store | |||
| 062 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 063 | 266326-2 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 064 | SWITCH CIRCUIT COMPLETE | 1 | Not available in store | |||
| 067 | SWITCH C3JR-4B-PAND4-1 | 1 | Not available in store | |||
| 068 | SWITCH UNIT | 1 | Not available in store | |||
| 069 | SWITCH LEVER | 1 | Not available in store | |||
| 071 | UC012G SERIAL NO. LABEL | 1 | Not available in store | |||
| 072 | TERMINAL UNIT | 1 | Not available in store | |||
| 073 | PAN HEAD SCREW M3X6 | 2 | Not available in store | |||
| 074 | 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 075 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 076 | TERMINAL BOX SET | 1 | Not available in store | |||
| 080 | 911228-4 | PAN HEAD SCREW M5X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 084 | GUARD C | 1 | Not available in store | |||
| 085 | GUARD D | 1 | Not available in store | |||
| 086 | GROMMET | 1 | Not available in store | |||
| 087 | CHIP GUIDE | 1 | Not available in store | |||
| 088 | INNER COVER | 1 | Not available in store | |||
| 091 | SPROCKET COVER | 1 | Not available in store | |||
| 092 | FLANGE NUT COMPLETE | 2 | Not available in store | |||
| 093 | NUT COVER | 1 | Not available in store | |||
| 094 | SPROCKET COVER SET | 1 | Not available in store | |||
