UC004G
UC004G

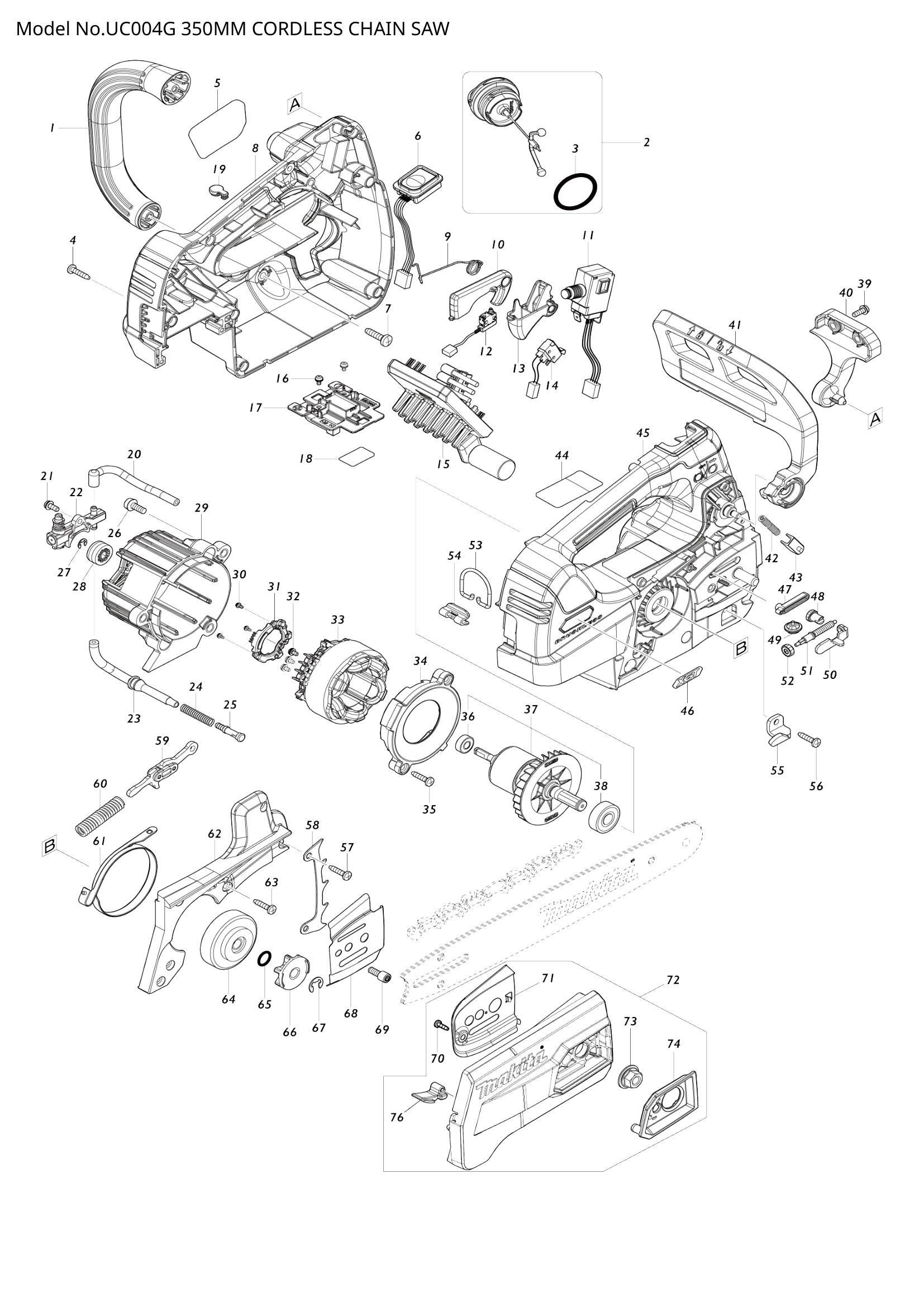

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | FRONT HANDLE | 1 | Not available in store | |||
| 002 | 122A77-2 | TANK CAP ASSEMBLY | 1 | €10.89 | 1-4 weeks to ship | |
| 003 | 213080-9 | O RING 29.5 | 1 | €0.83 | 1-4 weeks to ship | |
| 004 | 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 006 | 141G07-0 | SWITCH CIRCUIT COMPLETE | 1 | €14.56 | 1-4 weeks to ship | |
| 011 | 650011-1 | SWITCH C3JR-4BM-PAND3 | 1 | €20.64 | 1-4 weeks to ship | |
| 013 | SWITCH LEVER | 1 | Not available in store | |||
| 014 | 632L48-2 | SWITCH UNIT | 1 | €13.64 | 1-4 weeks to ship | |
| 016 | PAN HEAD SCREW M3X6 | 2 | Not available in store | |||
| 017 | 632S63-8 | TERMINAL UNIT | 1 | €6.73 | 1-4 weeks to ship | |
| 018 | UC004G SERIAL NO. LABEL | 1 | Not available in store | |||
| 019 | CAP | 1 | Not available in store | |||
| 020 | 422764-0 | OIL TUBE 3-85 | 1 | €1.21 | 1-4 weeks to ship | |
| 021 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 142156-4 | OIL PUMP COMPLETE | 1 | €15.31 | 1-4 weeks to ship | |
| 023 | 422765-8 | OIL TUBE 3-109 | 1 | €1.13 | 1-4 weeks to ship | |
| 024 | 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 452666-6 | NIPPLE | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 911218-7 | PAN HEAD SCREW M5X14 | 3 | €0.56 | 1-4 weeks to ship | |
| 027 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 226884-0 | WORM GEAR | 1 | €0.70 | 1-4 weeks to ship | |
| 029 | 413904-1 | MOTOR HOUSING | 1 | €4.91 | 1-4 weeks to ship | |
| 031 | 620F73-9 | SENSOR UNIT | 1 | €26.45 | 1-4 weeks to ship | |
| 032 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 033 | 629A85-9 | STATOR | 1 | €20.45 | 1-4 weeks to ship | |
| 035 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | 210026-6 | BALL BEARING 696ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 037 | 519710-3 | ROTOR ASSY | 1 | €44.12 | 1-4 weeks to ship | |
| 038 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 039 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 040 | 413907-5 | FRONT HAND GUARD RETAINER | 1 | €1.77 | 1-4 weeks to ship | |
| 041 | 141E58-1 | FRONT HAND GUARD COMPLETE | 1 | €6.73 | 1-4 weeks to ship | |
| 042 | COMPRESSION SPRING 3 | 1 | Not available in store | |||
| 043 | 313212-9 | HAND GUARD GUIDE | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | UC004G NAME PLATE | 1 | Not available in store | |||
| 046 | XGT LOGO LABEL | 1 | Not available in store | |||
| 047 | 422466-8 | GROMET | 1 | €0.36 | 1-4 weeks to ship | |
| 048 | 227620-7 | DRIVE GEAR 14 | 1 | €1.25 | 1-4 weeks to ship | |
| 049 | 227634-6 | STRAIGHT BEVEL GEAR 14 | 1 | €3.62 | 1-4 weeks to ship | |
| 050 | 347517-5 | TENSION SLIDE | 1 | €1.25 | 1-4 weeks to ship | |
| 051 | 327317-9 | ADJUST SCREW | 1 | €1.65 | 1-4 weeks to ship | |
| 052 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 053 | 281222-3 | HOOK | 1 | €0.42 | 1-4 weeks to ship | |
| 055 | 347516-7 | CHAIN CATCHER | 1 | €0.54 | 1-4 weeks to ship | |
| 056 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 058 | 346809-9 | SPIKE BUMPER | 1 | €0.97 | 1-4 weeks to ship | |
| 059 | 141E60-4 | LINK PLATE COMPLETE | 1 | €4.43 | 1-4 weeks to ship | |
| 060 | COMPRESSION SPRING 7 | 1 | Not available in store | |||
| 061 | 347864-4 | BRAKE BAND | 1 | €3.27 | 1-4 weeks to ship | |
| 062 | 413981-3 | HOUSING R COVER | 1 | €0.97 | 1-4 weeks to ship | |
| 063 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 064 | 162979-4 | BRAKE DRUM | 1 | €7.38 | 1-4 weeks to ship | |
| 065 | 213060-5 | O RING 10 | 1 | €0.14 | 1-4 weeks to ship | |
| 066 | 191V90-7 | SPROCKET 6 SET | 1 | €7.50 | 1-4 weeks to ship | |
| SPROCKET 7 SET | 1 | Not available in store | ||||
| 067 | 961013-5 | STOP RING E-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 347533-7 | GUIDE PLATE L | 1 | €0.70 | 1-4 weeks to ship | |
| 069 | 266905-6 | H.L. SOCKET HEAD BOLT M5X12 | 1 | €0.42 | 1-4 weeks to ship | |
| 070 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | GUIDE PLATE R | 1 | Not available in store | |||
| 072 | 136573-8 | SPROCKET COVER ASS'Y | 1 | €13.10 | 1-4 weeks to ship | |
| 073 | FLANGE NUT COMPLETE | 1 | Not available in store | |||
| 074 | NUT COVER | 1 | Not available in store | |||
| 076 | CHIP GUIDE | 1 | Not available in store | |||
| 077 | 324616-0 | HOSE CLAMP | 1 | €1.25 | 1-4 weeks to ship | |
