UB002C
UB002C

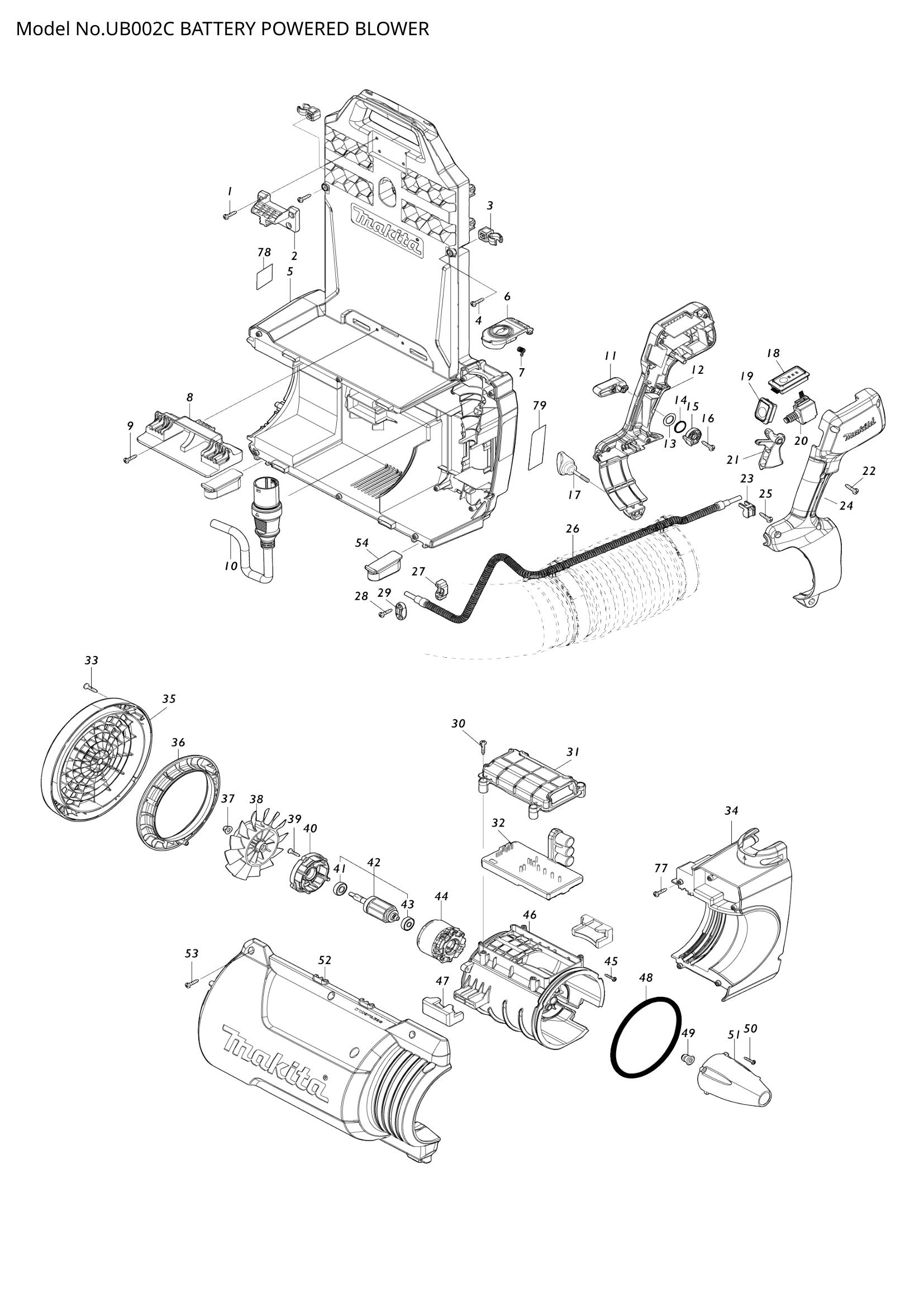

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 002 | UPPER HOLDER | 1 | Not available in store | |||
| UPPER HOLDER | 1 | Not available in store | ||||
| UPPER HOLDER | 1 | Not available in store | ||||
| 003 | HOLDER | 2 | Not available in store | |||
| HOLDER | 2 | Not available in store | ||||
| HOLDER | 2 | Not available in store | ||||
| 004 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 005 | FRAME COMPLETE | 1 | Not available in store | |||
| FRAME COMPLETE | 1 | Not available in store | ||||
| FRAME COMPLETE | 1 | Not available in store | ||||
| 006 | CONNECTOR COVER | 1 | Not available in store | |||
| CONNECTOR COVER | 1 | Not available in store | ||||
| CONNECTOR COVER | 1 | Not available in store | ||||
| 007 | TORSION SPRING 4 | 1 | Not available in store | |||
| TORSION SPRING 4 | 1 | Not available in store | ||||
| TORSION SPRING 4 | 1 | Not available in store | ||||
| 008 | BOTTOM HOLDER | 1 | Not available in store | |||
| BOTTOM HOLDER | 1 | Not available in store | ||||
| BOTTOM HOLDER | 1 | Not available in store | ||||
| 009 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 010 | POWER SUPPLY CORD UNIT | 1 | Not available in store | |||
| POWER SUPPLY CORD UNIT | 1 | Not available in store | ||||
| POWER SUPPLY CORD UNIT | 1 | Not available in store | ||||
| 011 | CONTROL LEVER | 1 | Not available in store | |||
| CONTROL LEVER | 1 | Not available in store | ||||
| CONTROL LEVER | 1 | Not available in store | ||||
| 012 | LEVER CASE SET | 1 | Not available in store | |||
| LEVER CASE SET | 1 | Not available in store | ||||
| LEVER CASE SET | 1 | Not available in store | ||||
| 013 | 253798-0 | FLAT WASHER 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 253798-0 | FLAT WASHER 13 | 1 | €0.56 | 1-4 weeks to ship | ||
| 253798-0 | FLAT WASHER 13 | 1 | €0.56 | 1-4 weeks to ship | ||
| 014 | 213154-6 | O RING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 213154-6 | O RING 14 | 1 | €0.56 | 1-4 weeks to ship | ||
| 213154-6 | O RING 14 | 1 | €0.56 | 1-4 weeks to ship | ||
| 015 | LINK | 1 | Not available in store | |||
| LINK | 1 | Not available in store | ||||
| LINK | 1 | Not available in store | ||||
| 016 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 017 | THUMB SCREW M5X35 | 1 | Not available in store | |||
| THUMB SCREW M5X35 | 1 | Not available in store | ||||
| THUMB SCREW M5X35 | 1 | Not available in store | ||||
| 018 | SWITCH CIRCUIT COMPLETE | 1 | Not available in store | |||
| SWITCH CIRCUIT COMPLETE | 1 | Not available in store | ||||
| SWITCH CIRCUIT COMPLETE | 1 | Not available in store | ||||
| 019 | SWITCH CIRCUIT COMPLETE | 1 | Not available in store | |||
| SWITCH CIRCUIT COMPLETE | 1 | Not available in store | ||||
| SWITCH CIRCUIT COMPLETE | 1 | Not available in store | ||||
| 020 | SWITCH C3JR-1A-PAXD3 | 1 | Not available in store | |||
| SWITCH C3JR-1A-PAXD3 | 1 | Not available in store | ||||
| SWITCH C3JR-1A-PAXD3 | 1 | Not available in store | ||||
| 021 | SWITCH LEVER | 1 | Not available in store | |||
| SWITCH LEVER | 1 | Not available in store | ||||
| SWITCH LEVER | 1 | Not available in store | ||||
| 022 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 023 | 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | LEVER CASE SET | 1 | Not available in store | |||
| LEVER CASE SET | 1 | Not available in store | ||||
| LEVER CASE SET | 1 | Not available in store | ||||
| 025 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 026 | POWER SUPPLY CORD UNIT | 1 | Not available in store | |||
| POWER SUPPLY CORD UNIT | 1 | Not available in store | ||||
| POWER SUPPLY CORD UNIT | 1 | Not available in store | ||||
| 027 | 687051-6 | STRAIN RELIEF | 1 | €2.09 | 1-4 weeks to ship | |
| 687051-6 | STRAIN RELIEF | 1 | €2.09 | 1-4 weeks to ship | ||
| 687051-6 | STRAIN RELIEF | 1 | €2.09 | 1-4 weeks to ship | ||
| 028 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 029 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 030 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 031 | CONTROLLER CASE COVER | 1 | Not available in store | |||
| CONTROLLER CASE COVER | 1 | Not available in store | ||||
| CONTROLLER CASE COVER | 1 | Not available in store | ||||
| 033 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 035 | REAR COVER | 1 | Not available in store | |||
| REAR COVER | 1 | Not available in store | ||||
| REAR COVER | 1 | Not available in store | ||||
| 036 | FAN GUIDE | 1 | Not available in store | |||
| FAN GUIDE | 1 | Not available in store | ||||
| FAN GUIDE | 1 | Not available in store | ||||
| 037 | COLLARED HEX.LOCK NUT M5-8 | 1 | Not available in store | |||
| COLLARED HEX.LOCK NUT M5-8 | 1 | Not available in store | ||||
| COLLARED HEX.LOCK NUT M5-8 | 1 | Not available in store | ||||
| 038 | FAN 110 | 1 | Not available in store | |||
| FAN 110 | 1 | Not available in store | ||||
| FAN 110 | 1 | Not available in store | ||||
| 039 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 040 | MOTOR HOUSING COVER | 1 | Not available in store | |||
| MOTOR HOUSING COVER | 1 | Not available in store | ||||
| MOTOR HOUSING COVER | 1 | Not available in store | ||||
| 041 | 210040-2 | BALL BEARING 698LLU | 1 | €4.73 | 1-4 weeks to ship | |
| 210040-2 | BALL BEARING 698LLU | 1 | €4.73 | 1-4 weeks to ship | ||
| 210040-2 | BALL BEARING 698LLU | 1 | €4.73 | 1-4 weeks to ship | ||
| 043 | 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 044 | STATOR COMPLETE | 1 | Not available in store | |||
| STATOR COMPLETE | 1 | Not available in store | ||||
| STATOR COMPLETE | 1 | Not available in store | ||||
| 045 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 3 | €0.56 | 1-4 weeks to ship | ||
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 3 | €0.56 | 1-4 weeks to ship | ||
| 046 | MOTOR HOUSING | 1 | Not available in store | |||
| MOTOR HOUSING | 1 | Not available in store | ||||
| MOTOR HOUSING | 1 | Not available in store | ||||
| 047 | RUBBER CUSHION | 2 | Not available in store | |||
| RUBBER CUSHION | 2 | Not available in store | ||||
| RUBBER CUSHION | 2 | Not available in store | ||||
| 048 | 424721-4 | RUBBER RING 115 | 1 | €5.84 | 1-4 weeks to ship | |
| 424721-4 | RUBBER RING 115 | 1 | €5.84 | 1-4 weeks to ship | ||
| 424721-4 | RUBBER RING 115 | 1 | €5.84 | 1-4 weeks to ship | ||
| 049 | GROMMET | 1 | Not available in store | |||
| GROMMET | 1 | Not available in store | ||||
| GROMMET | 1 | Not available in store | ||||
| 050 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 3 | €0.56 | 1-4 weeks to ship | ||
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 3 | €0.56 | 1-4 weeks to ship | ||
| 051 | CAP | 1 | Not available in store | |||
| CAP | 1 | Not available in store | ||||
| CAP | 1 | Not available in store | ||||
| 052 | HOUSING COMPLETE | 1 | Not available in store | |||
| HOUSING COMPLETE | 1 | Not available in store | ||||
| HOUSING COMPLETE | 1 | Not available in store | ||||
| 053 | 266326-2 | TAPPING SCREW 4X18 | 10 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 10 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 10 | €0.56 | 1-4 weeks to ship | ||
| 054 | RUBBER CUSHION | 2 | Not available in store | |||
| RUBBER CUSHION | 2 | Not available in store | ||||
| RUBBER CUSHION | 2 | Not available in store | ||||

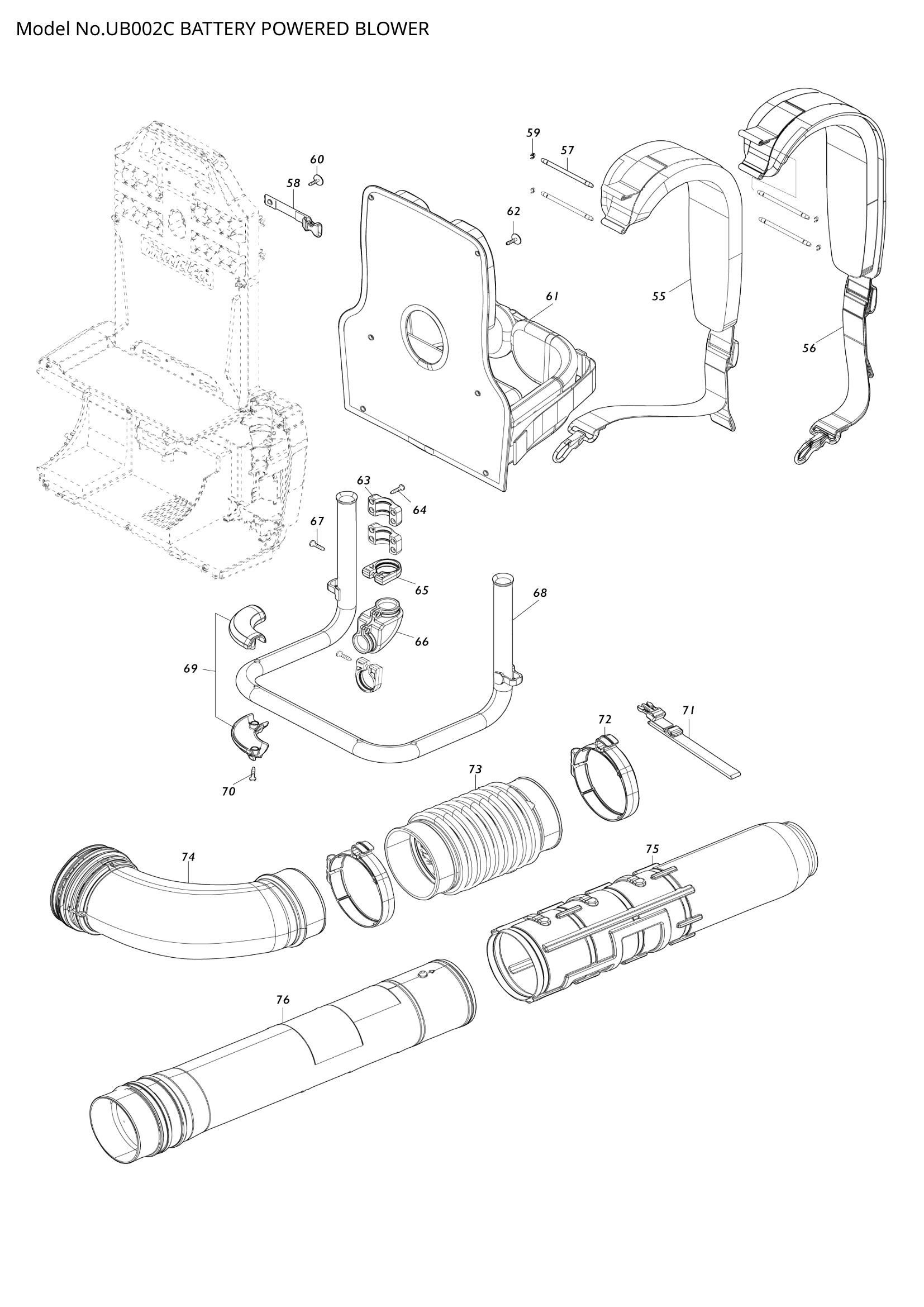

| 057 | ROD 5 | 4 | Not available in store | |||
| ROD 5 | 4 | Not available in store | ||||
| ROD 5 | 4 | Not available in store | ||||
| 058 | BAND A COMPLETE | 1 | Not available in store | |||
| BAND A COMPLETE | 1 | Not available in store | ||||
| BAND A COMPLETE | 1 | Not available in store | ||||
| 059 | 961011-9 | STOP RING E-4 | 4 | €0.56 | 1-4 weeks to ship | |
| 961011-9 | STOP RING E-4 | 4 | €0.56 | 1-4 weeks to ship | ||
| 961011-9 | STOP RING E-4 | 4 | €0.56 | 1-4 weeks to ship | ||
| 060 | TAPPING SCREW 4X18 WITH W | 1 | Not available in store | |||
| TAPPING SCREW 4X18 WITH W | 1 | Not available in store | ||||
| TAPPING SCREW 4X18 WITH W | 1 | Not available in store | ||||
| 062 | TAPPING SCREW 4X18 WITH W | 6 | Not available in store | |||
| TAPPING SCREW 4X18 WITH W | 6 | Not available in store | ||||
| TAPPING SCREW 4X18 WITH W | 6 | Not available in store | ||||
| 063 | PIPE FRAME COVER | 4 | Not available in store | |||
| PIPE FRAME COVER | 4 | Not available in store | ||||
| PIPE FRAME COVER | 4 | Not available in store | ||||
| 064 | 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | ||
| 065 | RUBBER CLAMP | 4 | Not available in store | |||
| RUBBER CLAMP | 4 | Not available in store | ||||
| RUBBER CLAMP | 4 | Not available in store | ||||
| 066 | FOOT HOUSING RUBBER | 2 | Not available in store | |||
| FOOT HOUSING RUBBER | 2 | Not available in store | ||||
| FOOT HOUSING RUBBER | 2 | Not available in store | ||||
| 067 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 068 | PIPE FRAME COMPLETE | 1 | Not available in store | |||
| PIPE FRAME COMPLETE | 1 | Not available in store | ||||
| PIPE FRAME COMPLETE | 1 | Not available in store | ||||
| 069 | FOOT HOUSING SET | 2 | Not available in store | |||
| FOOT HOUSING SET | 2 | Not available in store | ||||
| FOOT HOUSING SET | 2 | Not available in store | ||||
| 070 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 071 | BAND B COMPLETE | 1 | Not available in store | |||
| BAND B COMPLETE | 1 | Not available in store | ||||
| BAND B COMPLETE | 1 | Not available in store | ||||
| 072 | HOSE CLAMP 110 ASSEMBLY | 2 | Not available in store | |||
| HOSE CLAMP 110 ASSEMBLY | 2 | Not available in store | ||||
| HOSE CLAMP 110 ASSEMBLY | 2 | Not available in store | ||||
| 073 | FLEXIBLE PIPE 100 | 1 | Not available in store | |||
| FLEXIBLE PIPE 100 | 1 | Not available in store | ||||
| FLEXIBLE PIPE 100 | 1 | Not available in store | ||||
| 074 | ELBOW | 1 | Not available in store | |||
| ELBOW | 1 | Not available in store | ||||
| ELBOW | 1 | Not available in store | ||||
| 075 | END NOZZLE 82 | 1 | Not available in store | |||
| END NOZZLE 82 | 1 | Not available in store | ||||
| END NOZZLE 82 | 1 | Not available in store | ||||
| 076 | SWIVEL PIPE COMPLETE | 1 | Not available in store | |||
| SWIVEL PIPE COMPLETE | 1 | Not available in store | ||||
| SWIVEL PIPE COMPLETE | 1 | Not available in store | ||||
| 077 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | ||
| 078 | SOUND 103DB LABEL | 1 | Not available in store | |||
| SOUND 103DB LABEL | 1 | Not available in store | ||||
| SOUND 103DB LABEL | 1 | Not available in store | ||||
| 079 | UB002C NAME PLATE | 1 | Not available in store | |||
| UB002C NAME PLATE | 1 | Not available in store | ||||
| UB002C NAME PLATE | 1 | Not available in store | ||||
