UB001G
UB001G

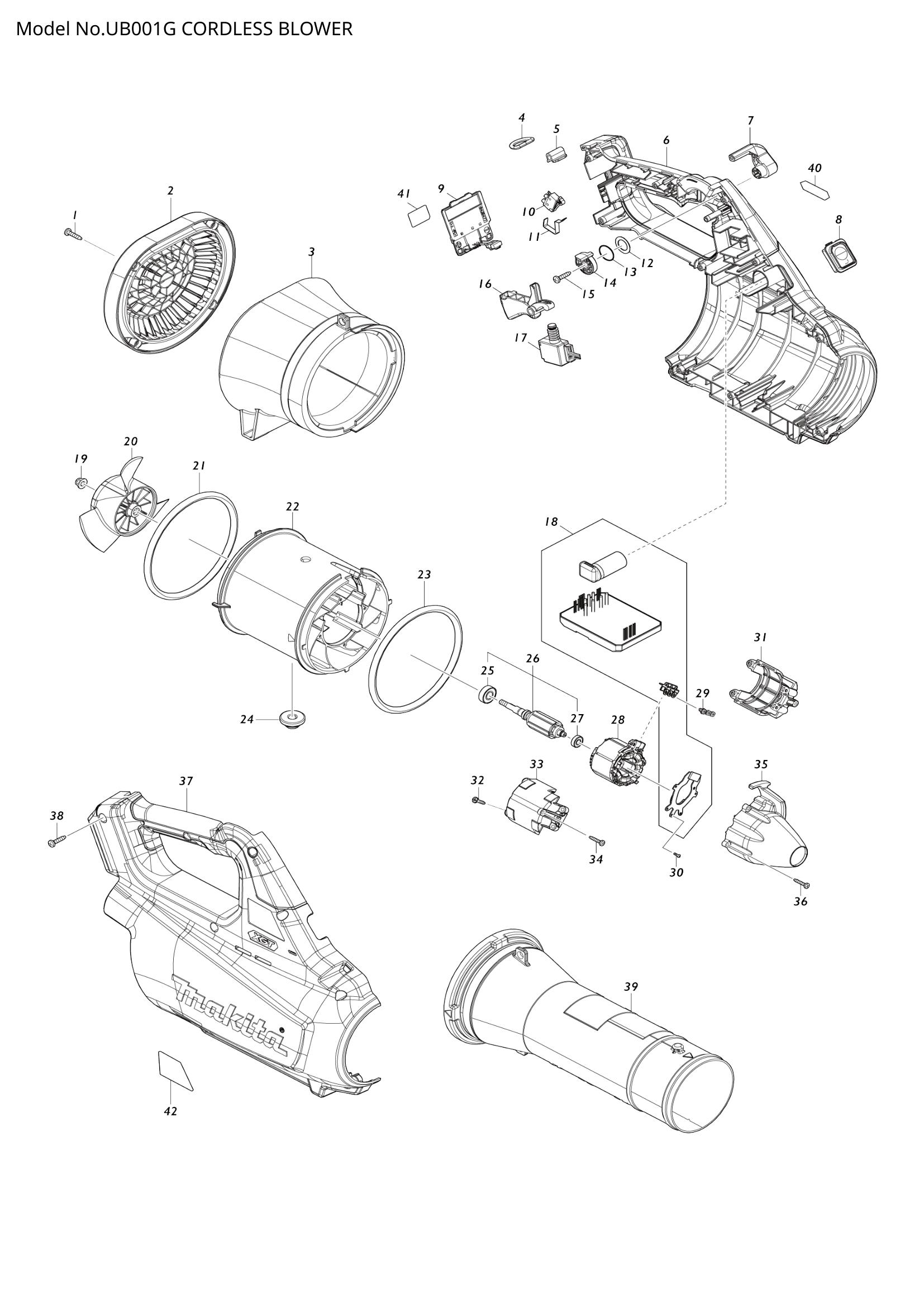

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 004 | D RING 20 | 1 | Not available in store | |||
| 005 | RING SUPPORT | 1 | Not available in store | |||
| 007 | CONTROL LEVER | 1 | Not available in store | |||
| 008 | SWITCH CIRCUIT COMPLETE | 1 | Not available in store | |||
| 009 | 632P65-6 | TERMINAL UNIT | 1 | €9.41 | 1-4 weeks to ship | |
| 010 | 632L48-2 | SWITCH UNIT | 1 | €13.64 | 1-4 weeks to ship | |
| 011 | LEAF SPRING | 1 | Not available in store | |||
| 012 | 253798-0 | FLAT WASHER 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 213154-6 | O RING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | LINK | 1 | Not available in store | |||
| 015 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | SWITCH LEVER | 1 | Not available in store | |||
| 017 | SWITCH C3JR-1AT-PAXD3 | 1 | Not available in store | |||
| 018 | CONTROLLER | 1 | Not available in store | |||
| 019 | COLLARED HEX.LOCK NUT M5-8 | 1 | Not available in store | |||
| 020 | 240177-1 | FAN 110 | 1 | €19.48 | 1-4 weeks to ship | |
| 021 | 424721-4 | RUBBER RING 115 | 1 | €5.84 | 1-4 weeks to ship | |
| 022 | FAN HOUSING | 1 | Not available in store | |||
| 023 | 424721-4 | RUBBER RING 115 | 1 | €5.84 | 1-4 weeks to ship | |
| 024 | 424194-1 | RUBBER RING 8 | 1 | €0.70 | 1-4 weeks to ship | |
| 025 | 210040-2 | BALL BEARING 698LLU | 1 | €4.73 | 1-4 weeks to ship | |
| 026 | ROTOR ASS'Y | 1 | Not available in store | |||
| 027 | 211157-4 | BALL BEARING 695ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 028 | STATOR | 1 | Not available in store | |||
| 029 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 030 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 031 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 033 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 035 | CAP | 1 | Not available in store | |||
| 038 | 266326-2 | TAPPING SCREW 4X18 | 10 | €0.56 | 1-4 weeks to ship | |
| 039 | FRONT PIPE | 1 | Not available in store | |||
| 040 | XGT LOGO LABEL | 1 | Not available in store | |||
| 041 | UB001G SERIAL NO. LABEL | 1 | Not available in store | |||
| 042 | UB001G NAME PLATE | 1 | Not available in store | |||
