UA003G
UA003G

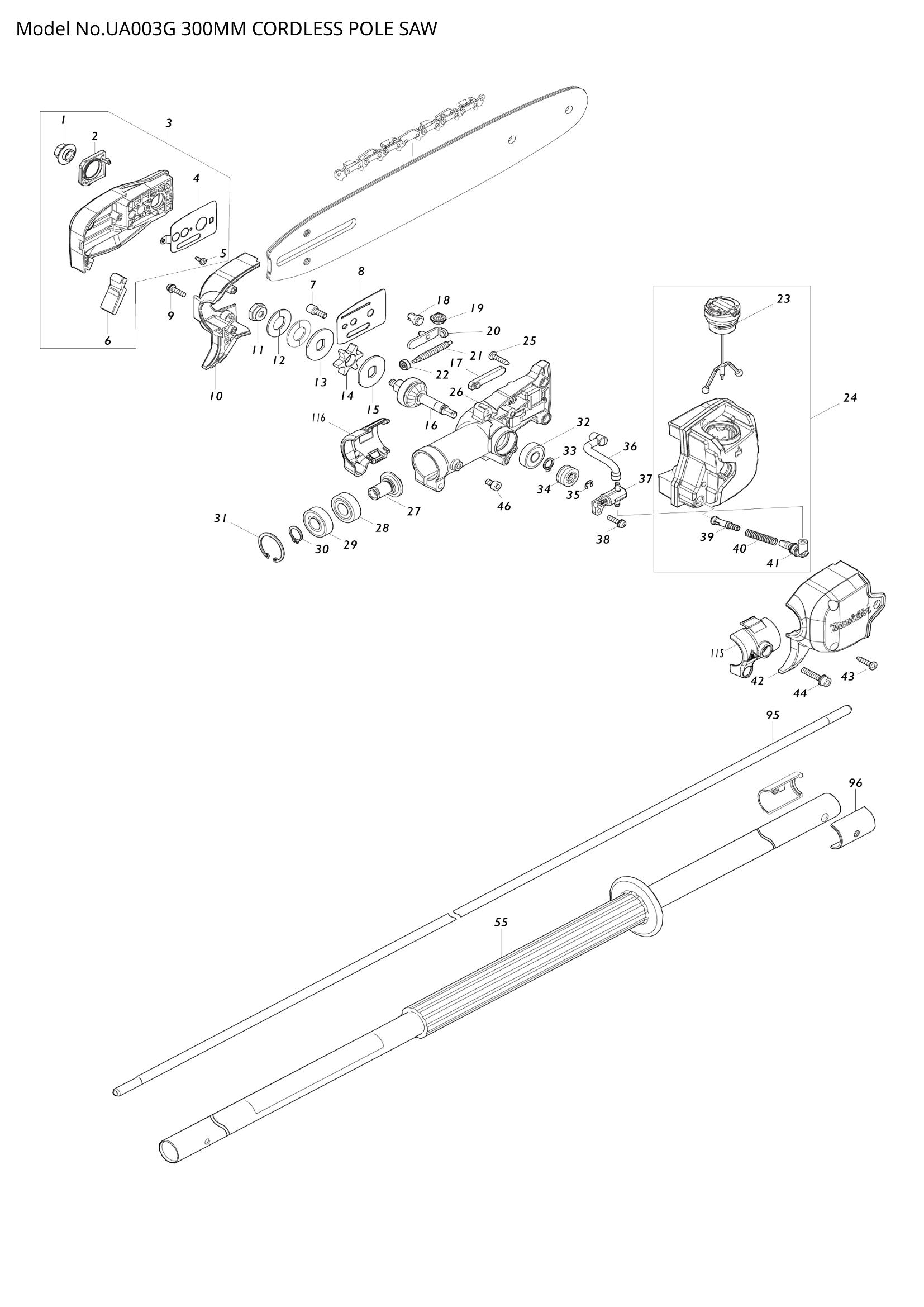

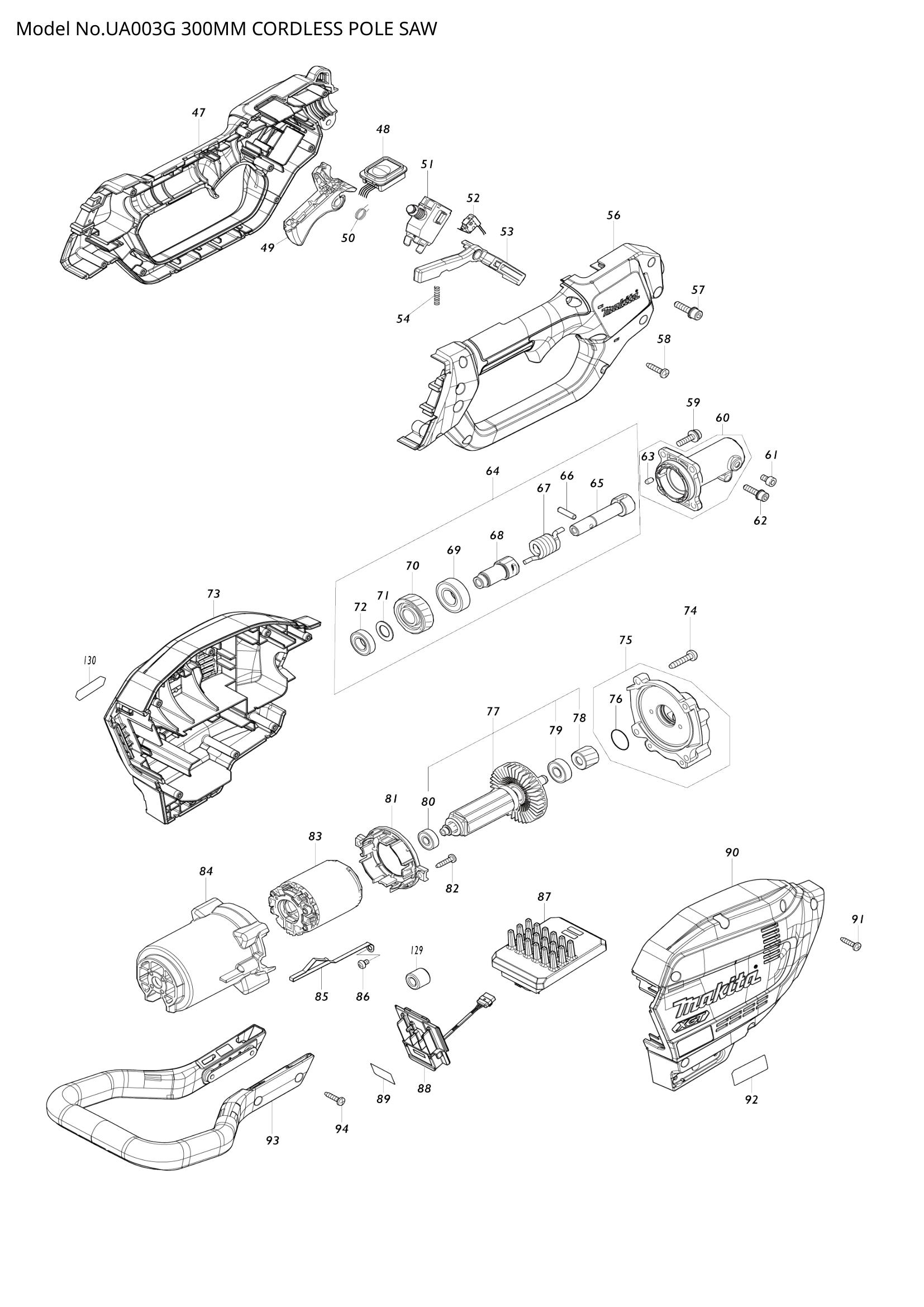

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | FLANGE NUT COMPLETE | 1 | Not available in store | |||
| FLANGE NUT COMPLETE | 1 | Not available in store | ||||
| 002 | NUT COVER | 1 | Not available in store | |||
| NUT COVER | 1 | Not available in store | ||||
| 003 | SPROCKET COVER ASSY | 1 | Not available in store | |||
| SPROCKET COVER ASSY | 1 | Not available in store | ||||
| 004 | GUIDE PLATE L | 1 | Not available in store | |||
| GUIDE PLATE L | 1 | Not available in store | ||||
| 005 | 265954-0 | TAPPING SCREW BIND PT3X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 265954-0 | TAPPING SCREW BIND PT3X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | CHIP GUIDE | 1 | Not available in store | |||
| CHIP GUIDE | 1 | Not available in store | ||||
| 007 | 266905-6 | H.L. SOCKET HEAD BOLT M5X12 | 1 | €0.42 | 1-4 weeks to ship | |
| 266905-6 | H.L. SOCKET HEAD BOLT M5X12 | 1 | €0.42 | 1-4 weeks to ship | ||
| 008 | GUIDE PLATE R | 1 | Not available in store | |||
| GUIDE PLATE R | 1 | Not available in store | ||||
| 009 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 010 | GEAR CASE HOUSING SET | 1 | Not available in store | |||
| GEAR CASE HOUSING SET | 1 | Not available in store | ||||
| 011 | HEX. NUT M6 | 1 | Not available in store | |||
| HEX. NUT M6 | 1 | Not available in store | ||||
| 012 | CORNED DISK SPRING 14 | 2 | Not available in store | |||
| CORNED DISK SPRING 14 | 2 | Not available in store | ||||
| 013 | LOCK WASHER 12 | 1 | Not available in store | |||
| LOCK WASHER 12 | 1 | Not available in store | ||||
| 014 | SPROCKET 6 | 1 | Not available in store | |||
| SPROCKET 6 | 1 | Not available in store | ||||
| 015 | LOCK WASHER 12 | 1 | Not available in store | |||
| LOCK WASHER 12 | 1 | Not available in store | ||||
| 016 | SPINDLE COMPLETE | 1 | Not available in store | |||
| SPINDLE COMPLETE | 1 | Not available in store | ||||
| 017 | GROMET | 1 | Not available in store | |||
| GROMET | 1 | Not available in store | ||||
| 018 | 227620-7 | DRIVE GEAR 14 | 1 | €1.25 | 1-4 weeks to ship | |
| 227620-7 | DRIVE GEAR 14 | 1 | €1.25 | 1-4 weeks to ship | ||
| 019 | 227634-6 | STRAIGHT BEVEL GEAR 14 | 1 | €3.62 | 1-4 weeks to ship | |
| 227634-6 | STRAIGHT BEVEL GEAR 14 | 1 | €3.62 | 1-4 weeks to ship | ||
| 020 | TENSION SLIDE | 1 | Not available in store | |||
| TENSION SLIDE | 1 | Not available in store | ||||
| 021 | ADJUST SCREW | 1 | Not available in store | |||
| ADJUST SCREW | 1 | Not available in store | ||||
| 022 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | ||
| 023 | TANK CAP ASSEMBLY | 1 | Not available in store | |||
| TANK CAP ASSEMBLY | 1 | Not available in store | ||||
| 025 | 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 027 | SPIRAL BEVEL GEAR 18 | 1 | Not available in store | |||
| SPIRAL BEVEL GEAR 18 | 1 | Not available in store | ||||
| 028 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | ||
| 029 | 211148-5 | BALL BEARING 6001ZZ | 1 | €8.35 | 1-4 weeks to ship | |
| 211148-5 | BALL BEARING 6001ZZ | 1 | €8.35 | 1-4 weeks to ship | ||
| 030 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | 962106-1 | RETAINING RING R-28 | 1 | €0.56 | 1-4 weeks to ship | |
| 962106-1 | RETAINING RING R-28 | 1 | €0.56 | 1-4 weeks to ship | ||
| 032 | BALL BEARING 609DDW | 1 | Not available in store | |||
| BALL BEARING 609DDW | 1 | Not available in store | ||||
| 033 | 961005-4 | RETAINING RING S-9 | 1 | €0.56 | 1-4 weeks to ship | |
| 961005-4 | RETAINING RING S-9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 034 | 226884-0 | WORM GEAR | 1 | €0.70 | 1-4 weeks to ship | |
| 226884-0 | WORM GEAR | 1 | €0.70 | 1-4 weeks to ship | ||
| 035 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | OIL TUBE 3-70 | 1 | Not available in store | |||
| OIL TUBE 3-70 | 1 | Not available in store | ||||
| 038 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | 452666-6 | NIPPLE | 1 | €0.56 | 1-4 weeks to ship | |
| 452666-6 | NIPPLE | 1 | €0.56 | 1-4 weeks to ship | ||
| 040 | 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | OIL TUBE 3-14 | 1 | Not available in store | |||
| OIL TUBE 3-14 | 1 | Not available in store | ||||
| 042 | GEAR CASE HOUSING SET | 1 | Not available in store | |||
| GEAR CASE HOUSING SET | 1 | Not available in store | ||||
| 043 | 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 044 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 1 | €0.56 | 1-4 weeks to ship | ||
| 046 | 922202-7 | HEX. SOCKET HEAD BOLT M5X8 | 1 | €0.83 | 1-4 weeks to ship | |
| 922202-7 | HEX. SOCKET HEAD BOLT M5X8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 047 | GRIP SET | 1 | Not available in store | |||
| GRIP SET | 1 | Not available in store | ||||
| 048 | SWITCH CIRCUIT COMPLETE | 1 | Not available in store | |||
| SWITCH CIRCUIT COMPLETE | 1 | Not available in store | ||||
| 049 | SWITCH LEVER | 1 | Not available in store | |||
| SWITCH LEVER | 1 | Not available in store | ||||
| 050 | TORSION SPRING 12 | 1 | Not available in store | |||
| TORSION SPRING 12 | 1 | Not available in store | ||||
| 051 | SWITCH C3JR-4B-PAND3 | 1 | Not available in store | |||
| SWITCH C3JR-4B-PAND3 | 1 | Not available in store | ||||
| 052 | 632G61-0 | SWITCH UNIT | 1 | €10.30 | 1-4 weeks to ship | |
| 632G61-0 | SWITCH UNIT | 1 | €10.30 | 1-4 weeks to ship | ||
| 053 | LOCK OFF LEVER | 1 | Not available in store | |||
| LOCK OFF LEVER | 1 | Not available in store | ||||
| 054 | 233101-1 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233101-1 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 056 | GRIP SET | 1 | Not available in store | |||
| GRIP SET | 1 | Not available in store | ||||
| 057 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 058 | 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | ||
| 059 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | ||
| 060 | PIPE BRACKET ASSY | 1 | Not available in store | |||
| PIPE BRACKET ASSY | 1 | Not available in store | ||||
| 061 | 922202-7 | HEX. SOCKET HEAD BOLT M5X8 | 1 | €0.83 | 1-4 weeks to ship | |
| 922202-7 | HEX. SOCKET HEAD BOLT M5X8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 062 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 063 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 064 | DAMPER SHAFT ASSEMBLY | 1 | Not available in store | |||
| DAMPER SHAFT ASSEMBLY | 1 | Not available in store | ||||
| 065 | JOINT SLEEVE | 1 | Not available in store | |||
| JOINT SLEEVE | 1 | Not available in store | ||||
| 066 | PIN 5 | 1 | Not available in store | |||
| PIN 5 | 1 | Not available in store | ||||
| 067 | TORSION SPRING 12 | 1 | Not available in store | |||
| TORSION SPRING 12 | 1 | Not available in store | ||||
| 068 | SPINDLE HUB | 1 | Not available in store | |||
| SPINDLE HUB | 1 | Not available in store | ||||
| 069 | 211232-6 | BALL BEARING 6002LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 211232-6 | BALL BEARING 6002LLU | 1 | €11.13 | 1-4 weeks to ship | ||
| 070 | HELICAL GEAR 33 | 1 | Not available in store | |||
| HELICAL GEAR 33 | 1 | Not available in store | ||||
| 071 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 072 | 211150-8 | BALL BEARING 6901ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 211150-8 | BALL BEARING 6901ZZ | 1 | €5.57 | 1-4 weeks to ship | ||
| 073 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 074 | 266459-3 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 266459-3 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | ||
| 075 | GEAR BOX ASS'Y | 1 | Not available in store | |||
| GEAR BOX ASS'Y | 1 | Not available in store | ||||
| 076 | 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | ||
| 077 | ROTOR ASS'Y | 1 | Not available in store | |||
| ROTOR ASS'Y | 1 | Not available in store | ||||
| 078 | HELICAL GEAR 16 | 1 | Not available in store | |||
| HELICAL GEAR 16 | 1 | Not available in store | ||||
| 079 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 080 | 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | ||
| 081 | BAFFLE PLATE | 1 | Not available in store | |||
| BAFFLE PLATE | 1 | Not available in store | ||||
| 082 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 083 | STATOR | 1 | Not available in store | |||
| STATOR | 1 | Not available in store | ||||
| 084 | MOTOR HOUSING | 1 | Not available in store | |||
| MOTOR HOUSING | 1 | Not available in store | ||||
| 086 | 911102-6 | PAN HEAD SCREW M4X6 | 1 | €0.14 | 1-4 weeks to ship | |
| 911102-6 | PAN HEAD SCREW M4X6 | 1 | €0.14 | 1-4 weeks to ship | ||
| 087 | CONTROLLER | 1 | Not available in store | |||
| CONTROLLER | 1 | Not available in store | ||||
| 088 | 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | |
| 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | ||
| 089 | UA003G SERIAL NO. LABEL | 1 | Not available in store | |||
| UA003G SERIAL NO. LABEL | 1 | Not available in store | ||||
| 090 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 091 | 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | ||
| 092 | UA003G NAME PLATE | 1 | Not available in store | |||
| UA003G NAME PLATE | 1 | Not available in store | ||||
| 093 | GUARD | 1 | Not available in store | |||
| GUARD | 1 | Not available in store | ||||
| 094 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 095 | SHAFT | 1 | Not available in store | |||
| SHAFT | 1 | Not available in store | ||||
| 096 | SLEEVE 28 | 2 | Not available in store | |||
| SLEEVE 28 | 2 | Not available in store | ||||
| 115 | GEAR CASE COVER SET | 1 | Not available in store | |||
| GEAR CASE COVER SET | 1 | Not available in store | ||||
| 116 | GEAR CASE COVER SET | 1 | Not available in store | |||
| GEAR CASE COVER SET | 1 | Not available in store | ||||
| 129 | 688163-8 | LINE FILTER | 1 | €0.83 | 1-4 weeks to ship | |
| 688163-8 | LINE FILTER | 1 | €0.83 | 1-4 weeks to ship | ||
| 130 | XGT LOGO LABEL | 1 | Not available in store | |||
| XGT LOGO LABEL | 1 | Not available in store | ||||
