TW202D
TW202D

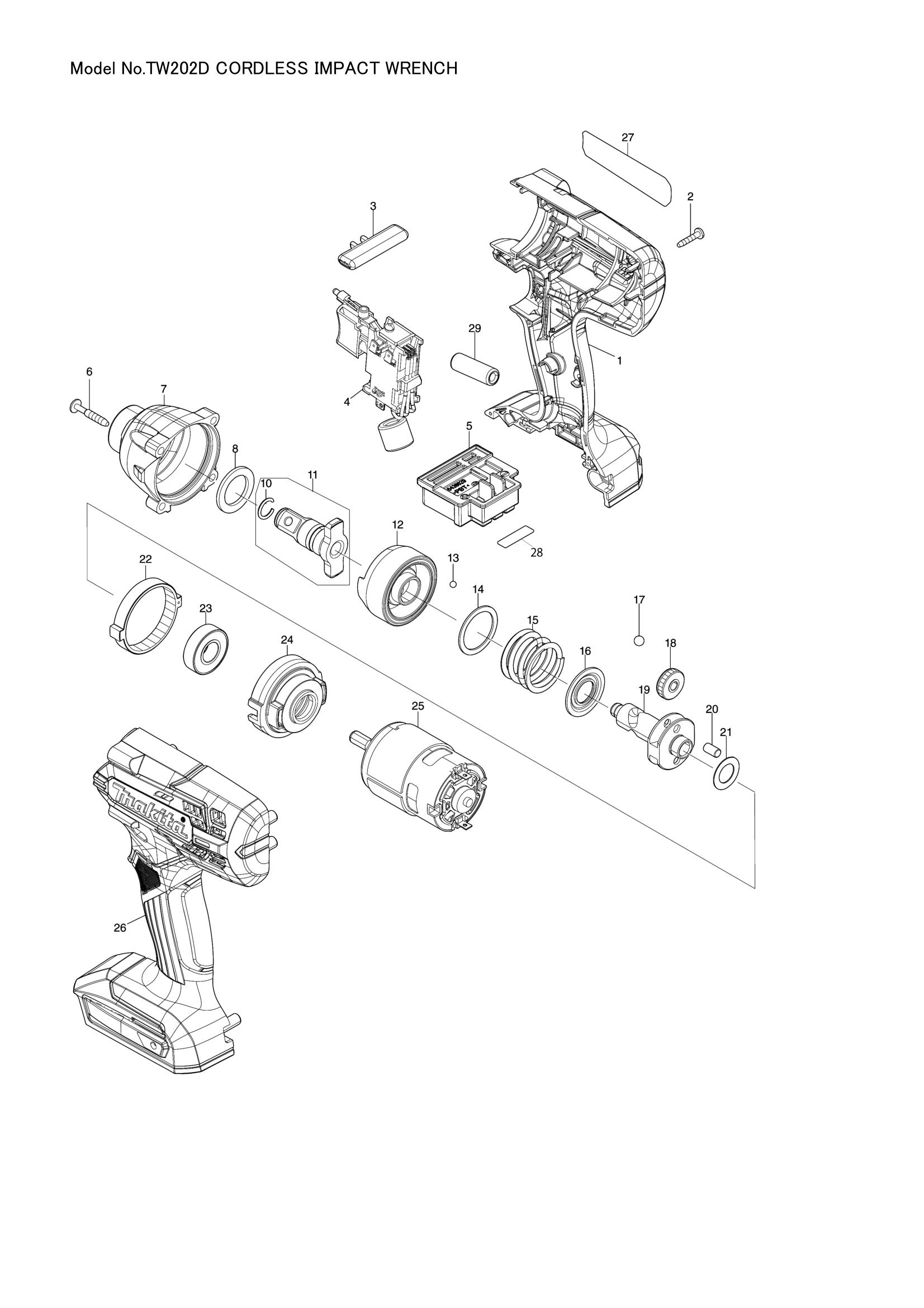

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HOUSING SET | 1 | Not available in store | |||
| 002 | 266429-2 | TAPPING SCREW 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 003 | 452399-3 | F/R CHANGE LEVER | 1 | €0.42 | 1-4 weeks to ship | |
| 452399-3 | F/R CHANGE LEVER | 1 | €0.42 | 1-4 weeks to ship | ||
| 004 | SWITCH UNIT | 1 | Not available in store | |||
| 005 | TERMINAL | 1 | Not available in store | |||
| 006 | 266374-1 | TAPPING SCREW 4X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 007 | HAMMER CASE COMPLETE | 1 | Not available in store | |||
| 008 | 261151-6 | NYLON WASHER 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 231907-1 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 135796-5 | ANVIL E ASSEMBLY | 1 | €12.11 | 1-4 weeks to ship | |
| 012 | 326110-8 | HAMMER | 1 | €11.13 | 1-4 weeks to ship | |
| 013 | 216040-0 | STEEL BALL 3.5 | 24 | €0.14 | 1-4 weeks to ship | |
| 014 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 233430-2 | COMPRESSION SPRING 24 | 1 | €1.67 | 1-4 weeks to ship | |
| 016 | 267766-7 | CUP WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 216041-8 | STEEL BALL 5.6 | 2 | €0.14 | 1-4 weeks to ship | |
| 018 | 227362-3 | SPUR GEAR 22 | 2 | €1.95 | 1-4 weeks to ship | |
| 019 | 326109-3 | SPINDLE | 1 | €13.92 | 1-4 weeks to ship | |
| 020 | 256253-1 | PIN 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 021 | 267212-0 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 227279-0 | INTERNAL GEAR 51 | 1 | €1.11 | 1-4 weeks to ship | |
| 023 | 210107-6 | BALL BEARING 6001ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 024 | 453056-6 | INTERNAL GEAR CASE | 1 | €0.83 | 1-4 weeks to ship | |
| 025 | 629199-8 | DC MOTOR | 1 | €31.31 | 1-4 weeks to ship | |
| 629199-8 | DC MOTOR | 1 | €31.31 | 1-4 weeks to ship | ||
| 026 | HOUSING SET | 1 | Not available in store | |||
| 027 | TW202D NAME PLATE | 1 | Not available in store | |||
| 028 | TW202D SERIAL NO. LABEL | 1 | Not available in store | |||
| 029 | 688165-4 | LINE FILTER | 1 | €0.56 | 1-4 weeks to ship | |
