TW161D
TW161D

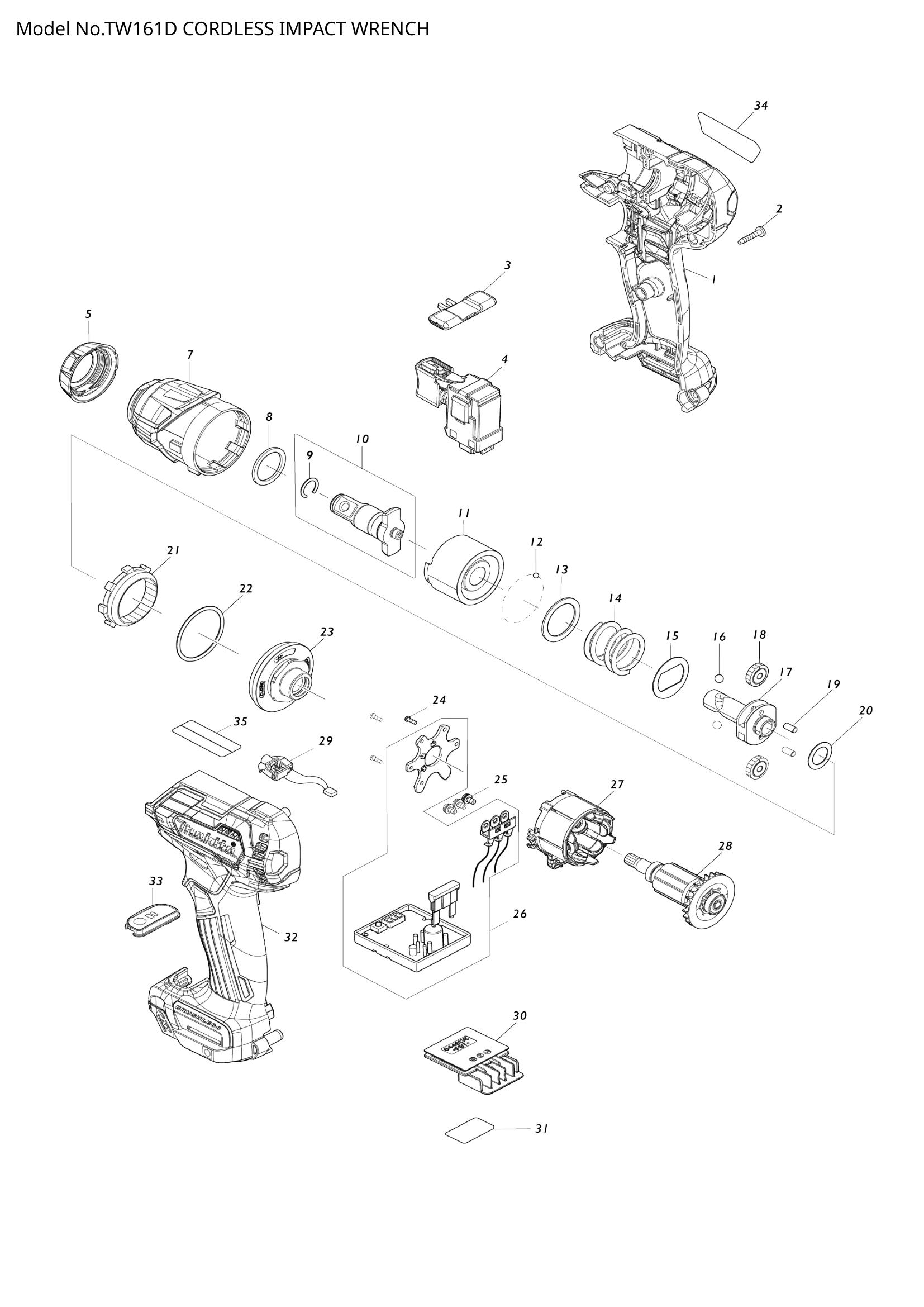

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HOUSING SET | 1 | Not available in store | |||
| 002 | 266429-2 | TAPPING SCREW 3X16 | 9 | €0.56 | 1-4 weeks to ship | |
| 003 | 455053-8 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 143975-1 | SWITCH COMPLETE | 1 | €18.09 | 1-4 weeks to ship | |
| 005 | BUMPER | 1 | Not available in store | |||
| 007 | HAMMER CASE COMPLETE | 1 | Not available in store | |||
| 008 | 261159-0 | NYLON WASHER 19 | 1 | €0.28 | 1-4 weeks to ship | |
| 009 | 231907-1 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 136030-6 | ANVIL E ASSY | 1 | €7.65 | 1-4 weeks to ship | |
| 011 | 327200-0 | HAMMER | 1 | €8.35 | 1-4 weeks to ship | |
| 012 | 216019-1 | STEEL BALL 3 | 24 | €0.56 | 1-4 weeks to ship | |
| 013 | 267352-4 | FLAT WASHER 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | COMPRESSION SPRING 21 | 1 | Not available in store | |||
| 015 | 267813-4 | WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 216002-8 | STEEL BALL 4.8 | 2 | €0.56 | 1-4 weeks to ship | |
| 017 | 327046-4 | SPINDLE | 1 | €6.26 | 1-4 weeks to ship | |
| 018 | 227213-0 | SPUR GEAR 17 | 2 | €0.56 | 1-4 weeks to ship | |
| 019 | 268217-3 | PIN 3.5 | 2 | €0.56 | 1-4 weeks to ship | |
| 020 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 227316-0 | INTERNAL GEAR 43 | 1 | €3.76 | 1-4 weeks to ship | |
| 022 | 213479-8 | O RING 33 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 140G75-0 | BEARING BOX COMPLETE | 1 | €4.61 | 1-4 weeks to ship | |
| 024 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 025 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 026 | CONTROLLER | 1 | Not available in store | |||
| 027 | STATOR | 1 | Not available in store | |||
| 029 | LED CIRCUIT | 1 | Not available in store | |||
| 030 | 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | |
| 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | ||
| 031 | TW161D SERIAL NO. LABEL | 1 | Not available in store | |||
| 032 | HOUSING SET | 1 | Not available in store | |||
| 033 | SWITCH PLATE COMPLETE | 1 | Not available in store | |||
| 034 | TW161D NAME PLATE | 1 | Not available in store | |||
