TW141D
TW141D

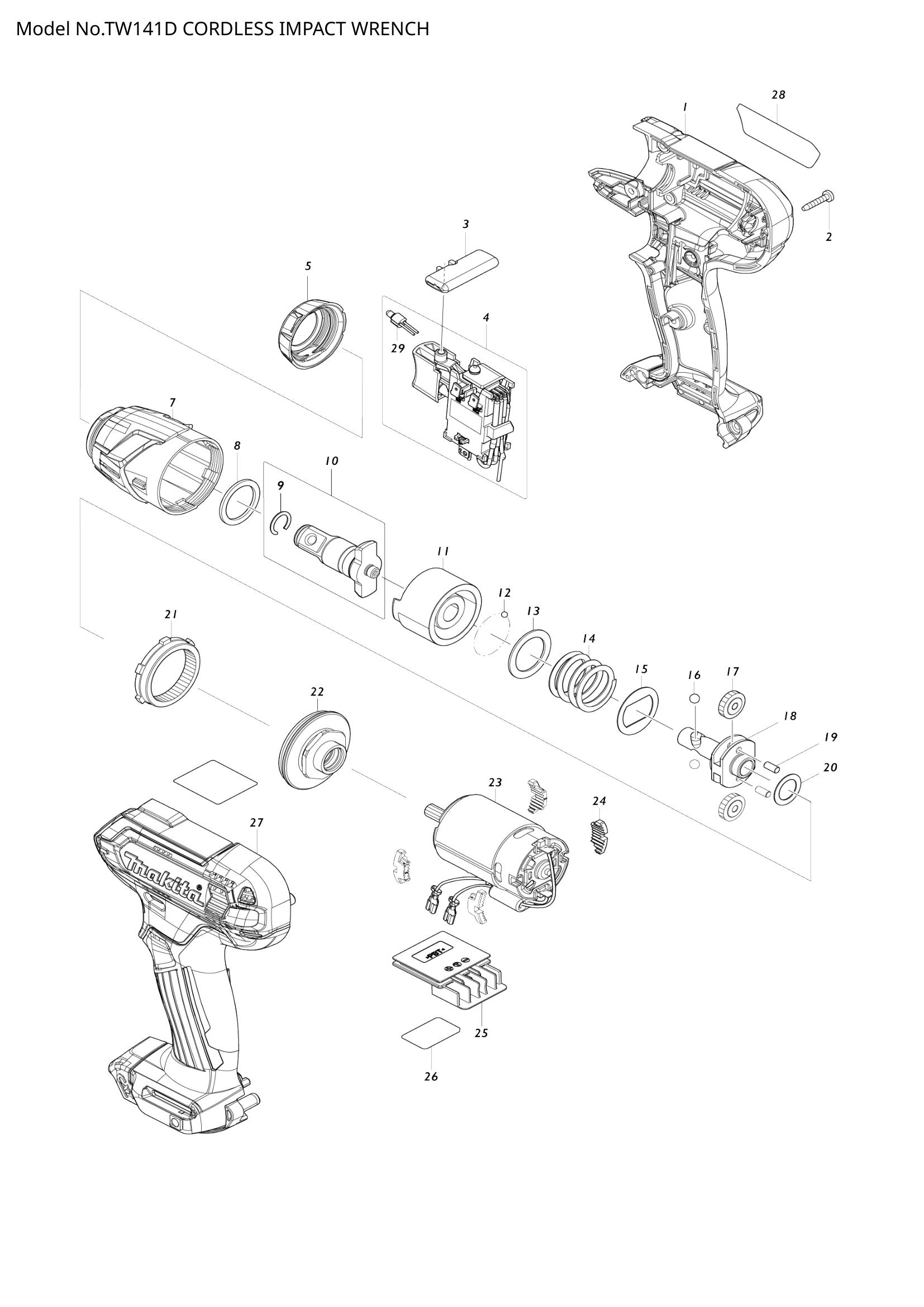

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 183J75-5 | HOUSING SET | 1 | €11.13 | 1-4 weeks to ship | |
| 002 | 266429-2 | TAPPING SCREW 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 003 | 456039-5 | F/R CHANGE LEVER | 1 | €0.42 | 1-4 weeks to ship | |
| 456039-5 | F/R CHANGE LEVER | 1 | €0.42 | 1-4 weeks to ship | ||
| 004 | 632M05-6 | SWITCH UNIT | 1 | €31.87 | 1-4 weeks to ship | |
| 005 | BUMPER | 1 | Not available in store | |||
| 007 | HAMMER CASE COMPLETE | 1 | Not available in store | |||
| 008 | 261140-1 | NYLON WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 231907-1 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 136030-6 | ANVIL E ASSY | 1 | €7.65 | 1-4 weeks to ship | |
| 011 | HAMMER | 1 | Not available in store | |||
| 012 | 216019-1 | STEEL BALL 3 | 24 | €0.56 | 1-4 weeks to ship | |
| 013 | 267380-9 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | COMPRESSION SPRING 21 | 1 | Not available in store | |||
| 015 | 267813-4 | WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 216002-8 | STEEL BALL 4.8 | 2 | €0.56 | 1-4 weeks to ship | |
| 017 | 226190-3 | SPUR GEAR 18 | 2 | €0.28 | 1-4 weeks to ship | |
| 018 | 327127-4 | SPINDLE | 1 | €5.98 | 1-4 weeks to ship | |
| 019 | 268217-3 | PIN 3.5 | 2 | €0.56 | 1-4 weeks to ship | |
| 020 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 632L97-9 | MOTOR COMPLETE | 1 | €16.42 | 1-4 weeks to ship | |
| 024 | 422273-9 | CUSHION | 4 | €0.28 | 1-4 weeks to ship | |
| 025 | 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | |
| 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | ||
| 026 | TW141D SERIAL NO. LABEL | 1 | Not available in store | |||
| 027 | 183J75-5 | HOUSING SET | 1 | €11.13 | 1-4 weeks to ship | |
| 028 | TW141D NAME PLATE | 1 | Not available in store | |||
| 029 | LED CIRCUIT | 1 | Not available in store | |||
| 031 | 213458-6 | O RING 34 S | 1 | €0.56 | 1-4 weeks to ship | |
