TW060D
TW060D

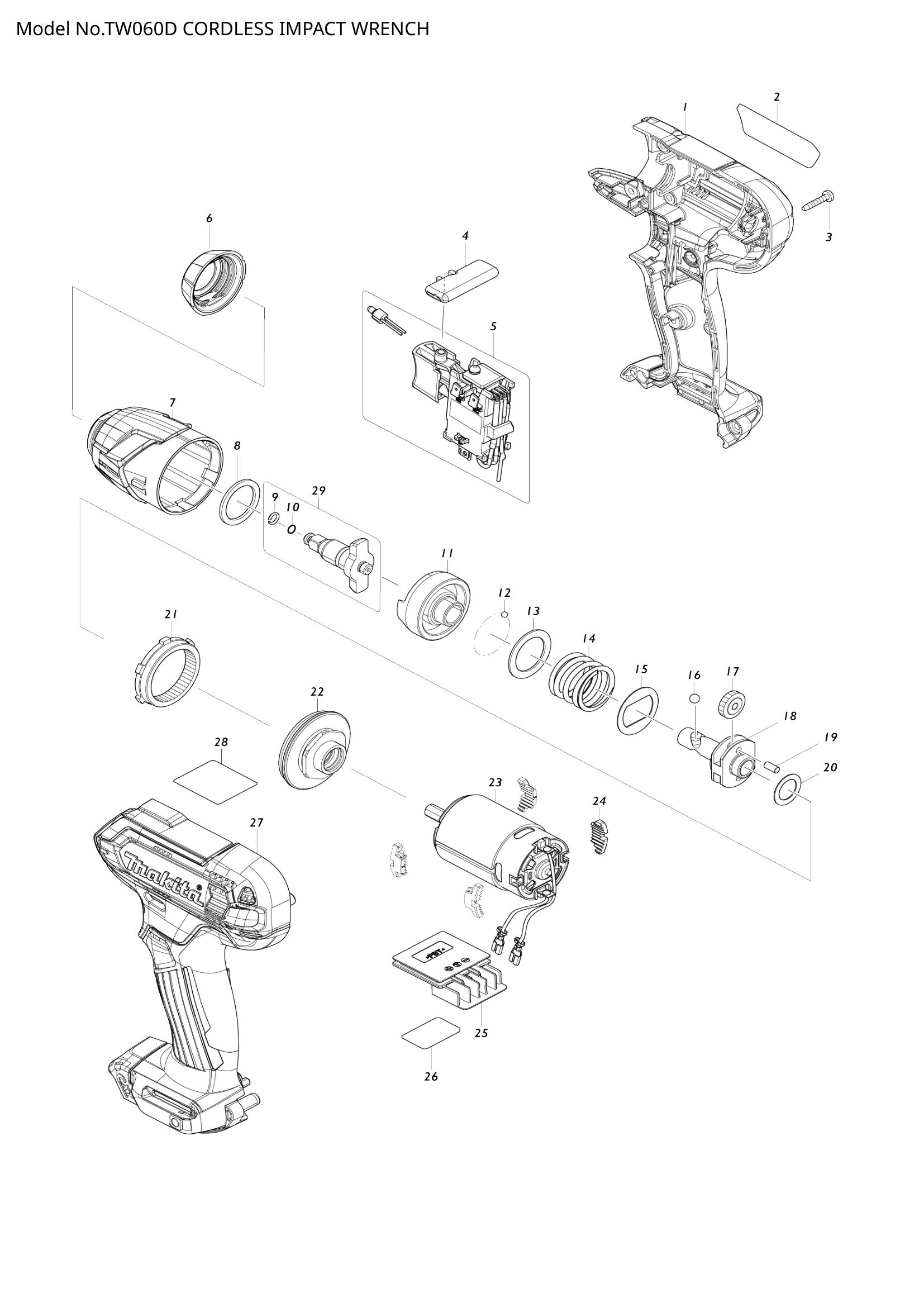

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 183J75-5 | HOUSING SET | 1 | €11.13 | 1-4 weeks to ship | |
| 183J75-5 | HOUSING SET | 1 | €11.13 | 1-4 weeks to ship | ||
| 002 | TW060D NAME PLATE | 1 | Not available in store | |||
| TW060D NAME PLATE | 1 | Not available in store | ||||
| 003 | 266429-2 | TAPPING SCREW 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 266429-2 | TAPPING SCREW 3X16 | 8 | €0.56 | 1-4 weeks to ship | ||
| 004 | 456039-5 | F/R CHANGE LEVER | 1 | €0.42 | 1-4 weeks to ship | |
| 456039-5 | F/R CHANGE LEVER | 1 | €0.42 | 1-4 weeks to ship | ||
| 456039-5 | F/R CHANGE LEVER | 1 | €0.42 | 1-4 weeks to ship | ||
| 456039-5 | F/R CHANGE LEVER | 1 | €0.42 | 1-4 weeks to ship | ||
| 005 | 632M05-6 | SWITCH UNIT | 1 | €31.87 | 1-4 weeks to ship | |
| 632M05-6 | SWITCH UNIT | 1 | €31.87 | 1-4 weeks to ship | ||
| 006 | 422228-4 | BUMPER | 1 | €0.70 | 1-4 weeks to ship | |
| 422228-4 | BUMPER | 1 | €0.70 | 1-4 weeks to ship | ||
| 007 | 140B03-5 | HAMMER CASE COMPLETE | 1 | €10.16 | 1-4 weeks to ship | |
| 140B03-5 | HAMMER CASE COMPLETE | 1 | €10.16 | 1-4 weeks to ship | ||
| 008 | 261140-1 | NYLON WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 261140-1 | NYLON WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 009 | RING SPRING 5 | 1 | Not available in store | |||
| RING SPRING 5 | 1 | Not available in store | ||||
| 010 | 213014-2 | O RING 3 | 1 | €0.83 | 1-4 weeks to ship | |
| 213014-2 | O RING 3 | 1 | €0.83 | 1-4 weeks to ship | ||
| 011 | HAMMER | 1 | Not available in store | |||
| HAMMER | 1 | Not available in store | ||||
| 012 | 216019-1 | STEEL BALL 3 | 24 | €0.56 | 1-4 weeks to ship | |
| 216019-1 | STEEL BALL 3 | 24 | €0.56 | 1-4 weeks to ship | ||
| 013 | 267380-9 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 267380-9 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 014 | 234064-4 | COMPRESSION SPRING 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 234064-4 | COMPRESSION SPRING 21 | 1 | €0.56 | 1-4 weeks to ship | ||
| 015 | 267813-4 | WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 267813-4 | WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | 216002-8 | STEEL BALL 4.8 | 2 | €0.56 | 1-4 weeks to ship | |
| 216002-8 | STEEL BALL 4.8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 017 | 226190-3 | SPUR GEAR 18 | 2 | €0.28 | 1-4 weeks to ship | |
| 226190-3 | SPUR GEAR 18 | 2 | €0.28 | 1-4 weeks to ship | ||
| 018 | 327127-4 | SPINDLE | 1 | €5.98 | 1-4 weeks to ship | |
| 327127-4 | SPINDLE | 1 | €5.98 | 1-4 weeks to ship | ||
| 019 | 268217-3 | PIN 3.5 | 2 | €0.56 | 1-4 weeks to ship | |
| 268217-3 | PIN 3.5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 020 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 021 | 226191-1 | INTERNAL GEAR 45 | 1 | €2.09 | 1-4 weeks to ship | |
| 226191-1 | INTERNAL GEAR 45 | 1 | €2.09 | 1-4 weeks to ship | ||
| 022 | 140B04-3 | BEARING BOX COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 140B04-3 | BEARING BOX COMPLETE | 1 | €5.57 | 1-4 weeks to ship | ||
| 023 | 632L97-9 | MOTOR COMPLETE | 1 | €16.42 | 1-4 weeks to ship | |
| 632L97-9 | MOTOR COMPLETE | 1 | €16.42 | 1-4 weeks to ship | ||
| 024 | 422273-9 | CUSHION | 4 | €0.28 | 1-4 weeks to ship | |
| 422273-9 | CUSHION | 4 | €0.28 | 1-4 weeks to ship | ||
| 025 | 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | |
| 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | ||
| 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | ||
| 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | ||
| 026 | TW060D SERIAL NO. LABEL | 1 | Not available in store | |||
| TW060D SERIAL NO. LABEL | 1 | Not available in store | ||||
| 027 | 183J75-5 | HOUSING SET | 1 | €11.13 | 1-4 weeks to ship | |
| 183J75-5 | HOUSING SET | 1 | €11.13 | 1-4 weeks to ship | ||
| 029 | ANVIL ASS'Y | 1 | Not available in store | |||
| ANVIL ASS'Y | 1 | Not available in store | ||||
