6835D
6835D

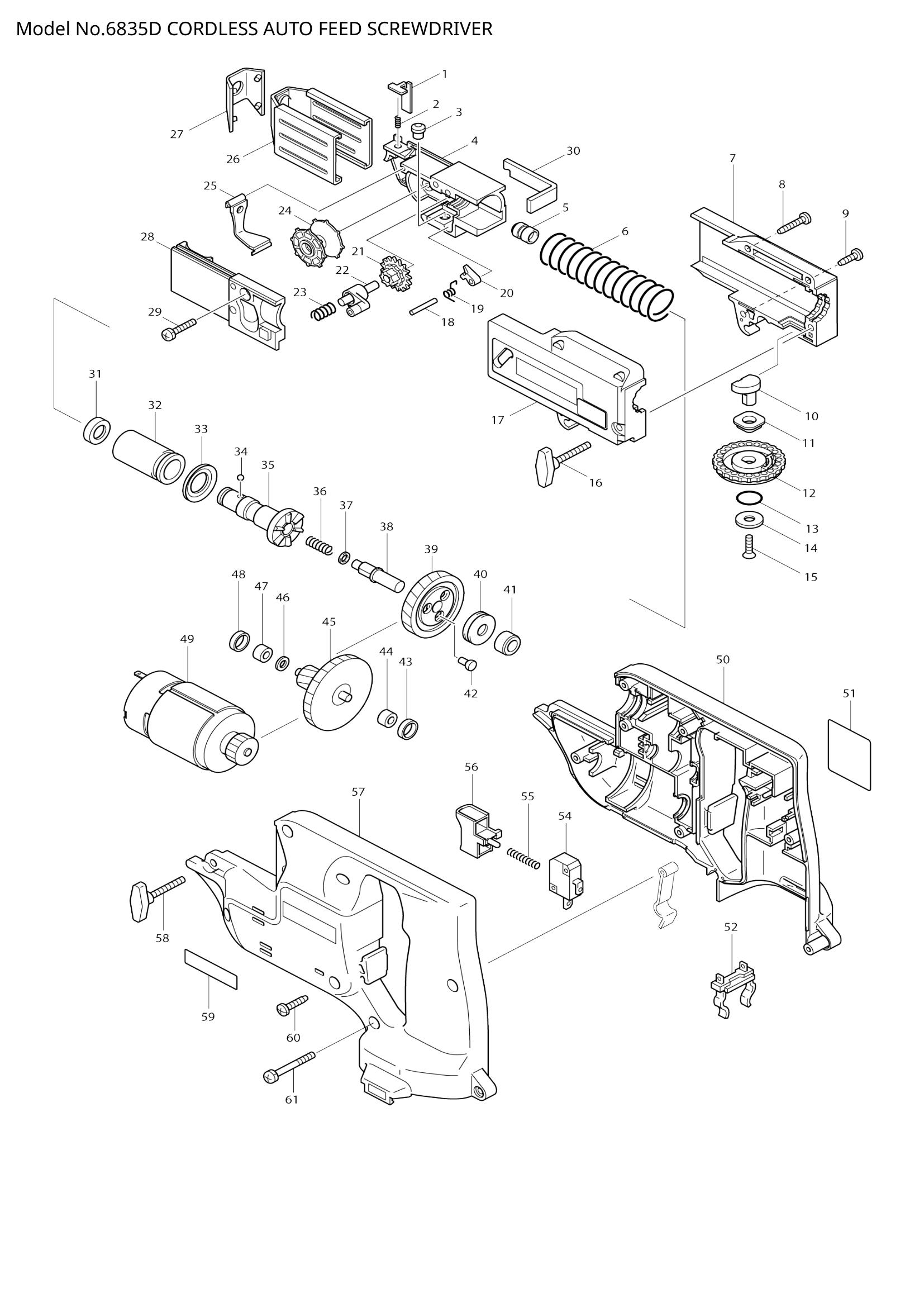

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 344625-3 | LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 002 | 233211-4 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 256451-7 | PIN 6 | 1 | €1.39 | 1-4 weeks to ship | |
| 006 | 233209-1 | COMPRESSION SPRING 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 266045-0 | TAPPING SCREW 4X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 009 | 266020-6 | TAPPING SCREW 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 310091-6 | SHIFTER PIN | 1 | €8.91 | 1-4 weeks to ship | |
| 011 | 257686-3 | SLEEVE 8 | 1 | €4.17 | 1-4 weeks to ship | |
| 012 | 417056-0 | DIAL 42 | 1 | €1.39 | 1-4 weeks to ship | |
| 013 | 213105-9 | O RING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 267201-5 | FLAT WASHER 6 | 1 | €1.11 | 1-4 weeks to ship | |
| 015 | 912117-6 | COUNTERSUNK HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 256158-5 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 231636-6 | TORSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 310062-3 | STOPPER | 1 | €5.57 | 1-4 weeks to ship | |
| 021 | 226344-2 | SPUR GEAR 16 | 1 | €1.67 | 1-4 weeks to ship | |
| 022 | 152580-3 | RATCHET ARM COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 023 | 233212-2 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 416518-5 | WHEEL | 1 | €4.17 | 1-4 weeks to ship | |
| 026 | 344628-7 | STOPPER BASE | 1 | €13.92 | 1-4 weeks to ship | |
| 027 | 421617-0 | CAP | 1 | €2.78 | 1-4 weeks to ship | |
| 028 | 152581-1 | BOX COVER COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 029 | 911133-5 | PAN HEAD SCREW M4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 344626-1 | PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 031 | 421467-3 | DUST COVER | 1 | €0.83 | 1-4 weeks to ship | |
| 033 | 421618-8 | RING 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 212042-4 | THRUST NEEDLE BEARING 821 | 1 | €8.35 | 1-4 weeks to ship | |
| 041 | 214028-4 | PLANE BEARING 8 | 1 | €1.11 | 1-4 weeks to ship | |
| 043 | 165115-1 | RUBBER SLEEVE 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 044 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 226813-3 | GEAR COMPLETE 16-49 | 1 | €43.00 | 1-4 weeks to ship | |
| 046 | 253811-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 165115-1 | RUBBER SLEEVE 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 049 | 629677-8 | DC MOTOR 12V | 1 | €69.58 | 1-4 weeks to ship | |
| 051 | 851897-8 | NAME PLATE 6835D | 1 | €2.78 | 1-4 weeks to ship | |
| 052 | 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | |
| 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | ||
| 054 | 651891-8 | SWITCH V-15-3A6 | 1 | €5.57 | 1-4 weeks to ship | |
| 055 | 233105-3 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 415478-8 | SWITCH LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 059 | MAKITA LABEL | 1 | Not available in store | |||
| 060 | 265995-6 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 061 | 911143-2 | PAN HEAD SCREW M4X22 | 1 | €0.56 | 1-4 weeks to ship | |
