TW004G
TW004G

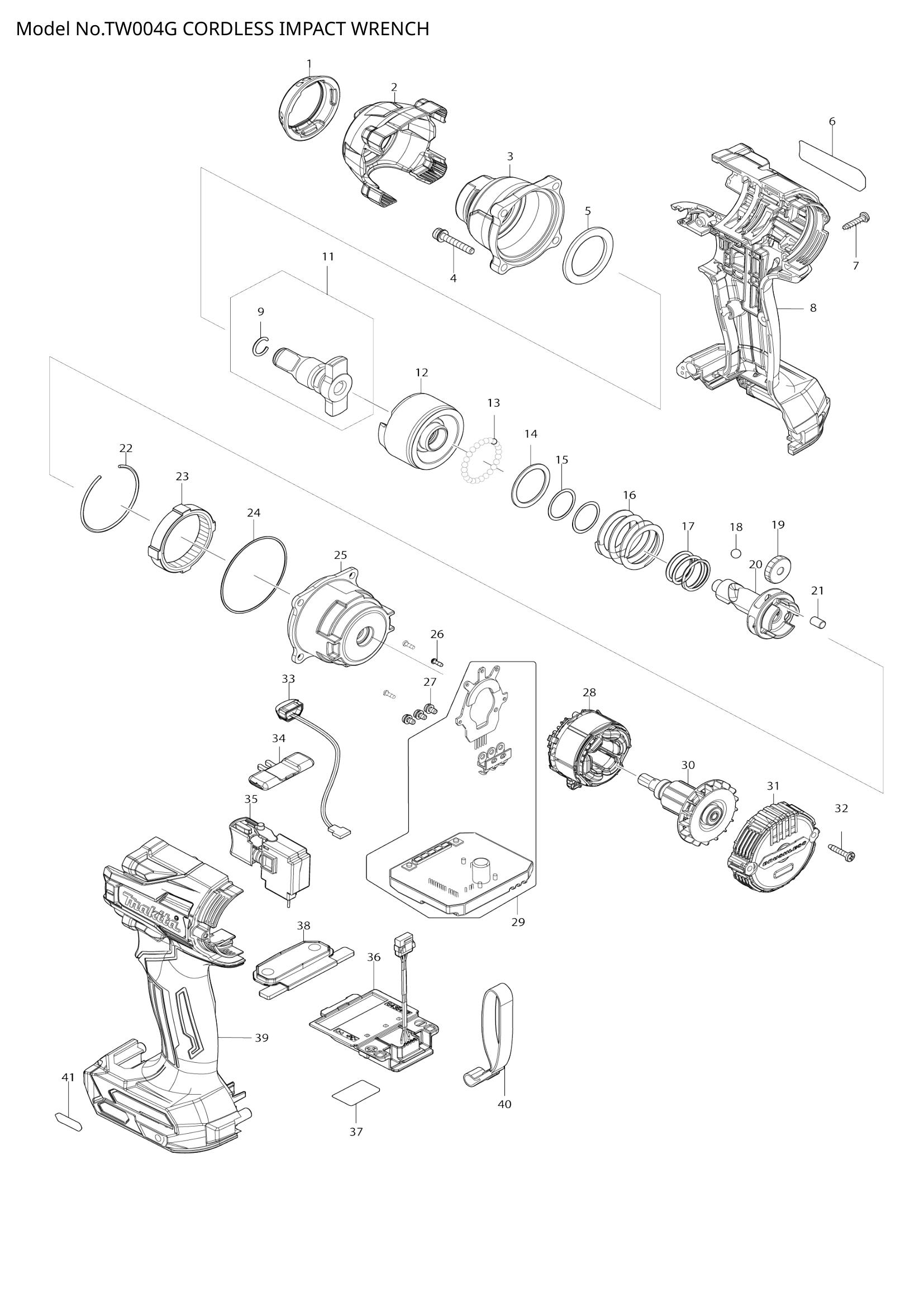

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 422584-2 | BUMPER | 1 | €1.57 | 1-4 weeks to ship | |
| 002 | HAMMER CASE COVER | 1 | Not available in store | |||
| 005 | 261154-0 | NYLON WASHER 28 | 1 | €0.42 | 1-4 weeks to ship | |
| 006 | TW004G NAME PLATE | 1 | Not available in store | |||
| 007 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 008 | HOUSING SET | 1 | Not available in store | |||
| 009 | 231907-1 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | HAMMER | 1 | Not available in store | |||
| 013 | 216001-0 | STEEL BALL 3.5 | 24 | €0.56 | 1-4 weeks to ship | |
| 014 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 232615-7 | COMPRESSION SPRING 25 | 1 | €27.41 | 1-4 weeks to ship | |
| 018 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 019 | 227338-0 | SPUR GEAR 22 | 3 | €6.12 | 1-4 weeks to ship | |
| 021 | 268311-1 | PIN 5 | 3 | €0.70 | 1-4 weeks to ship | |
| 022 | 233910-8 | RING SPRING 43 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 227337-2 | INTERNAL GEAR 51 | 1 | €2.92 | 1-4 weeks to ship | |
| 024 | 213785-1 | O-RING 49 | 1 | €0.14 | 1-4 weeks to ship | |
| 025 | INTERNAL GEAR CASE COMPLET | 1 | Not available in store | |||
| 026 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 027 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 028 | STATOR | 1 | Not available in store | |||
| 029 | CONTROLLER | 1 | Not available in store | |||
| 030 | 619626-3 | ROTOR | 1 | €21.71 | 1-4 weeks to ship | |
| 031 | REAR COVER | 1 | Not available in store | |||
| 032 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 033 | 620521-2 | LED CIRCUIT | 1 | €6.68 | 1-4 weeks to ship | |
| 034 | 455053-8 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 651442-7 | SWITCH C3JR-1A-1 | 1 | €19.34 | 1-4 weeks to ship | |
| 036 | 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | |
| 037 | TW004G SERIAL NO. LABEL | 1 | Not available in store | |||
| 038 | SWITCH PLATE COMPLETE | 1 | Not available in store | |||
| 039 | HOUSING SET | 1 | Not available in store | |||
| 041 | 8007R2-2 | XGT LOGO LABEL | 1 | €0.13 | 1-4 weeks to ship | |
