TM3000C
TM3000C

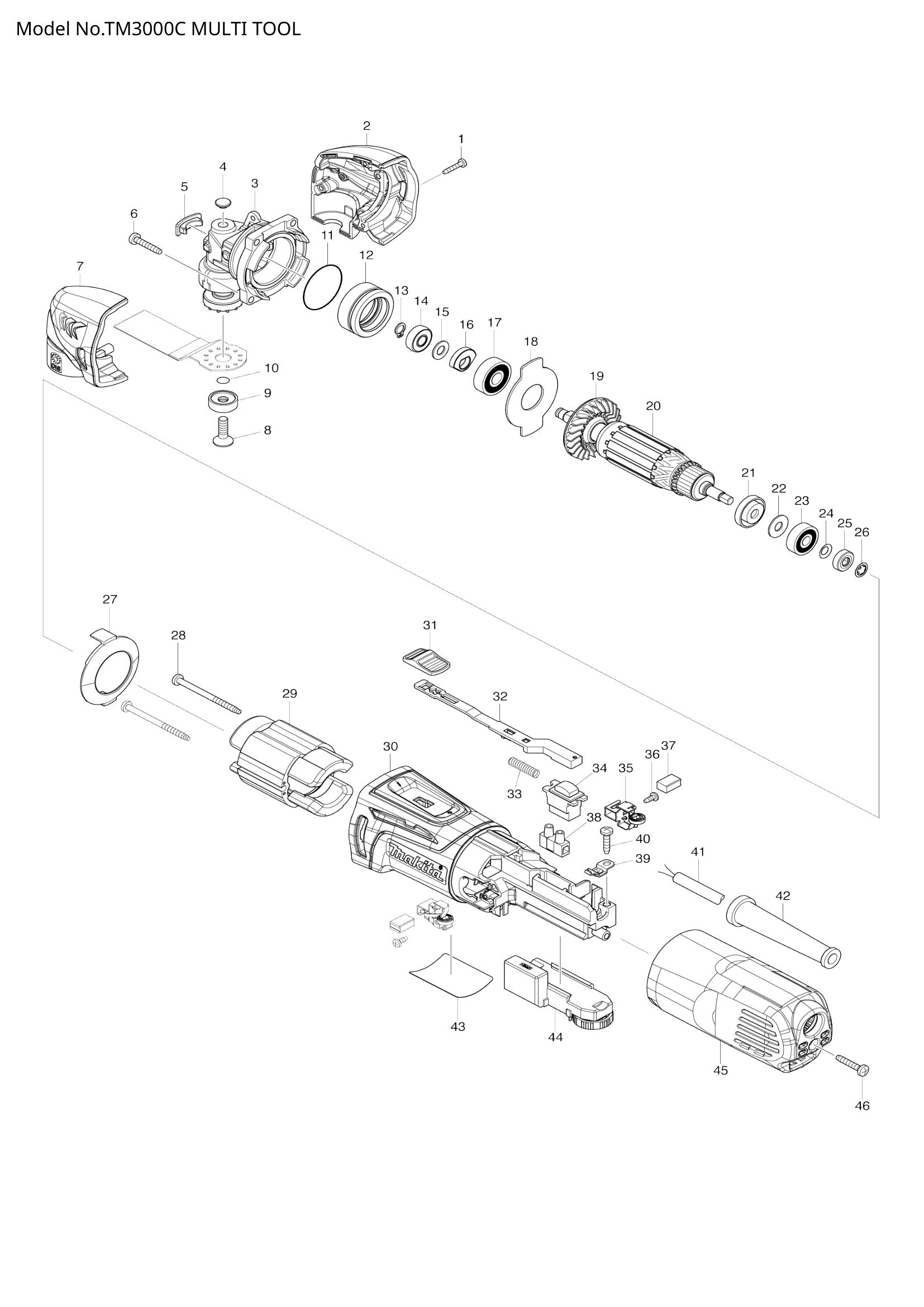

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266429-2 | TAPPING SCREW 3X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 002 | 187373-9 | HEAD COVER SET | 1 | €5.98 | 1-4 weeks to ship | |
| 004 | 424511-5 | CRANK HOUSING CAP B | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 424510-7 | CRANK HOUSING CAP A | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | |
| 007 | 187373-9 | HEAD COVER SET | 1 | €5.98 | 1-4 weeks to ship | |
| 011 | 213479-8 | O RING 33 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 326199-6 | BEARING BOX | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 961003-8 | RETAINING RING S-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 211392-4 | SPHERE BEARING 706 | 1 | €27.83 | 1-4 weeks to ship | |
| 015 | 253133-2 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 313245-4 | BALANCER | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 285857-2 | BEARING RETAINNER | 1 | €0.70 | 1-4 weeks to ship | |
| 019 | 240140-4 | FAN 46 | 1 | €0.83 | 1-4 weeks to ship | |
| 021 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 267426-1 | FLAT WASHER 7 | 1 | €0.14 | 1-4 weeks to ship | |
| 024 | 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 453828-9 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 266415-3 | TAPPING SCREW 4X55 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | 623558-8 | FIELD 220-240V | 1 | €22.26 | 1-4 weeks to ship | |
| 030 | 453823-9 | MOTOR HOUSING | 1 | €10.99 | 1-4 weeks to ship | |
| 031 | 453761-5 | SWITCH KNOB | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 453825-5 | SWITCH LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 033 | 234263-8 | COMPRESSION SPRING 5 | 1 | €0.14 | 1-4 weeks to ship | |
| 034 | 651609-7 | SWITCH SS106A-7-1 | 1 | €11.13 | 1-4 weeks to ship | |
| 035 | 643839-4 | BRUSH HOLDER 6X9 | 2 | €1.11 | 1-4 weeks to ship | |
| 643839-4 | BRUSH HOLDER 6X9 | 2 | €1.11 | 1-4 weeks to ship | ||
| 036 | 266492-5 | TAPPING SCREW 3X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 038 | 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | |
| 039 | 687681-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 665399-6 | POWER SUPPLY CORD 1.0-2-5.0 | 1 | €22.26 | 1-4 weeks to ship | |
| 042 | 682569-2 | CORD GUARD 8-85 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | TM3000C NAME PLATE | 1 | Not available in store | |||
| 044 | 620149-6 | CONTROLLER | 1 | €47.31 | 1-4 weeks to ship | |
| 045 | 453824-7 | REAR COVER | 1 | €3.62 | 1-4 weeks to ship | |
| 046 | 234258-1 | COMPRESSION SPRING 7 S | 1 | €0.14 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 1 | €1.11 | 1-4 weeks to ship | ||
