TL064D
TL064D

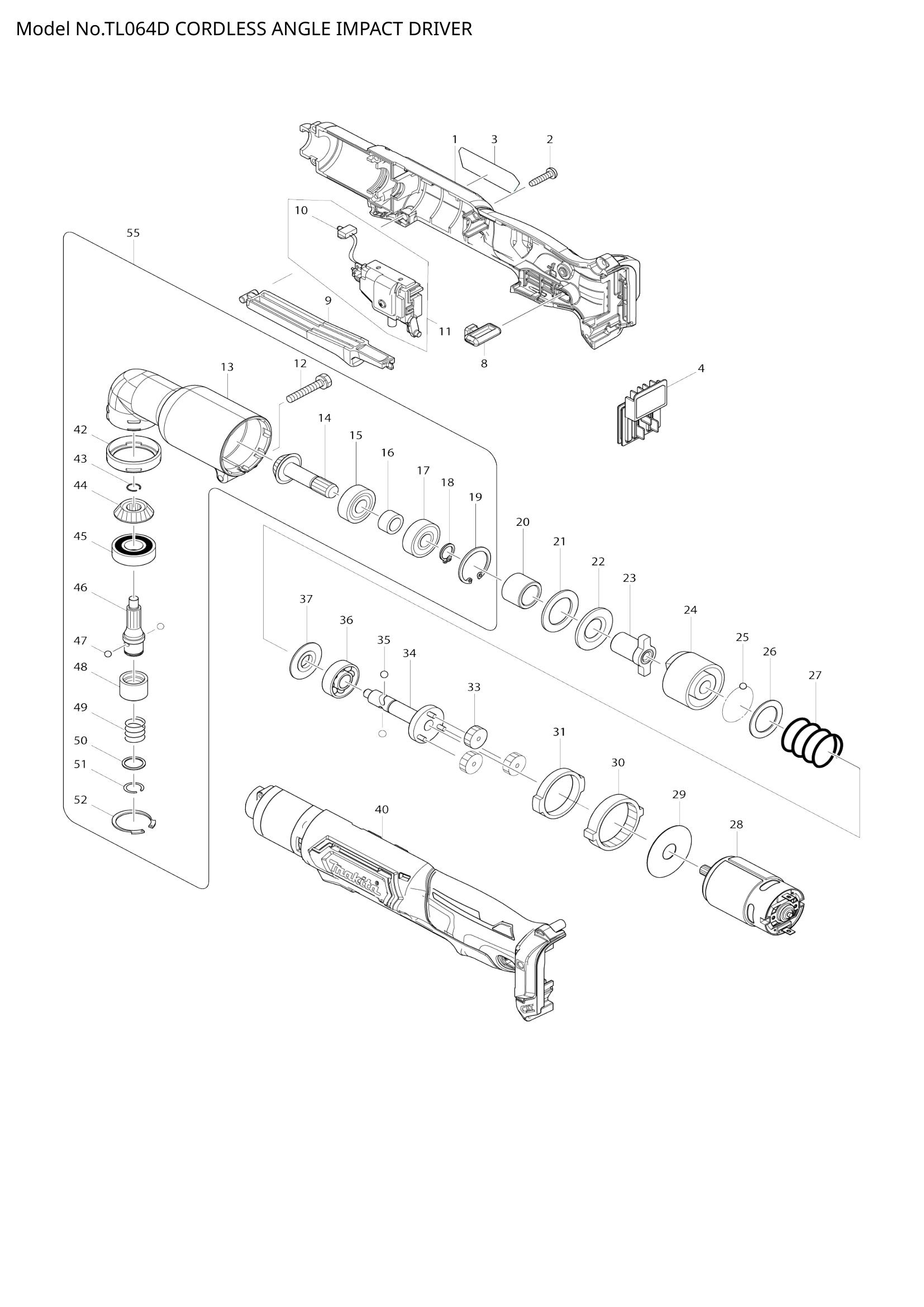

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 183G43-0 | HOUSING SET | 1 | €26.81 | 1-4 weeks to ship | |
| 002 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 003 | TL064D NAME PLATE | 1 | Not available in store | |||
| 004 | 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | |
| 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | ||
| 008 | 450126-2 | FR CHANGE LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 009 | 450125-4 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 010 | 620690-9 | LED CIRCUIT | 1 | €9.32 | 1-4 weeks to ship | |
| 011 | 632K57-5 | SWITCH UNIT | 1 | €72.08 | 1-4 weeks to ship | |
| 632K57-5 | SWITCH UNIT | 1 | €72.08 | 1-4 weeks to ship | ||
| 012 | 265409-5 | + HEX. BOLT M5X30 | 1 | €1.39 | 1-4 weeks to ship | |
| 013 | 152461-1 | ANGLE HEAD COMPLETE | 1 | €52.88 | 1-4 weeks to ship | |
| 015 | 210067-2 | BALL BEARING 6000ZZ | 1 | €2.78 | 1-4 weeks to ship | |
| 016 | 257428-5 | SLEEVE 10 | 1 | €0.58 | 1-4 weeks to ship | |
| 017 | 210067-2 | BALL BEARING 6000ZZ | 1 | €2.78 | 1-4 weeks to ship | |
| 018 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 257429-3 | SLEEVE 15 | 1 | €1.68 | 1-4 weeks to ship | |
| 021 | 261095-0 | RUBBER WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 267120-5 | FLAT WASHER 15 | 1 | €2.78 | 1-4 weeks to ship | |
| 025 | 216001-0 | STEEL BALL 3.5 | 22 | €0.56 | 1-4 weeks to ship | |
| 026 | 267121-3 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 233107-9 | COMPRESSION SPRING 22 | 1 | €1.39 | 1-4 weeks to ship | |
| 028 | 629273-2 | DC MOTOR | 1 | €37.81 | 1-4 weeks to ship | |
| 629273-2 | DC MOTOR | 1 | €37.81 | 1-4 weeks to ship | ||
| 029 | 267053-4 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 226280-2 | INTERNAL GEAR 69 | 1 | €21.57 | 1-4 weeks to ship | |
| 031 | 257187-1 | RING 32 | 1 | €2.78 | 1-4 weeks to ship | |
| 033 | 226279-7 | SPUR GEAR 29 | 3 | €2.78 | 1-4 weeks to ship | |
| 035 | 216002-8 | STEEL BALL 4.8 | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | BALL BEARING 6000 | 1 | Not available in store | |||
| 037 | 322719-4 | WASHER 10 | 1 | €4.17 | 1-4 weeks to ship | |
| 040 | 183G43-0 | HOUSING SET | 1 | €26.81 | 1-4 weeks to ship | |
| 042 | 424044-0 | RUBBER RING 32 | 1 | €2.78 | 1-4 weeks to ship | |
| 043 | 231990-8 | RING SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 046 | 323920-4 | SPINDLE M | 1 | €52.88 | 1-4 weeks to ship | |
| 047 | 216001-0 | STEEL BALL 3.5 | 2 | €0.56 | 1-4 weeks to ship | |
| 048 | 326997-8 | SLEEVE | 1 | €1.43 | 1-4 weeks to ship | |
| 049 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 267085-1 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 231951-8 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 962116-8 | RETAINING RING R-28 | 1 | €0.83 | 1-4 weeks to ship | |
| 055 | 135892-9 | ANGLE HEAD ASSY | 1 | €151.12 | 1-4 weeks to ship | |
