TD111D
TD111D

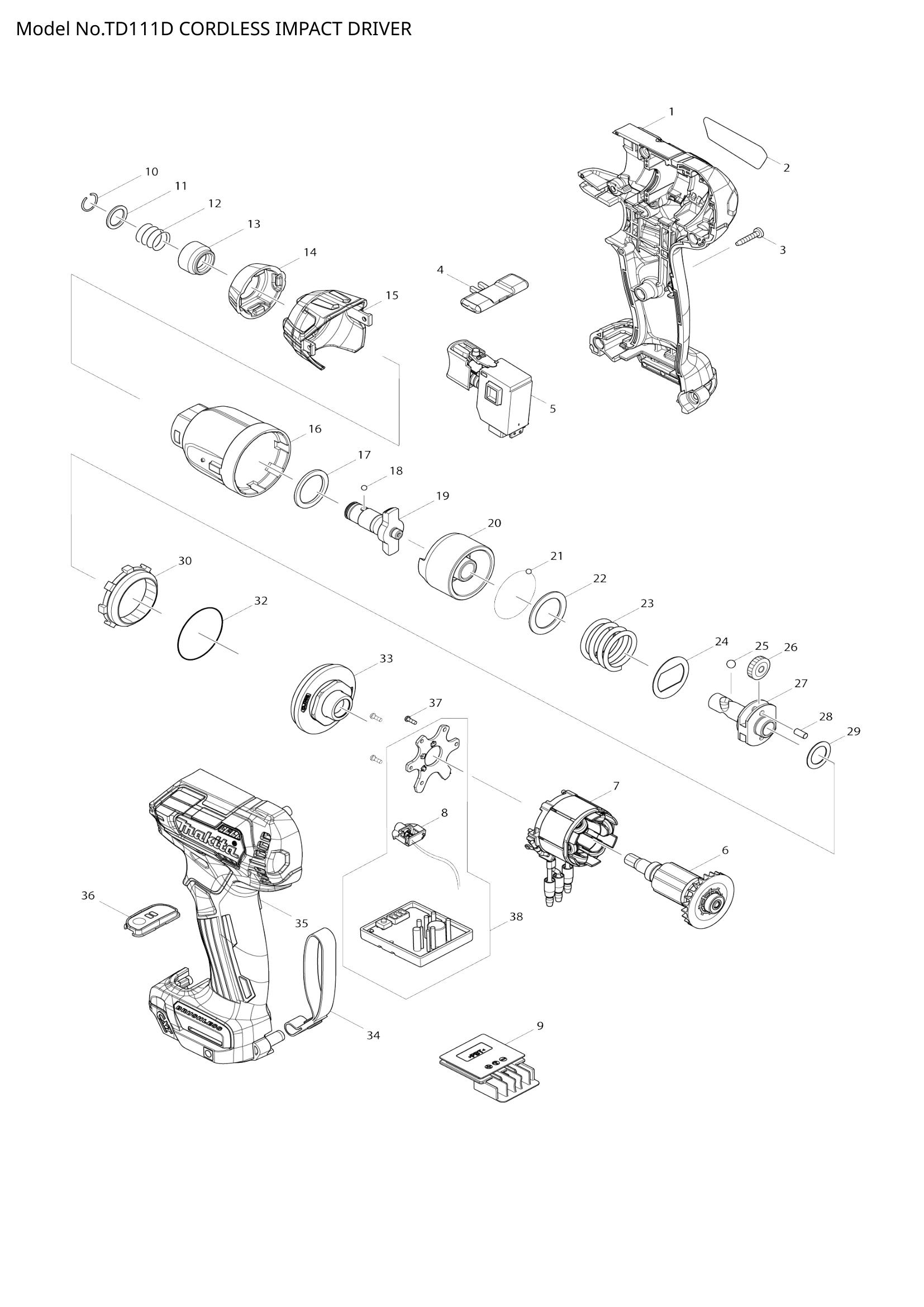

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 183E65-8 | HOUSING SET | 1 | €16.70 | 1-4 weeks to ship | |
| 003 | 266429-2 | TAPPING SCREW 3X16 | 9 | €0.56 | 1-4 weeks to ship | |
| 004 | 455053-8 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 650689-0 | SWITCH C3JW-2B | 1 | €16.70 | 1-4 weeks to ship | |
| 007 | 629232-6 | STATOR | 1 | €13.92 | 1-4 weeks to ship | |
| 629232-6 | STATOR | 1 | €13.92 | 1-4 weeks to ship | ||
| 008 | 620553-9 | LED CIRCUIT | 1 | €5.98 | 1-4 weeks to ship | |
| 620553-9 | LED CIRCUIT | 1 | €5.98 | 1-4 weeks to ship | ||
| 009 | 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | |
| 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | ||
| 010 | 231965-7 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 267143-3 | FLAT WASHER 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 326803-7 | BIT SLEEVE | 1 | €2.09 | 1-4 weeks to ship | |
| 014 | 424907-0 | BUMPER | 1 | €1.67 | 1-4 weeks to ship | |
| 015 | 457062-3 | HAMMER CASE COVER | 1 | €1.53 | 1-4 weeks to ship | |
| 016 | 144058-0 | HAMMER CASE COMPLETE | 1 | €8.63 | 1-4 weeks to ship | |
| 017 | 261159-0 | NYLON WASHER 19 | 1 | €0.28 | 1-4 weeks to ship | |
| 018 | 216019-1 | STEEL BALL 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 019 | 326630-2 | ANVIL M | 1 | €7.51 | 1-4 weeks to ship | |
| 020 | 324894-2 | HAMMER | 1 | €8.35 | 1-4 weeks to ship | |
| 021 | 216019-1 | STEEL BALL 3 | 24 | €0.56 | 1-4 weeks to ship | |
| 022 | 267380-9 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 232326-4 | COMPRESSION SPRING 21 | 1 | €0.28 | 1-4 weeks to ship | |
| 024 | 267813-4 | WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 216002-8 | STEEL BALL 4.8 | 2 | €0.56 | 1-4 weeks to ship | |
| 026 | 221437-0 | SPUR GEAR 17 | 2 | €5.01 | 1-4 weeks to ship | |
| 027 | 324897-6 | SPINDLE | 1 | €5.57 | 1-4 weeks to ship | |
| 028 | 268217-3 | PIN 3.5 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 227316-0 | INTERNAL GEAR 43 | 1 | €3.76 | 1-4 weeks to ship | |
| 032 | 213479-8 | O RING 33 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 141893-7 | BEARING BOX COMPLETE | 1 | €6.26 | 1-4 weeks to ship | |
| 035 | 183E65-8 | HOUSING SET | 1 | €16.70 | 1-4 weeks to ship | |
| 036 | 144060-3 | SWITCH PLATE COMPLETE | 1 | €1.25 | 1-4 weeks to ship | |
| 037 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 038 | 620552-1 | CONTROLLER | 1 | €85.44 | 1-4 weeks to ship | |
| 620552-1 | CONTROLLER | 1 | €85.44 | 1-4 weeks to ship |
