TD003G
TD003G

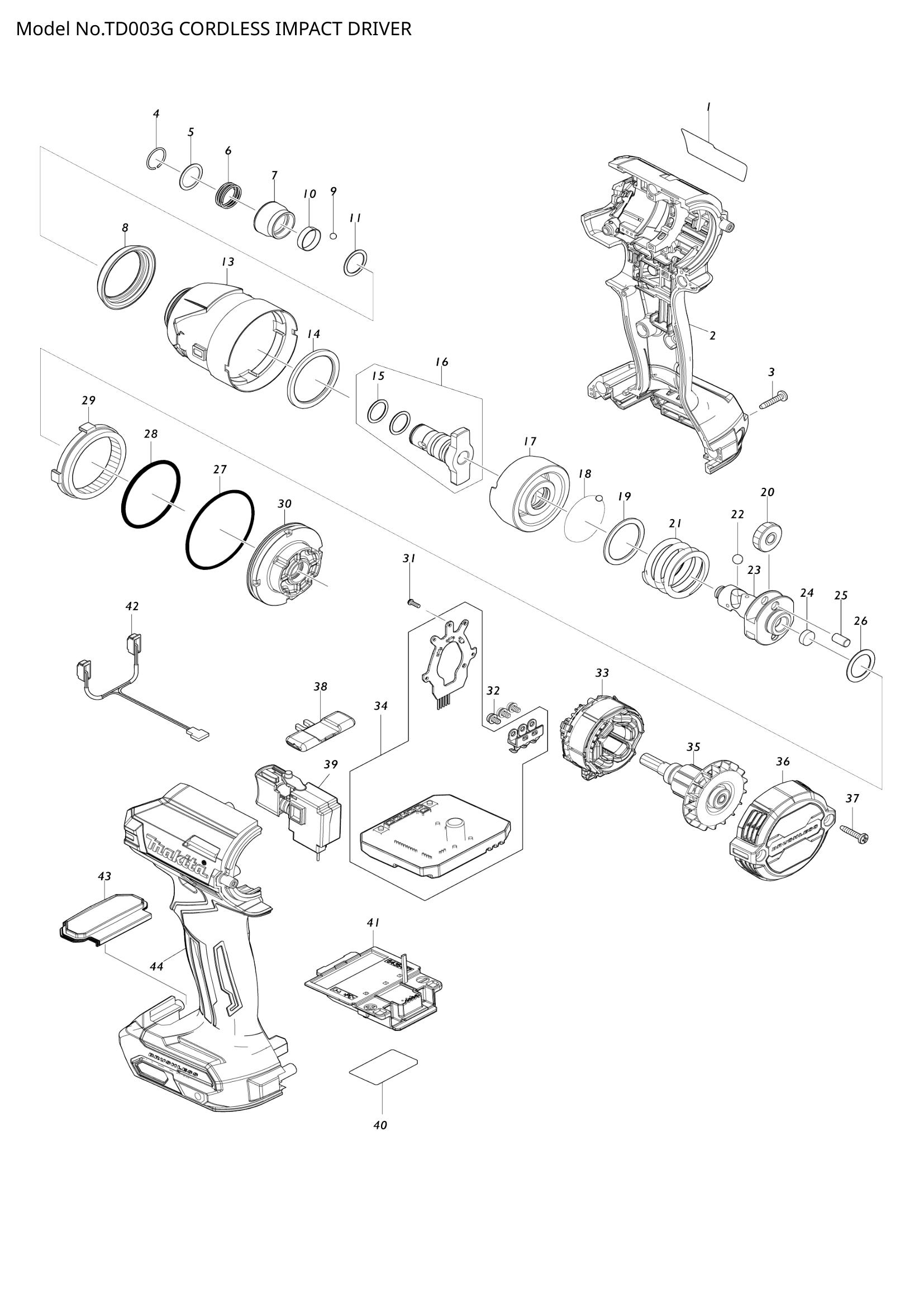

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | TD003G NAME PLATE | 1 | Not available in store | |||
| 002 | HOUSING SET | 1 | Not available in store | |||
| 003 | 266429-2 | TAPPING SCREW 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 004 | RING SPRING 12 | 1 | Not available in store | |||
| 005 | FLAT WASHER 13 | 1 | Not available in store | |||
| 006 | COMPRESSION SPRING 14 | 1 | Not available in store | |||
| 007 | BIT SLEEVE | 1 | Not available in store | |||
| 008 | BUMPER | 1 | Not available in store | |||
| 009 | 216040-0 | STEEL BALL 3.5 | 2 | €0.14 | 1-4 weeks to ship | |
| 010 | LEAF SPRING | 1 | Not available in store | |||
| 011 | FLAT WASHER 13 | 1 | Not available in store | |||
| 013 | HAMMER CASE COMPLETE | 1 | Not available in store | |||
| 014 | NYLON WASHER 30 | 1 | Not available in store | |||
| 015 | 213166-9 | O RING 12.5 | 2 | €0.28 | 1-4 weeks to ship | |
| 016 | ANVIL M ASS'Y | 1 | Not available in store | |||
| 017 | HAMMER | 1 | Not available in store | |||
| 018 | 216040-0 | STEEL BALL 3.5 | 24 | €0.14 | 1-4 weeks to ship | |
| 019 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 227362-3 | SPUR GEAR 22 | 2 | €1.95 | 1-4 weeks to ship | |
| 021 | COMPRESSION SPRING 24 | 1 | Not available in store | |||
| 022 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 023 | SPINDLE | 1 | Not available in store | |||
| 025 | 256253-1 | PIN 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 026 | 267194-6 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 213606-7 | O RING 48 | 1 | €0.83 | 1-4 weeks to ship | |
| 028 | 213507-9 | O RING 40 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | INTERNAL GEAR 51 | 1 | Not available in store | |||
| 030 | BEARING BOX COMPLETE | 1 | Not available in store | |||
| 031 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 032 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 033 | STATOR | 1 | Not available in store | |||
| 034 | CONTROLLER | 1 | Not available in store | |||
| 036 | REAR COVER | 1 | Not available in store | |||
| 037 | 266429-2 | TAPPING SCREW 3X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 038 | 455053-8 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 651442-7 | SWITCH C3JR-1A-1 | 1 | €19.34 | 1-4 weeks to ship | |
| 040 | TD003G SERIAL NO. LABEL | 1 | Not available in store | |||
| 041 | 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | |
| 042 | 620B97-1 | LED CIRCUIT | 1 | €7.42 | 1-4 weeks to ship | |
| 043 | SWITCH PLATE COMPLETE | 1 | Not available in store | |||
| 044 | HOUSING SET | 1 | Not available in store | |||
