SP6000
SP6000

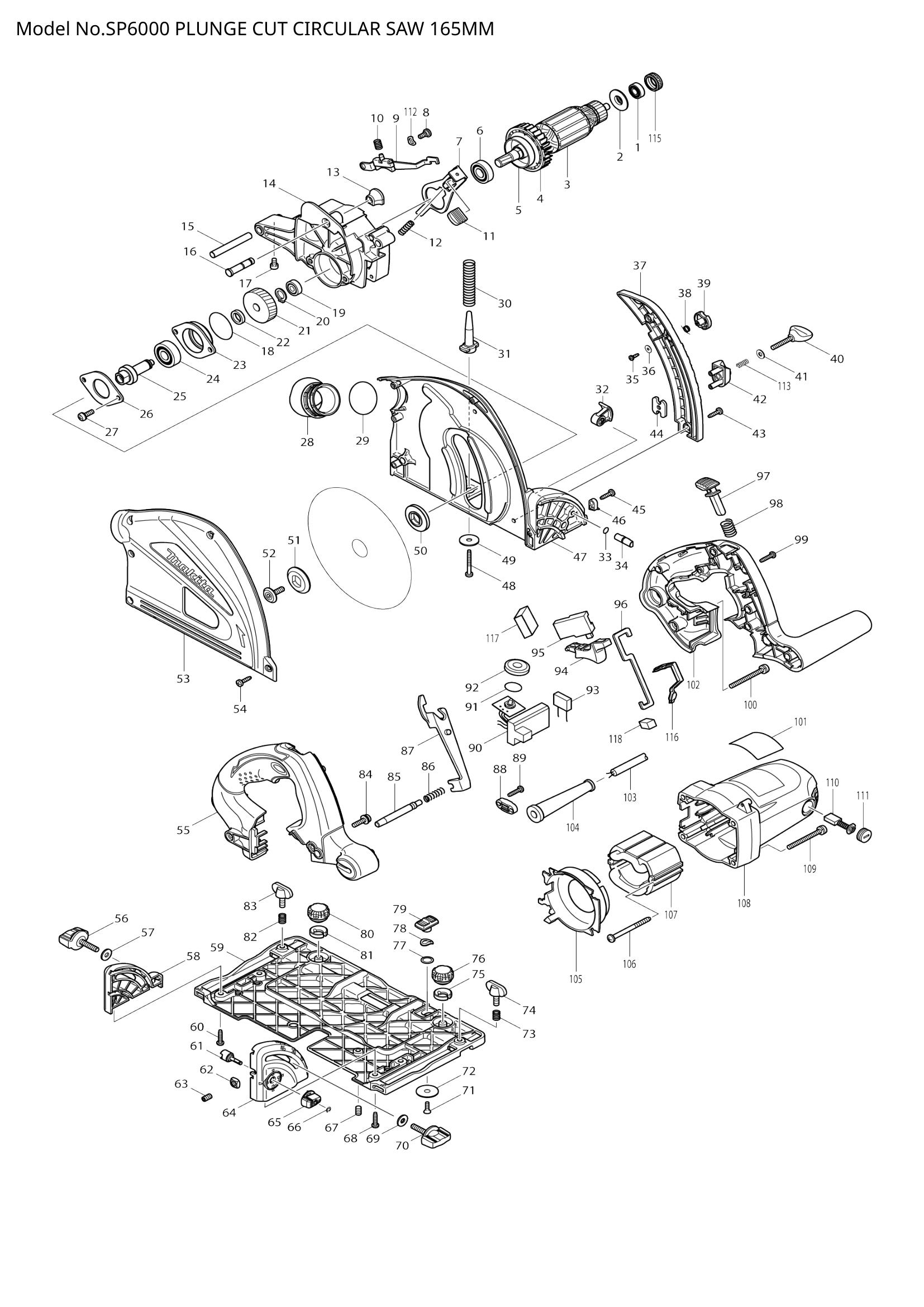

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 681634-4 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 004 | 240091-1 | FAN 60 | 1 | €11.13 | 1-4 weeks to ship | |
| 005 | 345767-6 | DRUM | 1 | €5.57 | 1-4 weeks to ship | |
| 007 | 345742-2 | SHAFT LOCK | 1 | €5.57 | 1-4 weeks to ship | |
| 010 | 233480-7 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 233084-5 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 324708-5 | STOPPER PIN 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 018 | 213512-6 | O RING 39 | 1 | €1.39 | 1-4 weeks to ship | |
| 020 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 226637-7 | HELICAL GEAR 39 | 1 | €13.92 | 1-4 weeks to ship | |
| 022 | 257010-0 | RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 023 | 318088-9 | BEARING BOX | 1 | €5.57 | 1-4 weeks to ship | |
| 025 | 324707-7 | SPINDLE | 1 | €13.92 | 1-4 weeks to ship | |
| 026 | 285689-7 | BEARING RETAINER 55 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 911221-8 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 028 | 419620-3 | DUST NOZZLE | 1 | €4.17 | 1-4 weeks to ship | |
| 029 | 213460-9 | O RING 35 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 233479-2 | COMPRESSION SPRING 11 | 1 | €0.83 | 1-4 weeks to ship | |
| 031 | 419624-5 | SPRING HOLDER | 1 | €1.39 | 1-4 weeks to ship | |
| 033 | 213021-5 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 324710-8 | PIN 8 | 1 | €1.11 | 1-4 weeks to ship | |
| 035 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 253821-1 | FLAT WASHER 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 231665-9 | TORSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 419630-0 | LOCK LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 040 | 251867-1 | THUMB SCREW M5X30 | 1 | €1.67 | 1-4 weeks to ship | |
| 042 | 419623-7 | STOPPER BLOCK | 1 | €1.67 | 1-4 weeks to ship | |
| 043 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 044 | 345744-8 | NUT PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 045 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 419632-6 | POSITION PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 048 | 266053-1 | TAPPING SCREW 4X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 253010-8 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 266403-0 | HEX. SOCKET HEAD BOLT M6 | 1 | €2.78 | 1-4 weeks to ship | |
| 054 | 266034-5 | TAPPING SCREW CT 4X16 | 5 | €0.56 | 1-4 weeks to ship | |
| 055 | 188197-6 | HANDLE SET | 1 | €27.83 | 1-4 weeks to ship | |
| 056 | 265776-8 | THUMB SCREW M6X26 | 1 | €0.83 | 1-4 weeks to ship | |
| 057 | 253111-2 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | 419596-4 | REAR ANGULAR GUIDE | 1 | €4.17 | 1-4 weeks to ship | |
| 060 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 061 | 324731-0 | STOPPER PIN | 1 | €2.78 | 1-4 weeks to ship | |
| 062 | 252157-5 | SQUARE NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 069 | 253111-2 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 265776-8 | THUMB SCREW M6X26 | 1 | €0.83 | 1-4 weeks to ship | |
| 071 | 912112-6 | COUNTERSUNK HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 072 | 345748-0 | LOCK WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 074 | 265701-9 | THUMB SCREW M6X14 | 1 | €1.67 | 1-4 weeks to ship | |
| 075 | 419627-9 | HOLDER | 1 | €0.83 | 1-4 weeks to ship | |
| 078 | 253932-2 | WAVE WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 081 | 419627-9 | HOLDER | 1 | €0.83 | 1-4 weeks to ship | |
| 083 | 265701-9 | THUMB SCREW M6X14 | 1 | €1.67 | 1-4 weeks to ship | |
| 084 | 922232-8 | HEX. SOCKET HEAD BOLT M5X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | 324709-3 | LOCK PIN 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 086 | 233267-7 | COMPRESSION SPRING 7 | 1 | €0.83 | 1-4 weeks to ship | |
| 087 | 419631-8 | LOCK PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 088 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 089 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 090 | 631729-3 | CONTROLLER | 1 | €58.44 | 1-4 weeks to ship | |
| 091 | 213261-5 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 092 | 418905-4 | DIAL | 1 | €0.97 | 1-4 weeks to ship | |
| 093 | 645185-1 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | |
| 094 | 419622-9 | SWITCH LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 095 | 651922-3 | SWITCH TG71B | 1 | €11.13 | 1-4 weeks to ship | |
| 096 | 345745-6 | LINK PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 097 | 419629-5 | LOCK OFF BUTTON | 1 | €1.39 | 1-4 weeks to ship | |
| 098 | 233089-5 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 099 | 265995-6 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 100 | 911273-9 | PAN HEAD SCREW M5X50 | 1 | €0.56 | 1-4 weeks to ship | |
| 911273-9 | PAN HEAD SCREW M5X50 | 1 | €0.56 | 1-4 weeks to ship | ||
| 102 | 188197-6 | HANDLE SET | 1 | €27.83 | 1-4 weeks to ship | |
| 103 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | |
| 105 | 419626-1 | BAFFLE PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 106 | 266044-2 | TAPPING SCREW 5X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 107 | 525743-8 | FIELD ASS'Y 220-240V | 1 | €25.05 | 1-4 weeks to ship | |
| 108 | 158094-0 | MOTOR HOUSING COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 109 | 911273-9 | PAN HEAD SCREW M5X50 | 4 | €0.56 | 1-4 weeks to ship | |
| 911273-9 | PAN HEAD SCREW M5X50 | 4 | €0.56 | 1-4 weeks to ship | ||
| 111 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | €0.56 | 1-4 weeks to ship | |
| 112 | 267781-1 | WAVE WASHER 7 | 1 | €1.39 | 1-4 weeks to ship | |
| 113 | 231372-4 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 115 | 421479-6 | RUBBER RING 19 | 1 | €5.57 | 1-4 weeks to ship | |
| 116 | 424047-4 | PACKING | 1 | €0.56 | 1-4 weeks to ship | |
| 117 | 424050-5 | SPONGE | 1 | €0.56 | 1-4 weeks to ship | |
| 118 | 443137-4 | FELT | 1 | €0.56 | 1-4 weeks to ship | |
| 123 | SHOE S | 1 | Not available in store | |||
