6831D
6831D

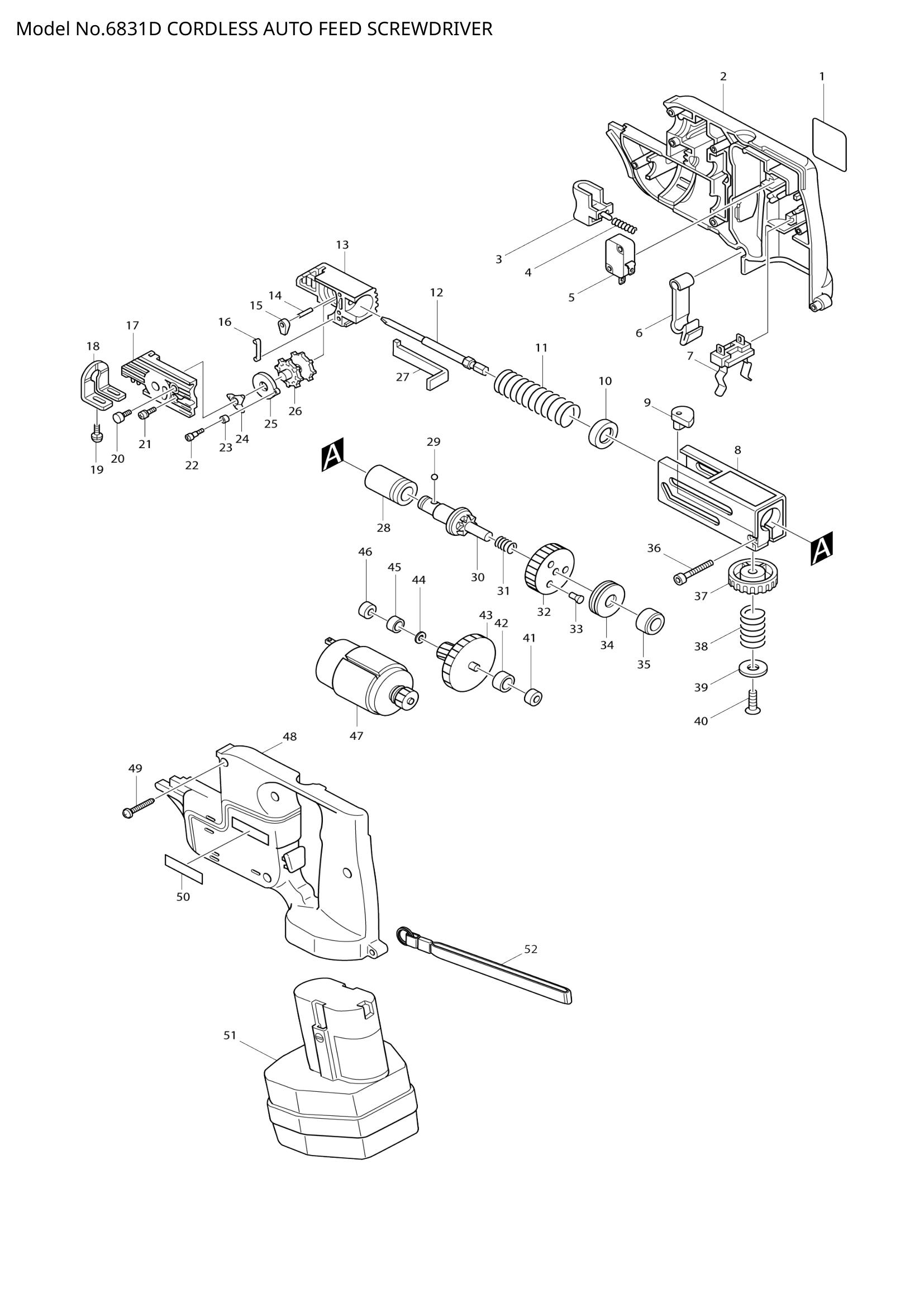

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | Name plate 6831D | 1 | Not available in store | |||
| 003 | 415478-8 | SWITCH LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 004 | 233105-3 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 651891-8 | SWITCH V-15-3A6 | 1 | €5.57 | 1-4 weeks to ship | |
| 007 | 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | |
| 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | ||
| 010 | 421467-3 | DUST COVER | 1 | €0.83 | 1-4 weeks to ship | |
| 015 | STOPPER | 1 | Not available in store | |||
| 016 | LEAF SPRING | 1 | Not available in store | |||
| 018 | 344054-0 | STOPPER PLATE | 1 | €5.57 | 1-4 weeks to ship | |
| 020 | 922107-1 | HEX. SOCKET HEAD BOLT M4X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 021 | 911133-5 | PAN HEAD SCREW M4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 265036-8 | + FLAT HEAD SCREW M3X5 | 1 | €1.67 | 1-4 weeks to ship | |
| 023 | 257664-3 | SLEEVE 4 | 1 | €1.39 | 1-4 weeks to ship | |
| 024 | 232133-5 | LEAF SPRING | 1 | €2.78 | 1-4 weeks to ship | |
| 025 | 311976-9 | RATCHET DISC | 1 | €22.26 | 1-4 weeks to ship | |
| 026 | RATCHET WHEEL | 1 | Not available in store | |||
| 029 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 231434-8 | COMPRESSION SPRING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 226431-7 | Helical gear 55 | 1 | €43.00 | 1-4 weeks to ship | |
| 034 | 212042-4 | THRUST NEEDLE BEARING 821 | 1 | €8.35 | 1-4 weeks to ship | |
| 035 | 214028-4 | PLANE BEARING 8 | 1 | €1.11 | 1-4 weeks to ship | |
| 036 | 922146-1 | HEX. SOCKET HEAD BOLT M4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 233089-5 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 267117-4 | FLAT WASHER 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 040 | 912117-6 | COUNTERSUNK HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 165115-1 | RUBBER SLEEVE 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 042 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 226813-3 | GEAR COMPLETE 16-49 | 1 | €43.00 | 1-4 weeks to ship | |
| 044 | 253811-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 165115-1 | RUBBER SLEEVE 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 047 | 629677-8 | DC MOTOR 12V | 1 | €69.58 | 1-4 weeks to ship | |
| 049 | 265995-6 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 050 | MAKITA LABEL | 1 | Not available in store | |||
