SK204
SK204

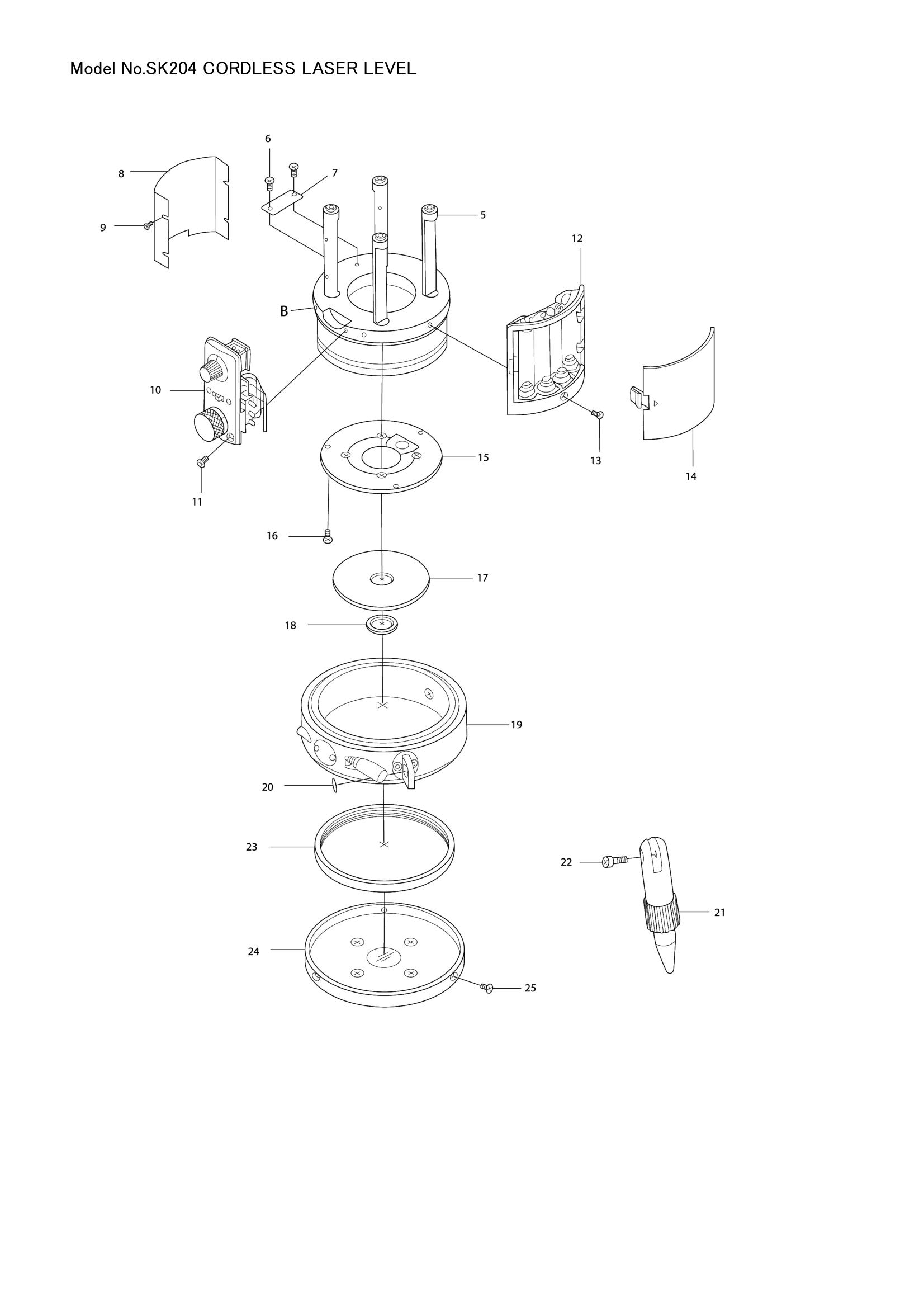

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 005 | BASE COMP. | 1 | Not available in store | |||
| BASE COMP. | 1 | Not available in store | ||||
| 006 | PAN HD.SCREW M2X4 | 2 | Not available in store | |||
| PAN HD.SCREW M2X4 | 2 | Not available in store | ||||
| 007 | CIRCUIT BOARD(C) | 1 | Not available in store | |||
| CIRCUIT BOARD(C) | 1 | Not available in store | ||||
| 008 | WIRE COVER | 1 | Not available in store | |||
| WIRE COVER | 1 | Not available in store | ||||
| 009 | PAN HD.SCREW M2X3 | 4 | Not available in store | |||
| PAN HD.SCREW M2X3 | 4 | Not available in store | ||||
| 010 | POWER/MODE PANEL COMP. | 1 | Not available in store | |||
| POWER/MODE PANEL COMP. | 1 | Not available in store | ||||
| 012 | BATTERY BOX COMP. | 1 | Not available in store | |||
| BATTERY BOX COMP. | 1 | Not available in store | ||||
| 014 | BATTERY BOX COVER | 1 | Not available in store | |||
| BATTERY BOX COVER | 1 | Not available in store | ||||
| 015 | YOKE COMP. | 1 | Not available in store | |||
| YOKE COMP. | 1 | Not available in store | ||||
| 016 | PAN HD.SCREW M3X6 | 3 | Not available in store | |||
| PAN HD.SCREW M3X6 | 3 | Not available in store | ||||
| 017 | CONTROL PLATE | 1 | Not available in store | |||
| CONTROL PLATE | 1 | Not available in store | ||||
| 018 | RING NUT | 1 | Not available in store | |||
| RING NUT | 1 | Not available in store | ||||
| 019 | OUTER FRAME COMP. | 1 | Not available in store | |||
| OUTER FRAME COMP. | 1 | Not available in store | ||||
| 021 | FOOT COMP | 3 | Not available in store | |||
| FOOT COMP | 3 | Not available in store | ||||
| 023 | RETAINING RING | 1 | Not available in store | |||
| RETAINING RING | 1 | Not available in store | ||||
| 024 | BOTTOM FRAME COMP. | 1 | Not available in store | |||
| BOTTOM FRAME COMP. | 1 | Not available in store | ||||
| 026 | VERTICAL LASER-UNIT ASS'Y | 1 | Not available in store | |||
| VERTICAL LASER-UNIT ASS'Y | 1 | Not available in store | ||||
| 032 | GIMBAL COMP. | 1 | Not available in store | |||
| GIMBAL COMP. | 1 | Not available in store | ||||
| 035 | PAN HD.SCREW M2X4 | 2 | Not available in store | |||
| PAN HD.SCREW M2X4 | 2 | Not available in store | ||||
| 037 | GYRO ASS'Y | 1 | Not available in store | |||
| GYRO ASS'Y | 1 | Not available in store | ||||
| 038 | CIRCUIT BOARD(C) | 1 | Not available in store | |||
| CIRCUIT BOARD(C) | 1 | Not available in store | ||||
| 039 | PAN HD.SCREW M2X4 | 2 | Not available in store | |||
| PAN HD.SCREW M2X4 | 2 | Not available in store | ||||
| 040 | PAN HD.SCREW M2X4 | 1 | Not available in store | |||
| PAN HD.SCREW M2X4 | 1 | Not available in store | ||||
| 042 | PAN HD.SCREW M2X6 | 1 | Not available in store | |||
| PAN HD.SCREW M2X6 | 1 | Not available in store | ||||
| 046 | TRANS.CIRCUIT BOARD | 1 | Not available in store | |||
| TRANS.CIRCUIT BOARD | 1 | Not available in store | ||||
| 047 | SENSOR CIRCUIT BOARD | 1 | Not available in store | |||
| SENSOR CIRCUIT BOARD | 1 | Not available in store | ||||
| 048 | PAN HD.SCREW M2X5(SUS) | 2 | Not available in store | |||
| PAN HD.SCREW M2X5(SUS) | 2 | Not available in store | ||||
