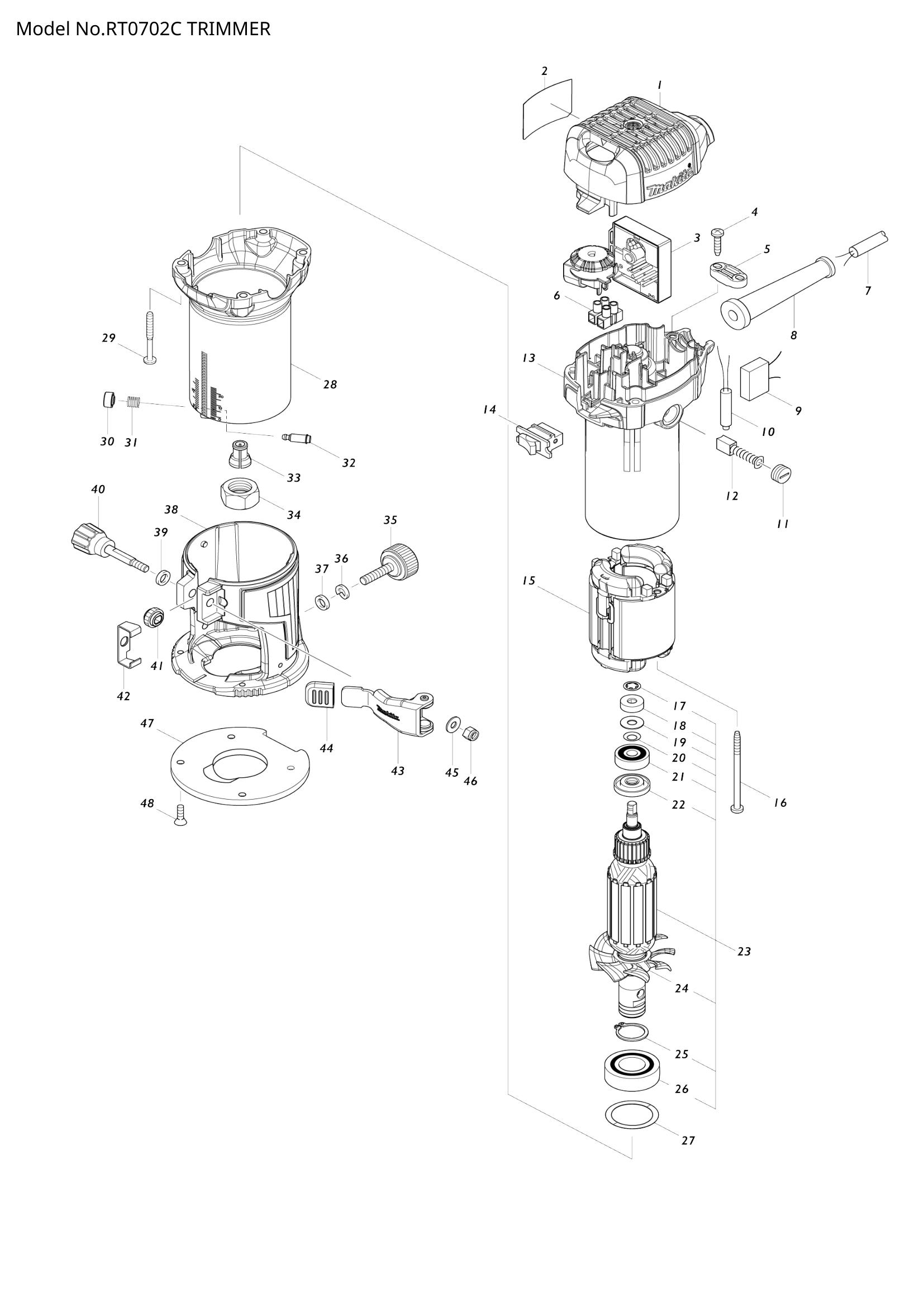

RT0702C
RT0702C
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | TOP COVER | 1 | Not available in store | |||
| 002 | RT0702C NAME PLATE | 1 | Not available in store | |||
| 003 | CONTROLLER | 1 | Not available in store | |||
| 005 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 654542-2 | TERMINAL BLOCK 2P | 1 | €2.78 | 1-4 weeks to ship | |
| 007 | 695034-2 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €19.48 | 1-4 weeks to ship | |
| 008 | 682502-4 | CORD GUARD 8-85 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 645233-6 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 645233-6 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | ||
| 010 | 646133-3 | CHOKE COIL | 1 | €2.78 | 1-4 weeks to ship | |
| 646133-3 | CHOKE COIL | 1 | €2.78 | 1-4 weeks to ship | ||
| 011 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | €0.83 | 1-4 weeks to ship | |
| 012 | 195010-1 | CARBON BRUSH SET CB-411 | 1 | €2.78 | 1-4 weeks to ship | |
| 013 | BRACKET COMPLETE | 1 | Not available in store | |||
| 014 | 651527-9 | SWITCH | 1 | €2.78 | 1-4 weeks to ship | |
| 015 | FIELD ASS'Y 240V | 1 | Not available in store | |||
| 016 | 266340-8 | TAPPING SCREW 4X65 | 2 | €0.56 | 1-4 weeks to ship | |
| 017 | 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 688117-5 | MAGNET SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 019 | 253332-6 | THIN WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 022 | 681668-7 | INSULATION WASHER | 1 | €0.28 | 1-4 weeks to ship | |
| 681668-7 | INSULATION WASHER | 1 | €0.28 | 1-4 weeks to ship | ||
| 023 | 515844-0 | ARMATURE ASS'Y 240V | 1 | €33.40 | 1-4 weeks to ship | |
| 024 | 240125-0 | FAN 55 | 1 | €0.97 | 1-4 weeks to ship | |
| 025 | 961057-5 | RETAINING RING S-17 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 210301-0 | BALL BEARING 6003DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 027 | 253906-3 | WAVE WASHER 26 | 1 | €2.09 | 1-4 weeks to ship | |
| 028 | 140735-2 | OUTER HOUSING COMPLETE | 1 | €25.05 | 1-4 weeks to ship | |
| 030 | 452468-0 | PUSH BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 233127-3 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 256437-1 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | COLLET CONE 6MM | 1 | Not available in store | |||
| 034 | 763615-1 | COLLET NUT | 1 | €4.17 | 1-4 weeks to ship | |
| 035 | 265763-7 | THUMB SCREW M6X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 253428-3 | SPRING WASHER 6 | 1 | €0.07 | 1-4 weeks to ship | |
| 037 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 038 | 142403-3 | TRIMMER BASE COMPLETE | 1 | €24.63 | 1-4 weeks to ship | |
| 039 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 040 | 265792-0 | THUMB SCREW M5X35 | 1 | €1.39 | 1-4 weeks to ship | |
| 041 | 227262-7 | SPUR GEAR 16 | 1 | €0.83 | 1-4 weeks to ship | |
| 042 | 346392-6 | CAM PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 163524-8 | LOCK LEVER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 044 | 424396-9 | RUBBER CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 454842-8 | BASE PROTECTOR | 1 | €3.06 | 1-4 weeks to ship | |
| 048 | 912112-6 | COUNTERSUNK HEAD SCREW M4 | 4 | €0.56 | 1-4 weeks to ship | |
