RT0700C
RT0700C

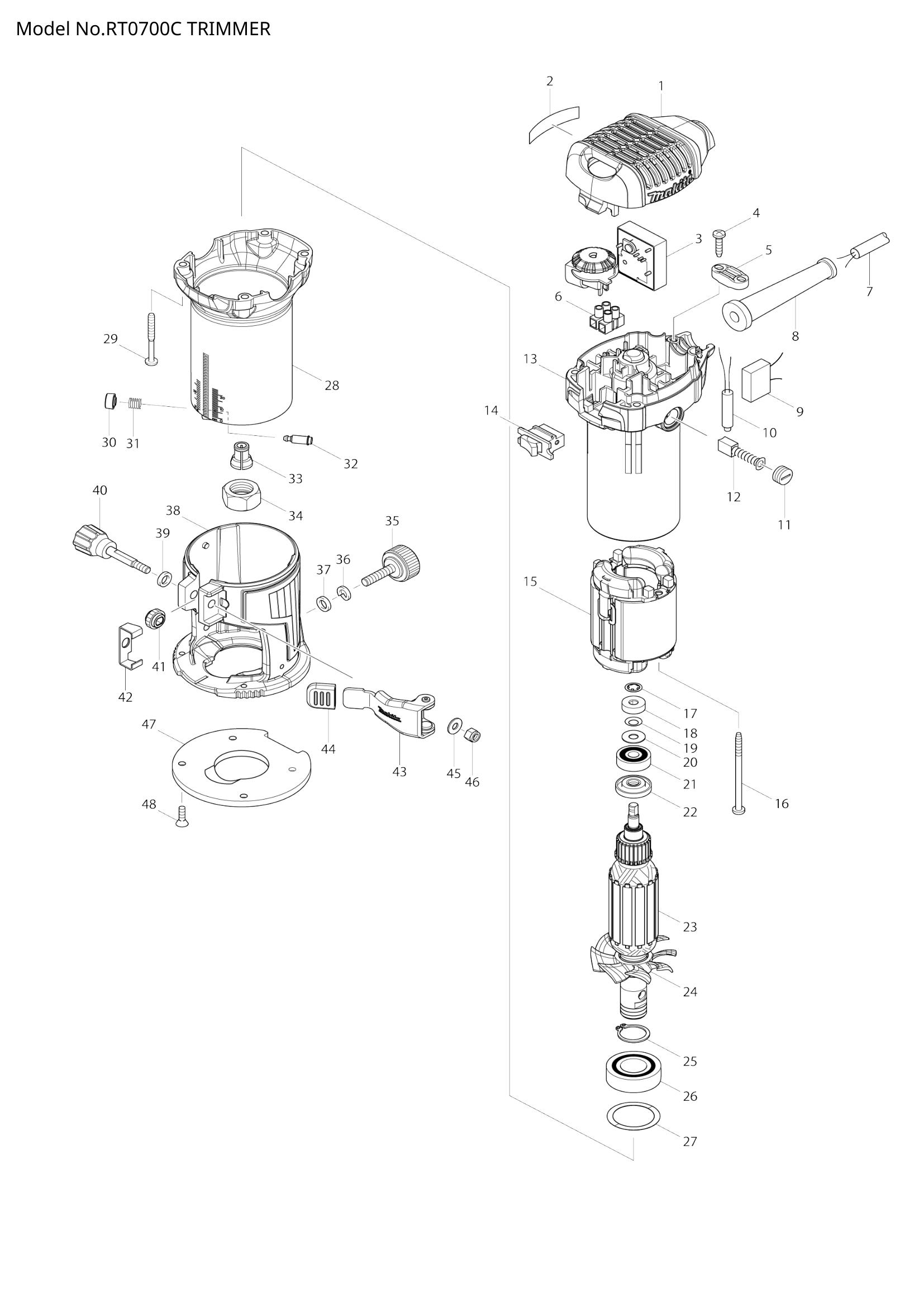

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | RT0700C NAME PLATE | 1 | Not available in store | |||
| 003 | 620040-8 | CONTROLLER | 1 | €27.83 | 1-4 weeks to ship | |
| 004 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 005 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 654542-2 | TERMINAL BLOCK 2P | 1 | €2.78 | 1-4 weeks to ship | |
| 007 | 695034-2 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €19.48 | 1-4 weeks to ship | |
| 008 | 682569-2 | CORD GUARD 8-85 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 010 | 646133-3 | CHOKE COIL | 1 | €2.78 | 1-4 weeks to ship | |
| 646133-3 | CHOKE COIL | 1 | €2.78 | 1-4 weeks to ship | ||
| 011 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | €0.83 | 1-4 weeks to ship | |
| 014 | 651527-9 | SWITCH | 1 | €2.78 | 1-4 weeks to ship | |
| 016 | 266340-8 | TAPPING SCREW 4X65 | 2 | €0.56 | 1-4 weeks to ship | |
| 017 | 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 253332-6 | THIN WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 024 | 240125-0 | FAN 55 | 1 | €0.97 | 1-4 weeks to ship | |
| 025 | 961057-5 | RETAINING RING S-17 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 253906-3 | WAVE WASHER 26 | 1 | €2.09 | 1-4 weeks to ship | |
| 029 | 266560-4 | TAPPING SCREW 4X40 | 4 | €0.14 | 1-4 weeks to ship | |
| 030 | 452468-0 | PUSH BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 233127-3 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 256437-1 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | COLLET CONE 6MM | 1 | Not available in store | |||
| 034 | 763615-1 | COLLET NUT | 1 | €4.17 | 1-4 weeks to ship | |
| 035 | 265763-7 | THUMB SCREW M6X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 040 | 265792-0 | THUMB SCREW M5X35 | 1 | €1.39 | 1-4 weeks to ship | |
| 041 | 227262-7 | SPUR GEAR 16 | 1 | €0.83 | 1-4 weeks to ship | |
| 042 | 346392-6 | CAM PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 163524-8 | LOCK LEVER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 044 | 424396-9 | RUBBER CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 912112-6 | COUNTERSUNK HEAD SCREW M4 | 4 | €0.56 | 1-4 weeks to ship | |
