RP2303FC
RP2303FC

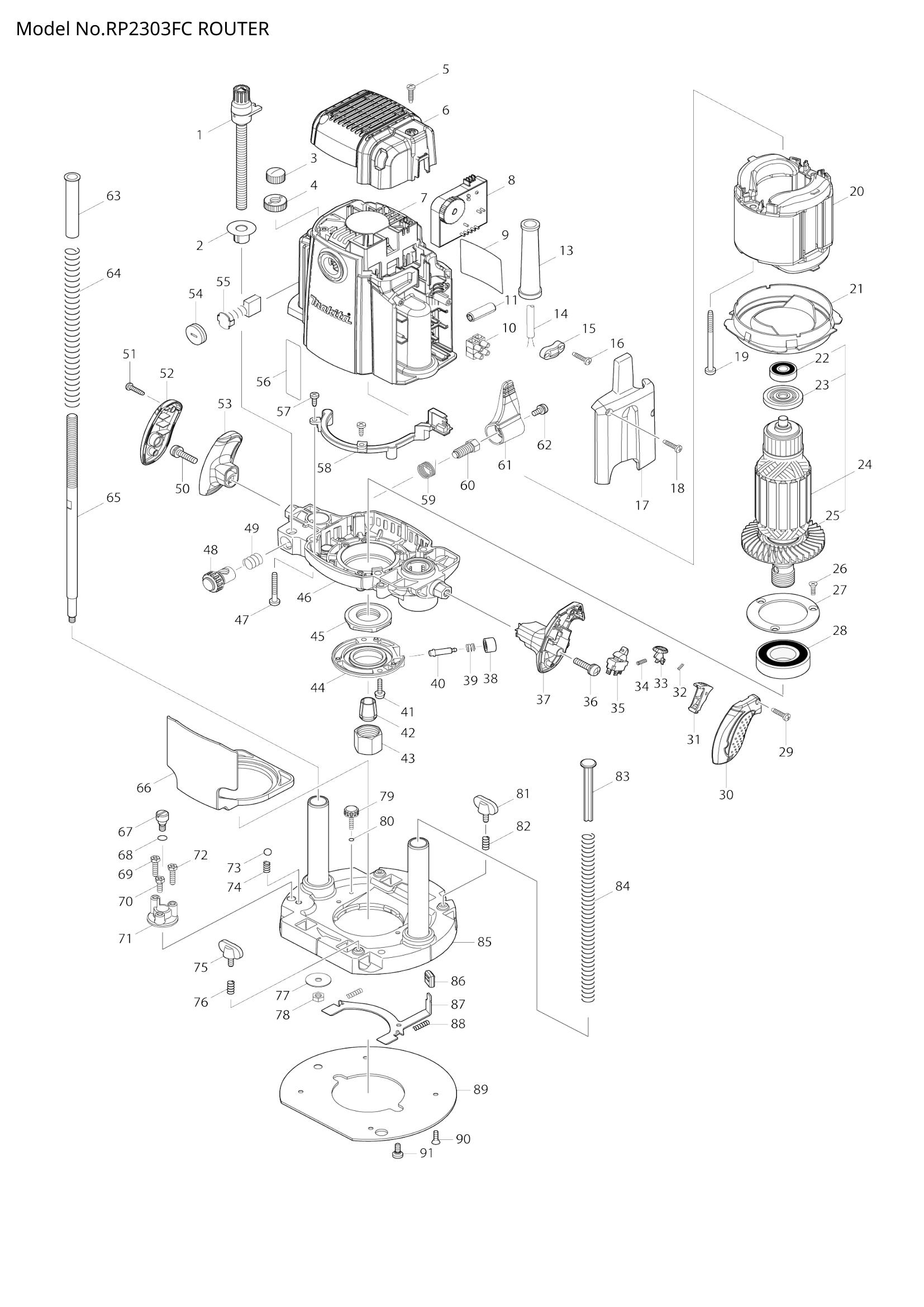

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 125542-4 | THUMB SCREW M10X115 ASS'Y | 1 | €13.92 | 1-4 weeks to ship | |
| 002 | 450946-4 | DEPTH POINTER | 1 | €1.11 | 1-4 weeks to ship | |
| 003 | 252643-6 | WING NUT M10 | 1 | €1.11 | 1-4 weeks to ship | |
| 004 | 410129-8 | NYLON NUT M10 | 1 | €1.39 | 1-4 weeks to ship | |
| 005 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 006 | REAR COVER | 1 | Not available in store | |||
| 007 | MOTOR HOUSING COMPLETE | 1 | Not available in store | |||
| 008 | CONTROLLER | 1 | Not available in store | |||
| 009 | RP2303FC NAME PLATE | 1 | Not available in store | |||
| 010 | 654531-7 | TERMINAL BLOCK 2P | 1 | €2.78 | 1-4 weeks to ship | |
| 013 | 682505-8 | CORD GUARD 10-90 | 1 | €2.78 | 1-4 weeks to ship | |
| 014 | 695123-3 | POWER SUPPLY CORD 1.5-2-4.0 | 1 | €30.61 | 1-4 weeks to ship | |
| 015 | 687053-2 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 017 | 450949-8 | COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 018 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 019 | 266059-9 | TAPPING SCREW 5X75 | 2 | €1.11 | 1-4 weeks to ship | |
| 020 | 636013-1 | FIELD 220V | 1 | €86.27 | 1-4 weeks to ship | |
| 022 | 211092-6 | BALL BEARING 629DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 023 | 681631-0 | INSULATION WASHER | 1 | €8.35 | 1-4 weeks to ship | |
| 024 | ARMATURE ASS'Y 220V | 1 | Not available in store | |||
| 025 | 240112-9 | FAN 80 | 1 | €7.51 | 1-4 weeks to ship | |
| 026 | 251295-0 | + COUNTERSUNK HEAD SCREW | 3 | €0.56 | 1-4 weeks to ship | |
| 027 | 285731-4 | BEARING RETAINER 60 | 1 | €2.78 | 1-4 weeks to ship | |
| 028 | 211380-1 | BALL BEARING 6205DDW | 1 | €13.92 | 1-4 weeks to ship | |
| 029 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 030 | 450937-5 | GRIP COVER R | 1 | €8.35 | 1-4 weeks to ship | |
| 031 | 450940-6 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 032 | 233024-3 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 450941-4 | LOCK OFF BUTTON | 1 | €1.53 | 1-4 weeks to ship | |
| 034 | 231372-4 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 651430-4 | SWITCH | 1 | €16.70 | 1-4 weeks to ship | |
| 036 | 911343-4 | PAN HEAD SCREW M6X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 450936-7 | GRIP R | 1 | €11.13 | 1-4 weeks to ship | |
| 038 | 450942-2 | PUSH BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 039 | 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 268234-3 | COLLARED PIN 6 | 1 | €2.78 | 1-4 weeks to ship | |
| 041 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 042 | COLLET CONE 12MM | 1 | Not available in store | |||
| 043 | 763674-5 | COLLET NUT | 1 | €11.13 | 1-4 weeks to ship | |
| 044 | 318382-9 | RETAINER COVER | 1 | €13.92 | 1-4 weeks to ship | |
| 045 | 285849-1 | RETAINER | 1 | €4.17 | 1-4 weeks to ship | |
| 046 | 158972-4 | MOTOR BRACKET COMPLETE | 1 | €30.61 | 1-4 weeks to ship | |
| 047 | 266012-5 | TAPPING SCREW 5X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 048 | 153476-1 | HALF NUT COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 049 | 231231-2 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 911343-4 | PAN HEAD SCREW M6X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 052 | 450939-1 | GRIP COVER L | 1 | €5.57 | 1-4 weeks to ship | |
| 053 | 450938-3 | GRIP L | 1 | €11.13 | 1-4 weeks to ship | |
| 054 | 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | |
| 056 | INDICATION LABEL | 1 | Not available in store | |||
| 057 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 058 | 631862-1 | LED CIRCUIT | 1 | €11.13 | 1-4 weeks to ship | |
| 059 | 233538-2 | TORSION SPRING 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 450950-3 | LOCK LEVER | 1 | €1.39 | 1-4 weeks to ship | |
| 062 | 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 063 | 450943-0 | SILENT POLE | 1 | €1.11 | 1-4 weeks to ship | |
| 064 | 234106-4 | COMPRESSION SPRING 13 | 1 | €1.39 | 1-4 weeks to ship | |
| 065 | 325652-9 | SCREW M10 | 1 | €8.35 | 1-4 weeks to ship | |
| 066 | 450953-7 | TIP DEFLECTOR | 1 | €5.57 | 1-4 weeks to ship | |
| 067 | 251467-7 | - FLAT HEAD SCREW M6 | 1 | €2.78 | 1-4 weeks to ship | |
| 068 | 213030-4 | O RING 8 | 1 | €0.14 | 1-4 weeks to ship | |
| 069 | 265587-1 | +HEX. BOLT M5X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 265586-3 | +HEX. BOLT M5X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 315931-3 | STOPPER | 1 | €4.17 | 1-4 weeks to ship | |
| 072 | 265587-1 | +HEX. BOLT M5X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 073 | 216009-4 | STEEL BALL 7.1 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | 231419-4 | COMPRESSION SPRING 5 | 1 | €1.11 | 1-4 weeks to ship | |
| 075 | 265720-5 | THUMB SCREW M5X14 | 1 | €0.83 | 1-4 weeks to ship | |
| 076 | 231240-1 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 253783-3 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 931303-0 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 079 | 265774-2 | THUMB SCREW M4X19 | 1 | €1.67 | 1-4 weeks to ship | |
| 080 | 213022-3 | O RING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 081 | 265720-5 | THUMB SCREW M5X14 | 1 | €0.83 | 1-4 weeks to ship | |
| 082 | 231240-1 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 083 | 417252-0 | POLE | 1 | €1.67 | 1-4 weeks to ship | |
| 084 | 234105-6 | COMPRESSION SPRING 11 | 1 | €1.67 | 1-4 weeks to ship | |
| 085 | 158973-2 | BASE COMPLETE | 1 | €66.79 | 1-4 weeks to ship | |
| 086 | 424176-3 | CAP 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 087 | 346032-6 | LOCK PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 088 | 233105-3 | COMPRESSION SPRING 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 089 | 450951-1 | BASE PLATE | 1 | €16.70 | 1-4 weeks to ship | |
| 090 | 912112-6 | COUNTERSUNK HEAD SCREW M4 | 4 | €0.56 | 1-4 weeks to ship | |
| 091 | 266016-7 | SET BOLT M5X10 | 2 | €4.17 | 1-4 weeks to ship | |
