RBC420
RBC420

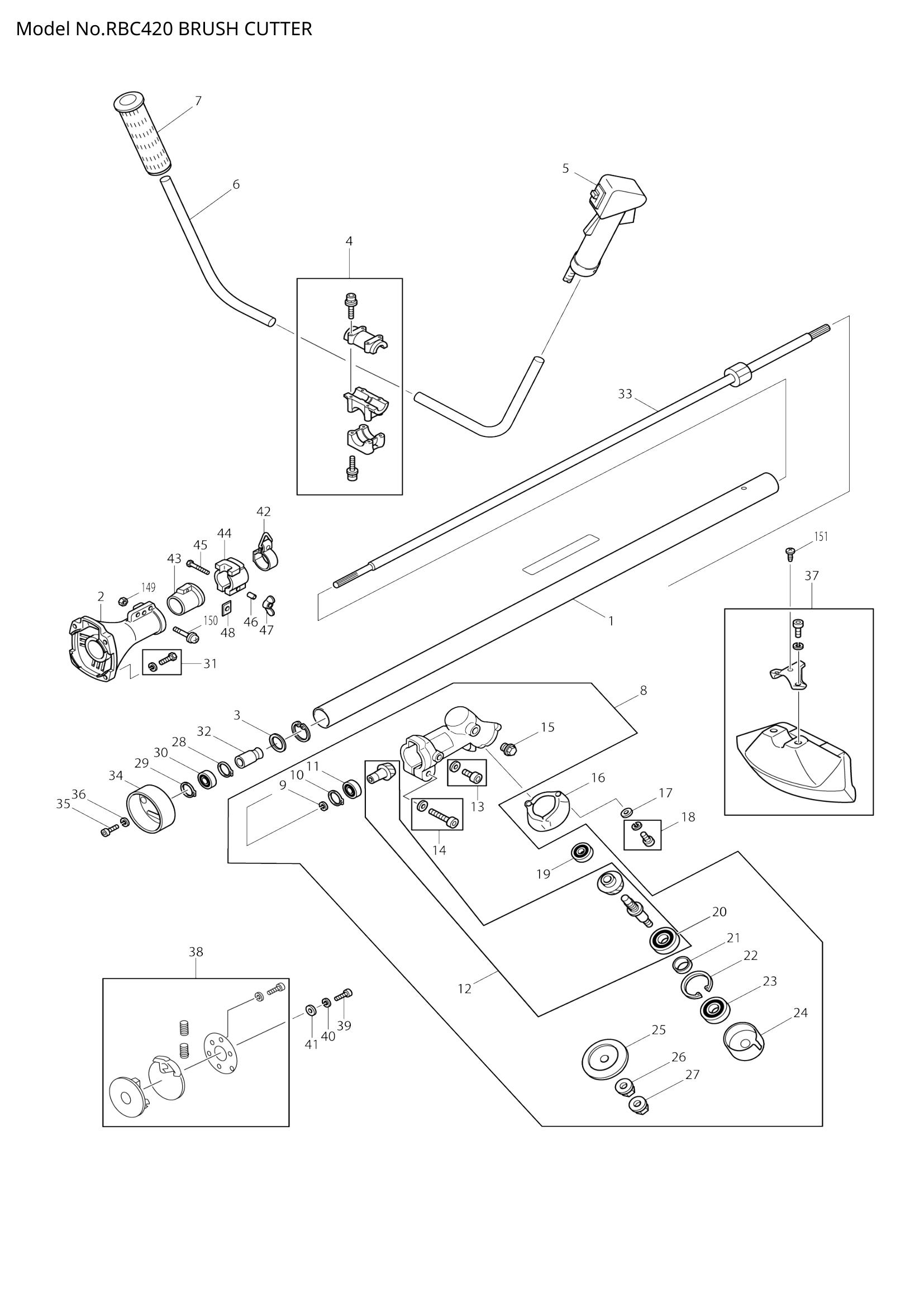

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 008 | 6353001000 | GEAR CASE ASS'Y | 1 | €407.57 | 1-4 weeks to ship | |
| 6353001000 | GEAR CASE ASS'Y | 1 | €407.57 | 1-4 weeks to ship | ||
| 6353001000 | GEAR CASE ASS'Y | 1 | €407.57 | 1-4 weeks to ship | ||
| 010 | 0031428000 | INNER SNAP RING | 1 | €2.78 | 1-4 weeks to ship | |
| 0031428000 | INNER SNAP RING | 1 | €2.78 | 1-4 weeks to ship | ||
| 0031428000 | INNER SNAP RING | 1 | €2.78 | 1-4 weeks to ship | ||
| 012 | 6413003000 | GEAR SET | 1 | €194.81 | 1-4 weeks to ship | |
| 6413003000 | GEAR SET | 1 | €194.81 | 1-4 weeks to ship | ||
| 6413003000 | GEAR SET | 1 | €194.81 | 1-4 weeks to ship | ||
| 018 | 0119059900 | SOCKET HEAD BOLT M5X12 | 3 | €0.83 | 1-4 weeks to ship | |
| 0119059900 | SOCKET HEAD BOLT M5X12 | 3 | €0.83 | 1-4 weeks to ship | ||
| 0119059900 | SOCKET HEAD BOLT M5X12 | 3 | €0.83 | 1-4 weeks to ship | ||
| 030 | 0600179850 | BALL BEARING | 1 | €19.76 | 1-4 weeks to ship | |
| 0600179850 | BALL BEARING | 1 | €19.76 | 1-4 weeks to ship | ||
| 0600179850 | BALL BEARING | 1 | €19.76 | 1-4 weeks to ship | ||
| 040 | 0032006000 | SPRING WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 0032006000 | SPRING WASHER | 1 | €0.83 | 1-4 weeks to ship | ||
| 0032006000 | SPRING WASHER | 1 | €0.83 | 1-4 weeks to ship | ||
| 047 | 6411501300 | WING NUT | 1 | €8.07 | 1-4 weeks to ship | |
| 6411501300 | WING NUT | 1 | €8.07 | 1-4 weeks to ship | ||
| 6411501300 | WING NUT | 1 | €8.07 | 1-4 weeks to ship | ||
| 065 | 5416504000 | GASKET (CARBURETOR) | 1 | €2.78 | 1-4 weeks to ship | |
| 5416504000 | GASKET (CARBURETOR) | 1 | €2.78 | 1-4 weeks to ship | ||
| 5416504000 | GASKET (CARBURETOR) | 1 | €2.78 | 1-4 weeks to ship | ||
| 069 | 5415504500 | STARTER COVER | 1 | €13.92 | 1-4 weeks to ship | |
| 5415504500 | STARTER COVER | 1 | €13.92 | 1-4 weeks to ship | ||
| 5415504500 | STARTER COVER | 1 | €13.92 | 1-4 weeks to ship | ||
| 080 | 5415504600 | CYLINDER COVER | 1 | €25.60 | 1-4 weeks to ship | |
| 5415504600 | CYLINDER COVER | 1 | €25.60 | 1-4 weeks to ship | ||
| 5415504600 | CYLINDER COVER | 1 | €25.60 | 1-4 weeks to ship | ||
| 090 | 5416503500 | DAMPER (-) | 1 | €7.10 | 1-4 weeks to ship | |
| 5416503500 | DAMPER (-) | 1 | €7.10 | 1-4 weeks to ship | ||
| 5416503500 | DAMPER (-) | 1 | €7.10 | 1-4 weeks to ship | ||
| 094 | 0655009940 | PLUG CAP | 1 | €4.45 | 1-4 weeks to ship | |
| 0655009940 | PLUG CAP | 1 | €4.45 | 1-4 weeks to ship | ||
| 0655009940 | PLUG CAP | 1 | €4.45 | 1-4 weeks to ship | ||
| 098 | 5607005000 | WIRE COMPLETE (2) | 1 | €5.71 | 1-4 weeks to ship | |
| 5607005000 | WIRE COMPLETE (2) | 1 | €5.71 | 1-4 weeks to ship | ||
| 5607005000 | WIRE COMPLETE (2) | 1 | €5.71 | 1-4 weeks to ship | ||
| 104 | 0140059610 | SCREW M5X14 | 1 | €2.09 | 1-4 weeks to ship | |
| 0140059610 | SCREW M5X14 | 1 | €2.09 | 1-4 weeks to ship | ||
| 0140059610 | SCREW M5X14 | 1 | €2.09 | 1-4 weeks to ship | ||
| 106 | 0119059790 | SOCKET HEAD BOLT | 2 | €2.78 | 1-4 weeks to ship | |
| 0119059790 | SOCKET HEAD BOLT | 2 | €2.78 | 1-4 weeks to ship | ||
| 0119059790 | SOCKET HEAD BOLT | 2 | €2.78 | 1-4 weeks to ship | ||
| 108 | 0119059940 | HEX. SOCKET HEAD BOLT M5X30 | 4 | €0.83 | 1-4 weeks to ship | |
| 0119059940 | HEX. SOCKET HEAD BOLT M5X30 | 4 | €0.83 | 1-4 weeks to ship | ||
| 0119059940 | HEX. SOCKET HEAD BOLT M5X30 | 4 | €0.83 | 1-4 weeks to ship | ||
| 110 | 0119069990 | HEX. SOCKET HEAD BOLT M6X18 | 4 | €2.78 | 1-4 weeks to ship | |
| 0119069990 | HEX. SOCKET HEAD BOLT M6X18 | 4 | €2.78 | 1-4 weeks to ship | ||
| 0119069990 | HEX. SOCKET HEAD BOLT M6X18 | 4 | €2.78 | 1-4 weeks to ship | ||
| 149 | 0022706000 | NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 0022706000 | NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 0022706000 | NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 151 | 0150059940 | TAPPING SCREW | 1 | €2.09 | 1-4 weeks to ship | |
| 0150059940 | TAPPING SCREW | 1 | €2.09 | 1-4 weeks to ship | ||
| 0150059940 | TAPPING SCREW | 1 | €2.09 | 1-4 weeks to ship | ||
| 153 | 0119059790 | SOCKET HEAD BOLT | 2 | €2.78 | 1-4 weeks to ship | |
| 0119059790 | SOCKET HEAD BOLT | 2 | €2.78 | 1-4 weeks to ship | ||
| 0119059790 | SOCKET HEAD BOLT | 2 | €2.78 | 1-4 weeks to ship | ||
| 155 | JET #50 | 1 | Not available in store | |||
| JET #50 | 1 | Not available in store | ||||
| JET #50 | 1 | Not available in store | ||||
| 164 | HANDLE S | 1 | Not available in store | |||
| HANDLE S | 1 | Not available in store | ||||
| HANDLE S | 1 | Not available in store | ||||
