PW5000C
PW5000C

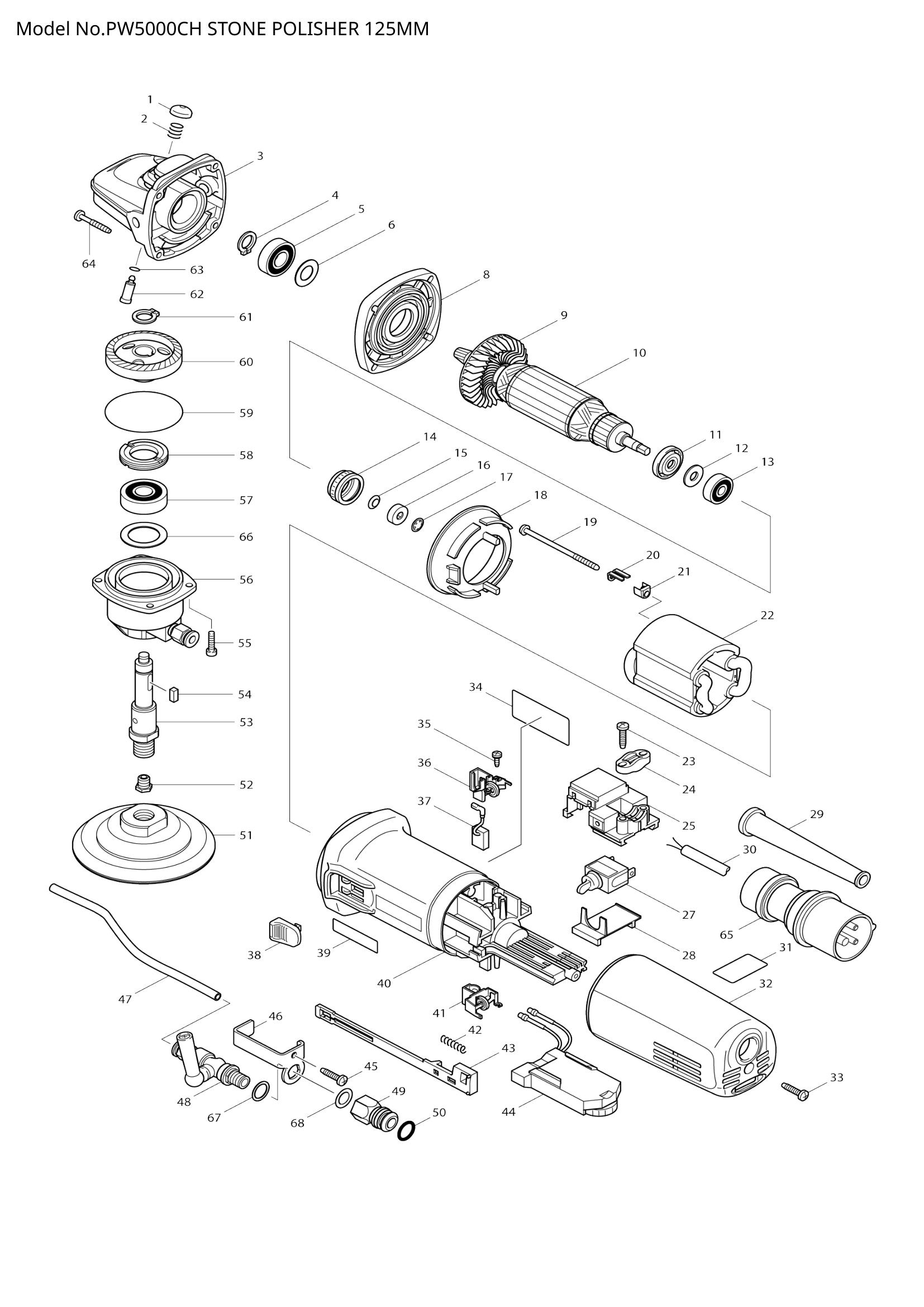

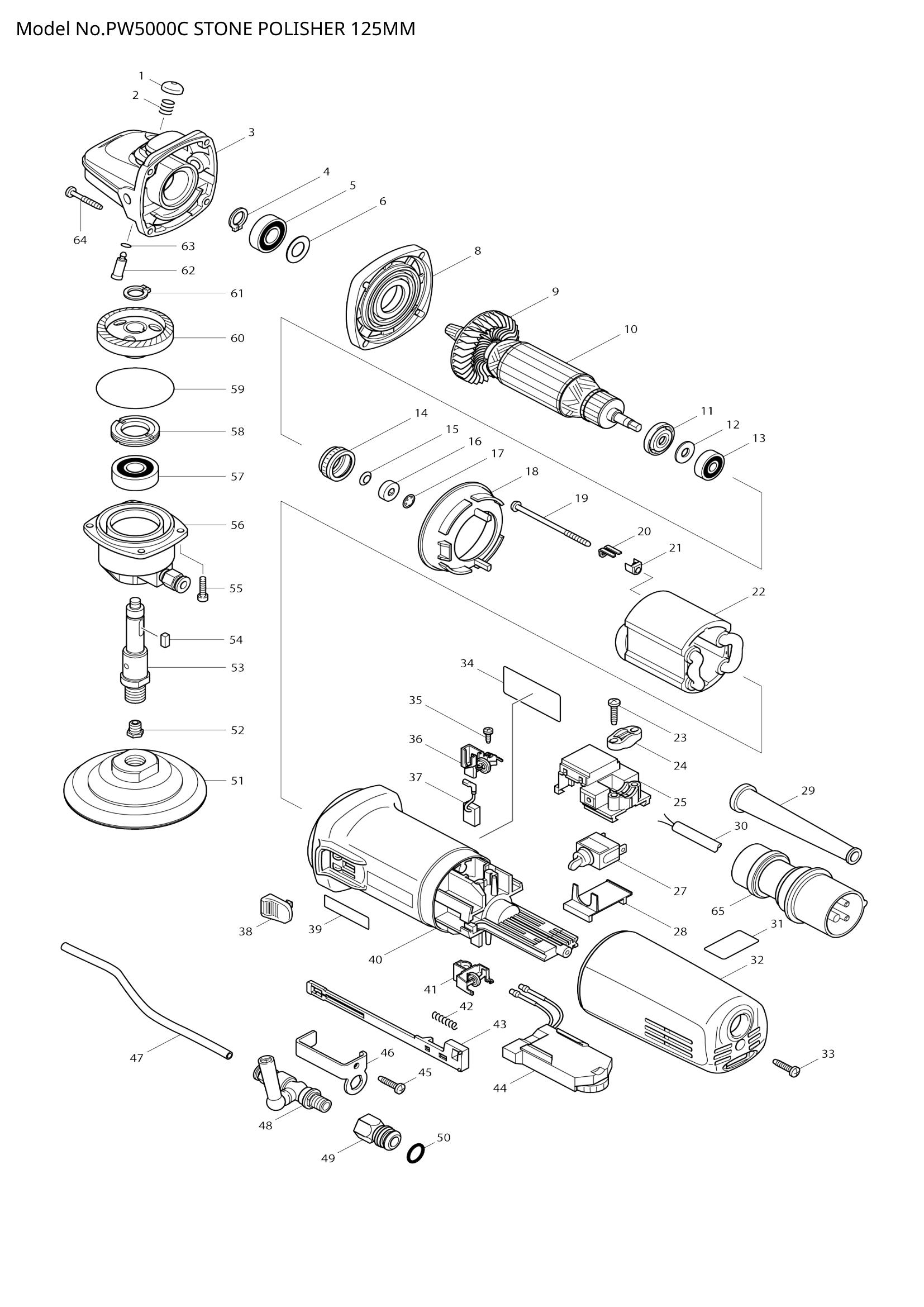

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 004 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 317359-1 | GEAR HOUSING COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 317359-1 | GEAR HOUSING COVER | 1 | €8.35 | 1-4 weeks to ship | ||
| 009 | 240033-5 | FAN 57 | 1 | €4.17 | 1-4 weeks to ship | |
| 240033-5 | FAN 57 | 1 | €4.17 | 1-4 weeks to ship | ||
| 010 | 515266-4 | ARMATURE ASS'Y 115V | 1 | €114.10 | 1-4 weeks to ship | |
| 515266-4 | ARMATURE ASS'Y 115V | 1 | €114.10 | 1-4 weeks to ship | ||
| 011 | 681656-4 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681656-4 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 012 | 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | 210027-4 | BALL BEARING 627DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 210027-4 | BALL BEARING 627DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 015 | 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | 688117-5 | MAGNET SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 688117-5 | MAGNET SLEEVE | 1 | €2.78 | 1-4 weeks to ship | ||
| 017 | 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | 413076-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 413076-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 019 | 266258-3 | TAPPING SCREW 4X70 | 2 | €0.83 | 1-4 weeks to ship | |
| 266258-3 | TAPPING SCREW 4X70 | 2 | €0.83 | 1-4 weeks to ship | ||
| 020 | 344871-8 | RETAINER | 2 | €0.56 | 1-4 weeks to ship | |
| 344871-8 | RETAINER | 2 | €0.56 | 1-4 weeks to ship | ||
| 021 | 417237-6 | INSULATION COVER | 2 | €1.11 | 1-4 weeks to ship | |
| 417237-6 | INSULATION COVER | 2 | €1.11 | 1-4 weeks to ship | ||
| 022 | 626546-4 | FIELD 115V | 1 | €30.61 | 1-4 weeks to ship | |
| 626546-4 | FIELD 115V | 1 | €30.61 | 1-4 weeks to ship | ||
| 023 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 024 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 025 | 632945-0 | SWITCH BLOCK | 1 | €13.92 | 1-4 weeks to ship | |
| 632945-0 | SWITCH BLOCK | 1 | €13.92 | 1-4 weeks to ship | ||
| 028 | 687113-0 | COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 687113-0 | COVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 029 | 682566-8 | CORD GUARD 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 682566-8 | CORD GUARD 10 | 1 | €1.11 | 1-4 weeks to ship | ||
| 030 | 665937-4 | POWER SUPPLY CORD 1.0-2-5.0 | 1 | €34.51 | 1-4 weeks to ship | |
| 665937-4 | POWER SUPPLY CORD 1.0-2-5.0 | 1 | €34.51 | 1-4 weeks to ship | ||
| 031 | INDICATION LABEL | 1 | Not available in store | |||
| INDICATION LABEL | 1 | Not available in store | ||||
| 032 | REAR COVER | 1 | Not available in store | |||
| REAR COVER | 1 | Not available in store | ||||
| 033 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 034 | NAME PLATE PW5000C | 1 | Not available in store | |||
| NAME PLATE PW5000C | 1 | Not available in store | ||||
| 035 | 266256-7 | TAPPING SCREW PT3X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 266256-7 | TAPPING SCREW PT3X10 | 4 | €0.56 | 1-4 weeks to ship | ||
| 036 | BRUSH HOLDER | 1 | Not available in store | |||
| BRUSH HOLDER | 1 | Not available in store | ||||
| 037 | 191978-9 | A.C. CARBON BRUSH CB-318 | 1 | €11.13 | 1-4 weeks to ship | |
| 191978-9 | A.C. CARBON BRUSH CB-318 | 1 | €11.13 | 1-4 weeks to ship | ||
| 038 | 417813-6 | SWITCH KNOB | 1 | €1.11 | 1-4 weeks to ship | |
| 417813-6 | SWITCH KNOB | 1 | €1.11 | 1-4 weeks to ship | ||
| 041 | BRUSH HOLDER | 1 | Not available in store | |||
| BRUSH HOLDER | 1 | Not available in store | ||||
| 042 | 233071-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233071-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 043 | 417186-7 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 417186-7 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 044 | 631595-8 | CONTROLLER | 1 | €77.92 | 1-4 weeks to ship | |
| 631595-8 | CONTROLLER | 1 | €77.92 | 1-4 weeks to ship | ||
| 045 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 046 | PLATE | 1 | Not available in store | |||
| PLATE | 1 | Not available in store | ||||
| 047 | HOSE | 1 | Not available in store | |||
| HOSE | 1 | Not available in store | ||||
| 049 | 331669-2 | HOSE JOINT | 1 | €8.35 | 1-4 weeks to ship | |
| 331669-2 | HOSE JOINT | 1 | €8.35 | 1-4 weeks to ship | ||
| 050 | 213107-5 | O RING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 213107-5 | O RING 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | PAD 100 | 1 | Not available in store | |||
| PAD 100 | 1 | Not available in store | ||||
| 053 | 324409-5 | SPINDLE | 1 | €52.88 | 1-4 weeks to ship | |
| 324409-5 | SPINDLE | 1 | €52.88 | 1-4 weeks to ship | ||
| 054 | 254202-2 | KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 254202-2 | KEY 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 055 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 056 | 153717-5 | BEARING BOX COMPLETE | 1 | €47.31 | 1-4 weeks to ship | |
| 153717-5 | BEARING BOX COMPLETE | 1 | €47.31 | 1-4 weeks to ship | ||
| 057 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 058 | 285841-7 | BEARING RETAINER | 1 | €1.67 | 1-4 weeks to ship | |
| 285841-7 | BEARING RETAINER | 1 | €1.67 | 1-4 weeks to ship | ||
| 059 | 213673-2 | O RING 52 | 1 | €0.83 | 1-4 weeks to ship | |
| 213673-2 | O RING 52 | 1 | €0.83 | 1-4 weeks to ship | ||
| 060 | 227455-6 | SPIRAL BEVEL GEAR 38 | 1 | €47.31 | 1-4 weeks to ship | |
| 227455-6 | SPIRAL BEVEL GEAR 38 | 1 | €47.31 | 1-4 weeks to ship | ||
| 061 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 062 | 256459-1 | PIN | 1 | €1.11 | 1-4 weeks to ship | |
| 256459-1 | PIN | 1 | €1.11 | 1-4 weeks to ship | ||
| 063 | 213048-5 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 213048-5 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 064 | 266257-5 | TAPPING SCREW 4X28 | 4 | €0.56 | 1-4 weeks to ship | |
| 266257-5 | TAPPING SCREW 4X28 | 4 | €0.56 | 1-4 weeks to ship | ||
| 065 | 655033-6 | PLUG | 1 | €13.92 | 1-4 weeks to ship | |
| 655033-6 | PLUG | 1 | €13.92 | 1-4 weeks to ship | ||
| 066 | 267126-3 | FLAT WASHER 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 267126-3 | FLAT WASHER 22 | 1 | €0.56 | 1-4 weeks to ship | ||
| 067 | 261128-1 | RUBBER WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 261128-1 | RUBBER WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
