PV301D
PV301D

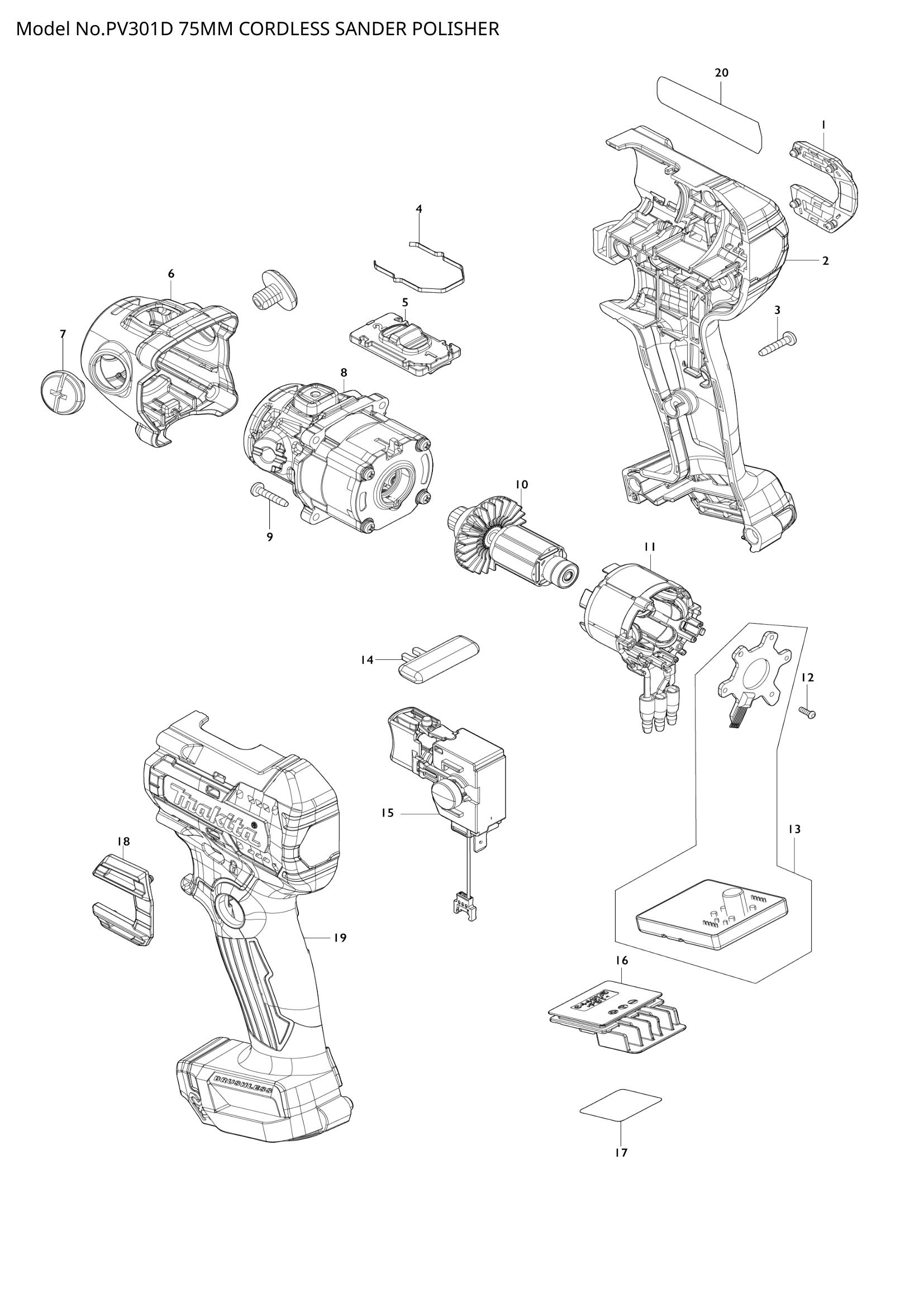

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 422613-1 | DUST COVER | 1 | €5.61 | 1-4 weeks to ship | |
| 002 | 191P13-9 | HOUSING SET | 1 | €30.42 | 1-4 weeks to ship | |
| 003 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 7 | €0.56 | 1-4 weeks to ship | |
| 004 | 232659-7 | LEAF SPRING | 1 | €5.33 | 1-4 weeks to ship | |
| 005 | 127720-2 | SPEED CHANGE LEVER ASSEMBL | 1 | €3.80 | 1-4 weeks to ship | |
| 006 | 413228-5 | HEAD COVER | 1 | €6.35 | 1-4 weeks to ship | |
| 007 | 413229-3 | +ROUND HEAD SCREW M8X10 | 2 | €1.11 | 1-4 weeks to ship | |
| 009 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 010 | 619663-7 | ROTOR | 1 | €40.85 | 1-4 weeks to ship | |
| 011 | 629A37-0 | STATOR | 1 | €10.16 | 1-4 weeks to ship | |
| 012 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 014 | 412697-7 | LOCK OFF BUTTON | 1 | €1.29 | 1-4 weeks to ship | |
| 015 | 651489-1 | SWITCH C3JW-4B-L6 | 1 | €35.20 | 1-4 weeks to ship | |
| 016 | 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | |
| 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | ||
| 017 | PV301D SERIAL NO. LABEL | 1 | Not available in store | |||
| 018 | 422613-1 | DUST COVER | 1 | €5.61 | 1-4 weeks to ship | |
| 019 | 191P13-9 | HOUSING SET | 1 | €30.42 | 1-4 weeks to ship | |
| 020 | PV301D NAME PLATE | 1 | Not available in store | |||
