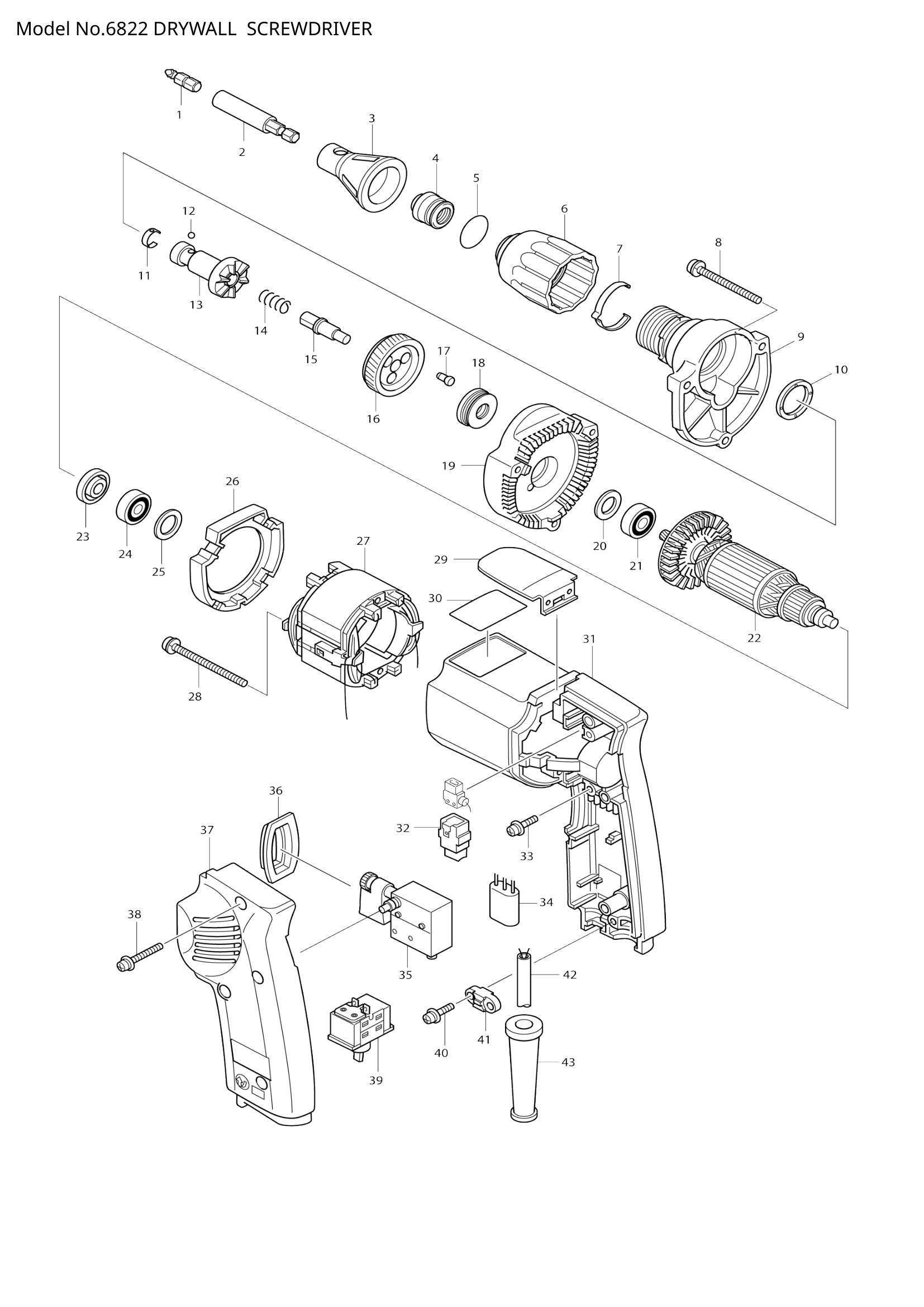

6822
6822
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | 151561-4 | LOCATOR COMPLETE | 1 | €18.09 | 1-4 weeks to ship | |
| 004 | 421631-6 | DUST SEAL RING | 1 | €1.39 | 1-4 weeks to ship | |
| 005 | 213373-4 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 416756-9 | LOCK RING | 1 | €5.84 | 1-4 weeks to ship | |
| 008 | 911173-3 | PAN HEAD SCREW M4X45 | 3 | €0.56 | 1-4 weeks to ship | |
| 009 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| 010 | 421392-8 | RING 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 232050-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 223107-7 | SPINDLE | 1 | €27.83 | 1-4 weeks to ship | |
| 014 | 233126-5 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 226444-8 | HELICAL GEAR 46 | 1 | €27.83 | 1-4 weeks to ship | |
| 020 | 253192-6 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 023 | 681614-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 253192-6 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 410923-8 | BAFFLE PLATE | 1 | €2.92 | 1-4 weeks to ship | |
| 028 | 911581-8 | PAN HEAD SCREW M4X55 | 2 | €2.78 | 1-4 weeks to ship | |
| 029 | 343407-0 | HOOK | 1 | €4.17 | 1-4 weeks to ship | |
| 030 | 851360-1 | NAME PLATE 6822 | 1 | €2.92 | 1-4 weeks to ship | |
| 031 | 157725-8 | MOTOR HOUSING | 1 | €30.47 | 1-4 weeks to ship | |
| 033 | 911124-6 | PAN HEAD SCREW M4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | |
| 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | ||
| 036 | 411852-8 | SWITCH COVER | 1 | €0.83 | 1-4 weeks to ship | |
| 037 | 155928-8 | HANDLE COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 038 | 911153-9 | PAN HEAD SCREW M4X28 | 3 | €0.56 | 1-4 weeks to ship | |
| 039 | 651478-6 | SWITCH VTX11 | 1 | €16.70 | 1-4 weeks to ship | |
| 040 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 043 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 044 | 421795-6 | SEAL RING | 1 | €2.92 | 1-4 weeks to ship | |
