PM5120
PM5120

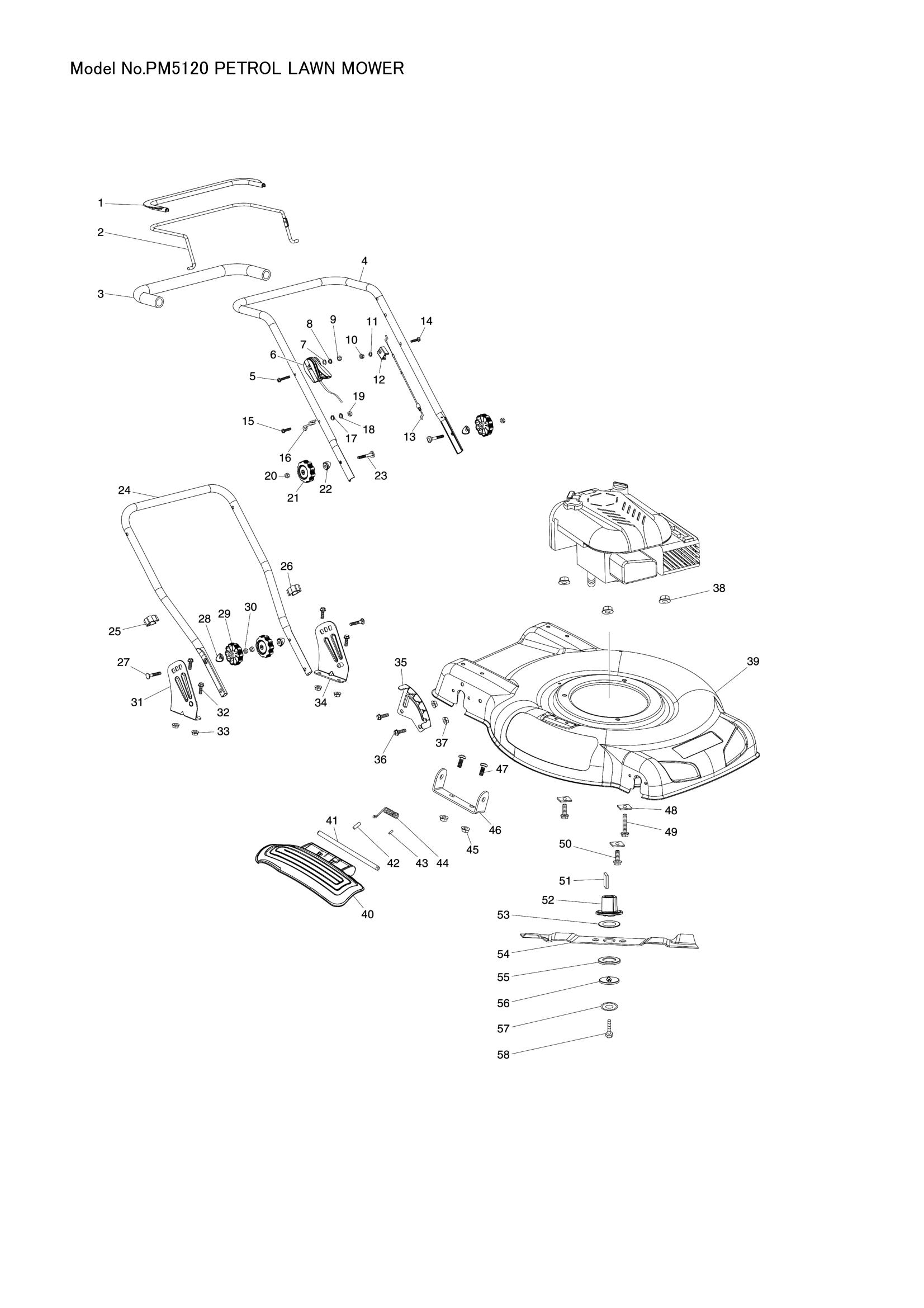

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 671687001 | LEVER SHEATH | 1 | €3.20 | 1-4 weeks to ship | |
| 671687001 | LEVER SHEATH | 1 | €3.20 | 1-4 weeks to ship | ||
| 002 | 671001816 | MOTOR BRAKE LEVER | 1 | €10.30 | 1-4 weeks to ship | |
| 671001816 | MOTOR BRAKE LEVER | 1 | €10.30 | 1-4 weeks to ship | ||
| 003 | 671101901 | HANDLE SHEATH | 1 | €9.18 | 1-4 weeks to ship | |
| 671101901 | HANDLE SHEATH | 1 | €9.18 | 1-4 weeks to ship | ||
| 004 | 671001836 | UPPER HANDLE BAR | 1 | €54.55 | 1-4 weeks to ship | |
| 671001836 | UPPER HANDLE BAR | 1 | €54.55 | 1-4 weeks to ship | ||
| 007 | DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | |
| DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | ||
| 011 | DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | |
| DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | ||
| 012 | DA00000573 | OUTER WIRE STOPPER | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000573 | OUTER WIRE STOPPER | 1 | €0.70 | 1-4 weeks to ship | ||
| 014 | DA00000577 | HEX.FLANGE BOLT M6X35 | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000577 | HEX.FLANGE BOLT M6X35 | 1 | €0.70 | 1-4 weeks to ship | ||
| 015 | DA00000577 | HEX.FLANGE BOLT M6X35 | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000577 | HEX.FLANGE BOLT M6X35 | 1 | €0.70 | 1-4 weeks to ship | ||
| 016 | DA00000579 | STARTER GRIP HOOK | 1 | €2.23 | 1-4 weeks to ship | |
| DA00000579 | STARTER GRIP HOOK | 1 | €2.23 | 1-4 weeks to ship | ||
| 017 | DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | |
| DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | ||
| 020 | 671005007 | HEX.NUT M8 | 2 | €1.11 | 1-4 weeks to ship | |
| 671005007 | HEX.NUT M8 | 2 | €1.11 | 1-4 weeks to ship | ||
| 021 | 671453001 | KNOB | 2 | €2.78 | 1-4 weeks to ship | |
| 671453001 | KNOB | 2 | €2.78 | 1-4 weeks to ship | ||
| 022 | 671001085 | PLASTIC SADDLE WASHER 8 | 2 | €1.11 | 1-4 weeks to ship | |
| 671001085 | PLASTIC SADDLE WASHER 8 | 2 | €1.11 | 1-4 weeks to ship | ||
| 023 | 671006004 | SADDLE HEAD BOLT M8X58 | 2 | €1.67 | 1-4 weeks to ship | |
| 671006004 | SADDLE HEAD BOLT M8X58 | 2 | €1.67 | 1-4 weeks to ship | ||
| 024 | 671001815 | LOWER HANDLE BAR | 1 | €44.53 | 1-4 weeks to ship | |
| 671001815 | LOWER HANDLE BAR | 1 | €44.53 | 1-4 weeks to ship | ||
| 027 | DA00000566 | BOLT M8X40 | 2 | €0.83 | 1-4 weeks to ship | |
| DA00000566 | BOLT M8X40 | 2 | €0.83 | 1-4 weeks to ship | ||
| 028 | 671001085 | PLASTIC SADDLE WASHER 8 | 2 | €1.11 | 1-4 weeks to ship | |
| 671001085 | PLASTIC SADDLE WASHER 8 | 2 | €1.11 | 1-4 weeks to ship | ||
| 029 | 671453001 | KNOB | 2 | €2.78 | 1-4 weeks to ship | |
| 671453001 | KNOB | 2 | €2.78 | 1-4 weeks to ship | ||
| 030 | 671005007 | HEX.NUT M8 | 2 | €1.11 | 1-4 weeks to ship | |
| 671005007 | HEX.NUT M8 | 2 | €1.11 | 1-4 weeks to ship | ||
| 031 | RIGHT HANDLE BRACKET RED | 1 | Not available in store | |||
| RIGHT HANDLE BRACKET RED | 1 | Not available in store | ||||
| 032 | DA00000562 | HEX.FLANGE BOLT M8X16 | 4 | €0.56 | 1-4 weeks to ship | |
| DA00000562 | HEX.FLANGE BOLT M8X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 033 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 4 | €0.56 | 1-4 weeks to ship | |
| DA00000537 | HEX.FLANGE LOCK NUT M8 | 4 | €0.56 | 1-4 weeks to ship | ||
| 034 | LEFT HANDLE BRACKET RED | 1 | Not available in store | |||
| LEFT HANDLE BRACKET RED | 1 | Not available in store | ||||
| 036 | DA00000562 | HEX.FLANGE BOLT M8X16 | 2 | €0.56 | 1-4 weeks to ship | |
| DA00000562 | HEX.FLANGE BOLT M8X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 037 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | |
| DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 038 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 3 | €0.56 | 1-4 weeks to ship | |
| DA00000537 | HEX.FLANGE LOCK NUT M8 | 3 | €0.56 | 1-4 weeks to ship | ||
| 039 | DECK RED | 1 | Not available in store | |||
| DECK RED | 1 | Not available in store | ||||
| 042 | 671003003 | HEAT SHRINK TUBE 6 | 1 | €0.70 | 1-4 weeks to ship | |
| 671003003 | HEAT SHRINK TUBE 6 | 1 | €0.70 | 1-4 weeks to ship | ||
| 671003003 | HEAT SHRINK TUBE 6 | 1 | €0.70 | 1-4 weeks to ship | ||
| 671003003 | HEAT SHRINK TUBE 6 | 1 | €0.70 | 1-4 weeks to ship | ||
| 043 | 671300101 | HEAT SHRINK TUBE 3 | 1 | €0.70 | 1-4 weeks to ship | |
| 671300101 | HEAT SHRINK TUBE 3 | 1 | €0.70 | 1-4 weeks to ship | ||
| 671300101 | HEAT SHRINK TUBE 3 | 1 | €0.70 | 1-4 weeks to ship | ||
| 671300101 | HEAT SHRINK TUBE 3 | 1 | €0.70 | 1-4 weeks to ship | ||
| 044 | DA00000556 | SIDE FLAP TORSION SPRING | 1 | €1.39 | 1-4 weeks to ship | |
| DA00000556 | SIDE FLAP TORSION SPRING | 1 | €1.39 | 1-4 weeks to ship | ||
| 045 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | €0.42 | 1-4 weeks to ship | |
| DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | €0.42 | 1-4 weeks to ship | ||
| 046 | DA00000555 | SIDE FLAP HINGE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| DA00000555 | SIDE FLAP HINGE PLATE | 1 | €1.67 | 1-4 weeks to ship | ||
| 047 | DA00000552 | TRUSS HEAD SCREW M6X16 | 2 | €0.70 | 1-4 weeks to ship | |
| DA00000552 | TRUSS HEAD SCREW M6X16 | 2 | €0.70 | 1-4 weeks to ship | ||
| 048 | 671002106 | RECTANGLE WASHER 8 | 3 | €1.11 | 1-4 weeks to ship | |
| 671002106 | RECTANGLE WASHER 8 | 3 | €1.11 | 1-4 weeks to ship | ||
| 049 | 671006079 | HEX. BOLT M8X60 | 1 | €2.09 | 1-4 weeks to ship | |
| 671006079 | HEX. BOLT M8X60 | 1 | €2.09 | 1-4 weeks to ship | ||
| 050 | DA00000586 | HEX. BOLT M8X35 | 2 | €0.83 | 1-4 weeks to ship | |
| DA00000586 | HEX. BOLT M8X35 | 2 | €0.83 | 1-4 weeks to ship | ||
| 051 | 671090018 | FLAT KEY | 1 | €1.11 | 1-4 weeks to ship | |
| 671090018 | FLAT KEY | 1 | €1.11 | 1-4 weeks to ship | ||
| 052 | 671002051 | INNER FRANGE | 1 | €22.26 | 1-4 weeks to ship | |
| 671002051 | INNER FRANGE | 1 | €22.26 | 1-4 weeks to ship | ||
| 053 | DA00000533 | NYLON FLAT WASHER 32 | 1 | €0.97 | 1-4 weeks to ship | |
| DA00000533 | NYLON FLAT WASHER 32 | 1 | €0.97 | 1-4 weeks to ship | ||
| 054 | BLADE 51 | 1 | Not available in store | |||
| BLADE 51 | 1 | Not available in store | ||||
| 055 | DA00000531 | NYLON CUP WASHER 32 | 1 | €0.97 | 1-4 weeks to ship | |
| DA00000531 | NYLON CUP WASHER 32 | 1 | €0.97 | 1-4 weeks to ship | ||
| 056 | DA00000530 | OUTER FRANGE | 1 | €5.57 | 1-4 weeks to ship | |
| DA00000530 | OUTER FRANGE | 1 | €5.57 | 1-4 weeks to ship | ||
| 057 | DA00000529 | DISH SPRING WASHER 10 | 1 | €1.39 | 1-4 weeks to ship | |
| DA00000529 | DISH SPRING WASHER 10 | 1 | €1.39 | 1-4 weeks to ship | ||
| 059 | 671001322 | WHEEL COVER 10 INCH | 2 | €13.92 | 1-4 weeks to ship | |
| 671001322 | WHEEL COVER 10 INCH | 2 | €13.92 | 1-4 weeks to ship | ||
| 060 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | |
| DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 061 | DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | |
| DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | ||
| 062 | 671002021 | WHEEL ASSY 11 INCH | 2 | €41.75 | 1-4 weeks to ship | |
| 671002021 | WHEEL ASSY 11 INCH | 2 | €41.75 | 1-4 weeks to ship | ||
| 063 | DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | |
| DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | ||
| 064 | 671666001 | INSIDE WHEEL COVER 10 INCH | 2 | €6.82 | 1-4 weeks to ship | |
| 671666001 | INSIDE WHEEL COVER 10 INCH | 2 | €6.82 | 1-4 weeks to ship | ||
| 065 | DA00000603 | TAPPING SCREW ST4X16 | 6 | €0.28 | 1-4 weeks to ship | |
| DA00000603 | TAPPING SCREW ST4X16 | 6 | €0.28 | 1-4 weeks to ship | ||
| 066 | 671001828 | REAR AXLE | 1 | €25.60 | 1-4 weeks to ship | |
| 671001828 | REAR AXLE | 1 | €25.60 | 1-4 weeks to ship | ||
| 069 | HEIGHT ADJUSTMENT KNOB | 1 | Not available in store | |||
| HEIGHT ADJUSTMENT KNOB | 1 | Not available in store | ||||
| 070 | 671002030 | PAN. HEAD SCREW M6X14 | 2 | €1.67 | 1-4 weeks to ship | |
| 671002030 | PAN. HEAD SCREW M6X14 | 2 | €1.67 | 1-4 weeks to ship | ||
| 071 | DA00000545 | AXLE MOUNT | 4 | €0.70 | 1-4 weeks to ship | |
| DA00000545 | AXLE MOUNT | 4 | €0.70 | 1-4 weeks to ship | ||
| 072 | 671002019 | TRUSS HEAD SCREW M6X12 | 4 | €1.11 | 1-4 weeks to ship | |
| 671002019 | TRUSS HEAD SCREW M6X12 | 4 | €1.11 | 1-4 weeks to ship | ||
| 073 | DA00000542 | BEARING CASE RETAINER | 2 | €0.83 | 1-4 weeks to ship | |
| DA00000542 | BEARING CASE RETAINER | 2 | €0.83 | 1-4 weeks to ship | ||
| 074 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 4 | €0.42 | 1-4 weeks to ship | |
| DA00000543 | HEX.FLANGE LOCK NUT M6 | 4 | €0.42 | 1-4 weeks to ship | ||
| 076 | 671001827 | LINK ROD | 1 | €20.18 | 1-4 weeks to ship | |
| 671001827 | LINK ROD | 1 | €20.18 | 1-4 weeks to ship | ||
| 078 | 671300101 | HEAT SHRINK TUBE 3 | 1 | €0.70 | 1-4 weeks to ship | |
| 671300101 | HEAT SHRINK TUBE 3 | 1 | €0.70 | 1-4 weeks to ship | ||
| 671300101 | HEAT SHRINK TUBE 3 | 1 | €0.70 | 1-4 weeks to ship | ||
| 671300101 | HEAT SHRINK TUBE 3 | 1 | €0.70 | 1-4 weeks to ship | ||
| 080 | 671300101 | HEAT SHRINK TUBE 3 | 1 | €0.70 | 1-4 weeks to ship | |
| 671300101 | HEAT SHRINK TUBE 3 | 1 | €0.70 | 1-4 weeks to ship | ||
| 671300101 | HEAT SHRINK TUBE 3 | 1 | €0.70 | 1-4 weeks to ship | ||
| 671300101 | HEAT SHRINK TUBE 3 | 1 | €0.70 | 1-4 weeks to ship | ||
| 081 | DA00000536 | WHEEL COVER 7 INCH | 2 | €3.06 | 1-4 weeks to ship | |
| DA00000536 | WHEEL COVER 7 INCH | 2 | €3.06 | 1-4 weeks to ship | ||
| 082 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | |
| DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 083 | DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | |
| DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | ||
| 084 | 671020160 | WHEEL ASSY 8 INCH | 2 | €25.05 | 1-4 weeks to ship | |
| 671020160 | WHEEL ASSY 8 INCH | 2 | €25.05 | 1-4 weeks to ship | ||
| 085 | DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | |
| DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | ||
| 086 | 671002019 | TRUSS HEAD SCREW M6X12 | 4 | €1.11 | 1-4 weeks to ship | |
| 671002019 | TRUSS HEAD SCREW M6X12 | 4 | €1.11 | 1-4 weeks to ship | ||
| 087 | DA00000542 | BEARING CASE RETAINER | 2 | €0.83 | 1-4 weeks to ship | |
| DA00000542 | BEARING CASE RETAINER | 2 | €0.83 | 1-4 weeks to ship | ||
| 088 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 4 | €0.42 | 1-4 weeks to ship | |
| DA00000543 | HEX.FLANGE LOCK NUT M6 | 4 | €0.42 | 1-4 weeks to ship | ||
| 089 | DA00000545 | AXLE MOUNT | 4 | €0.70 | 1-4 weeks to ship | |
| DA00000545 | AXLE MOUNT | 4 | €0.70 | 1-4 weeks to ship | ||
| 090 | 671001811 | FRONT AXLE | 1 | €47.87 | 1-4 weeks to ship | |
| 671001811 | FRONT AXLE | 1 | €47.87 | 1-4 weeks to ship | ||
| 091 | 671546001 | SIDE DISCHARGE OUTLET | 1 | €22.26 | 1-4 weeks to ship | |
| 671546001 | SIDE DISCHARGE OUTLET | 1 | €22.26 | 1-4 weeks to ship | ||
