6820V
6820V

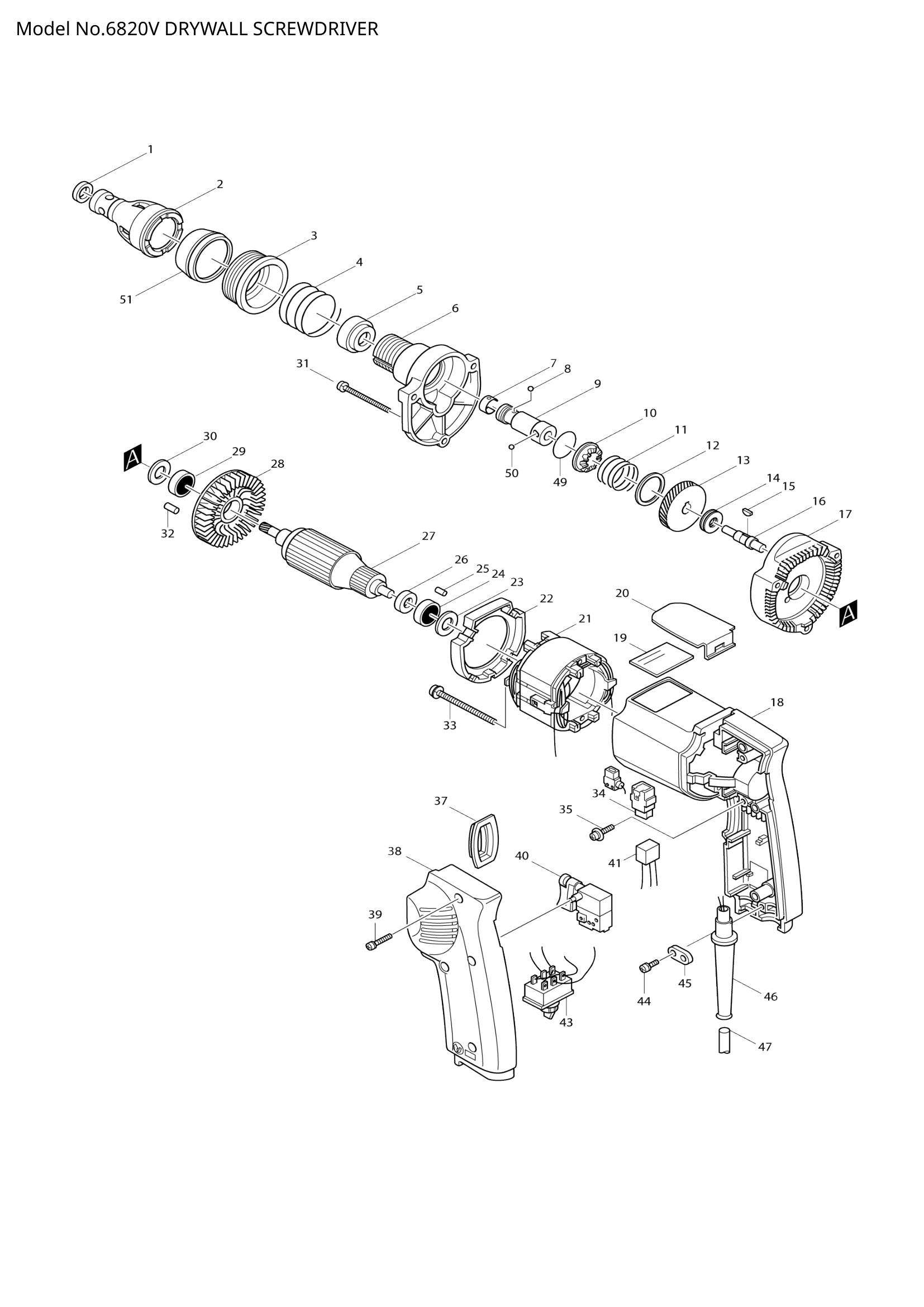

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 261058-6 | SPONGE WASHER 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 231280-9 | COMPRESSION SPRING 32 | 1 | €1.39 | 1-4 weeks to ship | |
| 005 | 421315-6 | FLINGER | 1 | €1.11 | 1-4 weeks to ship | |
| 006 | 157727-4 | GEAR HOUSING | 1 | €16.70 | 1-4 weeks to ship | |
| 007 | 232050-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 134436-2 | SPINDLE | 1 | €36.18 | 1-4 weeks to ship | |
| 010 | 223075-4 | CLUTCH CAM | 1 | €13.92 | 1-4 weeks to ship | |
| 011 | 231434-8 | COMPRESSION SPRING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | THIN WASHER 22 | 2 | Not available in store | |||
| 013 | HELICAL GEAR 46 | 1 | Not available in store | |||
| 014 | 212057-1 | THRUST NEEDLE BEARING 1023 | 1 | €7.24 | 1-4 weeks to ship | |
| 015 | 254031-3 | WOODRUFF KEY 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 322142-3 | GEAR SHAFT | 1 | €15.03 | 1-4 weeks to ship | |
| 017 | GEAR HOUSING COVER | 1 | Not available in store | |||
| 018 | 157725-8 | MOTOR HOUSING | 1 | €30.47 | 1-4 weeks to ship | |
| 019 | 855890-4 | NAME PLATE 6820V | 1 | €2.09 | 1-4 weeks to ship | |
| 020 | 343407-0 | HOOK | 1 | €4.17 | 1-4 weeks to ship | |
| 022 | 410923-8 | BAFFLE PLATE | 1 | €2.92 | 1-4 weeks to ship | |
| 023 | 253192-6 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 211028-5 | BALL BEARING 627LB | 1 | €4.17 | 1-4 weeks to ship | |
| 025 | 263014-2 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 681614-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 253192-6 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 911173-3 | PAN HEAD SCREW M4X45 | 3 | €0.56 | 1-4 weeks to ship | |
| 032 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 911124-6 | PAN HEAD SCREW M4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 411852-8 | SWITCH COVER | 1 | €0.83 | 1-4 weeks to ship | |
| 038 | 155928-8 | HANDLE COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 039 | 911153-9 | PAN HEAD SCREW M4X28 | 3 | €0.56 | 1-4 weeks to ship | |
| 044 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 048 | 686015-7 | RECEPTACLE SLEEVE | 2 | €0.83 | 1-4 weeks to ship | |
| 050 | 216008-6 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 051 | 421445-3 | LOCATOR COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 900 | DUST COVER | 1 | Not available in store | |||
