PM4601SC
PM4601SC

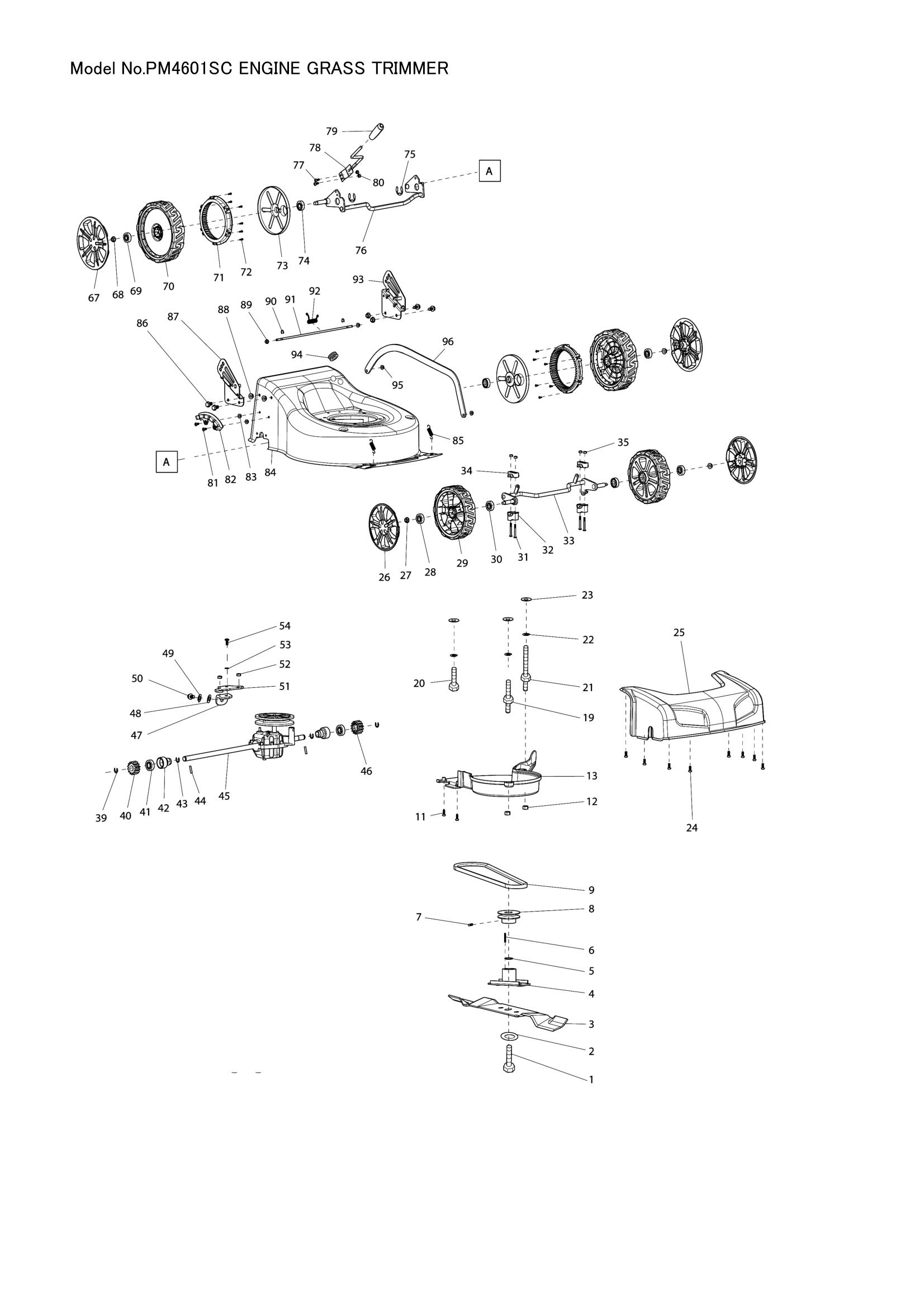

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 671010730 | DISH SPRING WASHER | 1 | €2.78 | 1-4 weeks to ship | |
| 671010730 | DISH SPRING WASHER | 1 | €2.78 | 1-4 weeks to ship | ||
| 004 | 671015252 | INNER FRANGE | 1 | €22.26 | 1-4 weeks to ship | |
| 671015252 | INNER FRANGE | 1 | €22.26 | 1-4 weeks to ship | ||
| 005 | BLADE SUPPORT LINING | 1 | Not available in store | |||
| BLADE SUPPORT LINING | 1 | Not available in store | ||||
| 008 | 671004002 | V PULLEY | 1 | €19.48 | 1-4 weeks to ship | |
| 671004002 | V PULLEY | 1 | €19.48 | 1-4 weeks to ship | ||
| 009 | 671002043 | V BELT 10MMX6MM L=762MM | 1 | €13.36 | 1-4 weeks to ship | |
| 671002043 | V BELT 10MMX6MM L=762MM | 1 | €13.36 | 1-4 weeks to ship | ||
| 013 | 671658001 | BELT PROTECTING COVER | 1 | €16.70 | 1-4 weeks to ship | |
| 671658001 | BELT PROTECTING COVER | 1 | €16.70 | 1-4 weeks to ship | ||
| 020 | DA00000586 | HEX. BOLT M8X35 | 1 | €0.83 | 1-4 weeks to ship | |
| DA00000586 | HEX. BOLT M8X35 | 1 | €0.83 | 1-4 weeks to ship | ||
| 022 | DA00000832 | SPRING WASHER 8 | 3 | €0.28 | 1-4 weeks to ship | |
| DA00000832 | SPRING WASHER 8 | 3 | €0.28 | 1-4 weeks to ship | ||
| 023 | 671007007 | FLAT WASHER 8 | 3 | €1.11 | 1-4 weeks to ship | |
| 671007007 | FLAT WASHER 8 | 3 | €1.11 | 1-4 weeks to ship | ||
| 024 | DA00000911 | TAPPING SCREW ST4.2X10 | 8 | €0.28 | 1-4 weeks to ship | |
| DA00000911 | TAPPING SCREW ST4.2X10 | 8 | €0.28 | 1-4 weeks to ship | ||
| 025 | 671659001 | FRONT AXLE COVER | 1 | €16.70 | 1-4 weeks to ship | |
| 671659001 | FRONT AXLE COVER | 1 | €16.70 | 1-4 weeks to ship | ||
| 026 | 671001176 | WHEEL COVER 6.5 INCH | 2 | €11.13 | 1-4 weeks to ship | |
| 671001176 | WHEEL COVER 6.5 INCH | 2 | €11.13 | 1-4 weeks to ship | ||
| 027 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | |
| DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 028 | DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | |
| DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | ||
| 029 | 671020150 | WHEEL ASSY 7 INCH | 2 | €19.48 | 1-4 weeks to ship | |
| 671020150 | WHEEL ASSY 7 INCH | 2 | €19.48 | 1-4 weeks to ship | ||
| 030 | DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | |
| DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | ||
| 031 | 671002028 | PAN.HED SCREW M6X45 | 4 | €1.11 | 1-4 weeks to ship | |
| 671002028 | PAN.HED SCREW M6X45 | 4 | €1.11 | 1-4 weeks to ship | ||
| 032 | 671418001 | FRONT AXLE MOUNT | 2 | €2.78 | 1-4 weeks to ship | |
| 671418001 | FRONT AXLE MOUNT | 2 | €2.78 | 1-4 weeks to ship | ||
| 033 | 671001786 | FRONT AXLE | 1 | €47.31 | 1-4 weeks to ship | |
| 671001786 | FRONT AXLE | 1 | €47.31 | 1-4 weeks to ship | ||
| 034 | 671445001 | FRONT AXLE RETAINER | 2 | €2.78 | 1-4 weeks to ship | |
| 671445001 | FRONT AXLE RETAINER | 2 | €2.78 | 1-4 weeks to ship | ||
| 036 | 671002019 | TRUSS HEAD SCREW M6X12 | 4 | €1.11 | 1-4 weeks to ship | |
| 671002019 | TRUSS HEAD SCREW M6X12 | 4 | €1.11 | 1-4 weeks to ship | ||
| 037 | DA00000542 | AXLE RETAINER | 2 | €0.83 | 1-4 weeks to ship | |
| DA00000542 | AXLE RETAINER | 2 | €0.83 | 1-4 weeks to ship | ||
| 038 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 4 | €0.42 | 1-4 weeks to ship | |
| DA00000543 | HEX.FLANGE LOCK NUT M6 | 4 | €0.42 | 1-4 weeks to ship | ||
| 039 | DA00000604 | STOP RING E-12 | 2 | €0.42 | 1-4 weeks to ship | |
| DA00000604 | STOP RING E-12 | 2 | €0.42 | 1-4 weeks to ship | ||
| 040 | DA00000607 | SPUR GEAR 14 RIGHT | 1 | €4.73 | 1-4 weeks to ship | |
| DA00000607 | SPUR GEAR 14 RIGHT | 1 | €4.73 | 1-4 weeks to ship | ||
| 041 | DA00000609 | BEARING | 2 | €3.48 | 1-4 weeks to ship | |
| DA00000609 | BEARING | 2 | €3.48 | 1-4 weeks to ship | ||
| 042 | DA00000610 | DRIVE SHAFT BEARING CASE | 2 | €4.73 | 1-4 weeks to ship | |
| DA00000610 | DRIVE SHAFT BEARING CASE | 2 | €4.73 | 1-4 weeks to ship | ||
| 043 | DA00000604 | STOP RING E-12 | 2 | €0.42 | 1-4 weeks to ship | |
| DA00000604 | STOP RING E-12 | 2 | €0.42 | 1-4 weeks to ship | ||
| 044 | DA00000597 | COLUMN PIN 5X21.5 | 2 | €0.42 | 1-4 weeks to ship | |
| DA00000597 | COLUMN PIN 5X21.5 | 2 | €0.42 | 1-4 weeks to ship | ||
| 046 | DA00000605 | SPUR GEAR 14 LEFT | 1 | €4.73 | 1-4 weeks to ship | |
| DA00000605 | SPUR GEAR 14 LEFT | 1 | €4.73 | 1-4 weeks to ship | ||
| 047 | GEAR BOX MOUNT ANGLE | 1 | Not available in store | |||
| GEAR BOX MOUNT ANGLE | 1 | Not available in store | ||||
| 048 | 671007007 | FLAT WASHER 8 | 1 | €1.11 | 1-4 weeks to ship | |
| 671007007 | FLAT WASHER 8 | 1 | €1.11 | 1-4 weeks to ship | ||
| 049 | DA00000832 | SPRING WASHER 8 | 1 | €0.28 | 1-4 weeks to ship | |
| DA00000832 | SPRING WASHER 8 | 1 | €0.28 | 1-4 weeks to ship | ||
| 050 | DA00000562 | HEX.FLANGE BOLT M8X16 | 1 | €0.56 | 1-4 weeks to ship | |
| DA00000562 | HEX.FLANGE BOLT M8X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | 671001460 | GEAR BOX MOUNT PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 671001460 | GEAR BOX MOUNT PLATE | 1 | €1.11 | 1-4 weeks to ship | ||
| 053 | SPRING WASHER 6 | 1 | Not available in store | |||
| SPRING WASHER 6 | 1 | Not available in store | ||||
| 054 | 671002019 | TRUSS HEAD SCREW M6X12 | 1 | €1.11 | 1-4 weeks to ship | |
| 671002019 | TRUSS HEAD SCREW M6X12 | 1 | €1.11 | 1-4 weeks to ship | ||
| 067 | DA00000536 | WHEEL COVER 7 INCH | 2 | €3.06 | 1-4 weeks to ship | |
| DA00000536 | WHEEL COVER 7 INCH | 2 | €3.06 | 1-4 weeks to ship | ||
| 068 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | |
| DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 069 | DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | |
| DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | ||
| 070 | 671020300 | WHEEL ASSY 8 INCH | 2 | €28.66 | 1-4 weeks to ship | |
| 671020300 | WHEEL ASSY 8 INCH | 2 | €28.66 | 1-4 weeks to ship | ||
| 071 | INTERNAL GEAR | 2 | Not available in store | |||
| INTERNAL GEAR | 2 | Not available in store | ||||
| 072 | DA00000603 | TAPPING SCREW ST4X16 | 12 | €0.28 | 1-4 weeks to ship | |
| DA00000603 | TAPPING SCREW ST4X16 | 12 | €0.28 | 1-4 weeks to ship | ||
| 074 | DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | |
| DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | ||
| 075 | DA00000612 | STOP RING E-19 | 2 | €0.42 | 1-4 weeks to ship | |
| DA00000612 | STOP RING E-19 | 2 | €0.42 | 1-4 weeks to ship | ||
| 076 | 671144602 | REAR AXLE | 1 | €72.22 | 1-4 weeks to ship | |
| 671144602 | REAR AXLE | 1 | €72.22 | 1-4 weeks to ship | ||
| 077 | PAN.HED SCREW M5X14 | 2 | Not available in store | |||
| PAN.HED SCREW M5X14 | 2 | Not available in store | ||||
| 081 | 671002019 | TRUSS HEAD SCREW M6X12 | 2 | €1.11 | 1-4 weeks to ship | |
| 671002019 | TRUSS HEAD SCREW M6X12 | 2 | €1.11 | 1-4 weeks to ship | ||
| 083 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | €0.42 | 1-4 weeks to ship | |
| DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | €0.42 | 1-4 weeks to ship | ||
| 084 | DECK RED | 1 | Not available in store | |||
| DECK RED | 1 | Not available in store | ||||
| 086 | DA00000562 | HEX.FLANGE BOLT M8X16 | 4 | €0.56 | 1-4 weeks to ship | |
| DA00000562 | HEX.FLANGE BOLT M8X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 087 | 671001213 | RIGHT HANDLE BRACKET RED | 1 | €29.08 | 1-4 weeks to ship | |
| 671001213 | RIGHT HANDLE BRACKET RED | 1 | €29.08 | 1-4 weeks to ship | ||
| 088 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 4 | €0.56 | 1-4 weeks to ship | |
| DA00000537 | HEX.FLANGE LOCK NUT M8 | 4 | €0.56 | 1-4 weeks to ship | ||
| 089 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | €0.42 | 1-4 weeks to ship | |
| DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | €0.42 | 1-4 weeks to ship | ||
| 090 | 671009017 | STOP RING E-6 | 2 | €1.11 | 1-4 weeks to ship | |
| 671009017 | STOP RING E-6 | 2 | €1.11 | 1-4 weeks to ship | ||
| 091 | 671001518 | REAR FLAP HINGE ROD | 1 | €8.35 | 1-4 weeks to ship | |
| 671001518 | REAR FLAP HINGE ROD | 1 | €8.35 | 1-4 weeks to ship | ||
| 092 | 671011101 | REAR FLAP TORSION SPRING | 1 | €1.53 | 1-4 weeks to ship | |
| 671011101 | REAR FLAP TORSION SPRING | 1 | €1.53 | 1-4 weeks to ship | ||
| 093 | 671001212 | LEFT HANDLE BRACKET RED | 1 | €29.08 | 1-4 weeks to ship | |
| 671001212 | LEFT HANDLE BRACKET RED | 1 | €29.08 | 1-4 weeks to ship | ||
| 094 | 671800104 | GROMMET | 1 | €0.42 | 1-4 weeks to ship | |
| 671800104 | GROMMET | 1 | €0.42 | 1-4 weeks to ship | ||
| 096 | LINK ROD | 1 | Not available in store | |||
| LINK ROD | 1 | Not available in store | ||||
| 098 | 671468001 | REAR FLAP | 1 | €44.53 | 1-4 weeks to ship | |
| 671468001 | REAR FLAP | 1 | €44.53 | 1-4 weeks to ship | ||
| 099 | 671001443 | GRASS CATCHER FRAME | 1 | €47.31 | 1-4 weeks to ship | |
| 671001443 | GRASS CATCHER FRAME | 1 | €47.31 | 1-4 weeks to ship | ||
| 102 | DA00000888 | TAPPING SCREW ST5X12 | 6 | €0.28 | 1-4 weeks to ship | |
| DA00000888 | TAPPING SCREW ST5X12 | 6 | €0.28 | 1-4 weeks to ship | ||
| 105 | 671454001 | GRASS CATCHER HANDLE | 1 | €5.57 | 1-4 weeks to ship | |
| 671454001 | GRASS CATCHER HANDLE | 1 | €5.57 | 1-4 weeks to ship | ||
| 107 | DA00000563 | HEXAGON NUT M8 | 2 | €0.28 | 1-4 weeks to ship | |
| DA00000563 | HEXAGON NUT M8 | 2 | €0.28 | 1-4 weeks to ship | ||
| 108 | DA00000564 | KNOB | 2 | €1.11 | 1-4 weeks to ship | |
| DA00000564 | KNOB | 2 | €1.11 | 1-4 weeks to ship | ||
| 109 | 671007007 | FLAT WASHER 8 | 2 | €1.11 | 1-4 weeks to ship | |
| 671007007 | FLAT WASHER 8 | 2 | €1.11 | 1-4 weeks to ship | ||
| 110 | DA00000880 | SADDLE HEAD BOLT M8X35 | 2 | €0.97 | 1-4 weeks to ship | |
| DA00000880 | SADDLE HEAD BOLT M8X35 | 2 | €0.97 | 1-4 weeks to ship | ||
| 111 | 671611001 | CABLE CLIP | 1 | €0.97 | 1-4 weeks to ship | |
| 671611001 | CABLE CLIP | 1 | €0.97 | 1-4 weeks to ship | ||
| 112 | LOWER HANDLE BAR | 1 | Not available in store | |||
| LOWER HANDLE BAR | 1 | Not available in store | ||||
| 113 | DA00000563 | HEXAGON NUT M8 | 2 | €0.28 | 1-4 weeks to ship | |
| DA00000563 | HEXAGON NUT M8 | 2 | €0.28 | 1-4 weeks to ship | ||
| 114 | DA00000564 | KNOB | 2 | €1.11 | 1-4 weeks to ship | |
| DA00000564 | KNOB | 2 | €1.11 | 1-4 weeks to ship | ||
| 115 | DA00000565 | PLASTIC SADDLE WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | |
| DA00000565 | PLASTIC SADDLE WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 116 | DA00000569 | SADDLE HEAD BOLT M8X58 | 2 | €1.67 | 1-4 weeks to ship | |
| DA00000569 | SADDLE HEAD BOLT M8X58 | 2 | €1.67 | 1-4 weeks to ship | ||
| 117 | DA00000577 | HEX.FLANGE BOLT M6X35 | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000577 | HEX.FLANGE BOLT M6X35 | 1 | €0.70 | 1-4 weeks to ship | ||
| 118 | DA00000579 | STARTER GRIP HOOK | 1 | €2.23 | 1-4 weeks to ship | |
| DA00000579 | STARTER GRIP HOOK | 1 | €2.23 | 1-4 weeks to ship | ||
| 119 | DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | |
| DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | ||
| 120 | SPRING WASHER 6 | 1 | Not available in store | |||
| SPRING WASHER 6 | 1 | Not available in store | ||||
| 121 | DA00000575 | HEX.CAP NUT M6 | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000575 | HEX.CAP NUT M6 | 1 | €0.70 | 1-4 weeks to ship | ||
| 122 | 671611001 | CABLE CLIP | 1 | €0.97 | 1-4 weeks to ship | |
| 671611001 | CABLE CLIP | 1 | €0.97 | 1-4 weeks to ship | ||
| 123 | 671006082 | HEX. FLANGE BOLT M6X50 | 1 | €0.83 | 1-4 weeks to ship | |
| 671006082 | HEX. FLANGE BOLT M6X50 | 1 | €0.83 | 1-4 weeks to ship | ||
| 125 | DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | |
| DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | ||
| 126 | SPRING WASHER 6 | 1 | Not available in store | |||
| SPRING WASHER 6 | 1 | Not available in store | ||||
| 127 | DA00000575 | HEX.CAP NUT M6 | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000575 | HEX.CAP NUT M6 | 1 | €0.70 | 1-4 weeks to ship | ||
| 128 | DA00000575 | HEX.CAP NUT M6 | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000575 | HEX.CAP NUT M6 | 1 | €0.70 | 1-4 weeks to ship | ||
| 129 | DA00000573 | OUTER WIRE STOPPER | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000573 | OUTER WIRE STOPPER | 1 | €0.70 | 1-4 weeks to ship | ||
| 131 | 671001113 | ENGINE CLUTCH WIRE | 1 | €44.53 | 1-4 weeks to ship | |
| 671001113 | ENGINE CLUTCH WIRE | 1 | €44.53 | 1-4 weeks to ship | ||
| 132 | DA00000577 | HEX.FLANGE BOLT M6X35 | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000577 | HEX.FLANGE BOLT M6X35 | 1 | €0.70 | 1-4 weeks to ship | ||
| 149 | 671002001 | UPPER HANDLE BAR ASSY | 1 | €58.44 | 1-4 weeks to ship | |
| 671002001 | UPPER HANDLE BAR ASSY | 1 | €58.44 | 1-4 weeks to ship | ||
| 150 | 671001524 | SADDLE WASHER 8 | 2 | €1.67 | 1-4 weeks to ship | |
| 671001524 | SADDLE WASHER 8 | 2 | €1.67 | 1-4 weeks to ship | ||
| 151 | ENGINE CLUTCH LEVER | 1 | Not available in store | |||
| ENGINE CLUTCH LEVER | 1 | Not available in store | ||||
| 152 | SELF DRIVE CONTROL LEVER | 1 | Not available in store | |||
| SELF DRIVE CONTROL LEVER | 1 | Not available in store | ||||
| 153 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 3 | €0.56 | 1-4 weeks to ship | |
| DA00000537 | HEX.FLANGE LOCK NUT M8 | 3 | €0.56 | 1-4 weeks to ship | ||
| 154 | HEX. BOLT M5X14 | 1 | Not available in store | |||
| HEX. BOLT M5X14 | 1 | Not available in store | ||||
| 155 | OUTER WIRE STOPPER | 1 | Not available in store | |||
| OUTER WIRE STOPPER | 1 | Not available in store | ||||
| 156 | DA00000603 | TAPPING SCREW ST4X16 | 2 | €0.28 | 1-4 weeks to ship | |
| DA00000603 | TAPPING SCREW ST4X16 | 2 | €0.28 | 1-4 weeks to ship | ||
| 158 | 671011005 | COMPRESSION SPRING | 1 | €1.67 | 1-4 weeks to ship | |
| 671011005 | COMPRESSION SPRING | 1 | €1.67 | 1-4 weeks to ship | ||
| 159 | 671316004 | LOCKING BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 671316004 | LOCKING BUTTON | 1 | €1.11 | 1-4 weeks to ship | ||
| 160 | 671660001 | MULCHING PLUG BOX | 1 | €17.81 | 1-4 weeks to ship | |
| 671660001 | MULCHING PLUG BOX | 1 | €17.81 | 1-4 weeks to ship | ||
