PM411C
PM411C

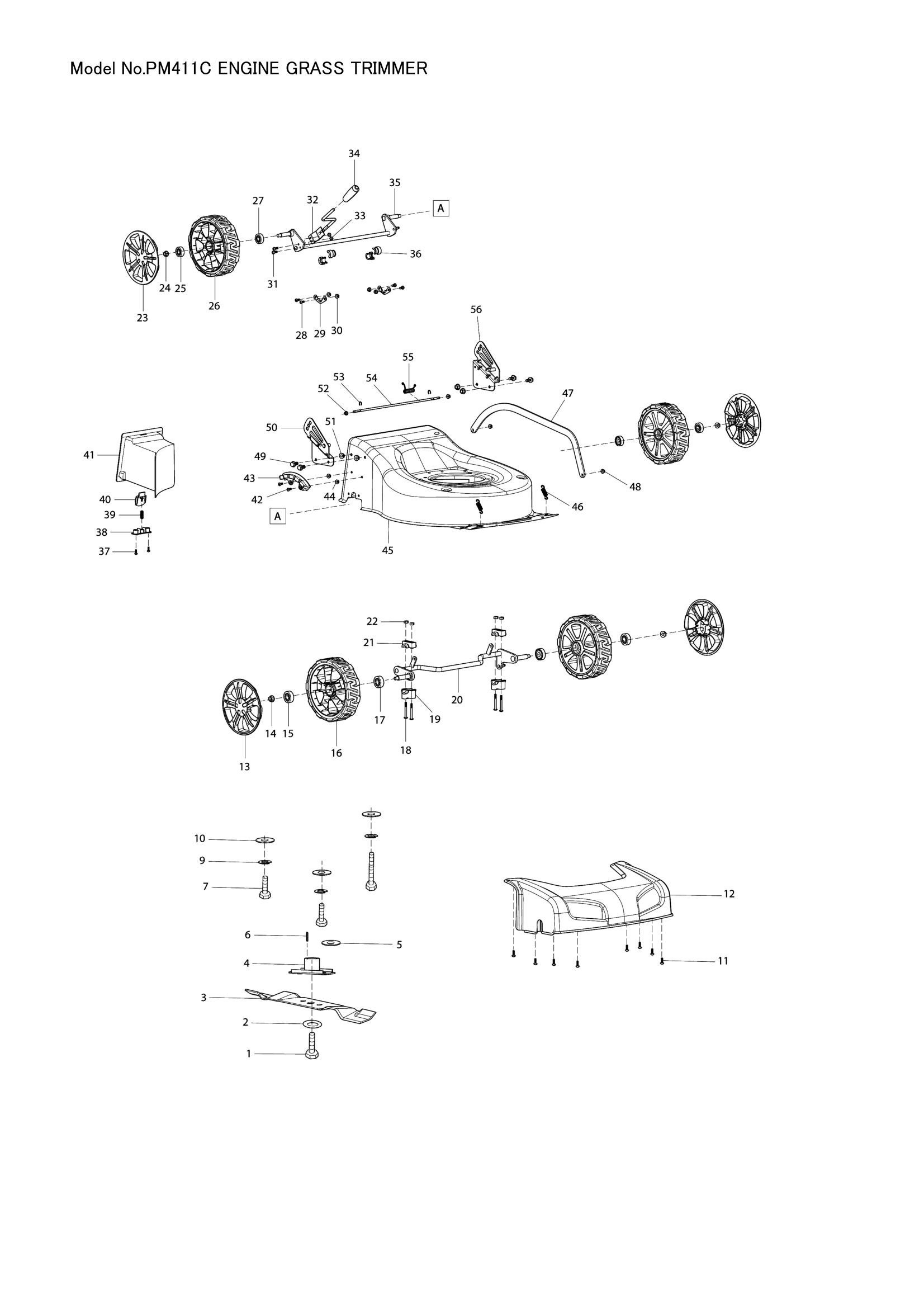

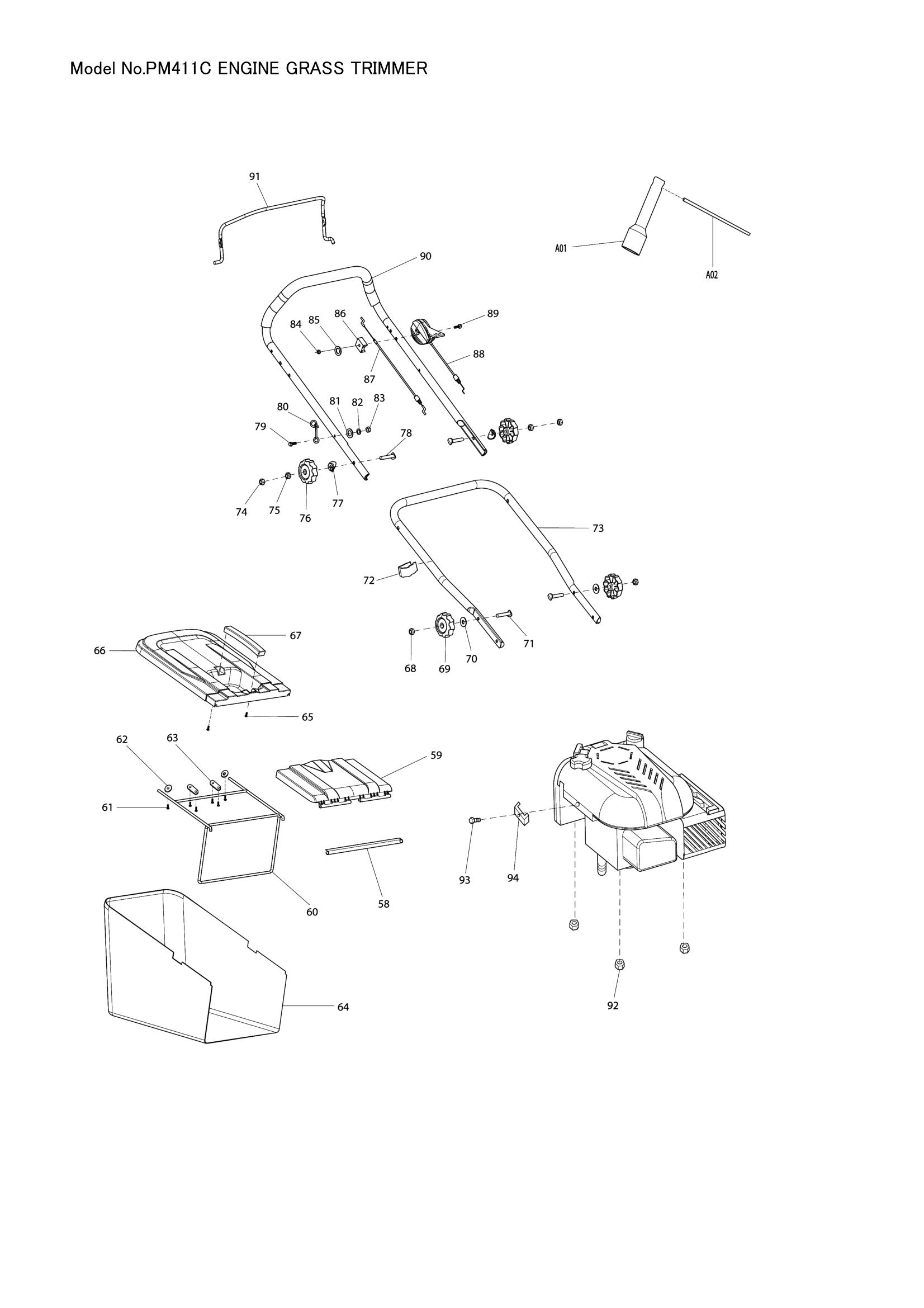

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 671010730 | DISH SPRING WASHER | 1 | €2.78 | 1-4 weeks to ship | |
| 671010730 | DISH SPRING WASHER | 1 | €2.78 | 1-4 weeks to ship | ||
| 003 | BLADE 41 | 1 | Not available in store | |||
| BLADE 41 | 1 | Not available in store | ||||
| 004 | 671015252 | INNER FRANGE | 1 | €22.26 | 1-4 weeks to ship | |
| 671015252 | INNER FRANGE | 1 | €22.26 | 1-4 weeks to ship | ||
| 005 | BLADE SUPPORT LINING | 1 | Not available in store | |||
| BLADE SUPPORT LINING | 1 | Not available in store | ||||
| 007 | DA00000586 | HEX. BOLT M8X35 | 3 | €0.83 | 1-4 weeks to ship | |
| DA00000586 | HEX. BOLT M8X35 | 3 | €0.83 | 1-4 weeks to ship | ||
| 009 | DA00000832 | SPRING WASHER 8 | 3 | €0.28 | 1-4 weeks to ship | |
| DA00000832 | SPRING WASHER 8 | 3 | €0.28 | 1-4 weeks to ship | ||
| 010 | 671007007 | FLAT WASHER 8 | 3 | €1.11 | 1-4 weeks to ship | |
| 671007007 | FLAT WASHER 8 | 3 | €1.11 | 1-4 weeks to ship | ||
| 011 | DA00000911 | TAPPING SCREW ST4.2X10 | 8 | €0.28 | 1-4 weeks to ship | |
| DA00000911 | TAPPING SCREW ST4.2X10 | 8 | €0.28 | 1-4 weeks to ship | ||
| 012 | 671420001 | FRONT AXLE COVER | 1 | €41.75 | 1-4 weeks to ship | |
| 671420001 | FRONT AXLE COVER | 1 | €41.75 | 1-4 weeks to ship | ||
| 013 | 671001176 | WHEEL COVER 6.5 INCH | 2 | €11.13 | 1-4 weeks to ship | |
| 671001176 | WHEEL COVER 6.5 INCH | 2 | €11.13 | 1-4 weeks to ship | ||
| 014 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | |
| DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 015 | DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | |
| DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | ||
| 016 | 671020150 | WHEEL ASSY 7 INCH | 2 | €19.48 | 1-4 weeks to ship | |
| 671020150 | WHEEL ASSY 7 INCH | 2 | €19.48 | 1-4 weeks to ship | ||
| 017 | DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | |
| DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | ||
| 018 | 671002028 | PAN.HED SCREW M6X45 | 4 | €1.11 | 1-4 weeks to ship | |
| 671002028 | PAN.HED SCREW M6X45 | 4 | €1.11 | 1-4 weeks to ship | ||
| 019 | 671418001 | FRONT AXLE MOUNT | 2 | €2.78 | 1-4 weeks to ship | |
| 671418001 | FRONT AXLE MOUNT | 2 | €2.78 | 1-4 weeks to ship | ||
| 020 | 671001428 | FRONT AXLE | 1 | €52.88 | 1-4 weeks to ship | |
| 671001428 | FRONT AXLE | 1 | €52.88 | 1-4 weeks to ship | ||
| 021 | 671445001 | FRONT AXLE RETAINER | 2 | €2.78 | 1-4 weeks to ship | |
| 671445001 | FRONT AXLE RETAINER | 2 | €2.78 | 1-4 weeks to ship | ||
| 023 | DA00000536 | WHEEL COVER 7 INCH | 2 | €3.06 | 1-4 weeks to ship | |
| DA00000536 | WHEEL COVER 7 INCH | 2 | €3.06 | 1-4 weeks to ship | ||
| 024 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | |
| DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 025 | DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | |
| DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | ||
| 026 | 671020160 | WHEEL ASSY 8 INCH | 2 | €25.05 | 1-4 weeks to ship | |
| 671020160 | WHEEL ASSY 8 INCH | 2 | €25.05 | 1-4 weeks to ship | ||
| 027 | DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | |
| DA00000538 | BALL BEARING 6201ZZ | 2 | €3.62 | 1-4 weeks to ship | ||
| 028 | 671002019 | TRUSS HEAD SCREW M6X12 | 4 | €1.11 | 1-4 weeks to ship | |
| 671002019 | TRUSS HEAD SCREW M6X12 | 4 | €1.11 | 1-4 weeks to ship | ||
| 029 | DA00000542 | AXLE RETAINER | 2 | €0.83 | 1-4 weeks to ship | |
| DA00000542 | AXLE RETAINER | 2 | €0.83 | 1-4 weeks to ship | ||
| 030 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 4 | €0.42 | 1-4 weeks to ship | |
| DA00000543 | HEX.FLANGE LOCK NUT M6 | 4 | €0.42 | 1-4 weeks to ship | ||
| 031 | PAN.HED SCREW M5X14 | 2 | Not available in store | |||
| PAN.HED SCREW M5X14 | 2 | Not available in store | ||||
| 034 | 671001029 | HANDLE SHEATH | 1 | €5.71 | 1-4 weeks to ship | |
| 671001029 | HANDLE SHEATH | 1 | €5.71 | 1-4 weeks to ship | ||
| 035 | 671001423 | REAR AXLE | 1 | €72.36 | 1-4 weeks to ship | |
| 671001423 | REAR AXLE | 1 | €72.36 | 1-4 weeks to ship | ||
| 037 | DA00000603 | TAPPING SCREW ST4X16 | 2 | €0.28 | 1-4 weeks to ship | |
| DA00000603 | TAPPING SCREW ST4X16 | 2 | €0.28 | 1-4 weeks to ship | ||
| 039 | 671011005 | COMPRESSION SPRING | 1 | €1.67 | 1-4 weeks to ship | |
| 671011005 | COMPRESSION SPRING | 1 | €1.67 | 1-4 weeks to ship | ||
| 040 | 671316004 | LOCKING BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 671316004 | LOCKING BUTTON | 1 | €1.11 | 1-4 weeks to ship | ||
| 041 | 671450001 | MULCHING BOX | 1 | €25.05 | 1-4 weeks to ship | |
| 671450001 | MULCHING BOX | 1 | €25.05 | 1-4 weeks to ship | ||
| 042 | 671002019 | TRUSS HEAD SCREW M6X12 | 2 | €1.11 | 1-4 weeks to ship | |
| 671002019 | TRUSS HEAD SCREW M6X12 | 2 | €1.11 | 1-4 weeks to ship | ||
| 044 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | €0.42 | 1-4 weeks to ship | |
| DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | €0.42 | 1-4 weeks to ship | ||
| 045 | 671001215 | DECK RED | 1 | €333.82 | 1-4 weeks to ship | |
| 671001215 | DECK RED | 1 | €333.82 | 1-4 weeks to ship | ||
| 047 | LINK ROD | 1 | Not available in store | |||
| LINK ROD | 1 | Not available in store | ||||
| 049 | DA00000562 | HEX.FLANGE BOLT M8X16 | 4 | €0.56 | 1-4 weeks to ship | |
| DA00000562 | HEX.FLANGE BOLT M8X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 050 | 671001213 | RIGHT HANDLE BRACKET RED | 1 | €29.08 | 1-4 weeks to ship | |
| 671001213 | RIGHT HANDLE BRACKET RED | 1 | €29.08 | 1-4 weeks to ship | ||
| 051 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 4 | €0.56 | 1-4 weeks to ship | |
| DA00000537 | HEX.FLANGE LOCK NUT M8 | 4 | €0.56 | 1-4 weeks to ship | ||
| 052 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | €0.42 | 1-4 weeks to ship | |
| DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | €0.42 | 1-4 weeks to ship | ||
| 053 | 671009017 | STOP RING E-6 | 2 | €1.11 | 1-4 weeks to ship | |
| 671009017 | STOP RING E-6 | 2 | €1.11 | 1-4 weeks to ship | ||
| 054 | 671001498 | REAR FLAP HINGE ROD | 1 | €8.35 | 1-4 weeks to ship | |
| 671001498 | REAR FLAP HINGE ROD | 1 | €8.35 | 1-4 weeks to ship | ||
| 055 | 671011101 | REAR FLAP TORSION SPRING | 1 | €1.53 | 1-4 weeks to ship | |
| 671011101 | REAR FLAP TORSION SPRING | 1 | €1.53 | 1-4 weeks to ship | ||
| 056 | 671001212 | LEFT HANDLE BRACKET RED | 1 | €29.08 | 1-4 weeks to ship | |
| 671001212 | LEFT HANDLE BRACKET RED | 1 | €29.08 | 1-4 weeks to ship | ||
| 059 | 671456001 | REAR FLAP | 1 | €41.75 | 1-4 weeks to ship | |
| 671456001 | REAR FLAP | 1 | €41.75 | 1-4 weeks to ship | ||
| 060 | 671001435 | GRASS CATCHER FRAME | 1 | €47.31 | 1-4 weeks to ship | |
| 671001435 | GRASS CATCHER FRAME | 1 | €47.31 | 1-4 weeks to ship | ||
| 061 | DA00000888 | TAPPING SCREW ST5X12 | 6 | €0.28 | 1-4 weeks to ship | |
| DA00000888 | TAPPING SCREW ST5X12 | 6 | €0.28 | 1-4 weeks to ship | ||
| 066 | 671455001 | GRASS CATCHER COVER | 1 | €36.18 | 1-4 weeks to ship | |
| 671455001 | GRASS CATCHER COVER | 1 | €36.18 | 1-4 weeks to ship | ||
| 067 | 671454001 | GRASS CATCHER HANDLE | 1 | €5.57 | 1-4 weeks to ship | |
| 671454001 | GRASS CATCHER HANDLE | 1 | €5.57 | 1-4 weeks to ship | ||
| 068 | DA00000563 | HEXAGON NUT M8 | 2 | €0.28 | 1-4 weeks to ship | |
| DA00000563 | HEXAGON NUT M8 | 2 | €0.28 | 1-4 weeks to ship | ||
| 069 | DA00000564 | KNOB | 2 | €1.11 | 1-4 weeks to ship | |
| DA00000564 | KNOB | 2 | €1.11 | 1-4 weeks to ship | ||
| 070 | 671007007 | FLAT WASHER 8 | 2 | €1.11 | 1-4 weeks to ship | |
| 671007007 | FLAT WASHER 8 | 2 | €1.11 | 1-4 weeks to ship | ||
| 071 | DA00000880 | SADDLE HEAD BOLT M8X35 | 2 | €0.97 | 1-4 weeks to ship | |
| DA00000880 | SADDLE HEAD BOLT M8X35 | 2 | €0.97 | 1-4 weeks to ship | ||
| 072 | 671611001 | CABLE CLIP | 1 | €0.97 | 1-4 weeks to ship | |
| 671611001 | CABLE CLIP | 1 | €0.97 | 1-4 weeks to ship | ||
| 073 | LOWER HANDLE POLE | 1 | Not available in store | |||
| LOWER HANDLE POLE | 1 | Not available in store | ||||
| 075 | DA00000563 | HEXAGON NUT M8 | 2 | €0.28 | 1-4 weeks to ship | |
| DA00000563 | HEXAGON NUT M8 | 2 | €0.28 | 1-4 weeks to ship | ||
| 076 | DA00000564 | KNOB | 2 | €1.11 | 1-4 weeks to ship | |
| DA00000564 | KNOB | 2 | €1.11 | 1-4 weeks to ship | ||
| 077 | DA00000565 | PLASTIC SADDLE WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | |
| DA00000565 | PLASTIC SADDLE WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 078 | FLAT HEAD BOLT M8*55 | 2 | Not available in store | |||
| FLAT HEAD BOLT M8*55 | 2 | Not available in store | ||||
| 079 | DA00000577 | HEX.FLANGE BOLT M6X35 | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000577 | HEX.FLANGE BOLT M6X35 | 1 | €0.70 | 1-4 weeks to ship | ||
| 080 | DA00000579 | STARTER GRIP HOOK | 1 | €2.23 | 1-4 weeks to ship | |
| DA00000579 | STARTER GRIP HOOK | 1 | €2.23 | 1-4 weeks to ship | ||
| 081 | DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | |
| DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | ||
| 082 | SPRING WASHER 6 | 1 | Not available in store | |||
| SPRING WASHER 6 | 1 | Not available in store | ||||
| 083 | DA00000575 | HEX.CAP NUT M6 | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000575 | HEX.CAP NUT M6 | 1 | €0.70 | 1-4 weeks to ship | ||
| 084 | DA00000575 | HEX.CAP NUT M6 | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000575 | HEX.CAP NUT M6 | 1 | €0.70 | 1-4 weeks to ship | ||
| 085 | DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | |
| DA00000574 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | ||
| 086 | DA00000573 | OUTER WIRE STOPPER | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000573 | OUTER WIRE STOPPER | 1 | €0.70 | 1-4 weeks to ship | ||
| 087 | DA00000976 | FRAMEOUT CORD ASS'Y | 1 | €7.65 | 1-4 weeks to ship | |
| DA00000976 | FRAMEOUT CORD ASS'Y | 1 | €7.65 | 1-4 weeks to ship | ||
| 088 | THROTTLE LEVER ASSY | 1 | Not available in store | |||
| THROTTLE LEVER ASSY | 1 | Not available in store | ||||
| 089 | DA00000572 | HEX.FLANGE BOLT M6X55 | 1 | €0.70 | 1-4 weeks to ship | |
| DA00000572 | HEX.FLANGE BOLT M6X55 | 1 | €0.70 | 1-4 weeks to ship | ||
| 090 | 671002001 | UPPER HANDLE BAR ASSY | 1 | €58.44 | 1-4 weeks to ship | |
| 671002001 | UPPER HANDLE BAR ASSY | 1 | €58.44 | 1-4 weeks to ship | ||
| 091 | ENGINE CLUTCH LEVER | 1 | Not available in store | |||
| ENGINE CLUTCH LEVER | 1 | Not available in store | ||||
| 092 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 3 | €0.56 | 1-4 weeks to ship | |
| DA00000537 | HEX.FLANGE LOCK NUT M8 | 3 | €0.56 | 1-4 weeks to ship | ||
| 093 | HEX. BOLT M5X14 | 1 | Not available in store | |||
| HEX. BOLT M5X14 | 1 | Not available in store | ||||
| 094 | OUTER WIRE STOPPER | 1 | Not available in store | |||
| OUTER WIRE STOPPER | 1 | Not available in store | ||||
