6811D
6811D

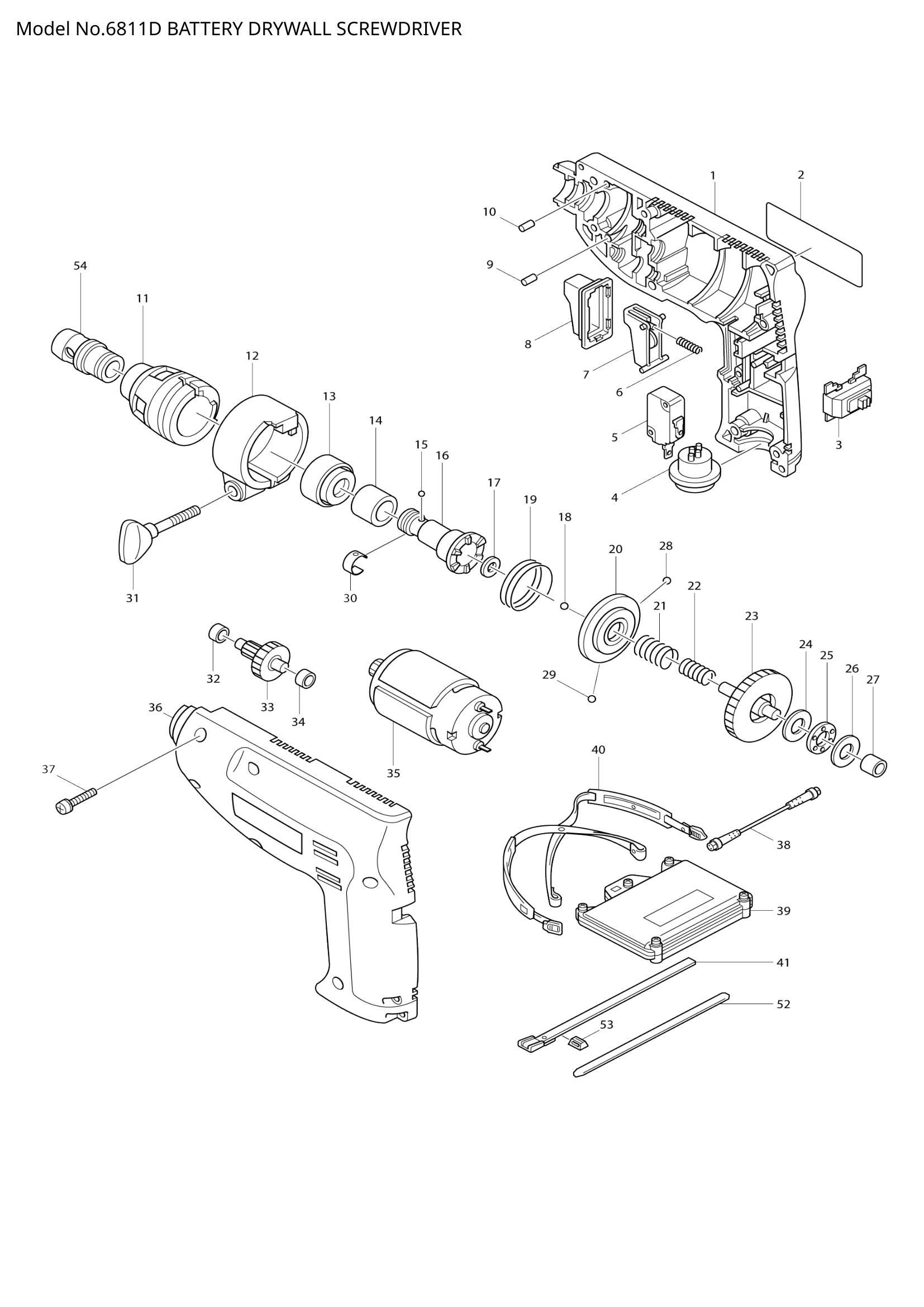

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 182241-1 | Housing set (blue) | 1 | €48.42 | 1-4 weeks to ship | |
| 002 | Name plate 6811D | 1 | Not available in store | |||
| 003 | 651889-5 | SWITCH C3BC-BC | 1 | €16.70 | 1-4 weeks to ship | |
| 004 | INLET | 1 | Not available in store | |||
| 006 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 414353-5 | Switch lever | 1 | €4.45 | 1-4 weeks to ship | |
| 008 | 421343-1 | Dust cover (black) | 1 | €4.45 | 1-4 weeks to ship | |
| 009 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 410907-6 | LOCK RING | 1 | €6.96 | 1-4 weeks to ship | |
| 013 | 421314-8 | DUST RING | 1 | €2.78 | 1-4 weeks to ship | |
| 014 | 214154-9 | PLANE BEARING 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 015 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | Spindle complete | 1 | Not available in store | |||
| 017 | 267066-5 | FLAT WASHER 5 | 1 | €0.42 | 1-4 weeks to ship | |
| 018 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | Torsion spring 27 | 1 | Not available in store | |||
| 020 | Clutch cam | 1 | Not available in store | |||
| 021 | 231470-4 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 231471-2 | COMPRESSION SPRING 9 | 1 | €2.09 | 1-4 weeks to ship | |
| 023 | 153192-5 | Gear complete | 1 | €49.82 | 1-4 weeks to ship | |
| 024 | 253878-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 211130-4 | THRUST BALL BEARING 1018 | 1 | €4.45 | 1-4 weeks to ship | |
| 026 | 253878-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 214012-9 | PLANE BEARING 6 | 1 | €2.09 | 1-4 weeks to ship | |
| 028 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 232050-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 251880-9 | SCREW M5X33 | 1 | €2.92 | 1-4 weeks to ship | |
| 032 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 226088-4 | Gear complete 16-41 | 1 | €34.51 | 1-4 weeks to ship | |
| 034 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 182241-1 | Housing set (blue) | 1 | €48.42 | 1-4 weeks to ship | |
| 037 | 911143-2 | PAN HEAD SCREW M4X22 | 7 | €0.56 | 1-4 weeks to ship | |
| 052 | 444015-1 | ADJUST BELT | 1 | €8.91 | 1-4 weeks to ship | |
| 053 | 414755-5 | SQUARE RING | 1 | €4.45 | 1-4 weeks to ship | |
| 054 | 152407-7 | STOPPER COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
