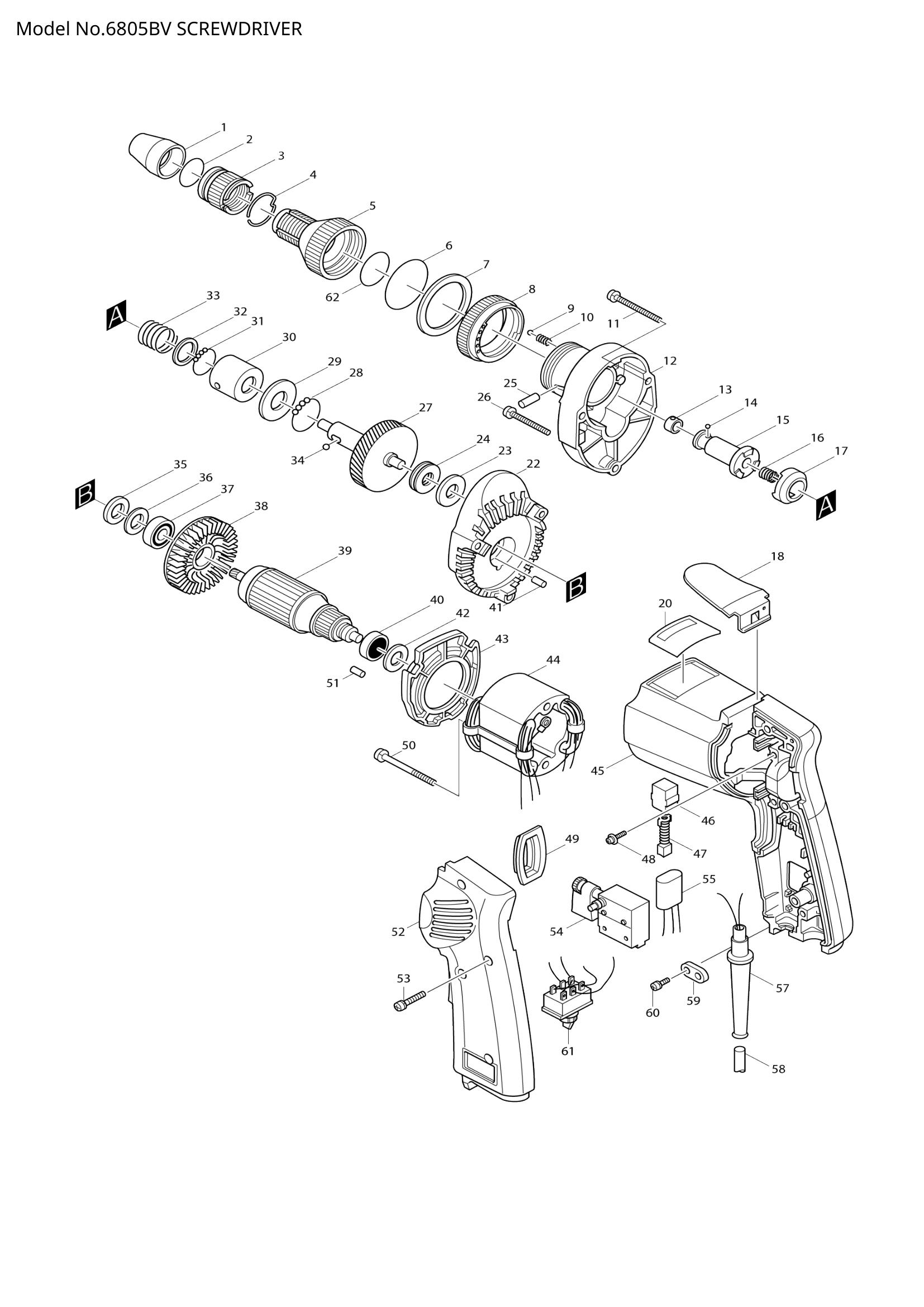

6805BV
6805BV
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 213310-8 | O RING 20 | 1 | €0.42 | 1-4 weeks to ship | |
| 003 | 322073-6 | ADJUST SLEEVE | 1 | €5.57 | 1-4 weeks to ship | |
| 004 | 231940-3 | RING SPRING 22 | 1 | €1.25 | 1-4 weeks to ship | |
| 006 | 213458-6 | O RING 34 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 253806-7 | FLAT WASHER 36 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 231314-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 911271-3 | PAN HEAD SCREW M5X50 | 2 | €0.56 | 1-4 weeks to ship | |
| 013 | 232050-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 231278-6 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 223073-8 | CLUTCH CAM | 1 | €13.92 | 1-4 weeks to ship | |
| 020 | 855887-3 | NAME PLATE 6805BV | 1 | €2.09 | 1-4 weeks to ship | |
| 022 | GEAR HOUSING COVER COMPLE | 1 | Not available in store | |||
| 023 | URETHANE WASHER 10 | 1 | Not available in store | |||
| 024 | 212057-1 | THRUST NEEDLE BEARING 1023 | 1 | €7.24 | 1-4 weeks to ship | |
| 026 | 911261-6 | PAN HEAD SCREW M5X40 | 1 | €2.09 | 1-4 weeks to ship | |
| 027 | 153167-4 | GEAR COMPLETE | 1 | €51.21 | 1-4 weeks to ship | |
| 028 | 216014-1 | STEEL BALL 3.2 | 26 | €0.56 | 1-4 weeks to ship | |
| 029 | 267035-6 | FLAT WASHER 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 031 | 216014-1 | STEEL BALL 3.2 | 16 | €0.56 | 1-4 weeks to ship | |
| 032 | 253837-6 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 231423-3 | COMPRESSION SPRING 13.6 | 1 | €1.81 | 1-4 weeks to ship | |
| 034 | 216011-7 | STEEL BALL 5.6 | 3 | €0.56 | 1-4 weeks to ship | |
| 035 | 261039-0 | URETHANE WASHER 14 | 1 | €2.09 | 1-4 weeks to ship | |
| 036 | 253786-7 | FLAT WASHER 14 | 1 | €2.09 | 1-4 weeks to ship | |
| 037 | 211033-2 | BALL BEARING 608LB | 1 | €4.17 | 1-4 weeks to ship | |
| 040 | 211028-5 | BALL BEARING 627LB | 1 | €4.17 | 1-4 weeks to ship | |
| 041 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 253192-6 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | BAFFLE PLATE | 1 | Not available in store | |||
| 046 | 643552-4 | BRUSH HOLDER 5-8 | 2 | €0.56 | 1-4 weeks to ship | |
| 048 | 911124-6 | PAN HEAD SCREW M4X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 049 | 411852-8 | SWITCH COVER | 1 | €0.83 | 1-4 weeks to ship | |
| 051 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 911153-9 | PAN HEAD SCREW M4X28 | 3 | €0.56 | 1-4 weeks to ship | |
| 060 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 062 | 213380-7 | O RING 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 710 | 646047-6 | CHOKE COIL | 1 | €6.12 | 1-4 weeks to ship | |
| 711 | 646048-4 | CHOKE COIL | 1 | €6.12 | 1-4 weeks to ship | |
| 902 | 646325-4 | LINE COIL | 1 | €19.48 | 1-4 weeks to ship | |
