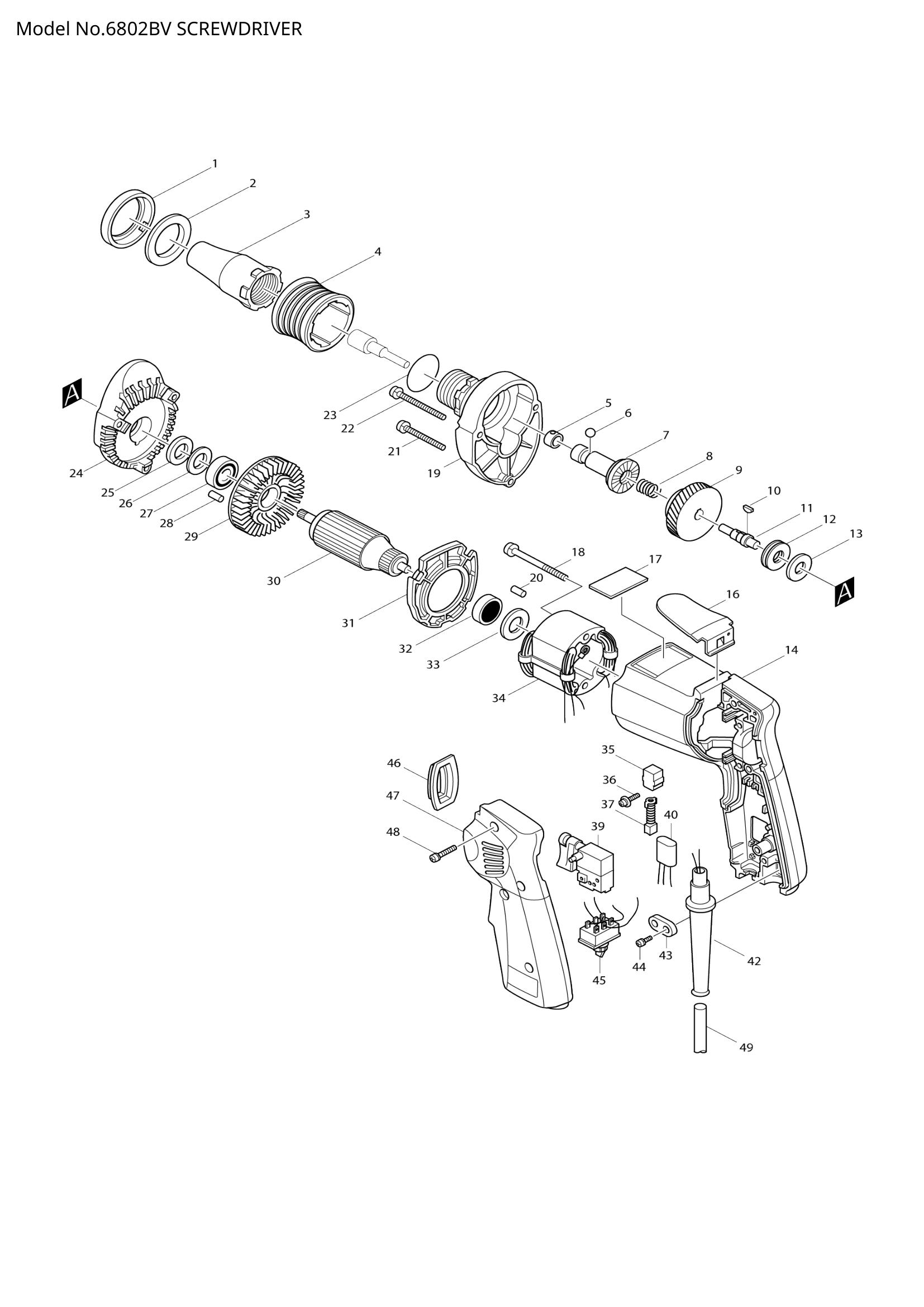

6802BV
6802BV
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 411297-0 | FELT COVER | 1 | €0.83 | 1-4 weeks to ship | |
| 002 | 443028-9 | FELT RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 411293-8 | LOCKING SLEEVE | 1 | €4.17 | 1-4 weeks to ship | |
| 005 | 232050-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 133459-7 | SPINDLE | 1 | €53.57 | 1-4 weeks to ship | |
| 008 | 231139-0 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 153133-1 | GEAR COMPLETE | 1 | €43.00 | 1-4 weeks to ship | |
| 010 | 254031-3 | WOODRUFF KEY 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 325485-2 | GEAR SHAFT | 1 | €15.03 | 1-4 weeks to ship | |
| 012 | 212057-1 | THRUST NEEDLE BEARING 1023 | 1 | €7.24 | 1-4 weeks to ship | |
| 013 | URETHANE WASHER 10 | 1 | Not available in store | |||
| 017 | 815289-5 | NAME PLATE 6802BV | 1 | €2.09 | 1-4 weeks to ship | |
| 019 | 156467-1 | GEAR HOUSING | 1 | €80.71 | 1-4 weeks to ship | |
| 020 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 911261-6 | PAN HEAD SCREW M5X40 | 1 | €2.09 | 1-4 weeks to ship | |
| 022 | 911271-3 | PAN HEAD SCREW M5X50 | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | 261039-0 | URETHANE WASHER 14 | 1 | €2.09 | 1-4 weeks to ship | |
| 026 | 253786-7 | FLAT WASHER 14 | 1 | €2.09 | 1-4 weeks to ship | |
| 027 | 211033-2 | BALL BEARING 608LB | 1 | €4.17 | 1-4 weeks to ship | |
| 028 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 211028-5 | BALL BEARING 627LB | 1 | €4.17 | 1-4 weeks to ship | |
| 033 | 253192-6 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 643552-4 | BRUSH HOLDER 5-8 | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | 911124-6 | PAN HEAD SCREW M4X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 046 | 411852-8 | SWITCH COVER | 1 | €0.83 | 1-4 weeks to ship | |
| 048 | 911153-9 | PAN HEAD SCREW M4X28 | 3 | €0.56 | 1-4 weeks to ship | |
| 709 | 646047-6 | CHOKE COIL | 1 | €6.12 | 1-4 weeks to ship | |
| 710 | 646048-4 | CHOKE COIL | 1 | €6.12 | 1-4 weeks to ship | |
