PF0800
PF0800

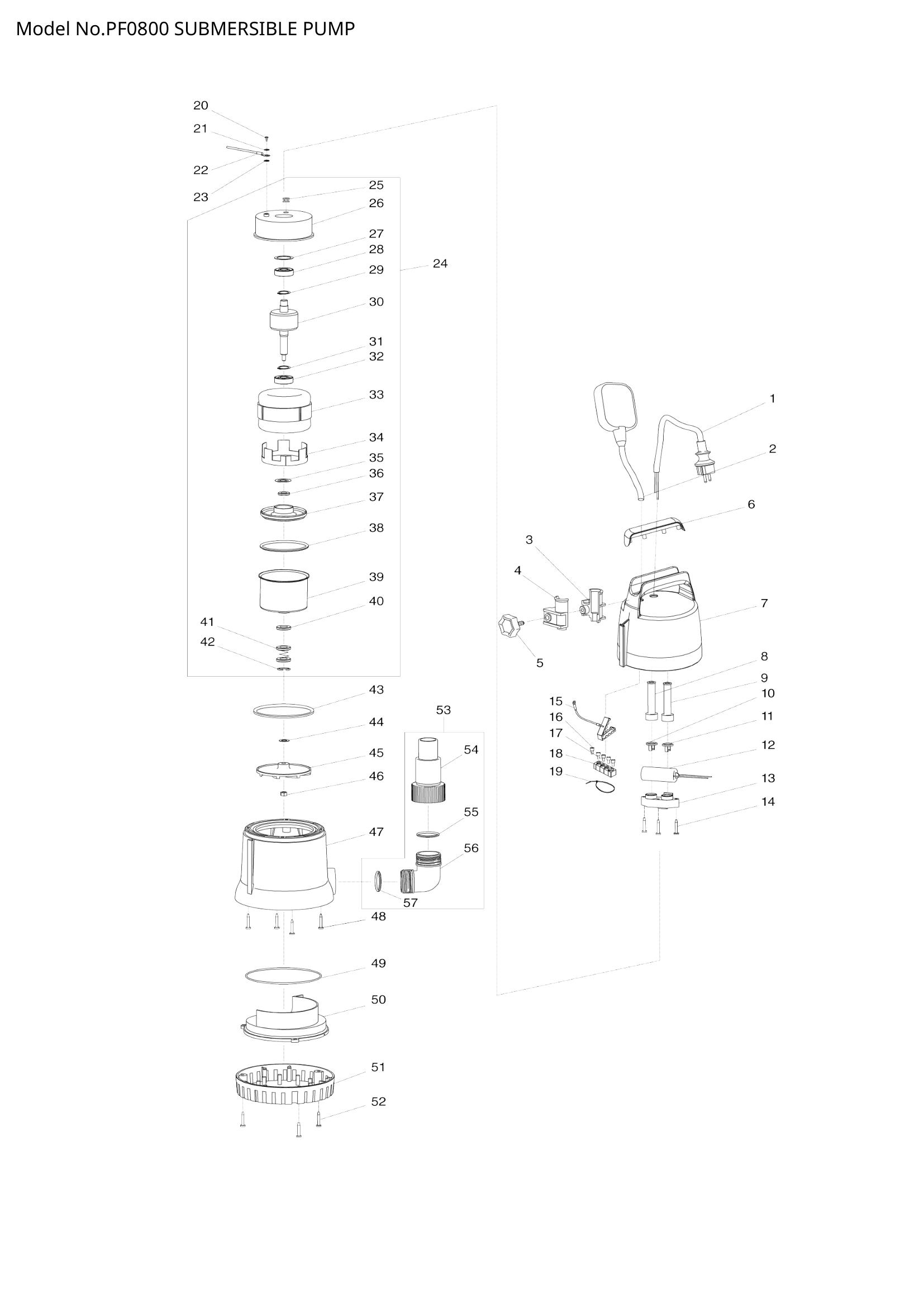

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 010 | 609024590 | CORD CLAMP 8.5 | 1 | €0.14 | 1-4 weeks to ship | |
| 609024590 | CORD CLAMP 8.5 | 1 | €0.14 | 1-4 weeks to ship | ||
| 011 | 609024590 | CORD CLAMP 8.5 | 1 | €0.14 | 1-4 weeks to ship | |
| 609024590 | CORD CLAMP 8.5 | 1 | €0.14 | 1-4 weeks to ship | ||
| 013 | 609024592 | CAPACITOR HOLDER | 1 | €0.56 | 1-4 weeks to ship | |
| 609024592 | CAPACITOR HOLDER | 1 | €0.56 | 1-4 weeks to ship | ||
| 014 | 609024593 | TAPPING SCREW 4X32 | 3 | €0.14 | 1-4 weeks to ship | |
| 609024593 | TAPPING SCREW 4X32 | 3 | €0.14 | 1-4 weeks to ship | ||
| 015 | 609024628 | GROUND COVER FOR RUBBER C | 1 | €0.28 | 1-4 weeks to ship | |
| 609024628 | GROUND COVER FOR RUBBER C | 1 | €0.28 | 1-4 weeks to ship | ||
| 016 | 609024629 | CLOSED END SPLICE 5.5-SD | 2 | €0.14 | 1-4 weeks to ship | |
| 609024629 | CLOSED END SPLICE 5.5-SD | 2 | €0.14 | 1-4 weeks to ship | ||
| 017 | 609024630 | CLOSED END SPLICE 2-SD | 3 | €0.14 | 1-4 weeks to ship | |
| 609024630 | CLOSED END SPLICE 2-SD | 3 | €0.14 | 1-4 weeks to ship | ||
| 019 | CABLE TIE | 1 | Not available in store | |||
| CABLE TIE | 1 | Not available in store | ||||
| 020 | SCREW M4X8 | 1 | Not available in store | |||
| SCREW M4X8 | 1 | Not available in store | ||||
| 021 | SPRING WASHER 4 | 1 | Not available in store | |||
| SPRING WASHER 4 | 1 | Not available in store | ||||
| 025 | GROMMET 10 | 1 | Not available in store | |||
| GROMMET 10 | 1 | Not available in store | ||||
| 026 | MOTOR HOUSING UPPER SIDE | 1 | Not available in store | |||
| MOTOR HOUSING UPPER SIDE | 1 | Not available in store | ||||
| 027 | WAVE WASHER 25 | 1 | Not available in store | |||
| WAVE WASHER 25 | 1 | Not available in store | ||||
| 028 | BALL BEARING 6201Z | 1 | Not available in store | |||
| BALL BEARING 6201Z | 1 | Not available in store | ||||
| 032 | BALL BEARING 6201Z | 1 | Not available in store | |||
| BALL BEARING 6201Z | 1 | Not available in store | ||||
| 035 | SHIM | 1 | Not available in store | |||
| SHIM | 1 | Not available in store | ||||
| 039 | MOTOR HOUSING LOWER SIDE | 1 | Not available in store | |||
| MOTOR HOUSING LOWER SIDE | 1 | Not available in store | ||||
| 042 | 609024634 | RETAINING RING S-12 INOX | 1 | €0.14 | 1-4 weeks to ship | |
| 609024634 | RETAINING RING S-12 INOX | 1 | €0.14 | 1-4 weeks to ship | ||
| 044 | 609024613 | SPACER WASHER 12 | 1 | €0.14 | 1-4 weeks to ship | |
| 609024613 | SPACER WASHER 12 | 1 | €0.14 | 1-4 weeks to ship | ||
| 046 | 609024615 | NYLON INSERT HEX LOCK NUT M | 1 | €0.14 | 1-4 weeks to ship | |
| 609024615 | NYLON INSERT HEX LOCK NUT M | 1 | €0.14 | 1-4 weeks to ship | ||
| 047 | 609024682 | MAIN PUMP SHELL | 1 | €16.56 | 1-4 weeks to ship | |
| 609024682 | MAIN PUMP SHELL | 1 | €16.56 | 1-4 weeks to ship | ||
| 048 | 609024620 | Y-HEAD TAPPING SCREW 4X28 IN | 4 | €0.14 | 1-4 weeks to ship | |
| 609024620 | Y-HEAD TAPPING SCREW 4X28 IN | 4 | €0.14 | 1-4 weeks to ship | ||
| 050 | 609024622 | CASING | 1 | €2.92 | 1-4 weeks to ship | |
| 609024622 | CASING | 1 | €2.92 | 1-4 weeks to ship | ||
| 051 | 609024623 | STRAINER | 1 | €2.64 | 1-4 weeks to ship | |
| 609024623 | STRAINER | 1 | €2.64 | 1-4 weeks to ship | ||
| 052 | 609024624 | TAPPING SCREW 4x24 INOX | 3 | €0.14 | 1-4 weeks to ship | |
| 609024624 | TAPPING SCREW 4x24 INOX | 3 | €0.14 | 1-4 weeks to ship | ||
| 053 | OUTLET CONNECTOR KIT | 1 | Not available in store | |||
| OUTLET CONNECTOR KIT | 1 | Not available in store | ||||
| 054 | 609024627 | OUTLET CONNECTOR | 1 | €3.34 | 1-4 weeks to ship | |
| 609024627 | OUTLET CONNECTOR | 1 | €3.34 | 1-4 weeks to ship | ||
| 056 | 609024626 | ELBOW | 1 | €2.23 | 1-4 weeks to ship | |
| 609024626 | ELBOW | 1 | €2.23 | 1-4 weeks to ship | ||
