PE254
PE254

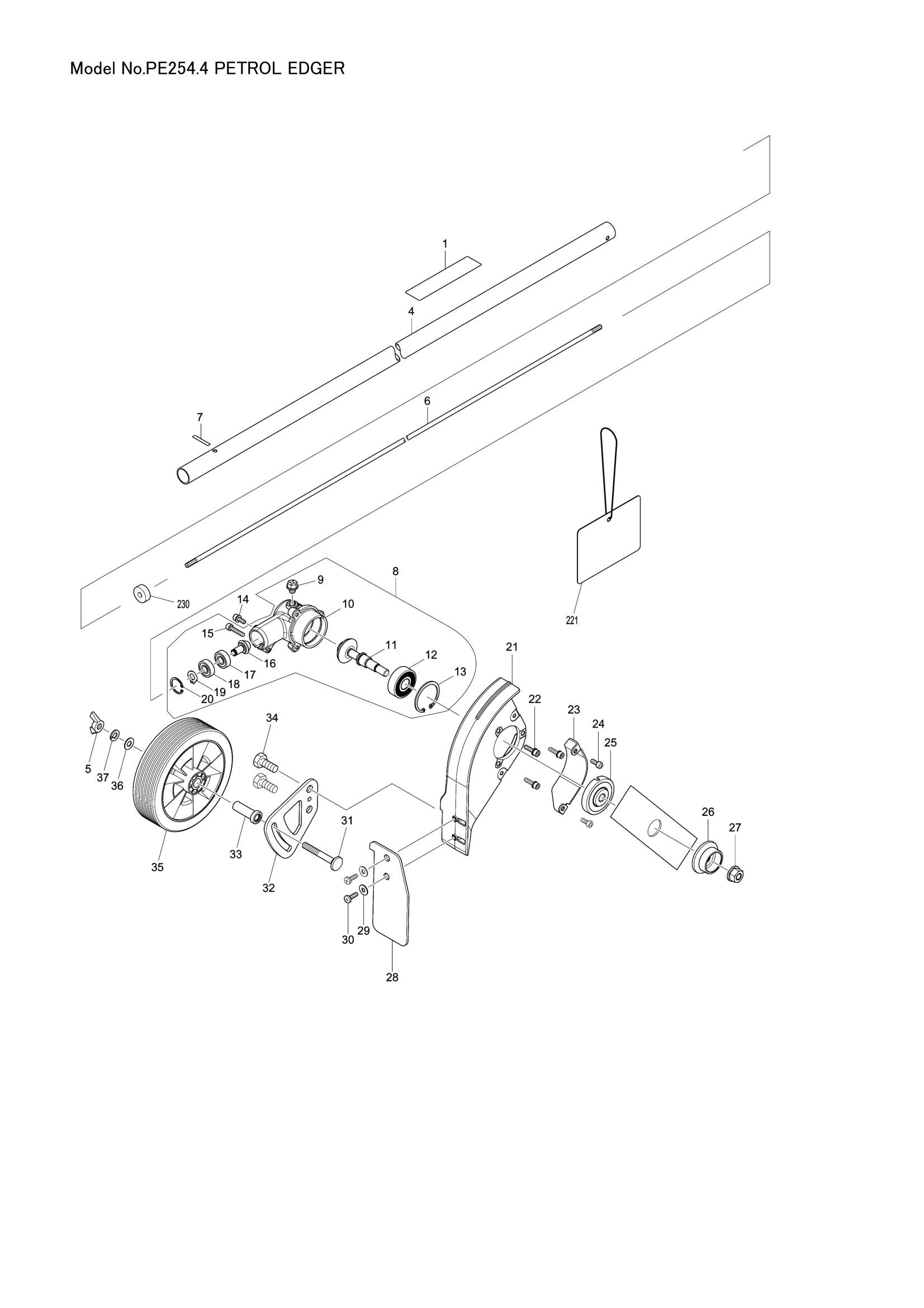

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | DOLMAR LOGO LABEL | 1 | Not available in store | |||
| DOLMAR LOGO LABEL | 1 | Not available in store | ||||
| DOLMAR LOGO LABEL | 1 | Not available in store | ||||
| DOLMAR LOGO LABEL | 1 | Not available in store | ||||
| 004 | SHAFT PIPE COMPLETE | 1 | Not available in store | |||
| SHAFT PIPE COMPLETE | 1 | Not available in store | ||||
| SHAFT PIPE COMPLETE | 1 | Not available in store | ||||
| SHAFT PIPE COMPLETE | 1 | Not available in store | ||||
| 005 | 934401-9 | WING NUT M8 | 1 | €2.09 | 1-4 weeks to ship | |
| 934401-9 | WING NUT M8 | 1 | €2.09 | 1-4 weeks to ship | ||
| 934401-9 | WING NUT M8 | 1 | €2.09 | 1-4 weeks to ship | ||
| 934401-9 | WING NUT M8 | 1 | €2.09 | 1-4 weeks to ship | ||
| 007 | SERIAL NO. LABEL | 1 | Not available in store | |||
| SERIAL NO. LABEL | 1 | Not available in store | ||||
| SERIAL NO. LABEL | 1 | Not available in store | ||||
| SERIAL NO. LABEL | 1 | Not available in store | ||||
| 008 | 126414-6 | GEAR CASE ASS'Y | 1 | €71.94 | 1-4 weeks to ship | |
| 126414-6 | GEAR CASE ASS'Y | 1 | €71.94 | 1-4 weeks to ship | ||
| 126414-6 | GEAR CASE ASS'Y | 1 | €71.94 | 1-4 weeks to ship | ||
| 126414-6 | GEAR CASE ASS'Y | 1 | €71.94 | 1-4 weeks to ship | ||
| 009 | 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | €0.56 | 1-4 weeks to ship | |
| 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | €0.56 | 1-4 weeks to ship | ||
| 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | €0.56 | 1-4 weeks to ship | ||
| 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | €0.56 | 1-4 weeks to ship | ||
| 010 | 319102-4 | GEAR CASE | 1 | €27.69 | 1-4 weeks to ship | |
| 319102-4 | GEAR CASE | 1 | €27.69 | 1-4 weeks to ship | ||
| 319102-4 | GEAR CASE | 1 | €27.69 | 1-4 weeks to ship | ||
| 319102-4 | GEAR CASE | 1 | €27.69 | 1-4 weeks to ship | ||
| 011 | 126415-4 | CUTTER SHAFT ASS'Y | 1 | €19.34 | 1-4 weeks to ship | |
| 126415-4 | CUTTER SHAFT ASS'Y | 1 | €19.34 | 1-4 weeks to ship | ||
| 126415-4 | CUTTER SHAFT ASS'Y | 1 | €19.34 | 1-4 weeks to ship | ||
| 126415-4 | CUTTER SHAFT ASS'Y | 1 | €19.34 | 1-4 weeks to ship | ||
| 012 | 211231-8 | BALL BEARING 6302DDW | 1 | €9.32 | 1-4 weeks to ship | |
| 211231-8 | BALL BEARING 6302DDW | 1 | €9.32 | 1-4 weeks to ship | ||
| 211231-8 | BALL BEARING 6302DDW | 1 | €9.32 | 1-4 weeks to ship | ||
| 211231-8 | BALL BEARING 6302DDW | 1 | €9.32 | 1-4 weeks to ship | ||
| 013 | 962201-7 | RETAINING RING (INT) R-42 | 1 | €0.83 | 1-4 weeks to ship | |
| 962201-7 | RETAINING RING (INT) R-42 | 1 | €0.83 | 1-4 weeks to ship | ||
| 962201-7 | RETAINING RING (INT) R-42 | 1 | €0.83 | 1-4 weeks to ship | ||
| 962201-7 | RETAINING RING (INT) R-42 | 1 | €0.83 | 1-4 weeks to ship | ||
| 014 | 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | 227629-9 | SPIRAL BEVEL GEAR 14 | 1 | €10.30 | 1-4 weeks to ship | |
| 227629-9 | SPIRAL BEVEL GEAR 14 | 1 | €10.30 | 1-4 weeks to ship | ||
| 227629-9 | SPIRAL BEVEL GEAR 14 | 1 | €10.30 | 1-4 weeks to ship | ||
| 227629-9 | SPIRAL BEVEL GEAR 14 | 1 | €10.30 | 1-4 weeks to ship | ||
| 017 | 210049-4 | BALL BEARING 609ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 210049-4 | BALL BEARING 609ZZ | 1 | €4.17 | 1-4 weeks to ship | ||
| 210049-4 | BALL BEARING 609ZZ | 1 | €4.17 | 1-4 weeks to ship | ||
| 210049-4 | BALL BEARING 609ZZ | 1 | €4.17 | 1-4 weeks to ship | ||
| 018 | 210049-4 | BALL BEARING 609ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 210049-4 | BALL BEARING 609ZZ | 1 | €4.17 | 1-4 weeks to ship | ||
| 210049-4 | BALL BEARING 609ZZ | 1 | €4.17 | 1-4 weeks to ship | ||
| 210049-4 | BALL BEARING 609ZZ | 1 | €4.17 | 1-4 weeks to ship | ||
| 019 | 961005-4 | RETAINING RING S-9 | 1 | €0.56 | 1-4 weeks to ship | |
| 961005-4 | RETAINING RING S-9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 961005-4 | RETAINING RING S-9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 961005-4 | RETAINING RING S-9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 962103-7 | RETAINING RING R-24 | 1 | €0.56 | 1-4 weeks to ship | |
| 962103-7 | RETAINING RING R-24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 962103-7 | RETAINING RING R-24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 962103-7 | RETAINING RING R-24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 962103-7 | RETAINING RING R-24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 962103-7 | RETAINING RING R-24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 962103-7 | RETAINING RING R-24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 962103-7 | RETAINING RING R-24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 021 | 319111-3 | BLADE CASE | 1 | €34.65 | 1-4 weeks to ship | |
| 319111-3 | BLADE CASE | 1 | €34.65 | 1-4 weeks to ship | ||
| 319111-3 | BLADE CASE | 1 | €34.65 | 1-4 weeks to ship | ||
| 319111-3 | BLADE CASE | 1 | €34.65 | 1-4 weeks to ship | ||
| 022 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 3 | €0.56 | 1-4 weeks to ship | |
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 3 | €0.56 | 1-4 weeks to ship | ||
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 3 | €0.56 | 1-4 weeks to ship | ||
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 3 | €0.56 | 1-4 weeks to ship | ||
| 023 | 346759-8 | GUARD PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 346759-8 | GUARD PLATE | 1 | €4.45 | 1-4 weeks to ship | ||
| 346759-8 | GUARD PLATE | 1 | €4.45 | 1-4 weeks to ship | ||
| 346759-8 | GUARD PLATE | 1 | €4.45 | 1-4 weeks to ship | ||
| 024 | 266874-1 | H.S.H.BOLT M5X14 | 2 | €0.28 | 1-4 weeks to ship | |
| 266874-1 | H.S.H.BOLT M5X14 | 2 | €0.28 | 1-4 weeks to ship | ||
| 266874-1 | H.S.H.BOLT M5X14 | 2 | €0.28 | 1-4 weeks to ship | ||
| 266874-1 | H.S.H.BOLT M5X14 | 2 | €0.28 | 1-4 weeks to ship | ||
| 026 | 326381-7 | CLAMP | 1 | €4.45 | 1-4 weeks to ship | |
| 326381-7 | CLAMP | 1 | €4.45 | 1-4 weeks to ship | ||
| 326381-7 | CLAMP | 1 | €4.45 | 1-4 weeks to ship | ||
| 326381-7 | CLAMP | 1 | €4.45 | 1-4 weeks to ship | ||
| 027 | 264025-0 | HEX. NUT M10-17 | 1 | €2.78 | 1-4 weeks to ship | |
| 264025-0 | HEX. NUT M10-17 | 1 | €2.78 | 1-4 weeks to ship | ||
| 264025-0 | HEX. NUT M10-17 | 1 | €2.78 | 1-4 weeks to ship | ||
| 264025-0 | HEX. NUT M10-17 | 1 | €2.78 | 1-4 weeks to ship | ||
| 028 | 424615-3 | DEFLECTOR | 1 | €2.78 | 1-4 weeks to ship | |
| 424615-3 | DEFLECTOR | 1 | €2.78 | 1-4 weeks to ship | ||
| 424615-3 | DEFLECTOR | 1 | €2.78 | 1-4 weeks to ship | ||
| 424615-3 | DEFLECTOR | 1 | €2.78 | 1-4 weeks to ship | ||
| 029 | 253804-1 | FLAT WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 253804-1 | FLAT WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 253804-1 | FLAT WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 253804-1 | FLAT WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 030 | 266027-2 | TAPPING SCREW CT5X16 | 2 | €0.83 | 1-4 weeks to ship | |
| 266027-2 | TAPPING SCREW CT5X16 | 2 | €0.83 | 1-4 weeks to ship | ||
| 266027-2 | TAPPING SCREW CT5X16 | 2 | €0.83 | 1-4 weeks to ship | ||
| 266027-2 | TAPPING SCREW CT5X16 | 2 | €0.83 | 1-4 weeks to ship | ||
| 032 | 346758-0 | PLATE | 1 | €3.90 | 1-4 weeks to ship | |
| 346758-0 | PLATE | 1 | €3.90 | 1-4 weeks to ship | ||
| 346758-0 | PLATE | 1 | €3.90 | 1-4 weeks to ship | ||
| 346758-0 | PLATE | 1 | €3.90 | 1-4 weeks to ship | ||
| 033 | 257821-3 | SLEEVE 8 | 1 | €2.23 | 1-4 weeks to ship | |
| 257821-3 | SLEEVE 8 | 1 | €2.23 | 1-4 weeks to ship | ||
| 257821-3 | SLEEVE 8 | 1 | €2.23 | 1-4 weeks to ship | ||
| 257821-3 | SLEEVE 8 | 1 | €2.23 | 1-4 weeks to ship | ||
| 034 | 921542-0 | HEX. BOLT M10X25 | 2 | €1.39 | 1-4 weeks to ship | |
| 921542-0 | HEX. BOLT M10X25 | 2 | €1.39 | 1-4 weeks to ship | ||
| 921542-0 | HEX. BOLT M10X25 | 2 | €1.39 | 1-4 weeks to ship | ||
| 921542-0 | HEX. BOLT M10X25 | 2 | €1.39 | 1-4 weeks to ship | ||
| 035 | 454843-6 | WHEEL | 1 | €4.45 | 1-4 weeks to ship | |
| 454843-6 | WHEEL | 1 | €4.45 | 1-4 weeks to ship | ||
| 454843-6 | WHEEL | 1 | €4.45 | 1-4 weeks to ship | ||
| 454843-6 | WHEEL | 1 | €4.45 | 1-4 weeks to ship | ||
| 454843-6 | WHEEL | 1 | €4.45 | 1-4 weeks to ship | ||
| 454843-6 | WHEEL | 1 | €4.45 | 1-4 weeks to ship | ||
| 454843-6 | WHEEL | 1 | €4.45 | 1-4 weeks to ship | ||
| 454843-6 | WHEEL | 1 | €4.45 | 1-4 weeks to ship | ||
| 036 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 037 | 942201-3 | SPRING WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 942201-3 | SPRING WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 942201-3 | SPRING WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 942201-3 | SPRING WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | ||

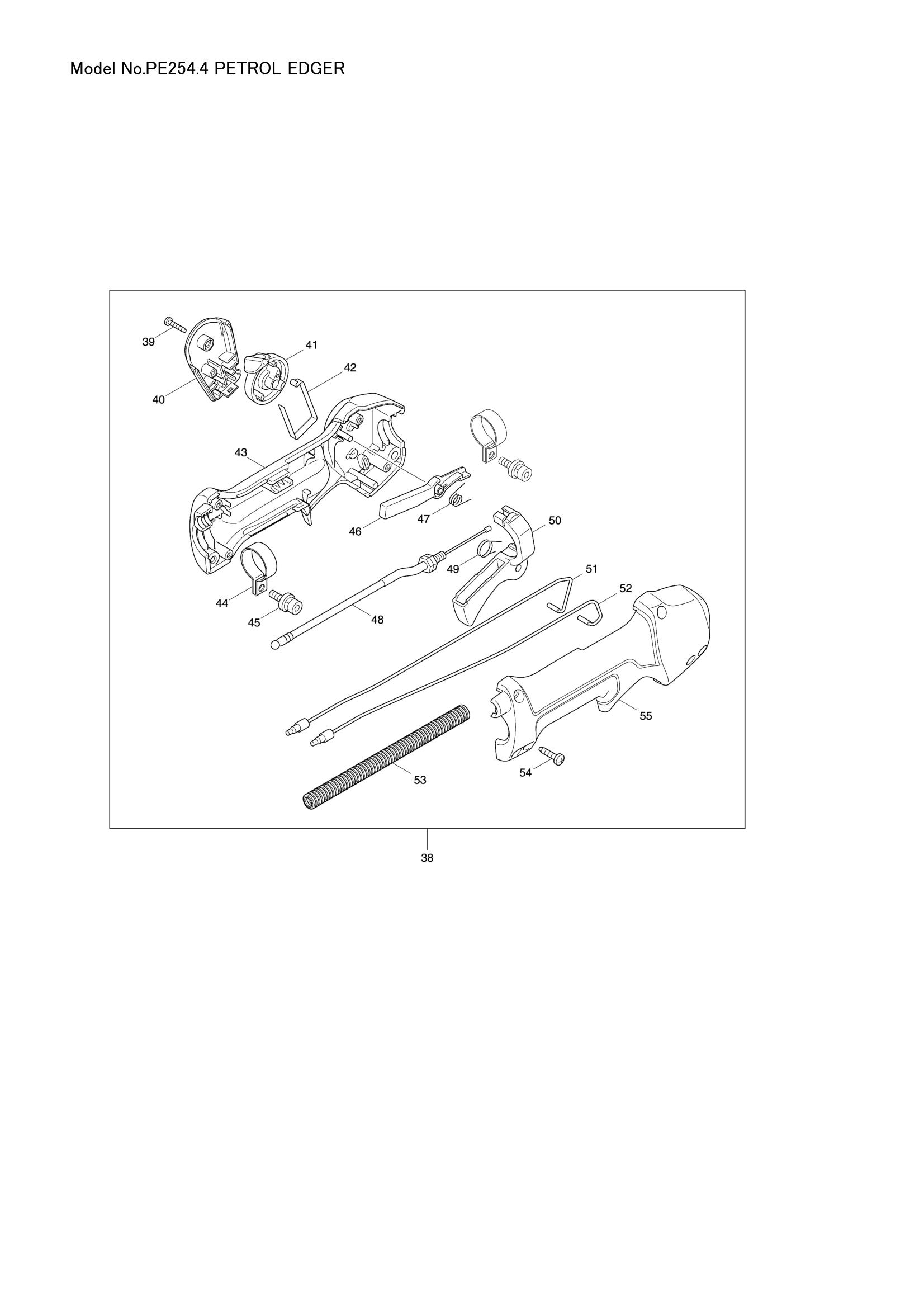

| 038 | CONTROL LEVER ASSEMBLY | 1 | Not available in store | |||
| CONTROL LEVER ASSEMBLY | 1 | Not available in store | ||||
| CONTROL LEVER ASSEMBLY | 1 | Not available in store | ||||
| CONTROL LEVER ASSEMBLY | 1 | Not available in store | ||||
| 040 | 451595-0 | SWITCH COVER | 1 | €0.97 | 1-4 weeks to ship | |
| 451595-0 | SWITCH COVER | 1 | €0.97 | 1-4 weeks to ship | ||
| 451595-0 | SWITCH COVER | 1 | €0.97 | 1-4 weeks to ship | ||
| 451595-0 | SWITCH COVER | 1 | €0.97 | 1-4 weeks to ship | ||
| 451595-0 | SWITCH COVER | 1 | €0.97 | 1-4 weeks to ship | ||
| 451595-0 | SWITCH COVER | 1 | €0.97 | 1-4 weeks to ship | ||
| 451595-0 | SWITCH COVER | 1 | €0.97 | 1-4 weeks to ship | ||
| 451595-0 | SWITCH COVER | 1 | €0.97 | 1-4 weeks to ship | ||
| 041 | 451594-2 | SWITCH LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 451594-2 | SWITCH LEVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 451594-2 | SWITCH LEVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 451594-2 | SWITCH LEVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 042 | 232251-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 232251-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 232251-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 232251-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 043 | 188832-6 | LEVER CASE SET | 1 | €11.13 | 1-4 weeks to ship | |
| 188832-6 | LEVER CASE SET | 1 | €11.13 | 1-4 weeks to ship | ||
| 188832-6 | LEVER CASE SET | 1 | €11.13 | 1-4 weeks to ship | ||
| 188832-6 | LEVER CASE SET | 1 | €11.13 | 1-4 weeks to ship | ||
| 044 | 346248-3 | CLAMP 24 | 2 | €0.83 | 1-4 weeks to ship | |
| 346248-3 | CLAMP 24 | 2 | €0.83 | 1-4 weeks to ship | ||
| 346248-3 | CLAMP 24 | 2 | €0.83 | 1-4 weeks to ship | ||
| 346248-3 | CLAMP 24 | 2 | €0.83 | 1-4 weeks to ship | ||
| 045 | 922218-2 | H.S.H.BOLT M5X14 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 046 | 451593-4 | LOCK LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 451593-4 | LOCK LEVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 451593-4 | LOCK LEVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 451593-4 | LOCK LEVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 047 | 233541-3 | TORSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 233541-3 | TORSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233541-3 | TORSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233541-3 | TORSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | CONTROL CABLE | 1 | Not available in store | |||
| CONTROL CABLE | 1 | Not available in store | ||||
| CONTROL CABLE | 1 | Not available in store | ||||
| CONTROL CABLE | 1 | Not available in store | ||||
| 049 | 233540-5 | TORSION SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 233540-5 | TORSION SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233540-5 | TORSION SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233540-5 | TORSION SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | ||
| 050 | THROTTLE LEVER | 1 | Not available in store | |||
| THROTTLE LEVER | 1 | Not available in store | ||||
| THROTTLE LEVER | 1 | Not available in store | ||||
| THROTTLE LEVER | 1 | Not available in store | ||||
| 051 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| LEAD UNIT | 1 | Not available in store | ||||
| LEAD UNIT | 1 | Not available in store | ||||
| 052 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| LEAD UNIT | 1 | Not available in store | ||||
| LEAD UNIT | 1 | Not available in store | ||||
| 053 | CORRUGATE TUBE | 1 | Not available in store | |||
| CORRUGATE TUBE | 1 | Not available in store | ||||
| CORRUGATE TUBE | 1 | Not available in store | ||||
| CORRUGATE TUBE | 1 | Not available in store | ||||
| 054 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 055 | 188832-6 | LEVER CASE SET | 1 | €11.13 | 1-4 weeks to ship | |
| 188832-6 | LEVER CASE SET | 1 | €11.13 | 1-4 weeks to ship | ||
| 188832-6 | LEVER CASE SET | 1 | €11.13 | 1-4 weeks to ship | ||
| 188832-6 | LEVER CASE SET | 1 | €11.13 | 1-4 weeks to ship | ||
| 061 | 265791-2 | THUMB SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 265791-2 | THUMB SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 265791-2 | THUMB SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 265791-2 | THUMB SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 063 | 443169-1 | AIR CLEANER ELEMENT | 1 | €5.57 | 1-4 weeks to ship | |
| 443169-1 | AIR CLEANER ELEMENT | 1 | €5.57 | 1-4 weeks to ship | ||
| 443169-1 | AIR CLEANER ELEMENT | 1 | €5.57 | 1-4 weeks to ship | ||
| 443169-1 | AIR CLEANER ELEMENT | 1 | €5.57 | 1-4 weeks to ship | ||
| 066 | 162346-3 | SEPARATOR PLATE | 1 | €6.96 | 1-4 weeks to ship | |
| 162346-3 | SEPARATOR PLATE | 1 | €6.96 | 1-4 weeks to ship | ||
| 162346-3 | SEPARATOR PLATE | 1 | €6.96 | 1-4 weeks to ship | ||
| 162346-3 | SEPARATOR PLATE | 1 | €6.96 | 1-4 weeks to ship | ||
| 067 | 213540-1 | O RING 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 213540-1 | O RING 15 | 1 | €0.56 | 1-4 weeks to ship | ||
| 213540-1 | O RING 15 | 1 | €0.56 | 1-4 weeks to ship | ||
| 213540-1 | O RING 15 | 1 | €0.56 | 1-4 weeks to ship | ||
| 068 | 424316-3 | CHECK VALVE | 2 | €4.17 | 1-4 weeks to ship | |
| 424316-3 | CHECK VALVE | 2 | €4.17 | 1-4 weeks to ship | ||
| 424316-3 | CHECK VALVE | 2 | €4.17 | 1-4 weeks to ship | ||
| 424316-3 | CHECK VALVE | 2 | €4.17 | 1-4 weeks to ship | ||
| 069 | 422099-9 | PIPE | 1 | €4.31 | 1-4 weeks to ship | |
| 422099-9 | PIPE | 1 | €4.31 | 1-4 weeks to ship | ||
| 422099-9 | PIPE | 1 | €4.31 | 1-4 weeks to ship | ||
| 422099-9 | PIPE | 1 | €4.31 | 1-4 weeks to ship | ||
| 070 | 325665-0 | JOINT PIPE | 1 | €0.56 | 1-4 weeks to ship | |
| 325665-0 | JOINT PIPE | 1 | €0.56 | 1-4 weeks to ship | ||
| 325665-0 | JOINT PIPE | 1 | €0.56 | 1-4 weeks to ship | ||
| 325665-0 | JOINT PIPE | 1 | €0.56 | 1-4 weeks to ship | ||
| 071 | CARBURETOR GASKET | 1 | Not available in store | |||
| CARBURETOR GASKET | 1 | Not available in store | ||||
| CARBURETOR GASKET | 1 | Not available in store | ||||
| CARBURETOR GASKET | 1 | Not available in store | ||||
| 072 | H.S.H.BOLT M5X18 WITH WR | 2 | Not available in store | |||
| H.S.H.BOLT M5X18 WITH WR | 2 | Not available in store | ||||
| H.S.H.BOLT M5X18 WITH WR | 2 | Not available in store | ||||
| H.S.H.BOLT M5X18 WITH WR | 2 | Not available in store | ||||
| 073 | 451825-9 | CLAMP | 1 | €0.28 | 1-4 weeks to ship | |
| 451825-9 | CLAMP | 1 | €0.28 | 1-4 weeks to ship | ||
| 451825-9 | CLAMP | 1 | €0.28 | 1-4 weeks to ship | ||
| 451825-9 | CLAMP | 1 | €0.28 | 1-4 weeks to ship | ||
| 451825-9 | CLAMP | 1 | €0.28 | 1-4 weeks to ship | ||
| 451825-9 | CLAMP | 1 | €0.28 | 1-4 weeks to ship | ||
| 451825-9 | CLAMP | 1 | €0.28 | 1-4 weeks to ship | ||
| 451825-9 | CLAMP | 1 | €0.28 | 1-4 weeks to ship | ||
| 074 | INSULATOR | 1 | Not available in store | |||
| INSULATOR | 1 | Not available in store | ||||
| INSULATOR | 1 | Not available in store | ||||
| INSULATOR | 1 | Not available in store | ||||
| 075 | O-RING 12 | 1 | Not available in store | |||
| O-RING 12 | 1 | Not available in store | ||||
| O-RING 12 | 1 | Not available in store | ||||
| O-RING 12 | 1 | Not available in store | ||||
| 076 | 422109-2 | BREATHER PIPE | 1 | €5.15 | 1-4 weeks to ship | |
| 422109-2 | BREATHER PIPE | 1 | €5.15 | 1-4 weeks to ship | ||
| 422109-2 | BREATHER PIPE | 1 | €5.15 | 1-4 weeks to ship | ||
| 422109-2 | BREATHER PIPE | 1 | €5.15 | 1-4 weeks to ship | ||
| 077 | 345918-1 | HOSE CLAMP | 1 | €0.56 | 1-4 weeks to ship | |
| 345918-1 | HOSE CLAMP | 1 | €0.56 | 1-4 weeks to ship | ||
| 345918-1 | HOSE CLAMP | 1 | €0.56 | 1-4 weeks to ship | ||
| 345918-1 | HOSE CLAMP | 1 | €0.56 | 1-4 weeks to ship | ||
| 078 | ROCKER COVER OUTER | 1 | Not available in store | |||
| ROCKER COVER OUTER | 1 | Not available in store | ||||
| ROCKER COVER OUTER | 1 | Not available in store | ||||
| ROCKER COVER OUTER | 1 | Not available in store | ||||
| 080 | 453860-3 | ROCKER COVER INNER | 1 | €0.56 | 1-4 weeks to ship | |
| 453860-3 | ROCKER COVER INNER | 1 | €0.56 | 1-4 weeks to ship | ||
| 453860-3 | ROCKER COVER INNER | 1 | €0.56 | 1-4 weeks to ship | ||
| 453860-3 | ROCKER COVER INNER | 1 | €0.56 | 1-4 weeks to ship | ||
| 453860-3 | ROCKER COVER INNER | 1 | €0.56 | 1-4 weeks to ship | ||
| 453860-3 | ROCKER COVER INNER | 1 | €0.56 | 1-4 weeks to ship | ||
| 453860-3 | ROCKER COVER INNER | 1 | €0.56 | 1-4 weeks to ship | ||
| 453860-3 | ROCKER COVER INNER | 1 | €0.56 | 1-4 weeks to ship | ||
| 081 | ROCKER COVER GASKET | 1 | Not available in store | |||
| ROCKER COVER GASKET | 1 | Not available in store | ||||
| ROCKER COVER GASKET | 1 | Not available in store | ||||
| ROCKER COVER GASKET | 1 | Not available in store | ||||
| 082 | 424302-4 | PLUG CAP | 1 | €1.67 | 1-4 weeks to ship | |
| 424302-4 | PLUG CAP | 1 | €1.67 | 1-4 weeks to ship | ||
| 424302-4 | PLUG CAP | 1 | €1.67 | 1-4 weeks to ship | ||
| 424302-4 | PLUG CAP | 1 | €1.67 | 1-4 weeks to ship | ||
| 083 | 324891-8 | PLUG CAP SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 324891-8 | PLUG CAP SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 324891-8 | PLUG CAP SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 324891-8 | PLUG CAP SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 084 | SPARK PLUG | 1 | Not available in store | |||
| SPARK PLUG | 1 | Not available in store | ||||
| SPARK PLUG | 1 | Not available in store | ||||
| SPARK PLUG | 1 | Not available in store | ||||
| 085 | 125554-7 | ROCKER ARM ASSEMBLY | 2 | €4.17 | 1-4 weeks to ship | |
| 125554-7 | ROCKER ARM ASSEMBLY | 2 | €4.17 | 1-4 weeks to ship | ||
| 125554-7 | ROCKER ARM ASSEMBLY | 2 | €4.17 | 1-4 weeks to ship | ||
| 125554-7 | ROCKER ARM ASSEMBLY | 2 | €4.17 | 1-4 weeks to ship | ||
| 086 | 256200-2 | PIN 5 | 1 | €1.11 | 1-4 weeks to ship | |
| 256200-2 | PIN 5 | 1 | €1.11 | 1-4 weeks to ship | ||
| 256200-2 | PIN 5 | 1 | €1.11 | 1-4 weeks to ship | ||
| 256200-2 | PIN 5 | 1 | €1.11 | 1-4 weeks to ship | ||
| 087 | 256865-0 | ROD 2.5 | 2 | €0.56 | 1-4 weeks to ship | |
| 256865-0 | ROD 2.5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 256865-0 | ROD 2.5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 256865-0 | ROD 2.5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 088 | 325668-4 | SPRING RETAINER | 2 | €1.67 | 1-4 weeks to ship | |
| 325668-4 | SPRING RETAINER | 2 | €1.67 | 1-4 weeks to ship | ||
| 325668-4 | SPRING RETAINER | 2 | €1.67 | 1-4 weeks to ship | ||
| 325668-4 | SPRING RETAINER | 2 | €1.67 | 1-4 weeks to ship | ||
| 089 | CLUTCH CASE | 1 | Not available in store | |||
| CLUTCH CASE | 1 | Not available in store | ||||
| CLUTCH CASE | 1 | Not available in store | ||||
| CLUTCH CASE | 1 | Not available in store | ||||
| 090 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 3 | €0.56 | 1-4 weeks to ship | |
| 922228-9 | H.S.H.BOLT M5X18 WITH WR | 3 | €0.56 | 1-4 weeks to ship | ||
| 922228-9 | H.S.H.BOLT M5X18 WITH WR | 3 | €0.56 | 1-4 weeks to ship | ||
| 922228-9 | H.S.H.BOLT M5X18 WITH WR | 3 | €0.56 | 1-4 weeks to ship | ||
| 091 | 450569-8 | SPACER | 1 | €0.56 | 1-4 weeks to ship | |
| 450569-8 | SPACER | 1 | €0.56 | 1-4 weeks to ship | ||
| 450569-8 | SPACER | 1 | €0.56 | 1-4 weeks to ship | ||
| 450569-8 | SPACER | 1 | €0.56 | 1-4 weeks to ship | ||
| 092 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 093 | 210111-5 | BALL BEARING 6201LLU | 1 | €4.17 | 1-4 weeks to ship | |
| 210111-5 | BALL BEARING 6201LLU | 1 | €4.17 | 1-4 weeks to ship | ||
| 210111-5 | BALL BEARING 6201LLU | 1 | €4.17 | 1-4 weeks to ship | ||
| 210111-5 | BALL BEARING 6201LLU | 1 | €4.17 | 1-4 weeks to ship | ||
| 094 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | ||
| 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | ||
| 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | ||
| 096 | SHOULDER HEX. BOLT M6X25 | 2 | Not available in store | |||
| SHOULDER HEX. BOLT M6X25 | 2 | Not available in store | ||||
| SHOULDER HEX. BOLT M6X25 | 2 | Not available in store | ||||
| SHOULDER HEX. BOLT M6X25 | 2 | Not available in store | ||||
| 097 | 267817-6 | WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | |
| 267817-6 | WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 267817-6 | WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 267817-6 | WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 098 | 126135-0 | CLUTCH ASSEMBLY | 1 | €12.52 | 1-4 weeks to ship | |
| 126135-0 | CLUTCH ASSEMBLY | 1 | €12.52 | 1-4 weeks to ship | ||
| 126135-0 | CLUTCH ASSEMBLY | 1 | €12.52 | 1-4 weeks to ship | ||
| 126135-0 | CLUTCH ASSEMBLY | 1 | €12.52 | 1-4 weeks to ship | ||
| 100 | 231881-3 | TENSION SPRING 7 | 1 | €2.50 | 1-4 weeks to ship | |
| 231881-3 | TENSION SPRING 7 | 1 | €2.50 | 1-4 weeks to ship | ||
| 231881-3 | TENSION SPRING 7 | 1 | €2.50 | 1-4 weeks to ship | ||
| 231881-3 | TENSION SPRING 7 | 1 | €2.50 | 1-4 weeks to ship | ||
| 101 | 267812-6 | WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 267812-6 | WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 267812-6 | WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 267812-6 | WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 103 | 318569-3 | FLYWHEEL | 1 | €13.50 | 1-4 weeks to ship | |

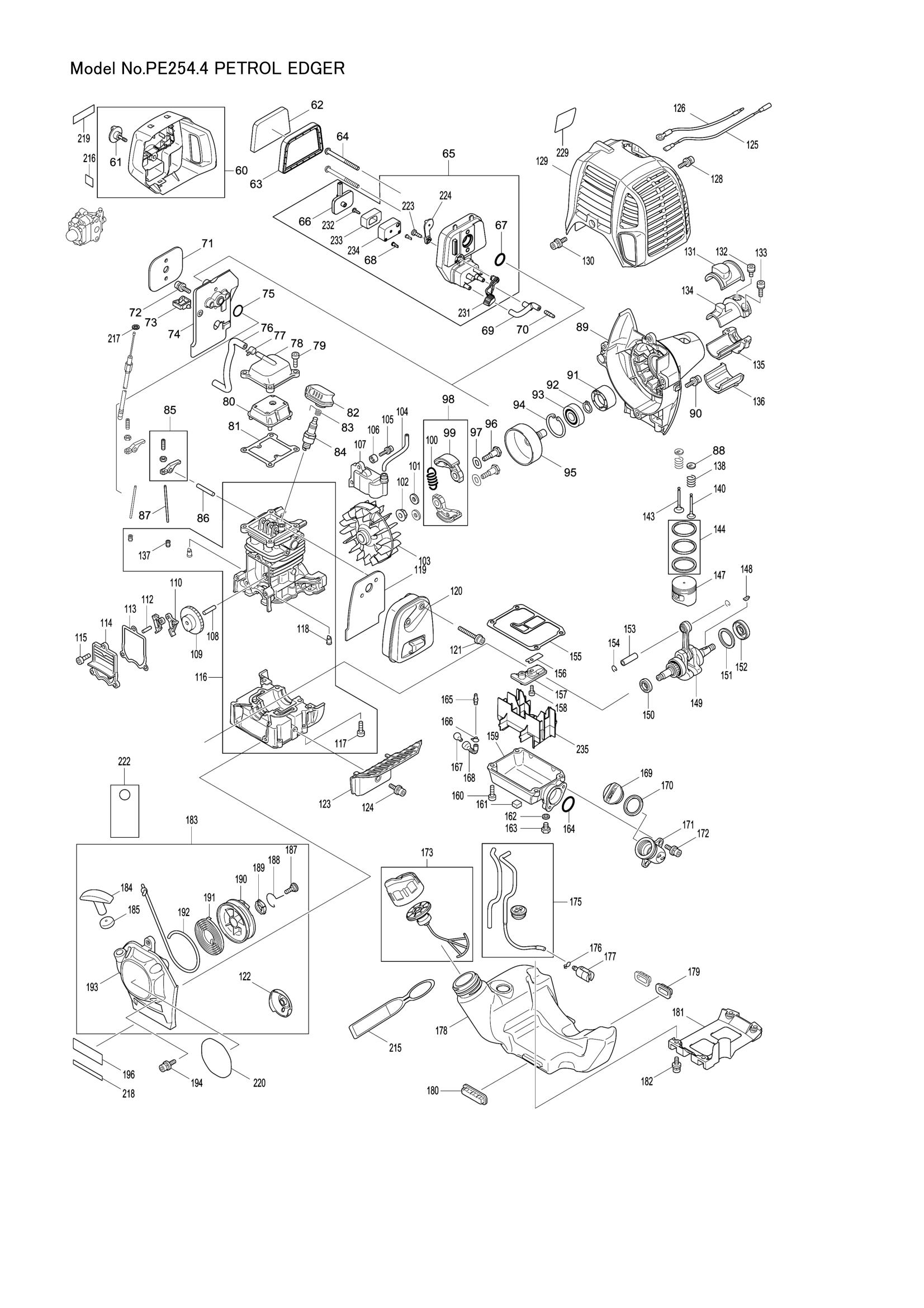

| 318569-3 | FLYWHEEL | 1 | €13.50 | 1-4 weeks to ship | ||
| 318569-3 | FLYWHEEL | 1 | €13.50 | 1-4 weeks to ship | ||
| 318569-3 | FLYWHEEL | 1 | €13.50 | 1-4 weeks to ship | ||
| 104 | 444021-6 | TUBE | 1 | €0.63 | 1-4 weeks to ship | |
| 444021-6 | TUBE | 1 | €0.63 | 1-4 weeks to ship | ||
| 444021-6 | TUBE | 1 | €0.63 | 1-4 weeks to ship | ||
| 444021-6 | TUBE | 1 | €0.63 | 1-4 weeks to ship | ||
| 106 | 452049-0 | SPACER | 2 | €0.42 | 1-4 weeks to ship | |
| 452049-0 | SPACER | 2 | €0.42 | 1-4 weeks to ship | ||
| 452049-0 | SPACER | 2 | €0.42 | 1-4 weeks to ship | ||
| 452049-0 | SPACER | 2 | €0.42 | 1-4 weeks to ship | ||
| 452049-0 | SPACER | 2 | €0.42 | 1-4 weeks to ship | ||
| 452049-0 | SPACER | 2 | €0.42 | 1-4 weeks to ship | ||
| 452049-0 | SPACER | 2 | €0.42 | 1-4 weeks to ship | ||
| 452049-0 | SPACER | 2 | €0.42 | 1-4 weeks to ship | ||
| 107 | IGNITION COIL | 1 | Not available in store | |||
| IGNITION COIL | 1 | Not available in store | ||||
| IGNITION COIL | 1 | Not available in store | ||||
| IGNITION COIL | 1 | Not available in store | ||||
| 108 | 268238-5 | PIN 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 268238-5 | PIN 5 | 1 | €0.83 | 1-4 weeks to ship | ||
| 268238-5 | PIN 5 | 1 | €0.83 | 1-4 weeks to ship | ||
| 268238-5 | PIN 5 | 1 | €0.83 | 1-4 weeks to ship | ||
| 109 | 125552-1 | CAM GEAR ASSEMBLY | 1 | €11.13 | 1-4 weeks to ship | |
| 125552-1 | CAM GEAR ASSEMBLY | 1 | €11.13 | 1-4 weeks to ship | ||
| 125552-1 | CAM GEAR ASSEMBLY | 1 | €11.13 | 1-4 weeks to ship | ||
| 125552-1 | CAM GEAR ASSEMBLY | 1 | €11.13 | 1-4 weeks to ship | ||
| 110 | 313169-4 | CAM LIFTER | 2 | €2.78 | 1-4 weeks to ship | |
| 313169-4 | CAM LIFTER | 2 | €2.78 | 1-4 weeks to ship | ||
| 313169-4 | CAM LIFTER | 2 | €2.78 | 1-4 weeks to ship | ||
| 313169-4 | CAM LIFTER | 2 | €2.78 | 1-4 weeks to ship | ||
| 112 | 268239-3 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 268239-3 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 268239-3 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 268239-3 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 113 | 162274-2 | CAM GEAR COVER GASKET | 1 | €1.67 | 1-4 weeks to ship | |
| 162274-2 | CAM GEAR COVER GASKET | 1 | €1.67 | 1-4 weeks to ship | ||
| 162274-2 | CAM GEAR COVER GASKET | 1 | €1.67 | 1-4 weeks to ship | ||
| 162274-2 | CAM GEAR COVER GASKET | 1 | €1.67 | 1-4 weeks to ship | ||
| 114 | 318443-5 | CAM GEAR COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 318443-5 | CAM GEAR COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 318443-5 | CAM GEAR COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 318443-5 | CAM GEAR COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 116 | 135478-9 | CYLINDER BLOCK ASSEMBLY | 1 | €121.06 | 1-4 weeks to ship | |
| 135478-9 | CYLINDER BLOCK ASSEMBLY | 1 | €121.06 | 1-4 weeks to ship | ||
| 135478-9 | CYLINDER BLOCK ASSEMBLY | 1 | €121.06 | 1-4 weeks to ship | ||
| 135478-9 | CYLINDER BLOCK ASSEMBLY | 1 | €121.06 | 1-4 weeks to ship | ||
| 118 | 424201-0 | CHECK VALVE | 2 | €2.78 | 1-4 weeks to ship | |
| 424201-0 | CHECK VALVE | 2 | €2.78 | 1-4 weeks to ship | ||
| 424201-0 | CHECK VALVE | 2 | €2.78 | 1-4 weeks to ship | ||
| 424201-0 | CHECK VALVE | 2 | €2.78 | 1-4 weeks to ship | ||
| 119 | MUFFLER GASKET | 1 | Not available in store | |||
| MUFFLER GASKET | 1 | Not available in store | ||||
| MUFFLER GASKET | 1 | Not available in store | ||||
| MUFFLER GASKET | 1 | Not available in store | ||||
| 120 | EXHAUST MUFFLER | 1 | Not available in store | |||
| EXHAUST MUFFLER | 1 | Not available in store | ||||
| EXHAUST MUFFLER | 1 | Not available in store | ||||
| EXHAUST MUFFLER | 1 | Not available in store | ||||
| 122 | 168483-1 | PULLEY | 1 | €1.39 | 1-4 weeks to ship | |
| 168483-1 | PULLEY | 1 | €1.39 | 1-4 weeks to ship | ||
| 168483-1 | PULLEY | 1 | €1.39 | 1-4 weeks to ship | ||
| 168483-1 | PULLEY | 1 | €1.39 | 1-4 weeks to ship | ||
| 123 | MUFFLER PLATE | 1 | Not available in store | |||
| MUFFLER PLATE | 1 | Not available in store | ||||
| MUFFLER PLATE | 1 | Not available in store | ||||
| MUFFLER PLATE | 1 | Not available in store | ||||
| 124 | 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 125 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| LEAD UNIT | 1 | Not available in store | ||||
| LEAD UNIT | 1 | Not available in store | ||||
| 126 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| LEAD UNIT | 1 | Not available in store | ||||
| LEAD UNIT | 1 | Not available in store | ||||
| 128 | 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 129 | CYLINDER COVER | 1 | Not available in store | |||
| CYLINDER COVER | 1 | Not available in store | ||||
| CYLINDER COVER | 1 | Not available in store | ||||
| CYLINDER COVER | 1 | Not available in store | ||||
| 130 | 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 131 | 424082-2 | BUFFER RUBBER | 1 | €1.39 | 1-4 weeks to ship | |
| 424082-2 | BUFFER RUBBER | 1 | €1.39 | 1-4 weeks to ship | ||
| 424082-2 | BUFFER RUBBER | 1 | €1.39 | 1-4 weeks to ship | ||
| 424082-2 | BUFFER RUBBER | 1 | €1.39 | 1-4 weeks to ship | ||
| 132 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | €0.56 | 1-4 weeks to ship | |
| 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | €0.56 | 1-4 weeks to ship | ||
| 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | €0.56 | 1-4 weeks to ship | ||
| 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | €0.56 | 1-4 weeks to ship | ||
| 134 | 318249-1 | PIPE HOLDER | 1 | €2.78 | 1-4 weeks to ship | |
| 318249-1 | PIPE HOLDER | 1 | €2.78 | 1-4 weeks to ship | ||
| 318249-1 | PIPE HOLDER | 1 | €2.78 | 1-4 weeks to ship | ||
| 318249-1 | PIPE HOLDER | 1 | €2.78 | 1-4 weeks to ship | ||
| 135 | 318250-6 | PIPE HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 318250-6 | PIPE HOLDER | 1 | €4.17 | 1-4 weeks to ship | ||
| 318250-6 | PIPE HOLDER | 1 | €4.17 | 1-4 weeks to ship | ||
| 318250-6 | PIPE HOLDER | 1 | €4.17 | 1-4 weeks to ship | ||
| 136 | 424083-0 | BUFFER RUBBER | 1 | €1.39 | 1-4 weeks to ship | |
| 424083-0 | BUFFER RUBBER | 1 | €1.39 | 1-4 weeks to ship | ||
| 424083-0 | BUFFER RUBBER | 1 | €1.39 | 1-4 weeks to ship | ||
| 424083-0 | BUFFER RUBBER | 1 | €1.39 | 1-4 weeks to ship | ||
| 137 | 424200-2 | SPACER | 2 | €0.56 | 1-4 weeks to ship | |
| 424200-2 | SPACER | 2 | €0.56 | 1-4 weeks to ship | ||
| 424200-2 | SPACER | 2 | €0.56 | 1-4 weeks to ship | ||
| 424200-2 | SPACER | 2 | €0.56 | 1-4 weeks to ship | ||
| 138 | 234108-0 | COMPRESSION SPRING 9 | 2 | €0.83 | 1-4 weeks to ship | |
| 234108-0 | COMPRESSION SPRING 9 | 2 | €0.83 | 1-4 weeks to ship | ||
| 234108-0 | COMPRESSION SPRING 9 | 2 | €0.83 | 1-4 weeks to ship | ||
| 234108-0 | COMPRESSION SPRING 9 | 2 | €0.83 | 1-4 weeks to ship | ||
| 144 | 195145-8 | PISTON RING SET | 1 | €6.26 | 1-4 weeks to ship | |
| 195145-8 | PISTON RING SET | 1 | €6.26 | 1-4 weeks to ship | ||
| 195145-8 | PISTON RING SET | 1 | €6.26 | 1-4 weeks to ship | ||
| 195145-8 | PISTON RING SET | 1 | €6.26 | 1-4 weeks to ship | ||
| 147 | 318441-9 | PISTON | 1 | €8.35 | 1-4 weeks to ship | |
| 318441-9 | PISTON | 1 | €8.35 | 1-4 weeks to ship | ||
| 318441-9 | PISTON | 1 | €8.35 | 1-4 weeks to ship | ||
| 318441-9 | PISTON | 1 | €8.35 | 1-4 weeks to ship | ||
| 148 | 254040-2 | WOODRUFF KEY 3 | 1 | €2.78 | 1-4 weeks to ship | |
| 254040-2 | WOODRUFF KEY 3 | 1 | €2.78 | 1-4 weeks to ship | ||
| 254040-2 | WOODRUFF KEY 3 | 1 | €2.78 | 1-4 weeks to ship | ||
| 254040-2 | WOODRUFF KEY 3 | 1 | €2.78 | 1-4 weeks to ship | ||
| 151 | 267400-9 | FLAT WASHER 23 | 1 | €0.56 | 1-4 weeks to ship | |
| 267400-9 | FLAT WASHER 23 | 1 | €0.56 | 1-4 weeks to ship | ||
| 267400-9 | FLAT WASHER 23 | 1 | €0.56 | 1-4 weeks to ship | ||
| 267400-9 | FLAT WASHER 23 | 1 | €0.56 | 1-4 weeks to ship | ||
| 153 | 257781-9 | PISTON PIN | 1 | €0.83 | 1-4 weeks to ship | |
| 257781-9 | PISTON PIN | 1 | €0.83 | 1-4 weeks to ship | ||
| 257781-9 | PISTON PIN | 1 | €0.83 | 1-4 weeks to ship | ||
| 257781-9 | PISTON PIN | 1 | €0.83 | 1-4 weeks to ship | ||
| 154 | 233976-8 | CLIP | 2 | €0.56 | 1-4 weeks to ship | |
| 233976-8 | CLIP | 2 | €0.56 | 1-4 weeks to ship | ||
| 233976-8 | CLIP | 2 | €0.56 | 1-4 weeks to ship | ||
| 233976-8 | CLIP | 2 | €0.56 | 1-4 weeks to ship | ||
| 155 | 162345-5 | OIL CASE GASKET | 1 | €2.78 | 1-4 weeks to ship | |
| 162345-5 | OIL CASE GASKET | 1 | €2.78 | 1-4 weeks to ship | ||
| 162345-5 | OIL CASE GASKET | 1 | €2.78 | 1-4 weeks to ship | ||
| 162345-5 | OIL CASE GASKET | 1 | €2.78 | 1-4 weeks to ship | ||
| 156 | 346083-9 | LEAD VALVE | 1 | €1.67 | 1-4 weeks to ship | |
| 346083-9 | LEAD VALVE | 1 | €1.67 | 1-4 weeks to ship | ||
| 346083-9 | LEAD VALVE | 1 | €1.67 | 1-4 weeks to ship | ||
| 346083-9 | LEAD VALVE | 1 | €1.67 | 1-4 weeks to ship | ||
| 157 | 318910-0 | RETAINER PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 318910-0 | RETAINER PLATE | 1 | €1.67 | 1-4 weeks to ship | ||
| 318910-0 | RETAINER PLATE | 1 | €1.67 | 1-4 weeks to ship | ||
| 318910-0 | RETAINER PLATE | 1 | €1.67 | 1-4 weeks to ship | ||
| 159 | OIL CASE | 1 | Not available in store | |||
| OIL CASE | 1 | Not available in store | ||||
| OIL CASE | 1 | Not available in store | ||||
| OIL CASE | 1 | Not available in store | ||||
| 161 | DAMPER | 1 | Not available in store | |||
| DAMPER | 1 | Not available in store | ||||
| DAMPER | 1 | Not available in store | ||||
| DAMPER | 1 | Not available in store | ||||
| 162 | 346305-7 | GASKET | 1 | €0.14 | 1-4 weeks to ship | |
| 346305-7 | GASKET | 1 | €0.14 | 1-4 weeks to ship | ||
| 346305-7 | GASKET | 1 | €0.14 | 1-4 weeks to ship | ||
| 346305-7 | GASKET | 1 | €0.14 | 1-4 weeks to ship | ||
| 163 | 266611-3 | HEX BOLT M6X8 | 1 | €0.14 | 1-4 weeks to ship | |
| 266611-3 | HEX BOLT M6X8 | 1 | €0.14 | 1-4 weeks to ship | ||
| 266611-3 | HEX BOLT M6X8 | 1 | €0.14 | 1-4 weeks to ship | ||
| 266611-3 | HEX BOLT M6X8 | 1 | €0.14 | 1-4 weeks to ship | ||
| 164 | 213548-5 | O-RING 20 | 1 | €1.81 | 1-4 weeks to ship | |
| 213548-5 | O-RING 20 | 1 | €1.81 | 1-4 weeks to ship | ||
| 213548-5 | O-RING 20 | 1 | €1.81 | 1-4 weeks to ship | ||
| 213548-5 | O-RING 20 | 1 | €1.81 | 1-4 weeks to ship | ||
| 165 | 325665-0 | JOINT PIPE | 1 | €0.56 | 1-4 weeks to ship | |
| 325665-0 | JOINT PIPE | 1 | €0.56 | 1-4 weeks to ship | ||
| 325665-0 | JOINT PIPE | 1 | €0.56 | 1-4 weeks to ship | ||
| 325665-0 | JOINT PIPE | 1 | €0.56 | 1-4 weeks to ship | ||
| 169 | 452047-4 | OIL CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 452047-4 | OIL CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 452047-4 | OIL CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 452047-4 | OIL CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 170 | 424343-0 | GASKET | 1 | €0.97 | 1-4 weeks to ship | |
| 424343-0 | GASKET | 1 | €0.97 | 1-4 weeks to ship | ||
| 424343-0 | GASKET | 1 | €0.97 | 1-4 weeks to ship | ||
| 424343-0 | GASKET | 1 | €0.97 | 1-4 weeks to ship | ||
| 171 | OIL PIPE | 1 | Not available in store | |||
| OIL PIPE | 1 | Not available in store | ||||
| OIL PIPE | 1 | Not available in store | ||||
| OIL PIPE | 1 | Not available in store | ||||
| 172 | 922218-2 | H.S.H.BOLT M5X14 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 175 | TUBE COMPLETE | 1 | Not available in store | |||
| TUBE COMPLETE | 1 | Not available in store | ||||
| TUBE COMPLETE | 1 | Not available in store | ||||
| TUBE COMPLETE | 1 | Not available in store | ||||
| 176 | 282020-8 | HOSE CLAMP | 1 | €0.56 | 1-4 weeks to ship | |
| 282020-8 | HOSE CLAMP | 1 | €0.56 | 1-4 weeks to ship | ||
| 282020-8 | HOSE CLAMP | 1 | €0.56 | 1-4 weeks to ship | ||
| 282020-8 | HOSE CLAMP | 1 | €0.56 | 1-4 weeks to ship | ||
| 177 | 163518-3 | GASOLINE FILTER | 1 | €3.34 | 1-4 weeks to ship | |
| 163518-3 | GASOLINE FILTER | 1 | €3.34 | 1-4 weeks to ship | ||
| 163518-3 | GASOLINE FILTER | 1 | €3.34 | 1-4 weeks to ship | ||
| 163518-3 | GASOLINE FILTER | 1 | €3.34 | 1-4 weeks to ship | ||
| 178 | FUEL TANK | 1 | Not available in store | |||
| FUEL TANK | 1 | Not available in store | ||||
| FUEL TANK | 1 | Not available in store | ||||
| FUEL TANK | 1 | Not available in store | ||||
| 179 | 424080-6 | BUFFER RUBBER | 2 | €0.83 | 1-4 weeks to ship | |
| 424080-6 | BUFFER RUBBER | 2 | €0.83 | 1-4 weeks to ship | ||
| 424080-6 | BUFFER RUBBER | 2 | €0.83 | 1-4 weeks to ship | ||
| 424080-6 | BUFFER RUBBER | 2 | €0.83 | 1-4 weeks to ship | ||
| 180 | 424081-4 | BUFFER RUBBER | 1 | €0.83 | 1-4 weeks to ship | |
| 424081-4 | BUFFER RUBBER | 1 | €0.83 | 1-4 weeks to ship | ||
| 424081-4 | BUFFER RUBBER | 1 | €0.83 | 1-4 weeks to ship | ||
| 424081-4 | BUFFER RUBBER | 1 | €0.83 | 1-4 weeks to ship | ||
| 181 | TANK GUARD | 1 | Not available in store | |||
| TANK GUARD | 1 | Not available in store | ||||
| TANK GUARD | 1 | Not available in store | ||||
| TANK GUARD | 1 | Not available in store | ||||
| 182 | 922218-2 | H.S.H.BOLT M5X14 WITH WR | 4 | €0.56 | 1-4 weeks to ship | |
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 183 | 195308-6 | RECOIL STARTER SET | 1 | €30.61 | 1-4 weeks to ship | |
| 195308-6 | RECOIL STARTER SET | 1 | €30.61 | 1-4 weeks to ship | ||
| 195308-6 | RECOIL STARTER SET | 1 | €30.61 | 1-4 weeks to ship | ||
| 195308-6 | RECOIL STARTER SET | 1 | €30.61 | 1-4 weeks to ship | ||
| 184 | 424319-7 | STARTER KNOB | 1 | €2.78 | 1-4 weeks to ship | |
| 424319-7 | STARTER KNOB | 1 | €2.78 | 1-4 weeks to ship | ||
| 424319-7 | STARTER KNOB | 1 | €2.78 | 1-4 weeks to ship | ||
| 424319-7 | STARTER KNOB | 1 | €2.78 | 1-4 weeks to ship | ||
| 185 | DAMPER | 1 | Not available in store | |||
| DAMPER | 1 | Not available in store | ||||
| DAMPER | 1 | Not available in store | ||||
| DAMPER | 1 | Not available in store | ||||
| 187 | 266585-8 | TAPPING SCREW 5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 266585-8 | TAPPING SCREW 5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 266585-8 | TAPPING SCREW 5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 266585-8 | TAPPING SCREW 5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 188 | 325923-4 | SWING ARM | 1 | €0.56 | 1-4 weeks to ship | |
| 325923-4 | SWING ARM | 1 | €0.56 | 1-4 weeks to ship | ||
| 325923-4 | SWING ARM | 1 | €0.56 | 1-4 weeks to ship | ||
| 325923-4 | SWING ARM | 1 | €0.56 | 1-4 weeks to ship | ||
| 189 | 451938-6 | COLLAR | 1 | €0.83 | 1-4 weeks to ship | |
| 451938-6 | COLLAR | 1 | €0.83 | 1-4 weeks to ship | ||
| 451938-6 | COLLAR | 1 | €0.83 | 1-4 weeks to ship | ||
| 451938-6 | COLLAR | 1 | €0.83 | 1-4 weeks to ship | ||
| 190 | 451937-8 | REEL | 1 | €4.17 | 1-4 weeks to ship | |
| 451937-8 | REEL | 1 | €4.17 | 1-4 weeks to ship | ||
| 451937-8 | REEL | 1 | €4.17 | 1-4 weeks to ship | ||
| 451937-8 | REEL | 1 | €4.17 | 1-4 weeks to ship | ||
| 191 | 232258-5 | SPIRAL SPRING | 1 | €5.57 | 1-4 weeks to ship | |
| 232258-5 | SPIRAL SPRING | 1 | €5.57 | 1-4 weeks to ship | ||
| 232258-5 | SPIRAL SPRING | 1 | €5.57 | 1-4 weeks to ship | ||
| 232258-5 | SPIRAL SPRING | 1 | €5.57 | 1-4 weeks to ship | ||
| 192 | 444023-2 | STARTER ROPE | 1 | €1.25 | 1-4 weeks to ship | |
| 444023-2 | STARTER ROPE | 1 | €1.25 | 1-4 weeks to ship | ||
| 444023-2 | STARTER ROPE | 1 | €1.25 | 1-4 weeks to ship | ||
| 444023-2 | STARTER ROPE | 1 | €1.25 | 1-4 weeks to ship | ||
| 193 | STARTER CASE | 1 | Not available in store | |||
| STARTER CASE | 1 | Not available in store | ||||
| STARTER CASE | 1 | Not available in store | ||||
| STARTER CASE | 1 | Not available in store | ||||
| 194 | 922223-9 | H.S.H.BOLT M5X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | |
| 922223-9 | H.S.H.BOLT M5X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 922223-9 | H.S.H.BOLT M5X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 922223-9 | H.S.H.BOLT M5X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 196 | DOLMAR LOGO LABEL | 1 | Not available in store | |||
| DOLMAR LOGO LABEL | 1 | Not available in store | ||||
| DOLMAR LOGO LABEL | 1 | Not available in store | ||||
| DOLMAR LOGO LABEL | 1 | Not available in store | ||||

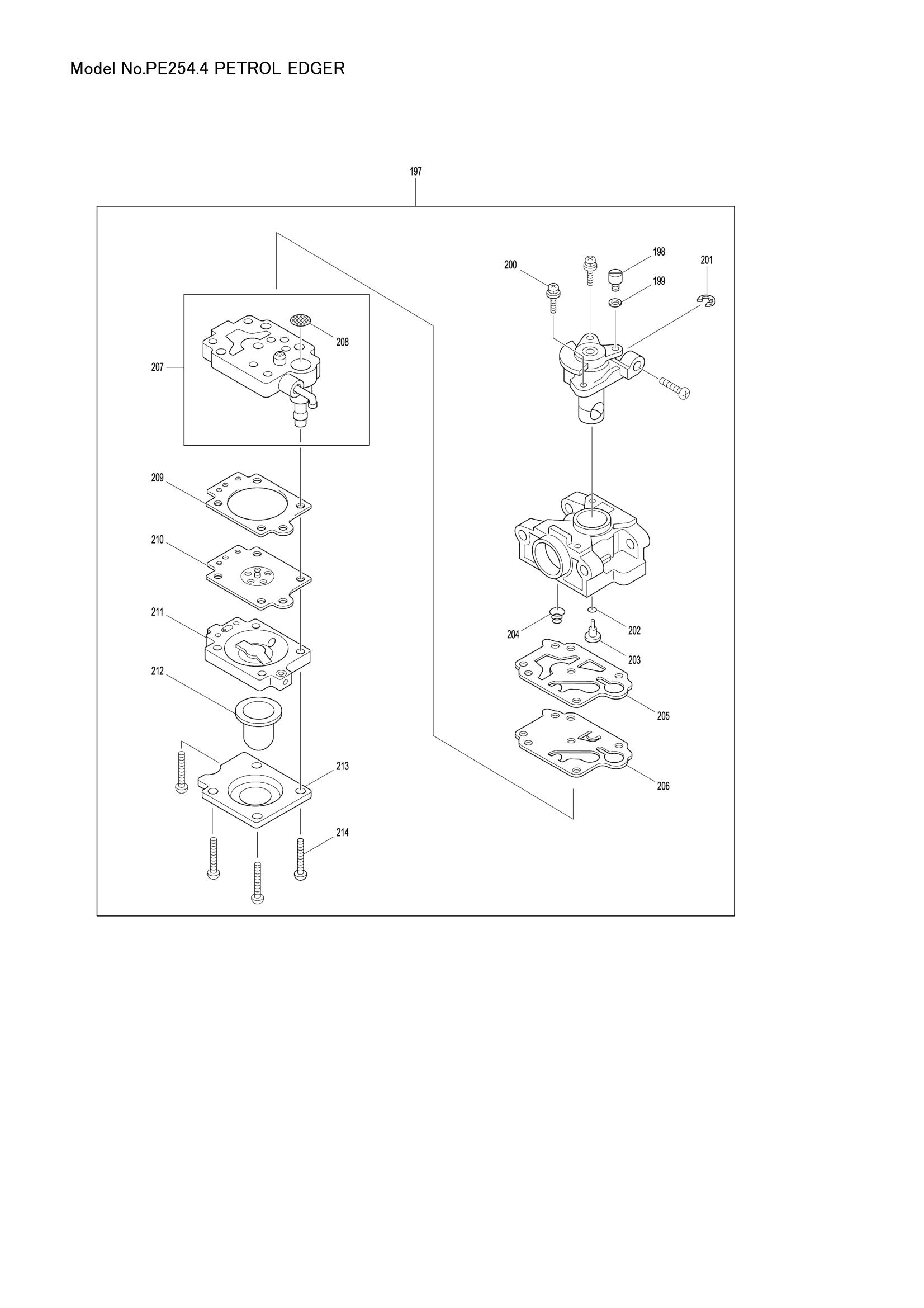

| 197 | 168762-7 | CARBURETOR | 1 | €64.01 | 1-4 weeks to ship | |
| 168762-7 | CARBURETOR | 1 | €64.01 | 1-4 weeks to ship | ||
| 168762-7 | CARBURETOR | 1 | €64.01 | 1-4 weeks to ship | ||
| 168762-7 | CARBURETOR | 1 | €64.01 | 1-4 weeks to ship | ||
| 198 | 325922-6 | SWIVEL | 1 | €4.17 | 1-4 weeks to ship | |
| 325922-6 | SWIVEL | 1 | €4.17 | 1-4 weeks to ship | ||
| 325922-6 | SWIVEL | 1 | €4.17 | 1-4 weeks to ship | ||
| 325922-6 | SWIVEL | 1 | €4.17 | 1-4 weeks to ship | ||
| 199 | 413140-9 | WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 413140-9 | WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 413140-9 | WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 413140-9 | WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 201 | 257964-1 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 257964-1 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 257964-1 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 257964-1 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 202 | 213538-8 | O RING 2 | 1 | €2.78 | 1-4 weeks to ship | |
| 213538-8 | O RING 2 | 1 | €2.78 | 1-4 weeks to ship | ||
| 213538-8 | O RING 2 | 1 | €2.78 | 1-4 weeks to ship | ||
| 213538-8 | O RING 2 | 1 | €2.78 | 1-4 weeks to ship | ||
| 203 | JET | 1 | Not available in store | |||
| JET | 1 | Not available in store | ||||
| JET | 1 | Not available in store | ||||
| JET | 1 | Not available in store | ||||
| 205 | 442155-9 | PUMP GASKET | 1 | €2.78 | 1-4 weeks to ship | |
| 442155-9 | PUMP GASKET | 1 | €2.78 | 1-4 weeks to ship | ||
| 442155-9 | PUMP GASKET | 1 | €2.78 | 1-4 weeks to ship | ||
| 442155-9 | PUMP GASKET | 1 | €2.78 | 1-4 weeks to ship | ||
| 207 | 141737-1 | PUMP BODY | 1 | €22.26 | 1-4 weeks to ship | |
| 141737-1 | PUMP BODY | 1 | €22.26 | 1-4 weeks to ship | ||
| 141737-1 | PUMP BODY | 1 | €22.26 | 1-4 weeks to ship | ||
| 141737-1 | PUMP BODY | 1 | €22.26 | 1-4 weeks to ship | ||
| 208 | INLET SCREEN | 1 | Not available in store | |||
| INLET SCREEN | 1 | Not available in store | ||||
| INLET SCREEN | 1 | Not available in store | ||||
| INLET SCREEN | 1 | Not available in store | ||||
| 210 | 168620-7 | METERING DIAPHRAGM | 1 | €11.13 | 1-4 weeks to ship | |
| 168620-7 | METERING DIAPHRAGM | 1 | €11.13 | 1-4 weeks to ship | ||
| 168620-7 | METERING DIAPHRAGM | 1 | €11.13 | 1-4 weeks to ship | ||
| 168620-7 | METERING DIAPHRAGM | 1 | €11.13 | 1-4 weeks to ship | ||
| 211 | 140438-8 | AIR PURGE BODY | 1 | €11.13 | 1-4 weeks to ship | |
| 140438-8 | AIR PURGE BODY | 1 | €11.13 | 1-4 weeks to ship | ||
| 140438-8 | AIR PURGE BODY | 1 | €11.13 | 1-4 weeks to ship | ||
| 140438-8 | AIR PURGE BODY | 1 | €11.13 | 1-4 weeks to ship | ||
| 212 | 424314-7 | PRIMER PUMP | 1 | €4.17 | 1-4 weeks to ship | |
| 424314-7 | PRIMER PUMP | 1 | €4.17 | 1-4 weeks to ship | ||
| 424314-7 | PRIMER PUMP | 1 | €4.17 | 1-4 weeks to ship | ||
| 424314-7 | PRIMER PUMP | 1 | €4.17 | 1-4 weeks to ship | ||
| 213 | 346270-0 | PRIMER PUMP COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 346270-0 | PRIMER PUMP COVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 346270-0 | PRIMER PUMP COVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 346270-0 | PRIMER PUMP COVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 214 | 266582-4 | TAPPING SCREW 3X24 | 4 | €2.23 | 1-4 weeks to ship | |
| 266582-4 | TAPPING SCREW 3X24 | 4 | €2.23 | 1-4 weeks to ship | ||
| 266582-4 | TAPPING SCREW 3X24 | 4 | €2.23 | 1-4 weeks to ship | ||
| 266582-4 | TAPPING SCREW 3X24 | 4 | €2.23 | 1-4 weeks to ship | ||
| 215 | CAUTION PLATE | 1 | Not available in store | |||
| CAUTION PLATE | 1 | Not available in store | ||||
| CAUTION PLATE | 1 | Not available in store | ||||
| CAUTION PLATE | 1 | Not available in store | ||||
| 216 | 800F73-7 | INDICATION LABEL | 1 | €0.14 | 1-4 weeks to ship | |
| 800F73-7 | INDICATION LABEL | 1 | €0.14 | 1-4 weeks to ship | ||
| 800F73-7 | INDICATION LABEL | 1 | €0.14 | 1-4 weeks to ship | ||
| 800F73-7 | INDICATION LABEL | 1 | €0.14 | 1-4 weeks to ship | ||
| 217 | 941152-7 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941152-7 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941152-7 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941152-7 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 218 | SERIAL NO. LABEL | 1 | Not available in store | |||
| SERIAL NO. LABEL | 1 | Not available in store | ||||
| SERIAL NO. LABEL | 1 | Not available in store | ||||
| SERIAL NO. LABEL | 1 | Not available in store | ||||
| 220 | PE-254.4 MODEL NO. LABEL | 1 | Not available in store | |||
| PE-254.4 MODEL NO. LABEL | 1 | Not available in store | ||||
| PE-254.4 MODEL NO. LABEL | 1 | Not available in store | ||||
| PE-254.4 MODEL NO. LABEL | 1 | Not available in store | ||||
| 222 | CAUTION TAG | 1 | Not available in store | |||
| CAUTION TAG | 1 | Not available in store | ||||
| CAUTION TAG | 1 | Not available in store | ||||
| CAUTION TAG | 1 | Not available in store | ||||
| 223 | 266427-6 | TAPPING SCREW 4X12 | 1 | €0.14 | 1-4 weeks to ship | |
| 266427-6 | TAPPING SCREW 4X12 | 1 | €0.14 | 1-4 weeks to ship | ||
| 266427-6 | TAPPING SCREW 4X12 | 1 | €0.14 | 1-4 weeks to ship | ||
| 266427-6 | TAPPING SCREW 4X12 | 1 | €0.14 | 1-4 weeks to ship | ||
| 224 | CHOKE PLATE | 1 | Not available in store | |||
| CHOKE PLATE | 1 | Not available in store | ||||
| CHOKE PLATE | 1 | Not available in store | ||||
| CHOKE PLATE | 1 | Not available in store | ||||
| 230 | 443170-6 | FELT | 1 | €2.78 | 1-4 weeks to ship | |
| 443170-6 | FELT | 1 | €2.78 | 1-4 weeks to ship | ||
| 443170-6 | FELT | 1 | €2.78 | 1-4 weeks to ship | ||
| 443170-6 | FELT | 1 | €2.78 | 1-4 weeks to ship | ||
| 231 | CHOKE LEVER | 1 | Not available in store | |||
| CHOKE LEVER | 1 | Not available in store | ||||
| CHOKE LEVER | 1 | Not available in store | ||||
| CHOKE LEVER | 1 | Not available in store | ||||
| 233 | 352020-3 | SEPARATOR MESH | 1 | €3.48 | 1-4 weeks to ship | |
| 352020-3 | SEPARATOR MESH | 1 | €3.48 | 1-4 weeks to ship | ||
| 352020-3 | SEPARATOR MESH | 1 | €3.48 | 1-4 weeks to ship | ||
| 352020-3 | SEPARATOR MESH | 1 | €3.48 | 1-4 weeks to ship | ||
| 234 | 453865-3 | SEPARATOR CASE | 1 | €1.95 | 1-4 weeks to ship | |
| 453865-3 | SEPARATOR CASE | 1 | €1.95 | 1-4 weeks to ship | ||
| 453865-3 | SEPARATOR CASE | 1 | €1.95 | 1-4 weeks to ship | ||
| 453865-3 | SEPARATOR CASE | 1 | €1.95 | 1-4 weeks to ship | ||
| 453865-3 | SEPARATOR CASE | 1 | €1.95 | 1-4 weeks to ship | ||
| 453865-3 | SEPARATOR CASE | 1 | €1.95 | 1-4 weeks to ship | ||
| 453865-3 | SEPARATOR CASE | 1 | €1.95 | 1-4 weeks to ship | ||
| 453865-3 | SEPARATOR CASE | 1 | €1.95 | 1-4 weeks to ship | ||
| 235 | 453862-9 | OIL CASE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 453862-9 | OIL CASE PLATE | 1 | €1.67 | 1-4 weeks to ship | ||
| 453862-9 | OIL CASE PLATE | 1 | €1.67 | 1-4 weeks to ship | ||
| 453862-9 | OIL CASE PLATE | 1 | €1.67 | 1-4 weeks to ship | ||
| 453862-9 | OIL CASE PLATE | 1 | €1.67 | 1-4 weeks to ship | ||
| 453862-9 | OIL CASE PLATE | 1 | €1.67 | 1-4 weeks to ship | ||
| 453862-9 | OIL CASE PLATE | 1 | €1.67 | 1-4 weeks to ship | ||
| 453862-9 | OIL CASE PLATE | 1 | €1.67 | 1-4 weeks to ship | ||
| 237 | 234355-3 | RING SPRING 5 S | 1 | €0.14 | 1-4 weeks to ship | |
| 234355-3 | RING SPRING 5 S | 1 | €0.14 | 1-4 weeks to ship | ||
| 234355-3 | RING SPRING 5 S | 1 | €0.14 | 1-4 weeks to ship | ||
| 234355-3 | RING SPRING 5 S | 1 | €0.14 | 1-4 weeks to ship | ||
