PB002G
PB002G

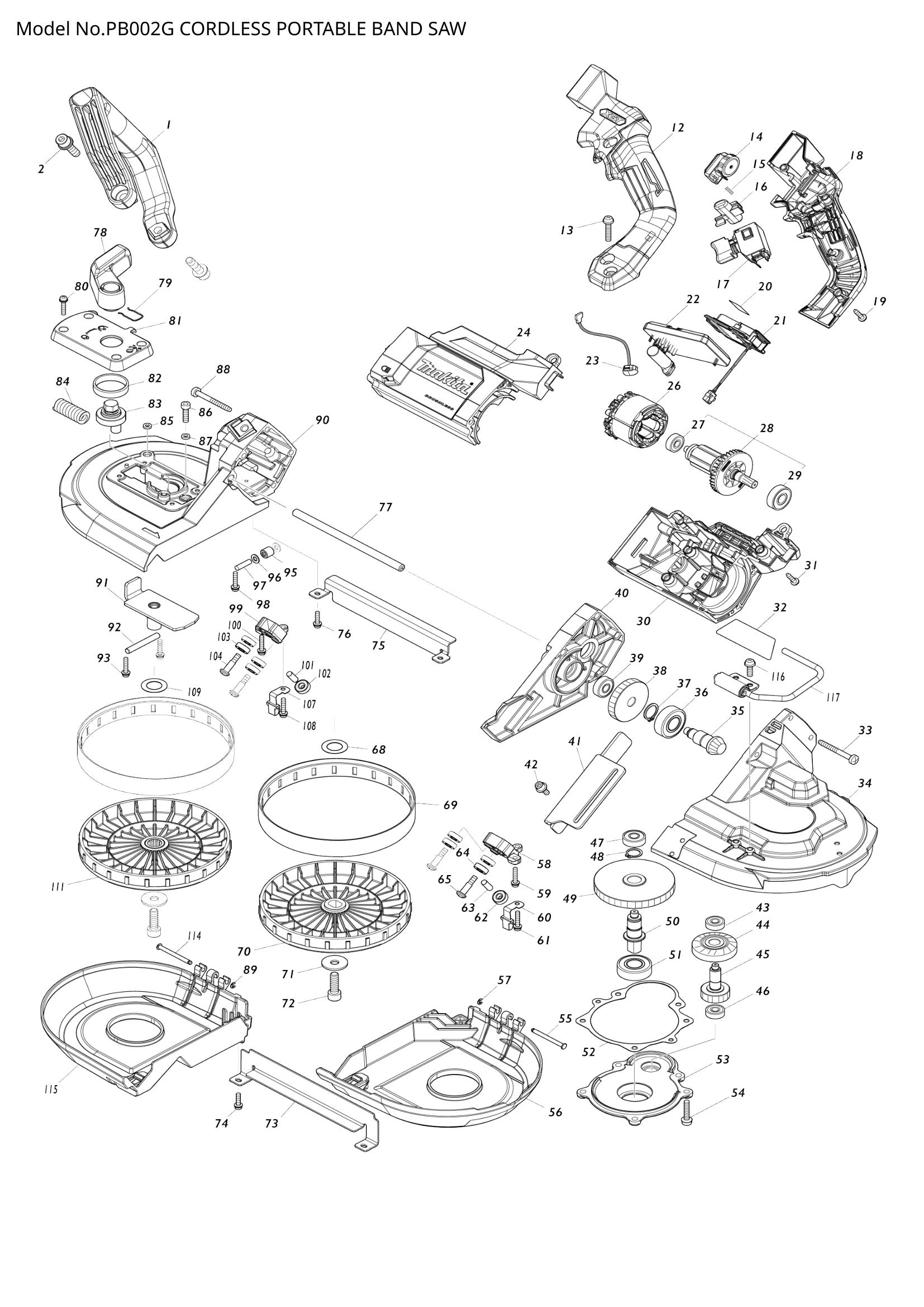

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | GRIP | 1 | Not available in store | |||
| 002 | 922453-2 | HEX.SOCKET HEAD BOLT M8X30 | 2 | €0.56 | 1-4 weeks to ship | |
| 922453-2 | HEX.SOCKET HEAD BOLT M8X30 | 2 | €0.56 | 1-4 weeks to ship | ||
| 012 | HANDLE SET | 1 | Not available in store | |||
| 013 | 911243-8 | PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 014 | DIAL CURCUIT | 1 | Not available in store | |||
| 015 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | LOCK OFF BUTTON | 1 | Not available in store | |||
| 017 | SWITCH C3JW-4B-R | 1 | Not available in store | |||
| 018 | HANDLE SET | 1 | Not available in store | |||
| 019 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 020 | PB002G SERIAL NO. LABEL | 1 | Not available in store | |||
| 021 | 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | |
| 023 | 620549-0 | LED CIRCUIT | 1 | €4.04 | 1-4 weeks to ship | |
| 620549-0 | LED CIRCUIT | 1 | €4.04 | 1-4 weeks to ship | ||
| 024 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 027 | 210017-7 | BALL BEARING 607DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 028 | ROTOR ASS'Y | 1 | Not available in store | |||
| 030 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 031 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 032 | PB002G NAME PLATE | 1 | Not available in store | |||
| 033 | 266056-5 | TAPPING SCREW 5X45 | 4 | €0.83 | 1-4 weeks to ship | |
| 034 | REAR FRAME COMPLETE | 1 | Not available in store | |||
| 035 | SPIRAL BEVEL GEAR 11 | 1 | Not available in store | |||
| 036 | BALL BEARING 6202DDW | 1 | Not available in store | |||
| 037 | 961055-9 | RETAINING RING S-15 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | HELICAL GEAR 61 | 1 | Not available in store | |||
| 039 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 040 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| 041 | STOPPER PLATE | 1 | Not available in store | |||
| 042 | H.S.H.BOLT M5X16 WITH WG | 2 | Not available in store | |||
| 043 | 210017-7 | BALL BEARING 607DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 044 | SPIRAL BEVEL GEAR 29 | 1 | Not available in store | |||
| 045 | SPUR GEAR 12 | 1 | Not available in store | |||
| 046 | 210017-7 | BALL BEARING 607DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 047 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 048 | 961054-1 | RETAINING RING S-14 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | SPUR GEAR 39 | 1 | Not available in store | |||
| 050 | SPINDLE | 1 | Not available in store | |||
| 051 | BALL BEARING 6202DDW | 1 | Not available in store | |||
| 052 | GASKET | 1 | Not available in store | |||
| 053 | BEARING BOX | 1 | Not available in store | |||
| 054 | 911243-8 | PAN HEAD SCREW M5X25 | 5 | €0.56 | 1-4 weeks to ship | |
| 055 | 256689-4 | PIN 4 | 1 | €2.78 | 1-4 weeks to ship | |
| 057 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | LOWER HOLDER | 1 | Not available in store | |||
| 059 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | HOOK | 1 | Not available in store | |||
| 061 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 210187-2 | BALL BEARING 696ZZ | 1 | €0.70 | 1-4 weeks to ship | |
| 063 | 256033-5 | PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 210187-2 | BALL BEARING 696ZZ | 4 | €0.70 | 1-4 weeks to ship | |
| 065 | 251337-0 | + PAN HEAD SCREW M5 | 2 | €2.78 | 1-4 weeks to ship | |
| 068 | 267164-5 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 421333-4 | RUBBER TIRE | 2 | €4.17 | 1-4 weeks to ship | |
| 070 | WHEEL B | 1 | Not available in store | |||
| 071 | 253852-0 | FLAT WASHER 8 | 2 | €1.39 | 1-4 weeks to ship | |
| 072 | H.S. HEAD BOLT M8X25 | 2 | Not available in store | |||
| 073 | SAW GUARD COVER | 1 | Not available in store | |||
| 074 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 075 | SAW GUARD | 1 | Not available in store | |||
| 076 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 077 | GUARD ROD 8 | 1 | Not available in store | |||
| 078 | LEVER 65 | 1 | Not available in store | |||
| 079 | 231955-0 | RING SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 080 | 911138-5 | P.H.SCREW M4X20 WITH WR | 4 | €0.56 | 1-4 weeks to ship | |
| 081 | LEVER HOLDER | 1 | Not available in store | |||
| 082 | PLANE BEARING 30 | 1 | Not available in store | |||
| 083 | 326351-6 | LEVER SHAFT | 1 | €4.17 | 1-4 weeks to ship | |
| 084 | COMPRESSION SPRING 9 | 1 | Not available in store | |||
| 085 | 262130-7 | URETHANE RING 4 | 1 | €0.83 | 1-4 weeks to ship | |
| 086 | 265382-9 | HEX. SOCKET HEAD BOLT M5X20 | 1 | €0.83 | 1-4 weeks to ship | |
| 087 | 262130-7 | URETHANE RING 4 | 1 | €0.83 | 1-4 weeks to ship | |
| 088 | 266056-5 | TAPPING SCREW 5X45 | 4 | €0.83 | 1-4 weeks to ship | |
| 089 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 090 | FRONT FRAME COMPLETE | 1 | Not available in store | |||
| 091 | SLIDE PLATE | 1 | Not available in store | |||
| 092 | 268241-6 | PIN 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 093 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 095 | NEEDLE BEARING 510 | 1 | Not available in store | |||
| 096 | 267010-2 | FLAT WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 097 | 256155-1 | PIN 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 098 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 100 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 101 | 256033-5 | PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 102 | 210187-2 | BALL BEARING 696ZZ | 1 | €0.70 | 1-4 weeks to ship | |
| 103 | 210187-2 | BALL BEARING 696ZZ | 4 | €0.70 | 1-4 weeks to ship | |
| 104 | 251337-0 | + PAN HEAD SCREW M5 | 2 | €2.78 | 1-4 weeks to ship | |
| 107 | HOOK | 1 | Not available in store | |||
| 108 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 109 | 267164-5 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 111 | WHEEL COMPLETE A | 1 | Not available in store | |||
| 114 | 256689-4 | PIN 4 | 1 | €2.78 | 1-4 weeks to ship | |
| 116 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 117 | HOOK ASSEMBLY | 1 | Not available in store | |||
| 118 | 263027-3 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 119 | CONTROLLER B S | 1 | Not available in store | |||
| 120 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
