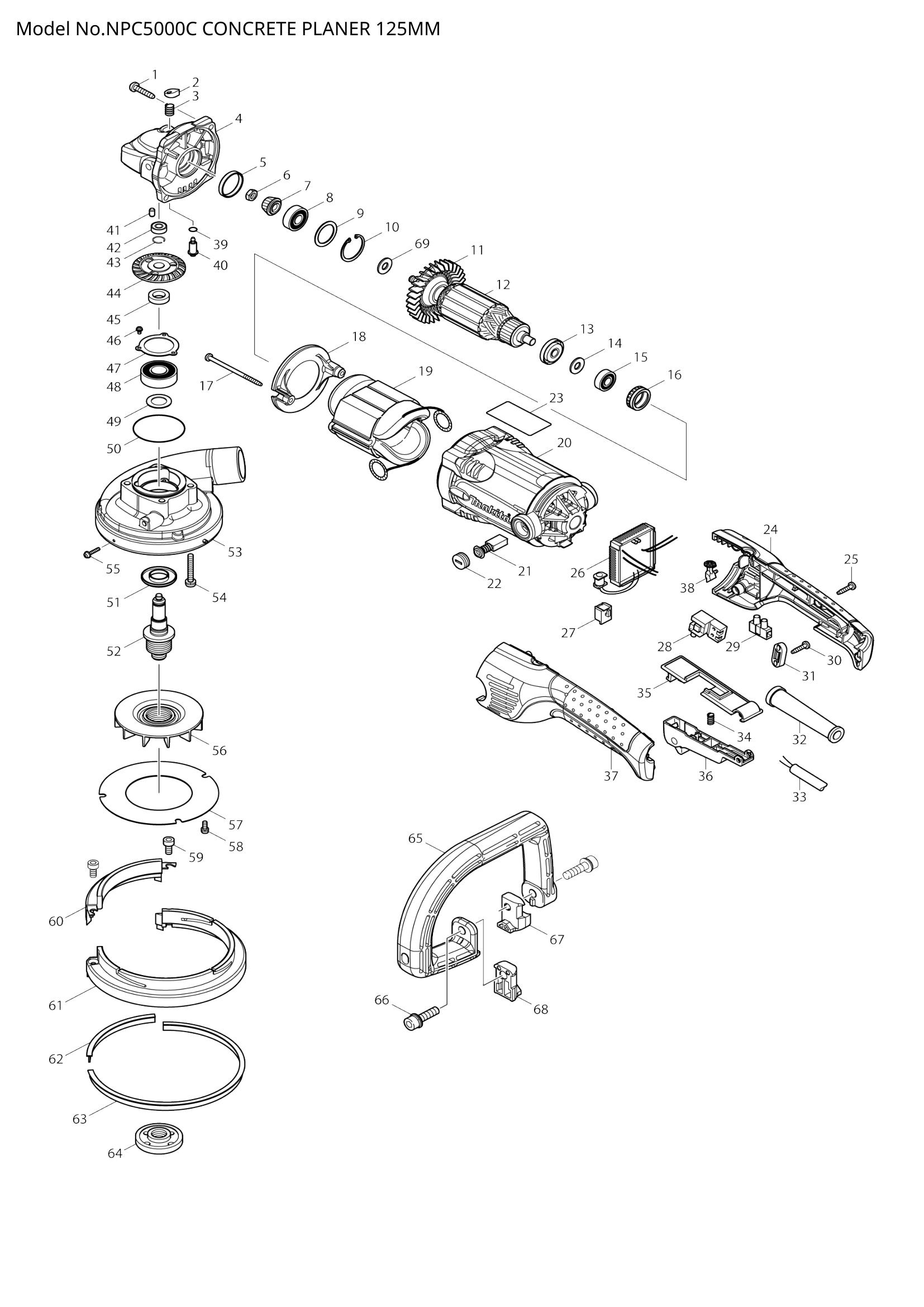

NPC5000C
NPC5000C
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266459-3 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 002 | 417771-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 234057-1 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 318158-4 | GEAR HOUSING | 1 | €13.92 | 1-4 weeks to ship | |
| 005 | 424051-3 | RUBBER RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 264010-3 | HEX.NUT M7 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 227520-1 | SPIRAL BEVEL GEAR 11 | 1 | €4.17 | 1-4 weeks to ship | |
| 008 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 009 | 267352-4 | FLAT WASHER 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 962107-9 | RETAINING RING (INT) R-30 | 1 | €0.56 | 1-4 weeks to ship | |
| 962107-9 | RETAINING RING (INT) R-30 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 240094-5 | FAN 70 | 1 | €1.11 | 1-4 weeks to ship | |
| 012 | 518685-3 | ARMATURE ASS'Y 240V | 1 | €41.75 | 1-4 weeks to ship | |
| 518685-3 | ARMATURE ASS'Y 240V | 1 | €41.75 | 1-4 weeks to ship | ||
| 013 | 681660-3 | INSULATION WASHER | 1 | €8.35 | 1-4 weeks to ship | |
| 014 | 267281-1 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 016 | 421720-7 | RUBBER RING 22 | 1 | €8.35 | 1-4 weeks to ship | |
| 017 | 266325-4 | TAPPING SCREW 4X70 | 2 | €0.56 | 1-4 weeks to ship | |
| 018 | 419961-7 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 019 | 528819-0 | FIELD ASS'Y 240V | 1 | €29.36 | 1-4 weeks to ship | |
| 020 | 140019-8 | MOTOR HOUSING COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 022 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | €0.56 | 1-4 weeks to ship | |
| 023 | NPC5000C NAME PLATE | 1 | Not available in store | |||
| 024 | 188630-8 | HANDLE SET | 1 | €11.13 | 1-4 weeks to ship | |
| 025 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 027 | 418518-1 | SLEEVE | 1 | €1.11 | 1-4 weeks to ship | |
| 029 | 654575-7 | TERMINAL BLOCK | 1 | €4.17 | 1-4 weeks to ship | |
| 030 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 031 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 682574-9 | CORD GUARD 10-90 | 1 | €0.56 | 1-4 weeks to ship | |
| 682574-9 | CORD GUARD 10-90 | 1 | €0.56 | 1-4 weeks to ship | ||
| 033 | 665883-1 | POWER SUPPLY CORD 1.0-2-5.0 | 1 | €30.61 | 1-4 weeks to ship | |
| 034 | 233117-6 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 188630-8 | HANDLE SET | 1 | €11.13 | 1-4 weeks to ship | |
| 038 | 450184-8 | LENS | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 213977-2 | O RING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 256505-0 | SHOULDER PIN 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 043 | 233950-6 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 227521-9 | SPIRAL BEVEL GEAR 35A | 1 | €11.13 | 1-4 weeks to ship | |
| 046 | 911003-8 | PAN HEAD SCREW M3X6 | 3 | €0.56 | 1-4 weeks to ship | |
| 911003-8 | PAN HEAD SCREW M3X6 | 3 | €0.56 | 1-4 weeks to ship | ||
| 047 | 285728-3 | BEARING RETAINER 39 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 211241-5 | BALL BEARING 6202DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 049 | 253853-8 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 213624-5 | O RING 48 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 345464-4 | LABYRINTH RING | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 325625-2 | SPINDLE | 1 | €8.35 | 1-4 weeks to ship | |
| 053 | 141021-4 | SKIRT B COMPLETE | 1 | €30.61 | 1-4 weeks to ship | |
| 054 | 911256-9 | PAN HEAD SCREW M5X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 055 | 911024-0 | PAN HEAD SCREW M3X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 911024-0 | PAN HEAD SCREW M3X14 | 1 | €0.56 | 1-4 weeks to ship | ||
| 056 | 240114-5 | FAN 85 | 1 | €8.35 | 1-4 weeks to ship | |
| 057 | 346045-7 | SEPARATOR | 1 | €1.11 | 1-4 weeks to ship | |
| 058 | 911115-7 | PAN HEAD SCREW M4X10 | 3 | €0.56 | 1-4 weeks to ship | |
| 059 | 922312-0 | HEX. SOCKET HEAD BOLT M6X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 060 | 424526-2 | DUST COVER CAP | 1 | €11.13 | 1-4 weeks to ship | |
| 061 | 424525-4 | DUST COVER | 1 | €22.26 | 1-4 weeks to ship | |
| 062 | BRUSH B | 1 | Not available in store | |||
| 063 | BRUSH A | 1 | Not available in store | |||
| 064 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 065 | 416256-9 | LOOP HANDLE | 1 | €13.92 | 1-4 weeks to ship | |
| 066 | 922453-2 | HEX.SOCKET HEAD BOLT M8X30 | 2 | €0.56 | 1-4 weeks to ship | |
| 922453-2 | HEX.SOCKET HEAD BOLT M8X30 | 2 | €0.56 | 1-4 weeks to ship | ||
| 067 | 450189-8 | SPACER A | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 450190-3 | SPACER B | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 253828-7 | FLAT WASHER 10 | 1 | €0.70 | 1-4 weeks to ship | |
